Glass clamp 6-12.76 mm bracket and pin 63x45x30 mm AISI 304 system 42.4 mm satin
Description
Glass Clamp 63x45x30 mm with Bracket – AISI 304 Satin Stainless Steel
Glass clamp 63×45×30 mm with bracket and securing pin — a robust solution for mounting glass panels in system balustrades on Ø 42.4 mm tube. The rounded form and satin-finish AISI 304 stainless steel provide an elegant, contemporary appearance, while the material ensures excellent corrosion resistance — both indoors and outdoors.
Application and Function
The clamp is designed to stabilise glass panels in glass and all-glass balustrades. The integrated securing pin effectively prevents the panel from slipping out of the clamp, enhancing the overall safety of the structure. The product is ideally suited for shopping centres, hotels, office buildings and residential construction — wherever an aesthetically pleasing and durable glass balustrade is required.
Allen-head screws allow smooth adjustment of clamping pressure without the need to disassemble the clamp, significantly speeding up installation and simplifying on-site adjustments.

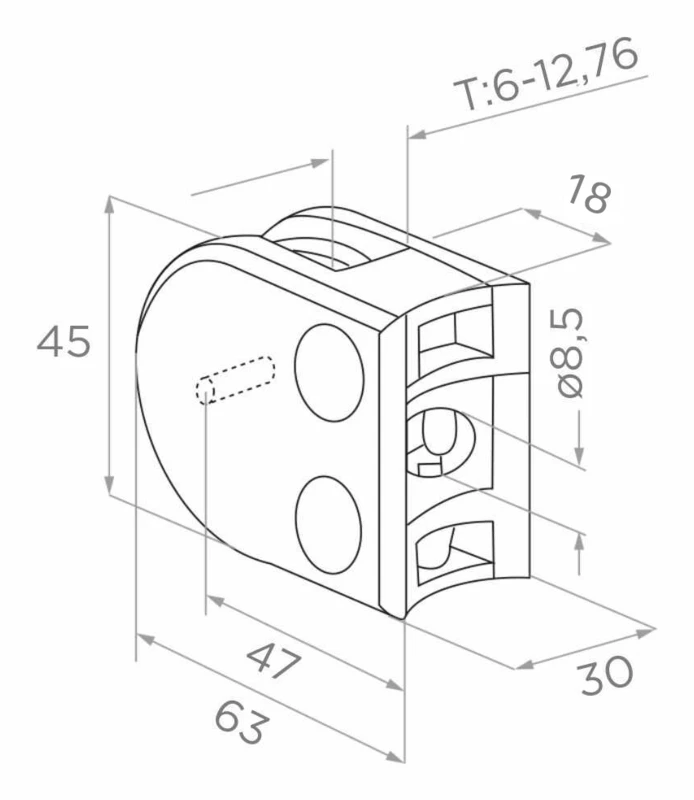

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width: 30 mm
- Side depth: 47 mm
- Distance from glass axis to mounting surface: 18 mm
- Mounting hole diameter: Ø 8.5 mm
- Glass thickness range: 6–12.76 mm
- Tube system: Ø 42.4 mm
- Material: AISI 304 stainless steel
- Finish: satin (brushed)
- Weight: 0.28 kg
- Volume: 85.05 cm³
- EAN: 5901289671071

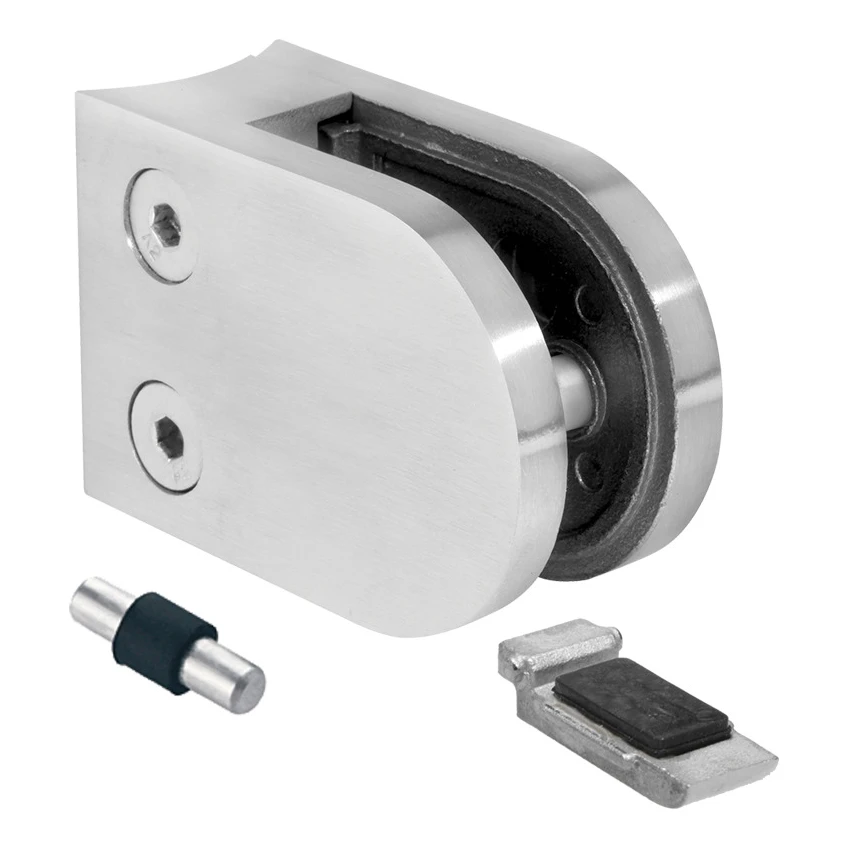

Set Contents
- Glass clamp with bracket
- Securing pin
Additional Information
The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being installed. Gaskets are available as separate accessories — this means a single clamp model covers the full glass thickness range from 6 mm to 12.76 mm, reducing the number of stock variants and simplifying procurement logistics for installation companies.
Technical data
| Glass Thickness [mm] | 6-12,76 |
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
