Gentle balustrade elbow glued 90° stainless steel AISI 304 – 48.3 mm tube satin
Description

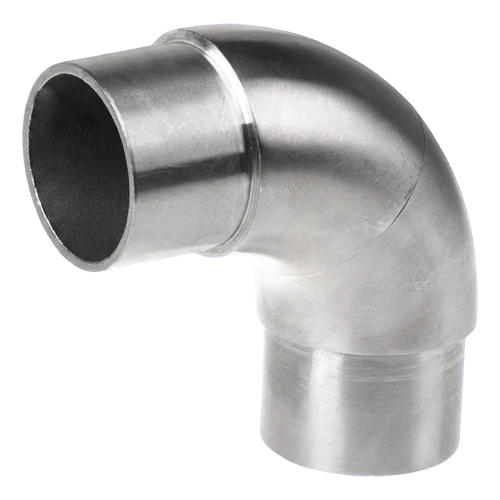

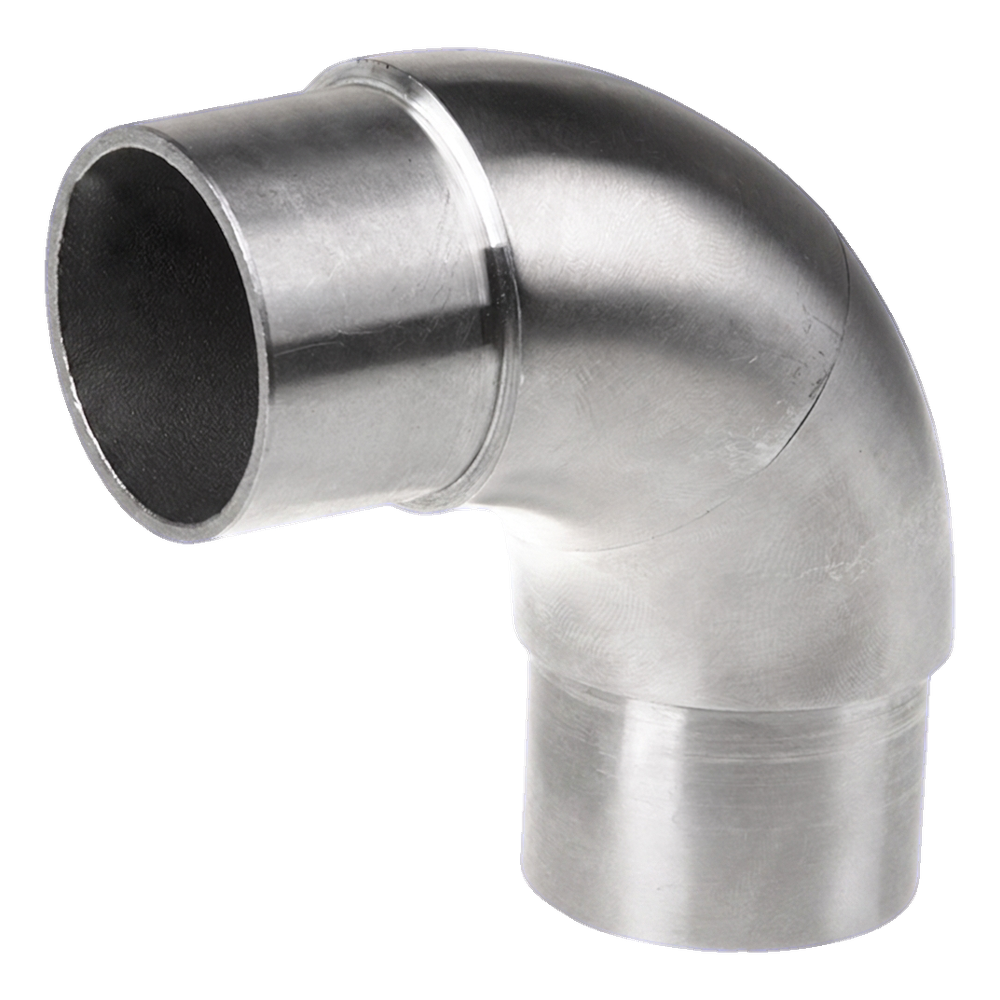

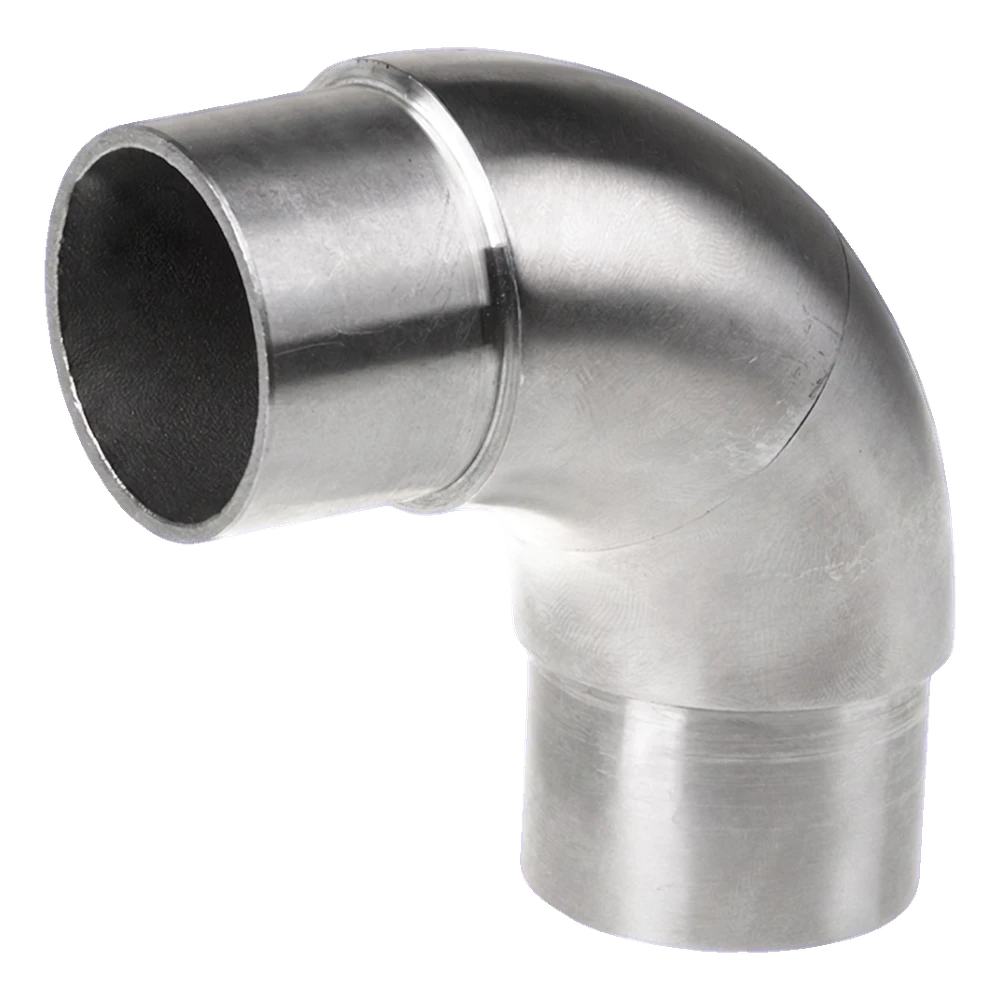

Gentle balustrade elbow glued 90° stainless steel AISI 304 – 48.3 mm tube satin
Gentle glued elbow 90° is a high-quality balustrade connector designed for 48.3 mm tube systems. Made from stainless steel AISI 304 with a satin surface finish, it provides aesthetic and durable connection of stainless steel balustrade elements at handrail direction changes.
The elbow is mounted using the gluing method with anaerobic adhesive designed for connecting stainless steel elements. This assembly method guarantees an invisible connection without welds, resulting in a clean, elegant construction line — without the need for additional surface treatment after installation.

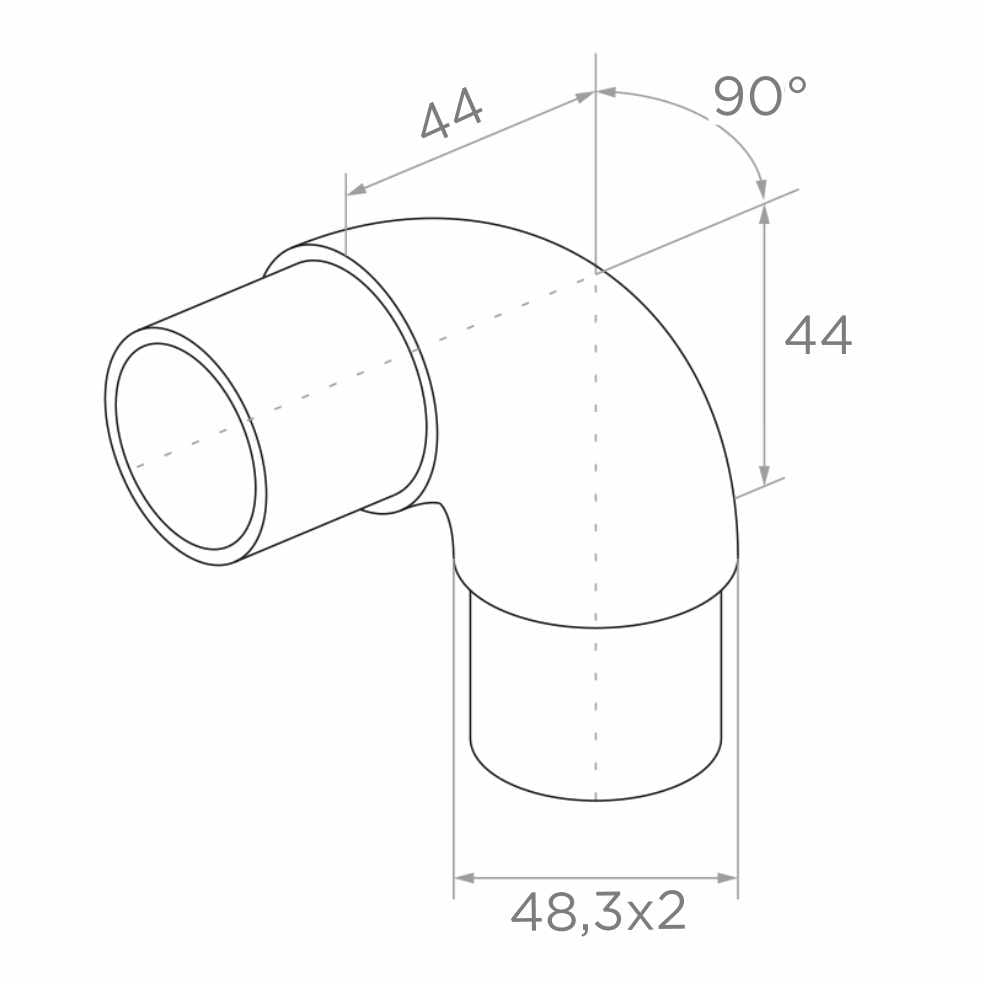

Dimensions and technical data
- Bend angle: 90°
- External tube diameter: 48.3 mm
- Tube wall thickness: 2 mm
- Axial distance (horizontal): 44 mm
- Axial distance (vertical): 44 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Assembly method: gluing (anaerobic adhesive)
- System: 48.3
- Weight: 0.23 kg
- EAN: 5901289673075
Application and compatibility
The gentle elbow is dedicated to stainless steel balustrade systems based on 48.3 mm diameter tube. It provides an aesthetic connector at locations where the handrail changes direction at a 90° angle — e.g. on stair turns, landings or transitions between balustrade sections. The gentle curve of the elbow ensures smooth direction change, which improves user comfort and visual quality of the entire construction.
The satin surface finish perfectly complements other stainless steel balustrade elements — posts, glass clamps, end caps and other connectors in the 48.3 system. This allows installers to build visually cohesive constructions with uniform appearance in every detail.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
