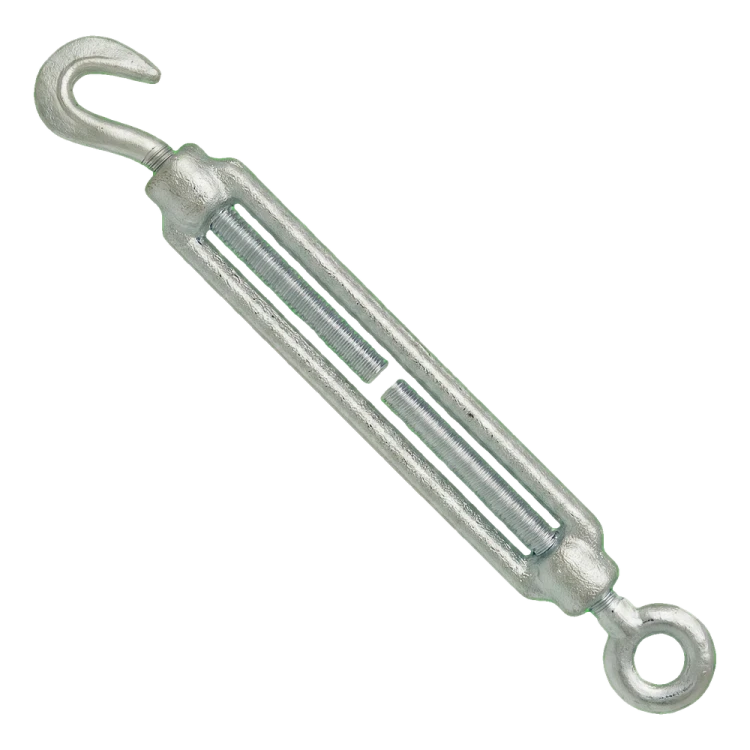

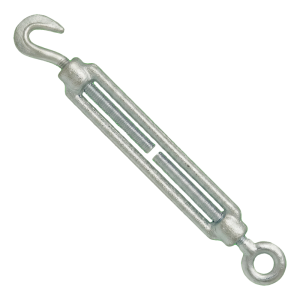

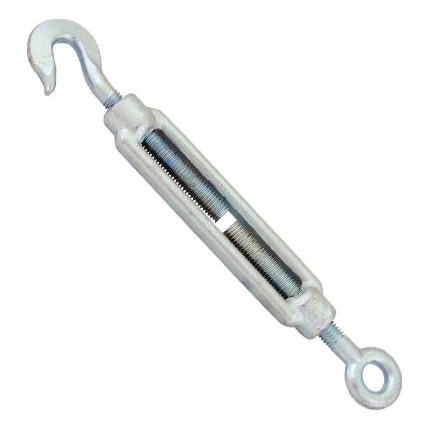

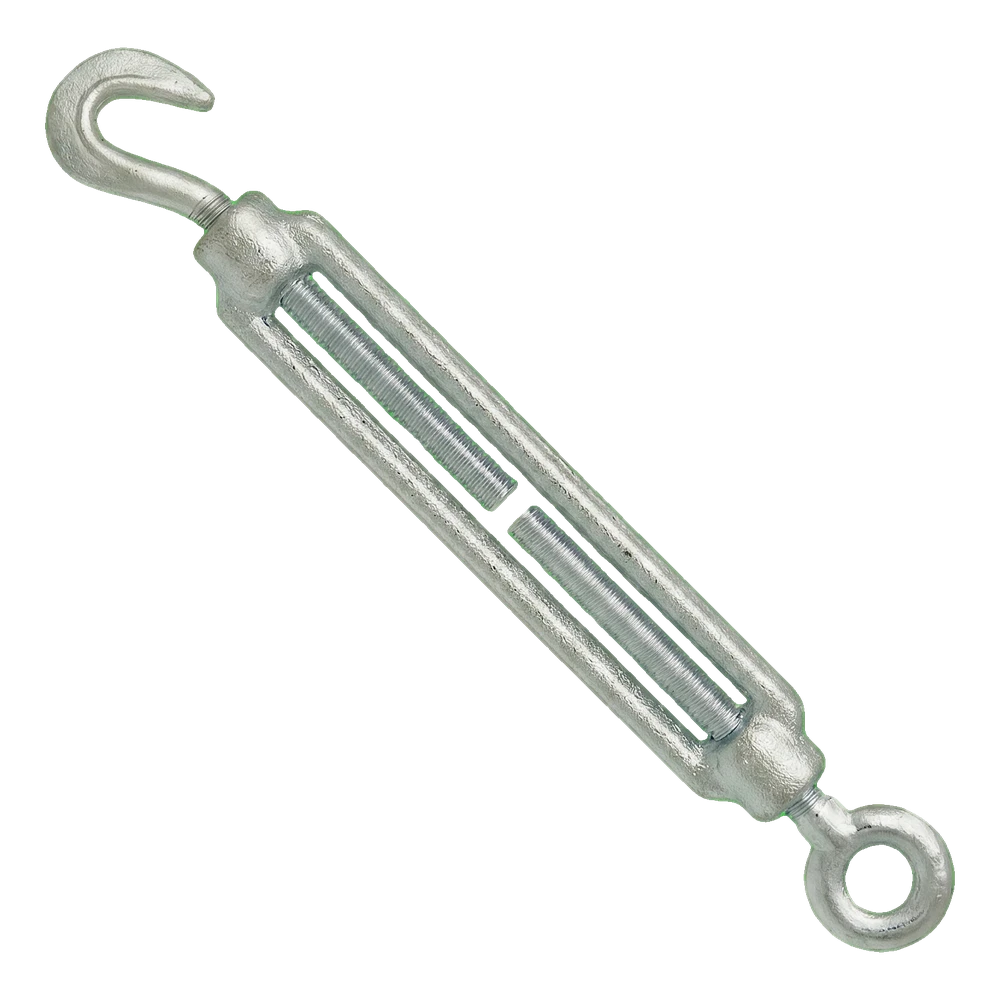

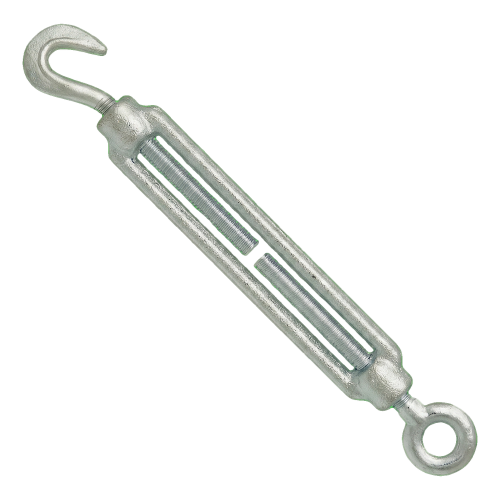

Galvanised turnbuckle M20×200 mm – hook–eye, DIN 1480
Leave feedback on the product

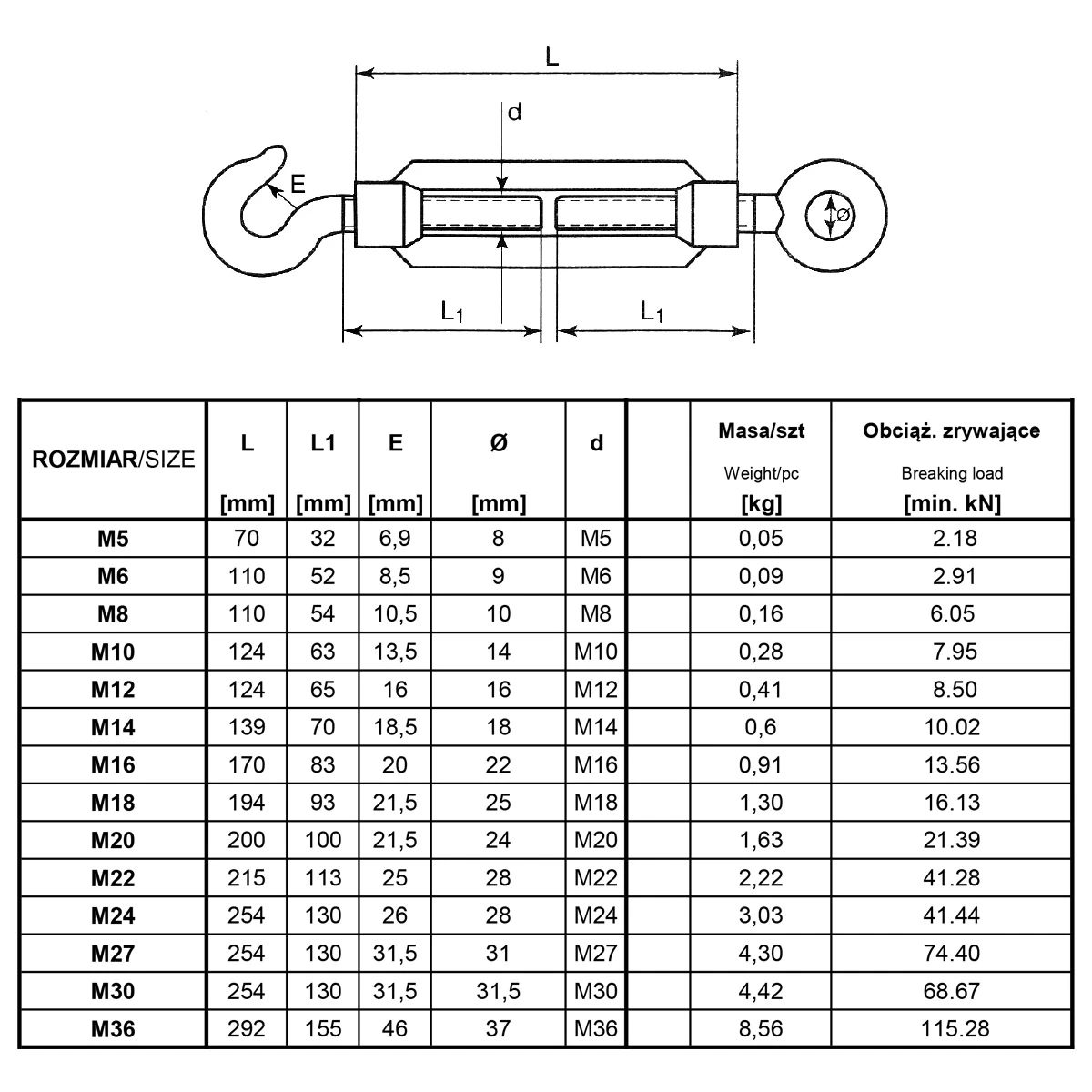

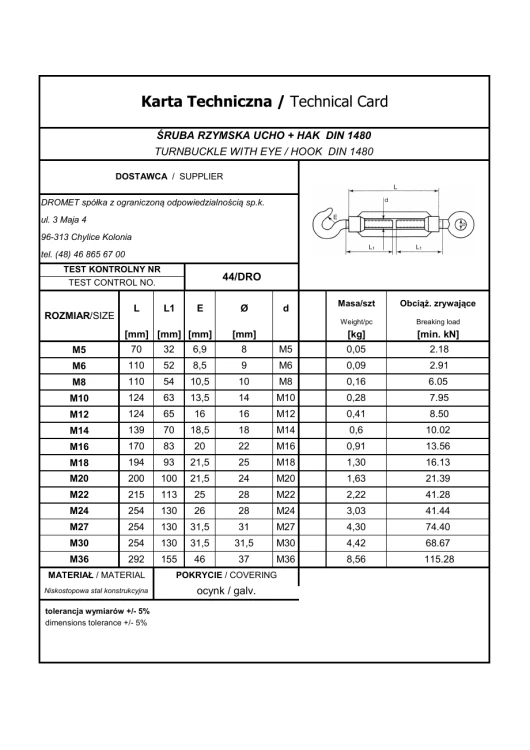

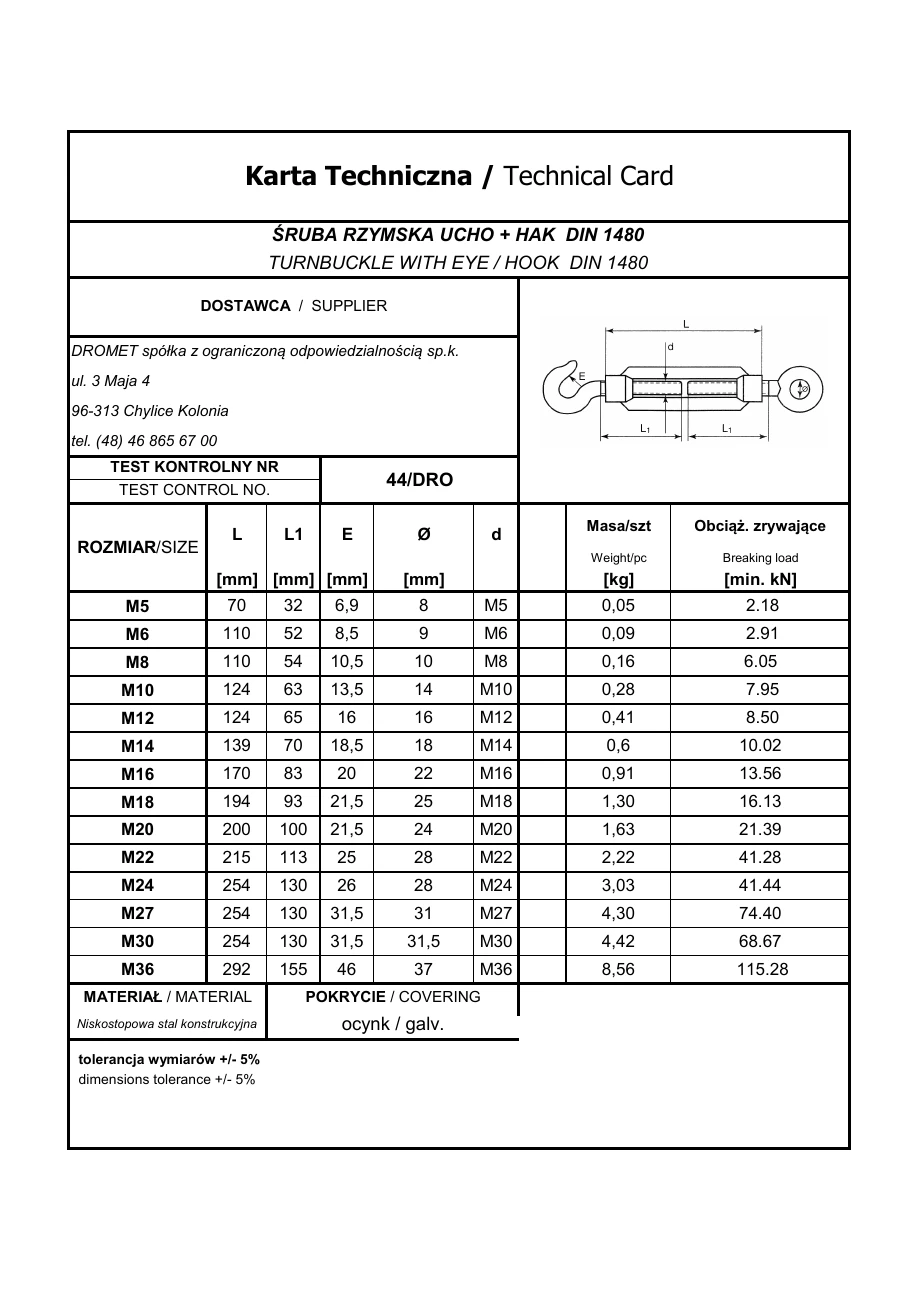

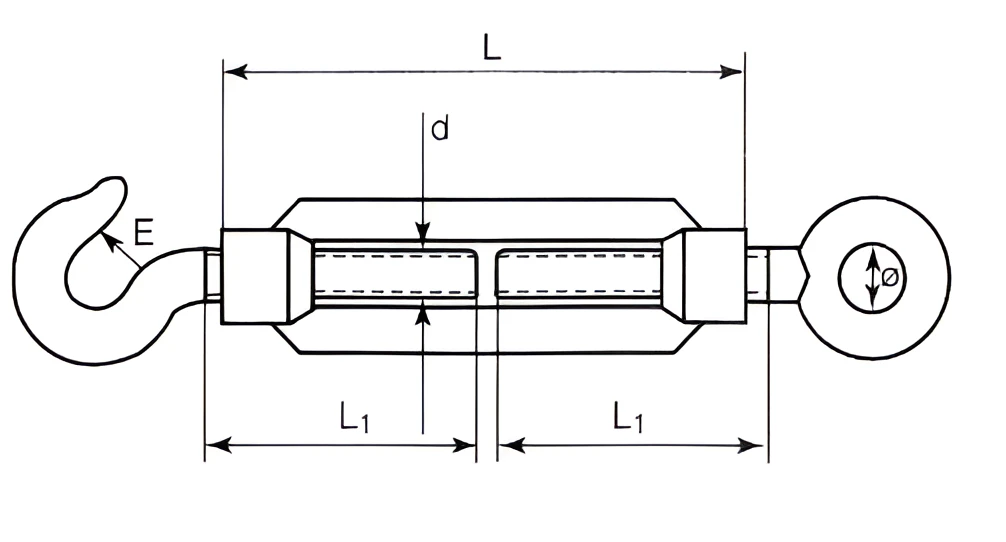

Hook-eye turnbuckle M20x200 mm, DIN 1480, galvanised. C15 structural steel, electrolytic zinc plating. Thread length 100 mm, hook opening 21.5 mm, eye diameter 24 mm. Weight 1.63 kg. Minimum breaking force 21.39 kN.
Product code: 002-448
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M20
Description
Galvanised turnbuckle M20×200 mm – hook–eye, DIN 1480
The forged hook-eye turnbuckle M20x200 DIN 1480 is a professional tensioning element designed for adjusting the tension of steel wire ropes, chains and tie rods. Its forged, high-strength steel construction, protected with an anti-corrosion coating, performs well in demanding outdoor conditions — on building sites, in guy-wire structures and in roof installations. The hook-eye end combines two functions in a single element: the hook allows the rope to be attached and detached quickly, while the eye provides a durable, secure connection to a shackle, a wire rope thimble or other rigging hardware. The length is adjusted by turning the body, which allows tie rods to be tensioned precisely without dismantling the whole connection.
Applications and advantages
- Tensioning steel wire ropes in guy-wire structures, balustrades and roof installations
- Hook-eye end — a versatile connection: hook for quick attachment, eye for permanent fastening with a shackle or wire rope thimble
- Forged construction ensuring high resistance to dynamic loads
- Anti-corrosion coating protecting against rust in outdoor conditions
- Infinitely variable tension adjustment by turning the body — without dismantling the connection
