Galvanised turnbuckle M14×140 mm – hook–eye, DIN 1480
Leave feedback on the product

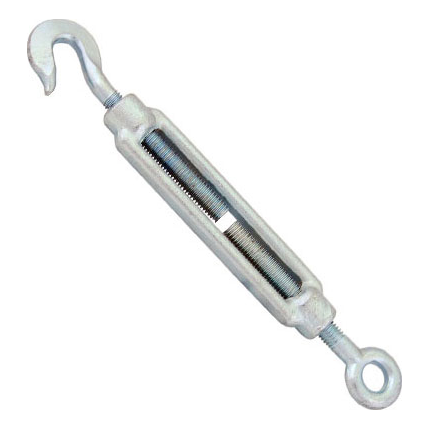

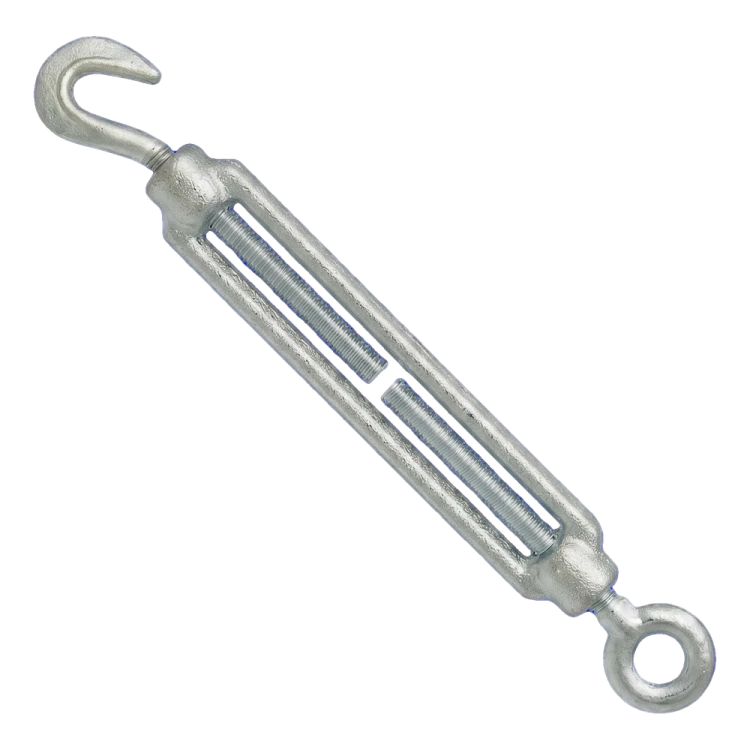

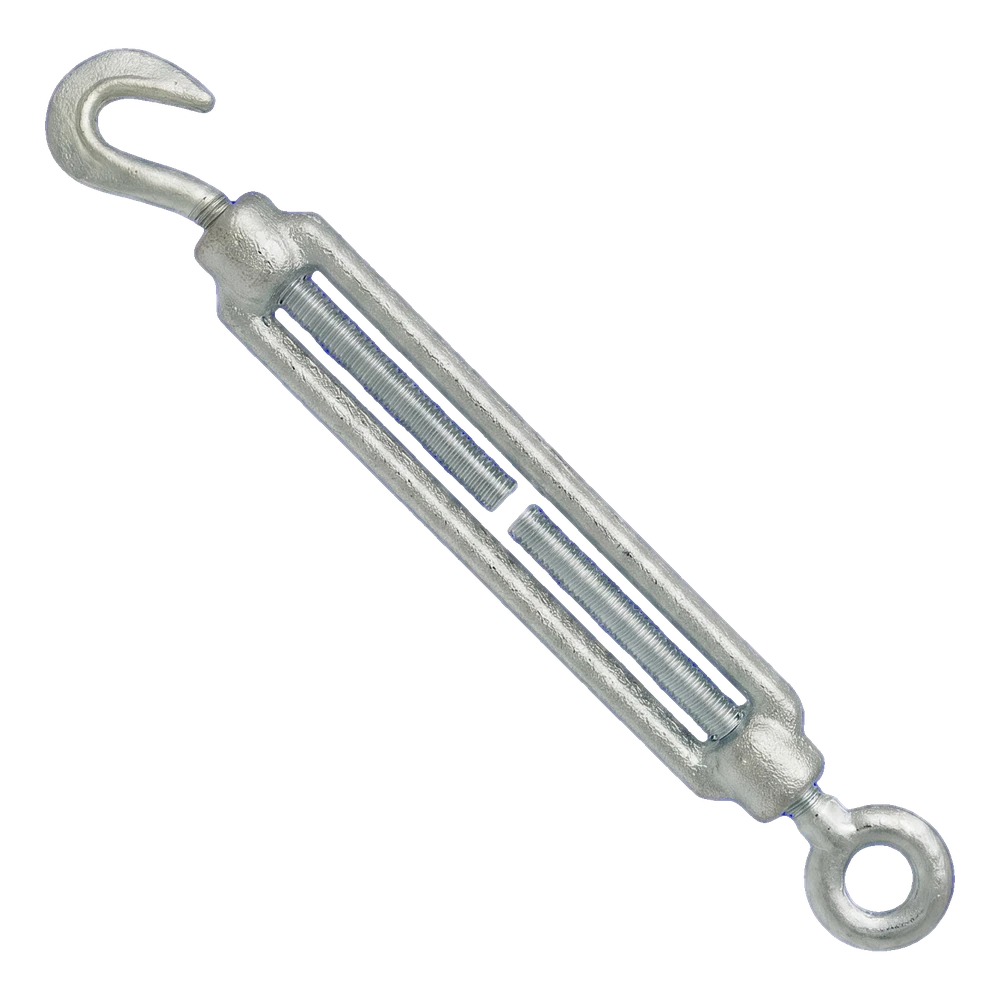

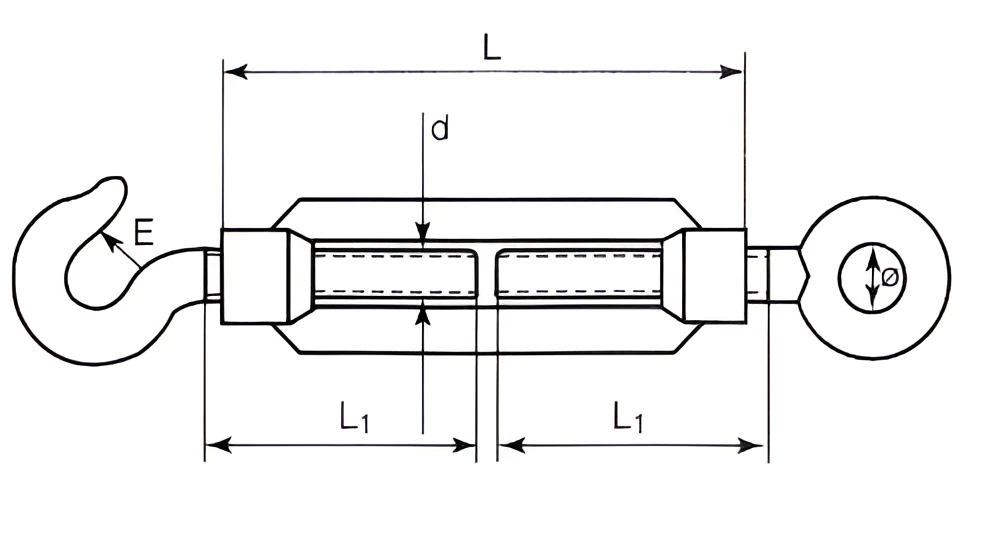

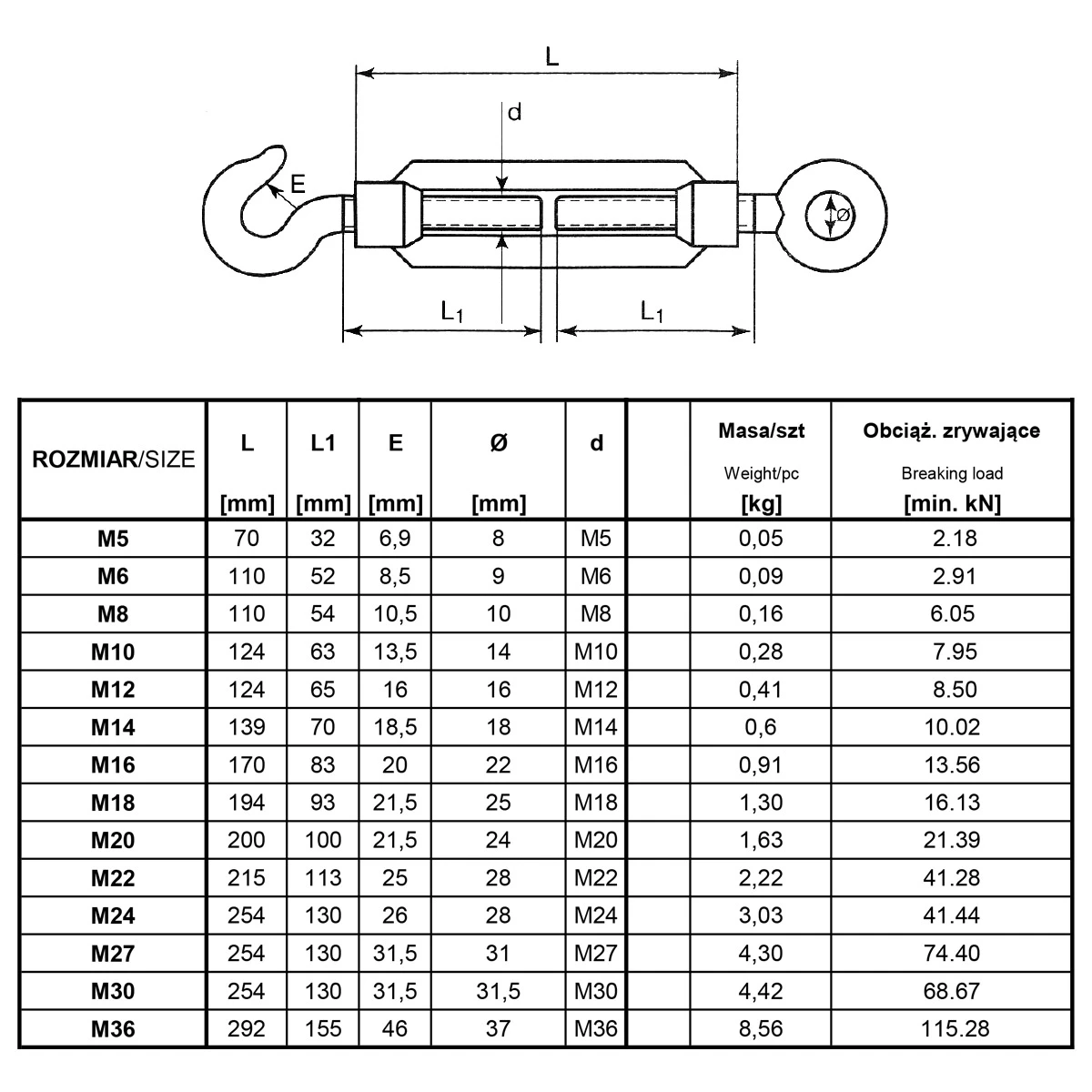

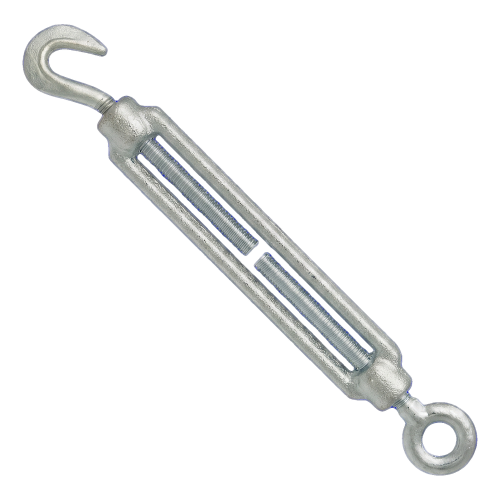

Hook-eye turnbuckle M14 made of galvanised C15 steel, DIN 1480. Length L 139 mm, thread length L1 70 mm, hook opening 18.5 mm, eye diameter 18 mm. Weight 0.6 kg. Minimum breaking force 10.02 kN. For tensioning ropes, chains and tie rods.
Product code: 002-446
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M14
Description
Galvanised turnbuckle M14×140 mm – hook–eye, DIN 1480

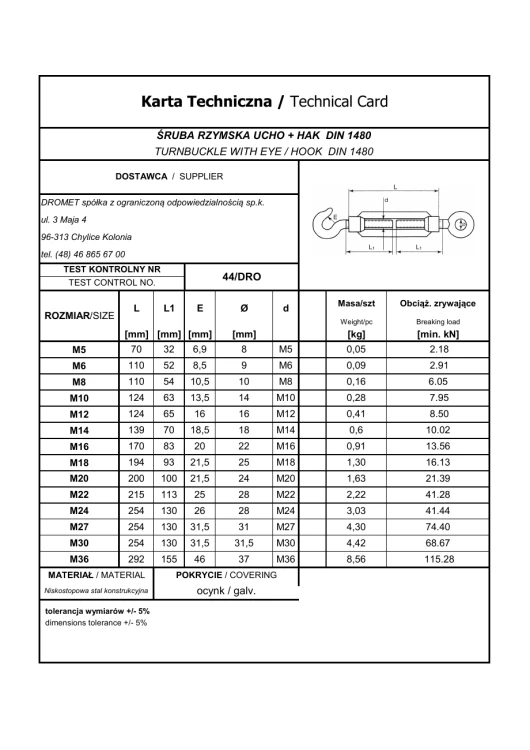

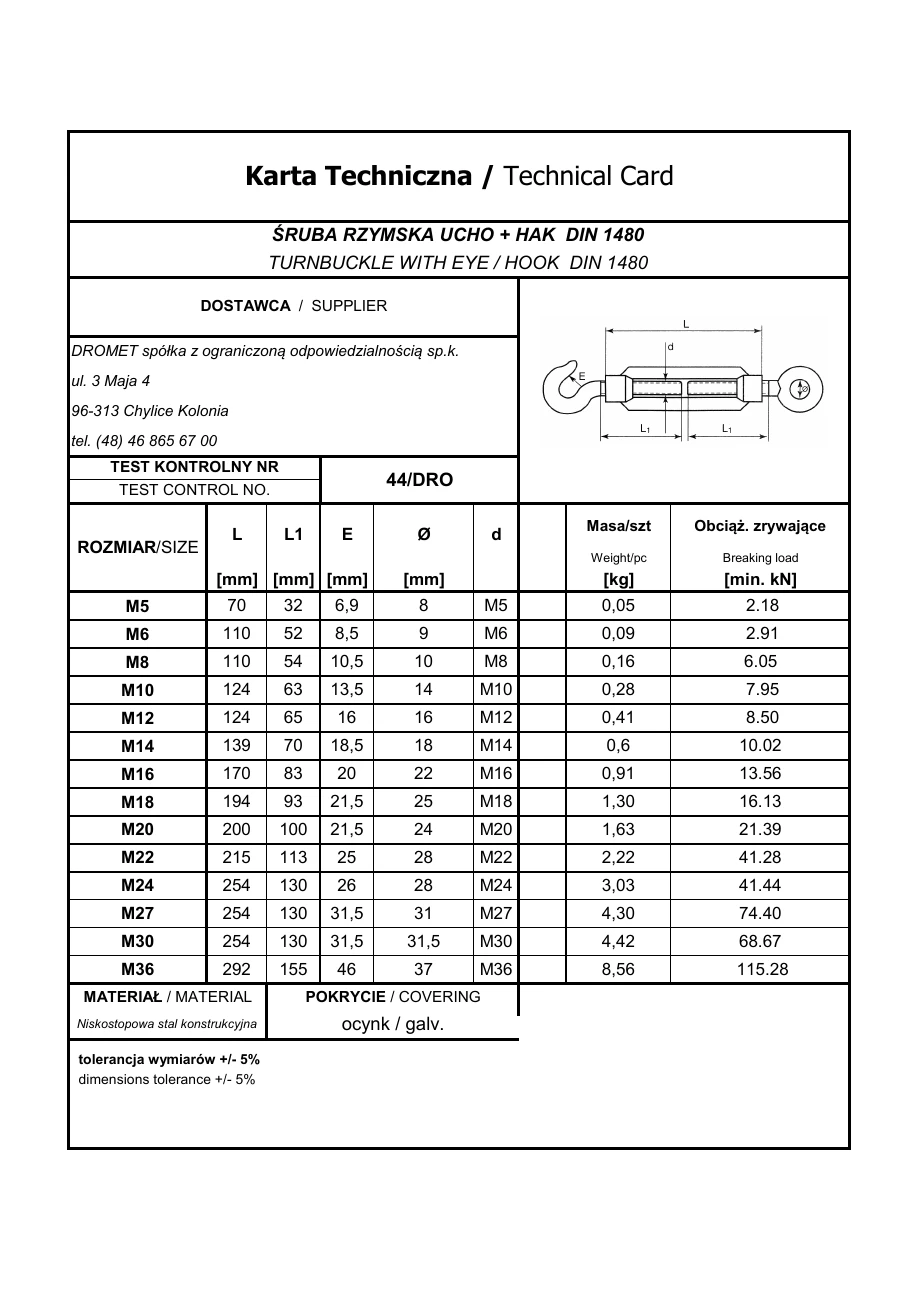

Forged hook-eye turnbuckle M14 compliant with DIN 1480 is a durable tensioning component designed for adjusting the tension of steel wire ropes, chains and tie rods. Made of low-alloy structural steel C15 and protected with an electro-galvanised zinc coating, it provides effective protection against corrosion in outdoor conditions. The hook-eye end allows quick connection to various types of fittings — the hook enables easy attachment and detachment of the rope, while the eye provides a fixed, secure connection, e.g. to a shackle or pin. The forged body construction ensures high mechanical strength — the minimum breaking force is 10.02 kN (approx. 1022 kg), as confirmed by the manufacturer's data sheet. The dimensional tolerance is ±5% in accordance with the documentation.
Applications and advantages
- Tensioning steel wire ropes in guy installations, balustrades and fences
- Adjusting the tension of tie rods in steel structures and suspended systems
- Forged body construction provides high resistance to dynamic loads
- Hook-eye end simplifies installation and removal without the need to pass the rope through the eye
- Galvanised coating protects against corrosion in outdoor applications
