Galvanised technical chain DIN 5685/A Ø8.0 mm – short link
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
1.19 kg
Rating:
0
0
Vendor:
-
Product code:
002-035
Description

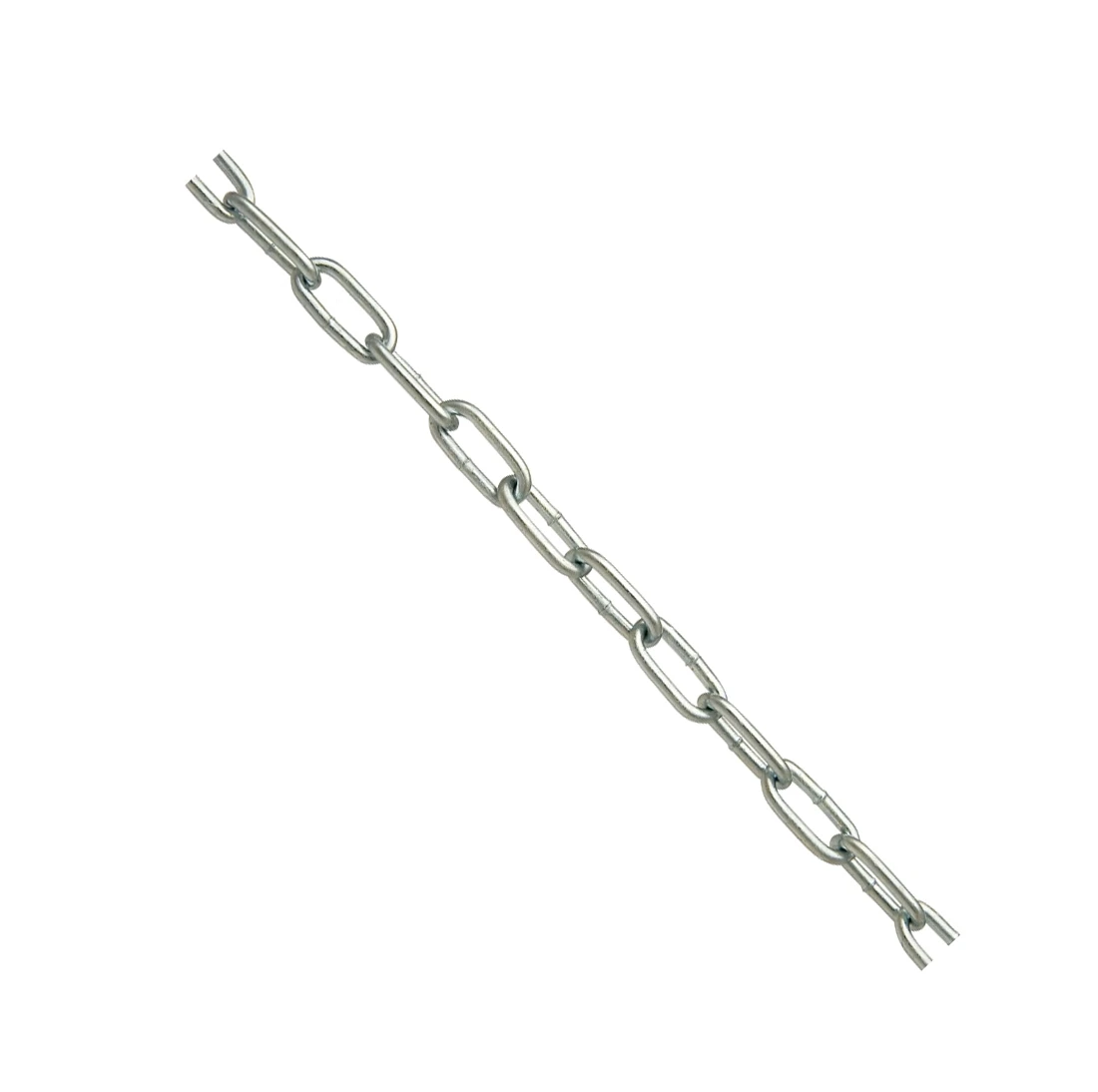

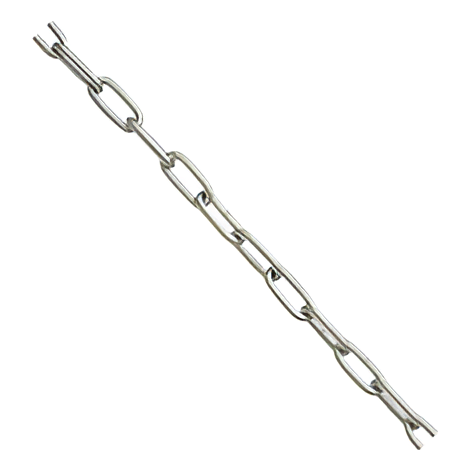

Galvanised technical chain DIN 5685/A Ø8.0 mm – short link
Galvanised technical chain with a short link, manufactured in accordance with the DIN 5685/A standard. The welded links, made from 8.0 mm diameter rod, ensure high mechanical strength, while the zinc coating provides effective protection against corrosion. The chain performs well wherever durable securing, fencing off, or fastening of elements is required in outdoor conditions.

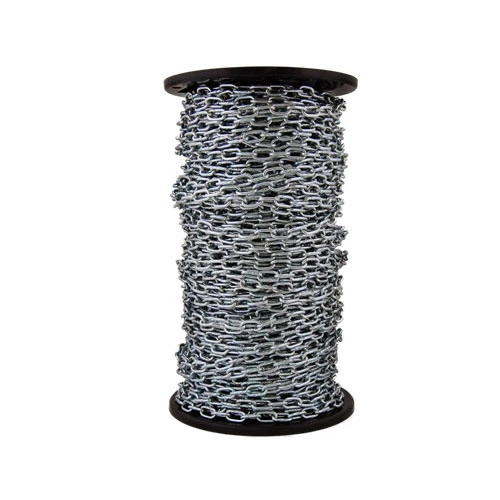

The product is sold by the running metre — the parameters given apply to 1 running metre. The chain is wound onto a roll approximately 20 m long — ordering 20 m will get you a full roll.
Technical parameters
- Standard: DIN 5685/A (short link)
- Rod diameter: 8.0 mm
- External link size: 30.0 × 50.0 mm
- Breaking load: 49.2 kN
- Link type: welded
- Coating: zinc (Zn)
- Weight: 1.19 kg/m
- Roll length: approx. 20 m
Applications
- Securing and fastening components
- Fencing off areas and zones
- Technical suspensions
- Applications in agriculture and on farms
Important: Technical chain — not intended for lifting loads (not a lifting sling). Made in the European Union.
Loading...
Technical data
| Diameter | 8 |
