Galvanised technical chain DIN 5685/A Ø7.0 mm – short welded link
0
Description

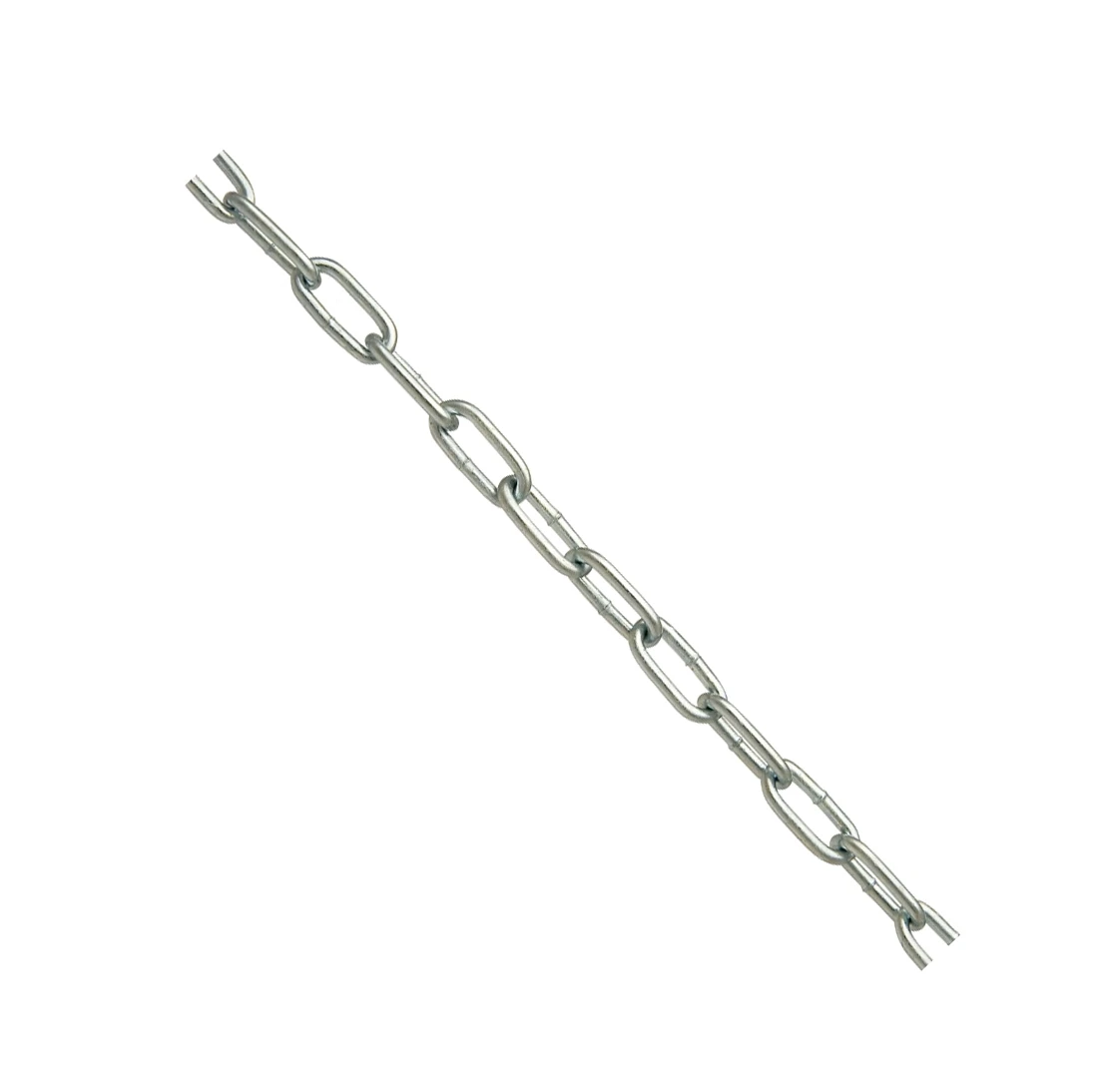

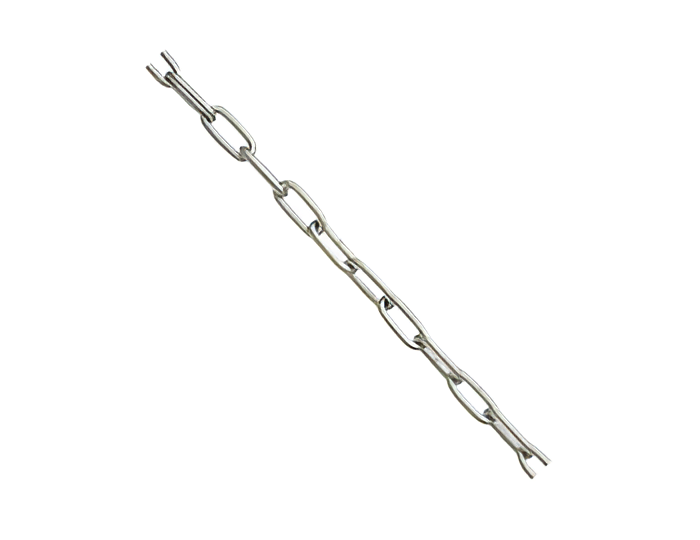

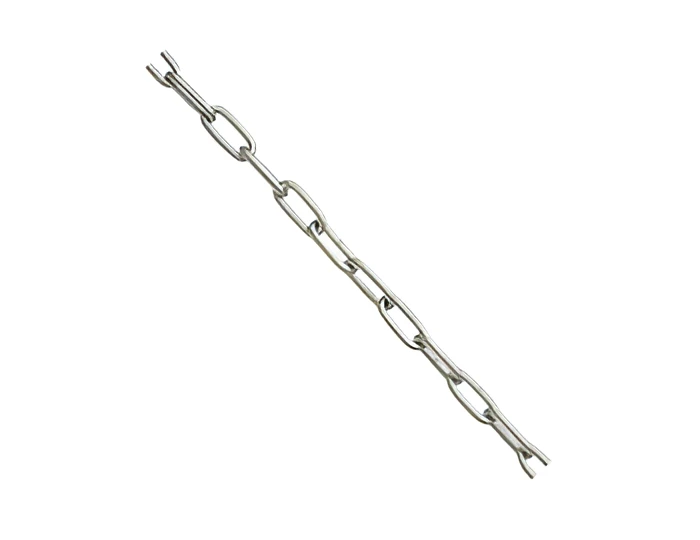

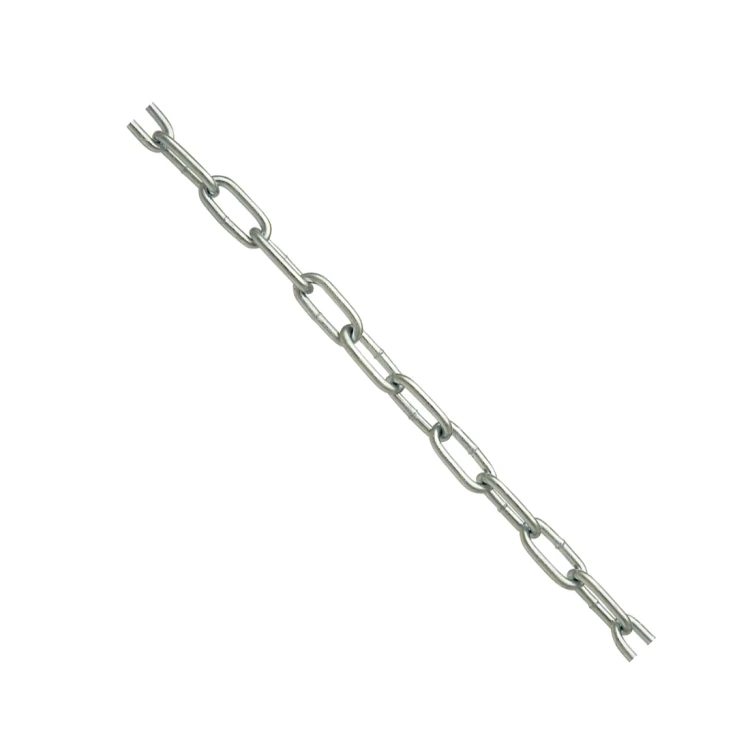

Galvanised technical chain DIN 5685/A Ø7.0 mm – short welded link
Galvanised technical chain with a short welded link, manufactured in accordance with the DIN 5685/A standard. A rod diameter of 7.0 mm and a breaking strength of 32.7 kN ensure high durability in securing, fastening and fencing applications. The zinc (Zn) coating protects against corrosion, allowing the chain to be used in variable weather conditions — both indoors and outdoors.

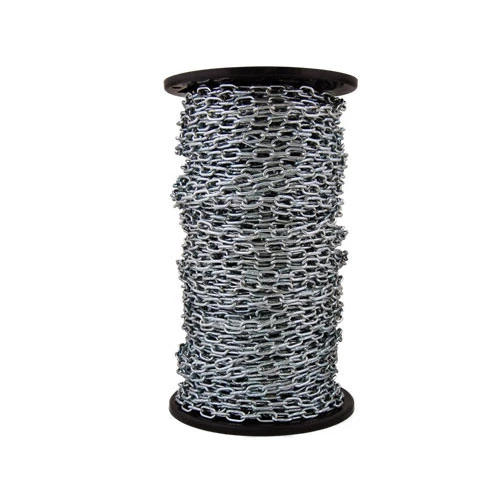

The product is sold by the running metre. The chain is wound onto a roll approximately 26 m in length — when ordering 26 m, you receive a full roll. Manufactured in the European Union.
Technical parameters
- Standard: DIN 5685/A (short link)
- Rod diameter: 7.0 mm
- External link dimensions: 27.0 × 41.0 mm
- Breaking strength: 32.7 kN
- Weight: 0.89 kg/m
- Link type: welded
- Coating: zinc (Zn)
- Roll length: approx. 26 m
Applications
The technical chain is designed for securing, fastening and fencing applications. It works well in technical suspensions, agriculture and household use. The welded links provide a durable connection between the individual chain elements.
⚠ Note: technical chain — not intended for lifting loads (does not constitute a lifting sling).
Technical data
| Diameter | 7 |
