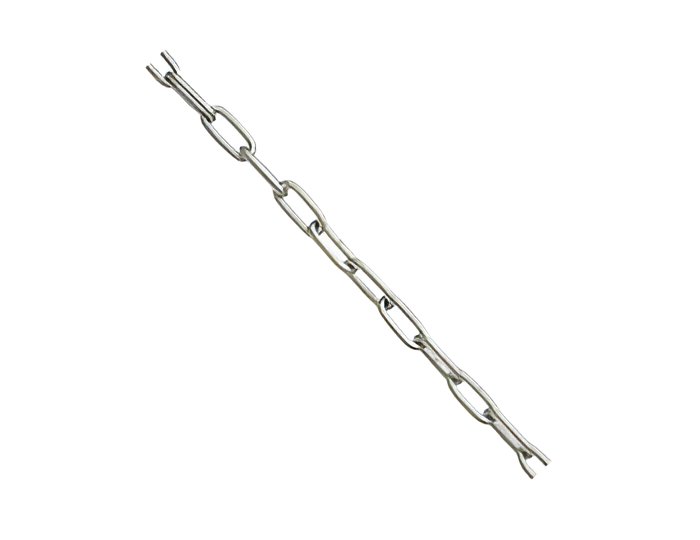

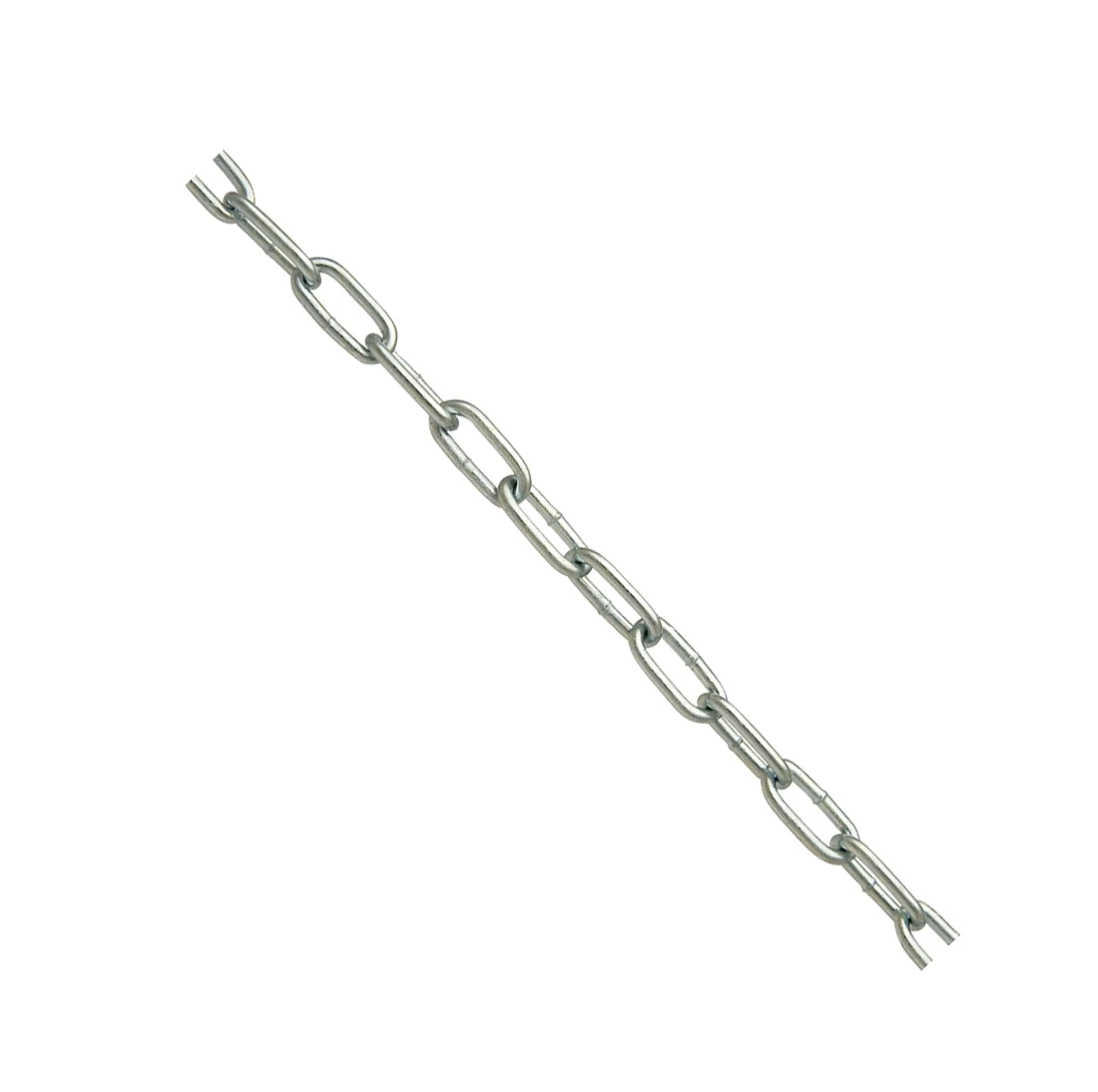

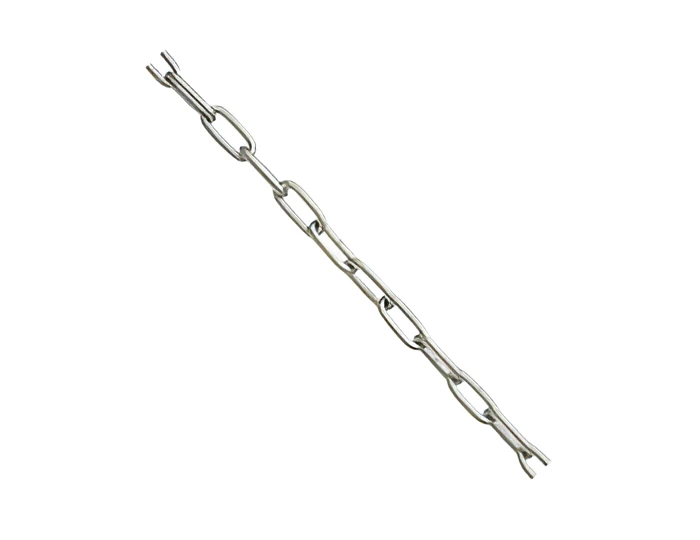

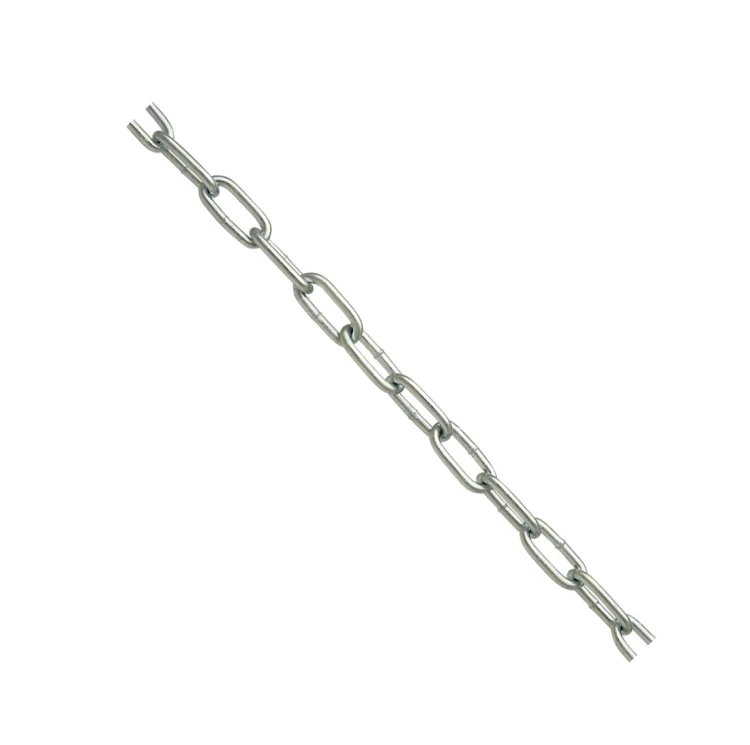

Galvanised technical chain DIN 5685/A Ø5.0 mm – short link
Leave feedback on the product
Galvanised technical chain DIN 5685/A, short link, Ø5.0 mm. Welded links, external dimension 19.0 x 31.0 mm. Breaking force 7.6 kN, weight 0.46 kg/m. Material: steel with zinc coating. Sold by the running metre.
Product code: 002-031
Product features
[PIM] lancuchy-stalowe #183
- Diameter 5
Description
Galvanised technical chain DIN 5685/A Ø5.0 mm – short link
Galvanised technical chain with short link manufactured in accordance with the DIN 5685/A standard. Links are welded and coated with zinc (Zn) coating, providing corrosion resistance in outdoor conditions. The chain is intended for technical applications — securing, fastening, fencing off areas, technical suspensions, as well as agricultural and household work. Manufactured in the European Union.
⚠️ Technical chain — not intended for lifting loads (does not constitute a lifting sling).
Applications
- Securing and fastening components
- Fencing off zones and passageways
- Technical suspensions
- Agricultural and household work
Technical parameters
- Standard: DIN 5685/A – short link
- Rod diameter: 5.0 mm
- External link dimension: 19.0 × 31.0 mm
- Breaking force: 7.6 kN
- Material: steel with zinc (Zn) coating
- Link type: welded
- Weight: 0.46 kg/m
Sales format and packaging

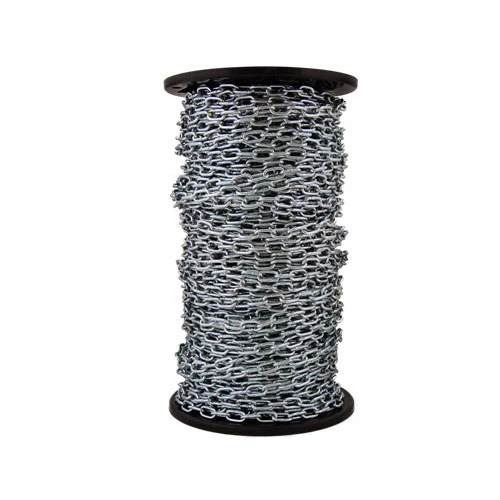

The product is sold by the running metre. The chain is wound on a reel of approx. 50 m — ordering 50 m will get you a full reel.
Chain cut to length – important information before you buy
This chain is sold by the metre: we cut it to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and link size carefully.
This does not affect your statutory rights: if the chain is faulty, or the length or link size delivered does not match your order, please let us know – we will handle your complaint under the general rules.
