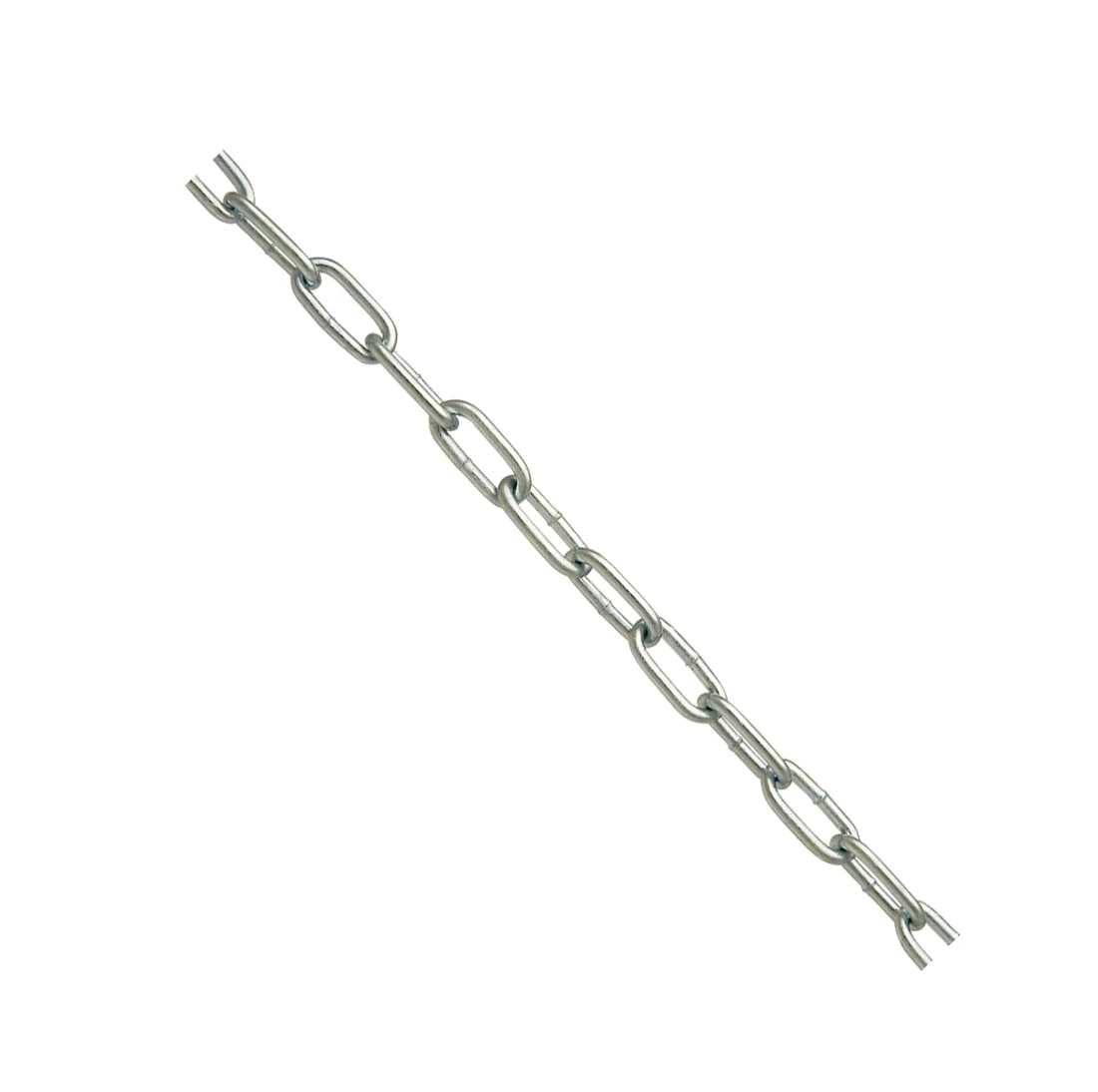

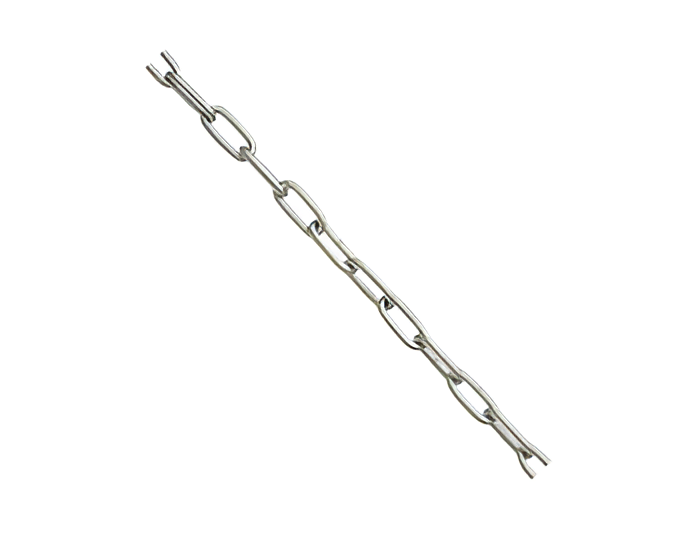

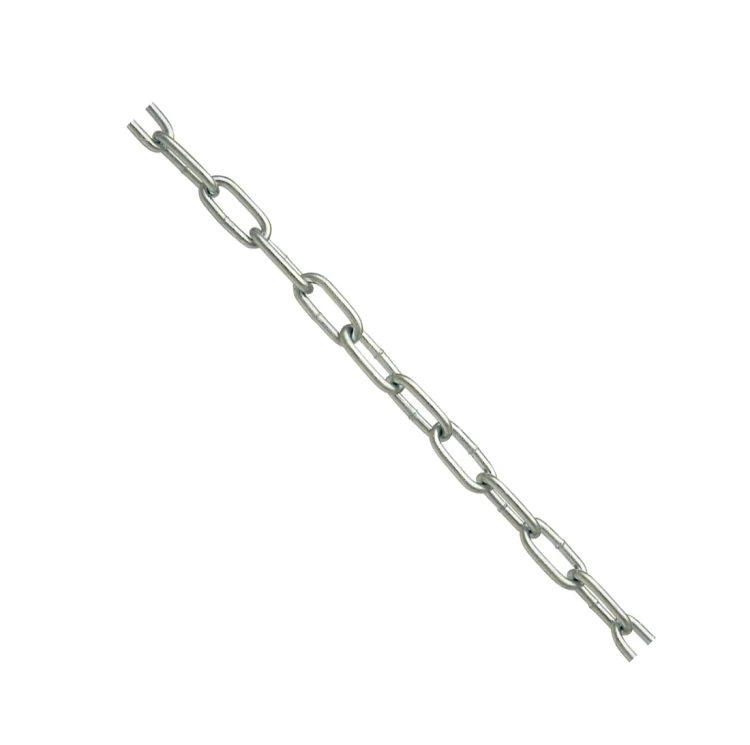

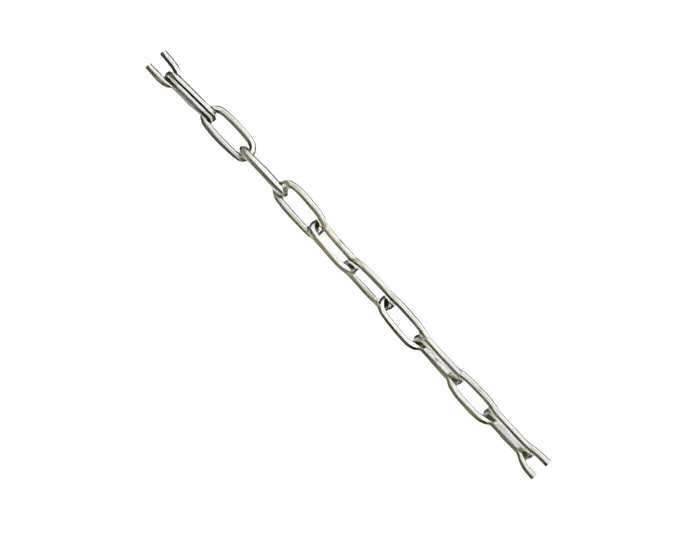

Galvanised technical chain DIN 5685/A Ø4.0 mm – short welded link
Description
Galvanised technical chain DIN 5685/A Ø4.0 mm – short welded link
Galvanised technical chain with a short link manufactured in accordance with the DIN 5685/A standard. The links, with a rod diameter of 4.0 mm, are welded, ensuring a durable and uniform connection. The zinc (Zn) coating effectively protects the chain against corrosion, extending its service life even in demanding weather conditions. Manufactured in the European Union.
This chain works well wherever reliable securing, fastening or fencing off is required — both in technical and industrial applications, as well as in agriculture and household use. It can be used as a technical suspension, a locking element or a mounting link.
Technical parameters
- Standard: DIN 5685/A – short link
- Rod diameter: 4.0 mm
- External link size: 16.0 × 27.0 mm
- Breaking load: 6.8 kN
- Link type: welded
- Coating: zinc (Zn)
- Weight: 0.28 kg/m
Sale and packaging

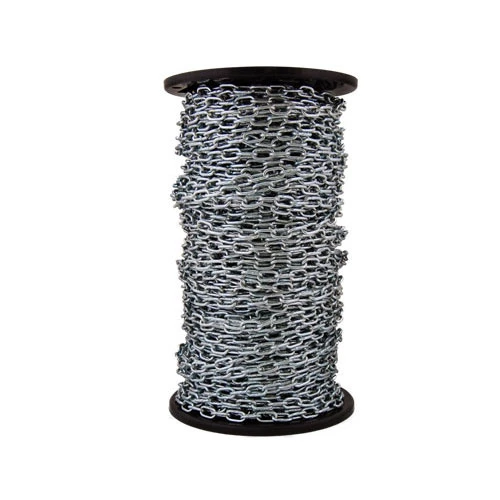

The product is sold by the running metre — the stated weight (0.28 kg) applies to one metre. The chain is wound on a roll approximately 80 m long; if you order 80 m, you will receive a full, factory roll.
Applications
- Securing and fastening components
- Fencing off areas and zones
- Technical suspensions
- Agriculture and household use
⚠ Important: This technical chain — is not intended for lifting loads and does not constitute a chain sling. It must not be used as a lifting or load-bearing element within the meaning of standards relating to slings.
Technical data
| Diameter | 4 |
