Galvanised technical chain DIN 5685/A Ø3.0 mm – short welded link
Description
Galvanised technical chain DIN 5685/A Ø3.0 mm – short welded link
Galvanised technical chain with short welded link, manufactured in accordance with DIN 5685/A standard. A wire diameter of 3.0 mm and zinc coating ensure suitable strength and corrosion resistance in typical technical applications — from securing and fencing off areas to fixings in agriculture and household use. Manufactured in the European Union.
The chain links are welded, guaranteeing a durable connection and a uniform structure of each element. The chain is sold by the running metre — order exactly as much as you need.
Technical parameters
- Standard: DIN 5685/A (short link)
- Wire diameter: 3.0 mm
- Outer link dimension: 12.5 × 23.0 mm
- Breaking strength: 4.15 kN
- Weight: 0.13 kg/m
- Coating: zinc (Zn)
- Link type: welded
- Unit of sale: 1 running metre
Reel availability

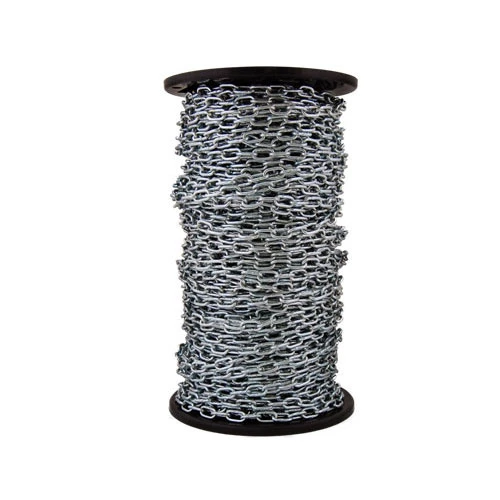

The chain is wound on a reel approximately 120 m long. Ordering 120 m gives you a full, factory reel. Smaller quantities are measured off the reel according to the order.
Applications
- Securing and fixing elements
- Fencing off areas and zones
- Technical suspensions
- Agricultural and household work
Important: this chain is a technical product — it is not intended for lifting loads and does not constitute a lifting sling. Use only in accordance with its intended purpose.
Technical data
| Diameter | 3 |
