Galvanised technical chain DIN 5685/A Ø12.0 mm – short welded link
Description

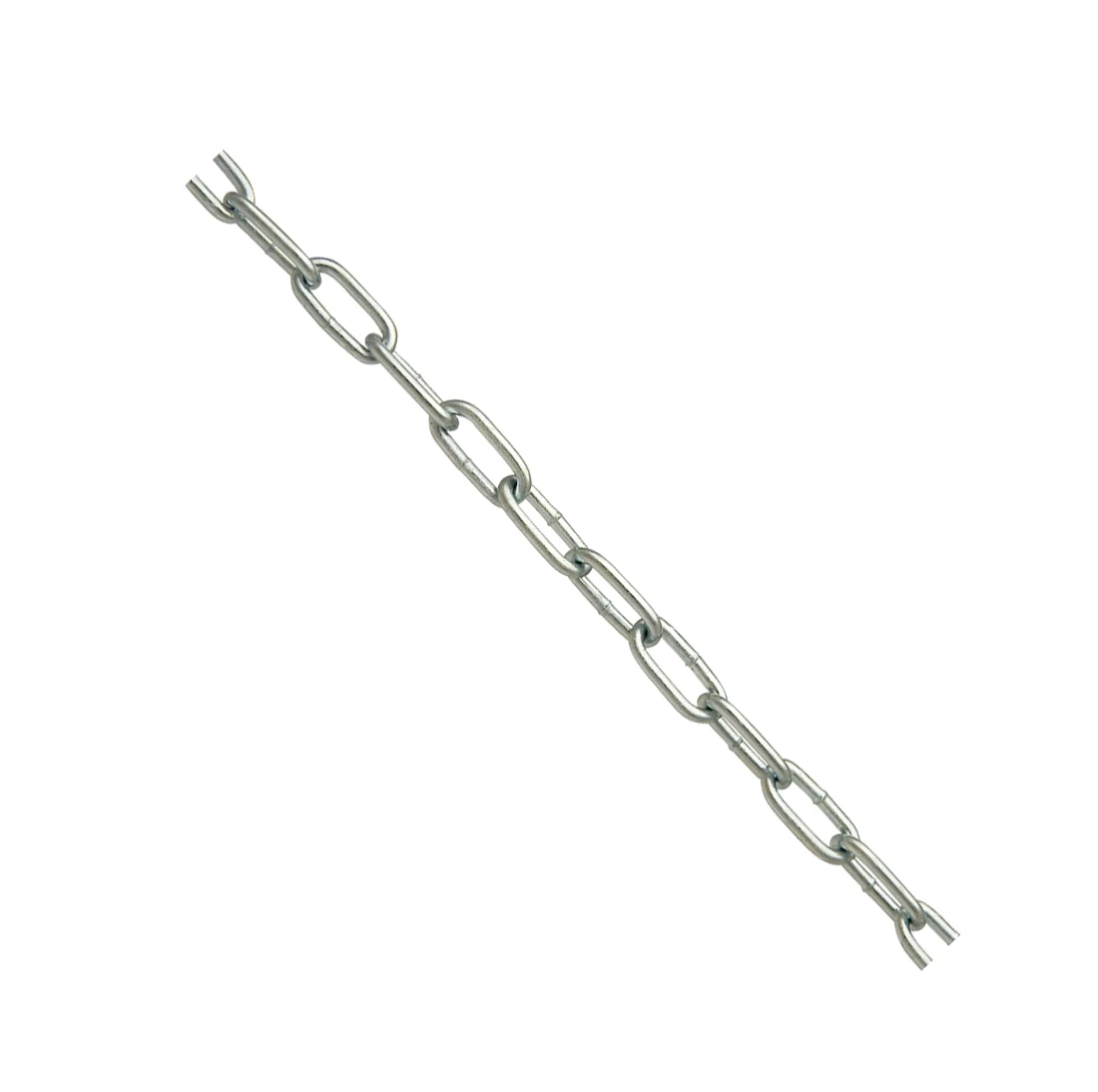

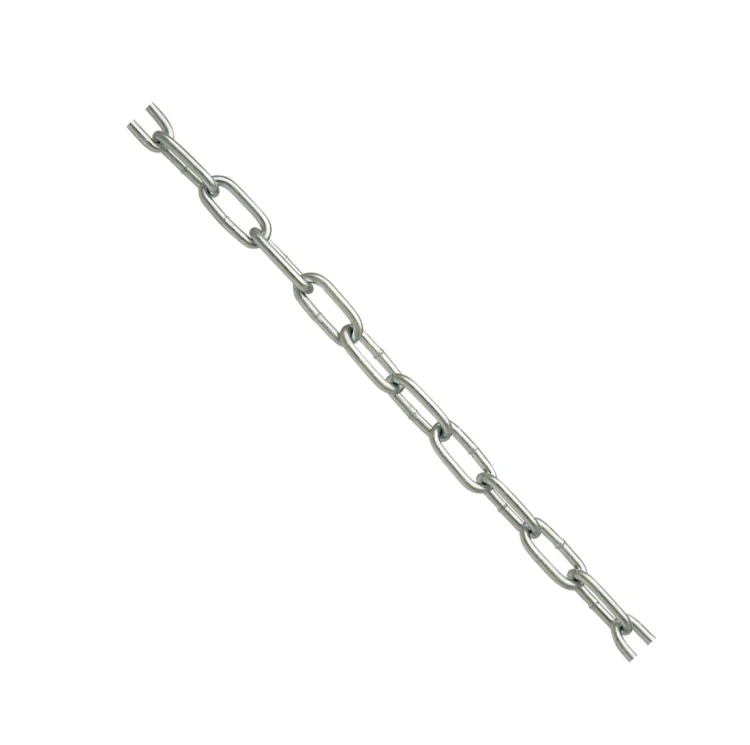

Galvanised technical chain DIN 5685/A Ø12.0 mm – short welded link
Galvanised technical chain with short welded link, manufactured in accordance with DIN 5685/A. The 12.0 mm wire diameter ensures high strength — the breaking load is 84 kN. The zinc (Zn) coating protects the chain against corrosion, allowing it to be used both indoors and outdoors. Product sold by the running metre — manufactured in the European Union.
The chain is suitable for use anywhere solid securing, fastening or fencing off of an area is required. Welded links guarantee the durability of the joints and resistance to mechanical loads. Thanks to the universal link dimensions, the chain is compatible with standard fasteners and carabiners.
Technical parameters
- Standard: DIN 5685/A (short link)
- Wire diameter: 12.0 mm
- External link dimensions: 48.0 × 73.0 mm
- Breaking load: 84 kN
- Weight: 2.98 kg/m
- Link type: welded
- Coating: zinc (Zn)
- Material: galvanised steel
Applications
- Securing and fastening structural elements
- Fencing off areas and work zones
- Technical suspensions
- Agriculture and farming
- Installation and assembly work
Delivery form and sale

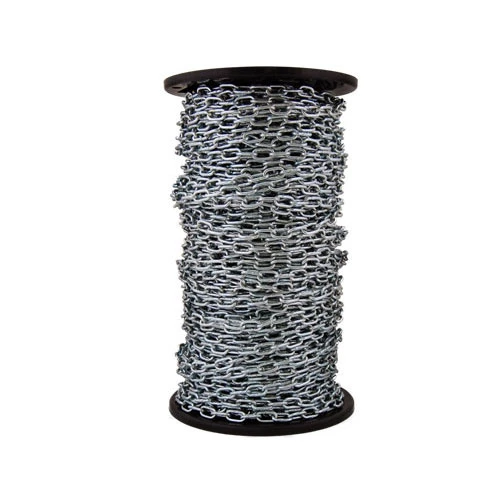

The chain is sold by the running metre. It is wound onto a roll approx. 8 m long — ordering 8 m will get you a full roll. The stated weight (2.98 kg) refers to 1 running metre.
⚠ Important information
Technical chain — not intended for lifting loads. It does not constitute a lifting sling and must not be used as a load-bearing element in lifting operations.
Technical data
| Diameter | 12 |
