Galvanised technical chain DIN 5685/A Ø10.0 mm – short welded link
0
Description
Galvanised technical chain DIN 5685/A Ø10.0 mm – short welded link

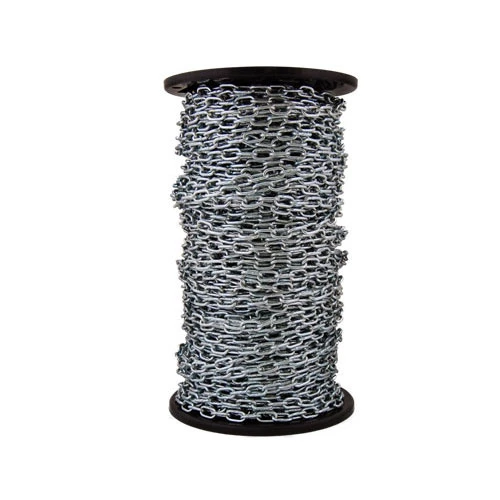

Galvanised technical chain DIN 5685/A with a rod diameter of 10.0 mm is a durable chain with short welded links, designed for fastening, securing and cordoning-off applications. The zinc coating provides effective corrosion protection, making the chain suitable for both indoor and outdoor use. The product is sold by the running metre — order exactly as much as you need. The chain is wound on a roll approx. 12 m long; ordering 12 m gives you a full roll. Manufactured in the European Union.
Technical parameters
- Standard: DIN 5685/A (short link)
- Rod diameter: 10.0 mm
- External link dimensions: 38.0 × 60.0 mm
- Breaking load: 74 kN
- Weight: 1.86 kg/m
- Link type: welded
- Coating: zinc (Zn)
- Roll length: approx. 12 m
Applications
The galvanised technical chain DIN 5685/A has a wide range of uses in installation, household and industrial work:
- Securing and cordoning off — temporary fencing, entrance barriers, marking off zones
- Fastening — attaching equipment, fittings and auxiliary structures
- Technical suspension — hanging elements not subject to dynamic loads
- Agriculture and household use — securing gates, pasture fencing, livestock fittings
⚠ Important information
The technical chain is not intended for lifting loads — it does not meet the requirements set for chain slings. Use only as intended, as a fastening, securing or cordoning-off chain.
Technical data
| Diameter | 10 |
