Galvanised swing gate stop 67 mm with bolt holes
Leave feedback on the product

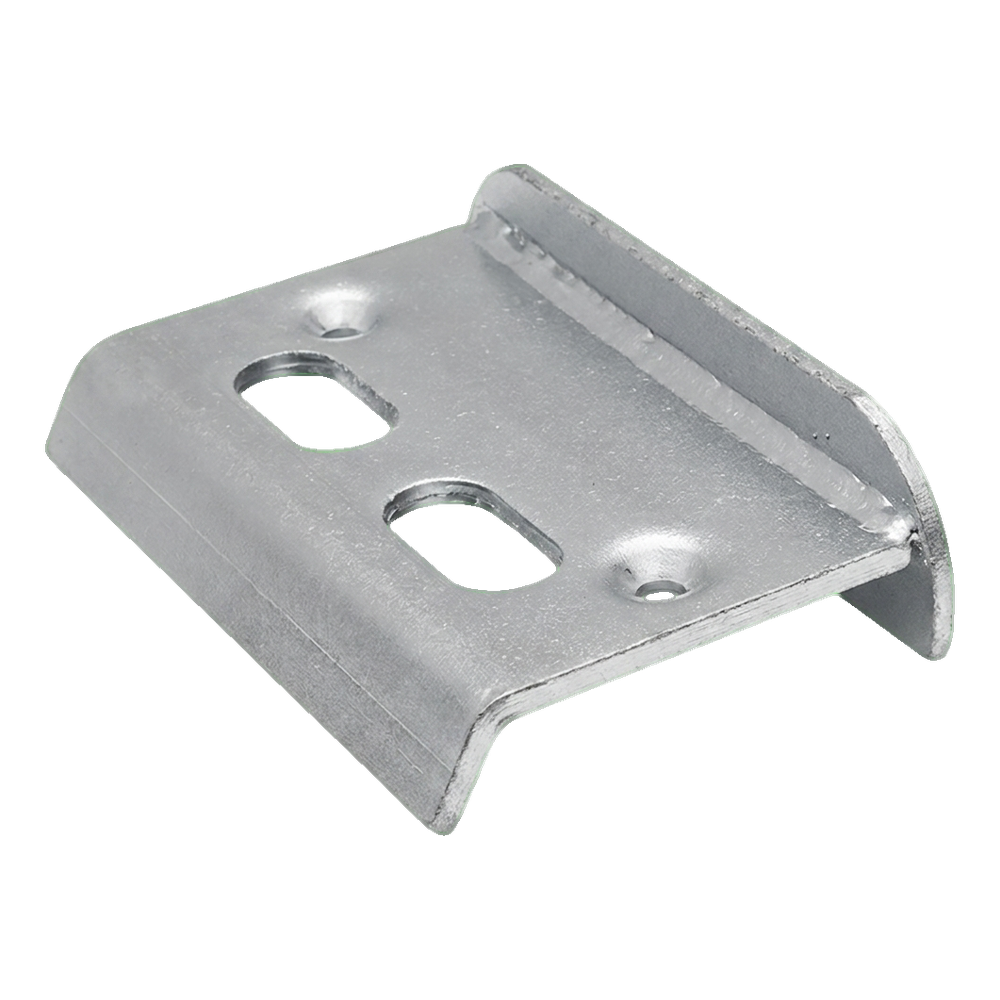

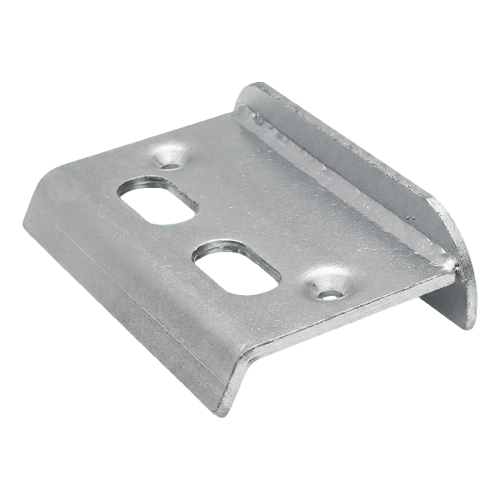

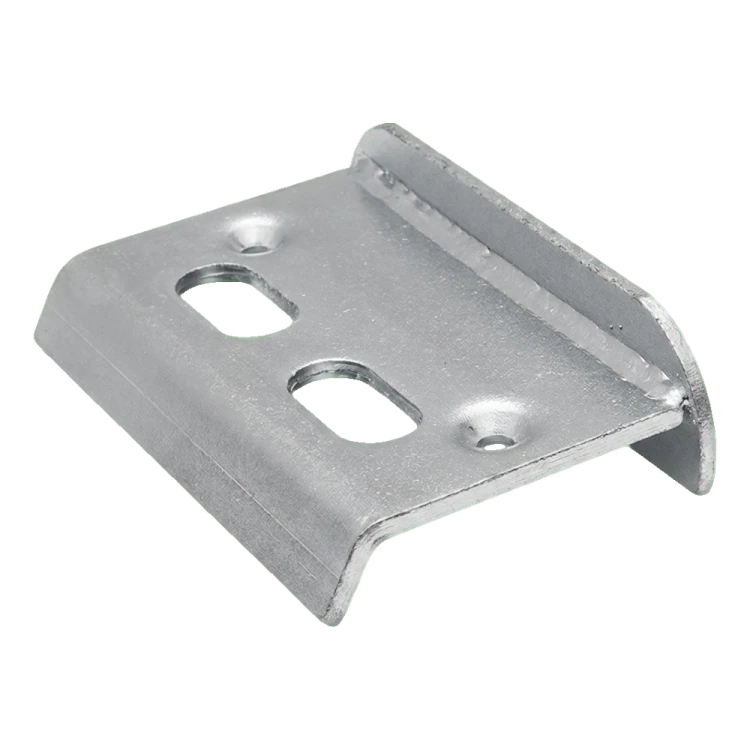

Swing gate stop made from galvanised steel. Dimensions: 150x100x40 mm, material thickness 4-5 mm. Mounting holes Ø 8.5 mm for countersunk screws. Oblong holes for bolt, spacing 38 mm. Bend angle 3°. Weight 0.78 kg.
Product code: 001-436
Product features
[PIM] stopery-blokady-odbojniki #116
- Material Steel
Description
Galvanised swing gate stop 67 mm with bolt holes
Swing gate stop (limiter, buffer) designed for mounting at the meeting point of gate leaves. Robust, galvanised steel construction provides effective limitation of leaf movement and durable anti-corrosion protection, making this element suitable for outdoor conditions for many seasons without maintenance requirements.
The stop is equipped with bolt holes (oblong slots) and mounting holes for countersunk screws, enabling secure fixing and cooperation with a bolt locking the gate. Profiled bending with 3° angle at the bottom ensures stable contact with the ground and aesthetic mounting appearance.

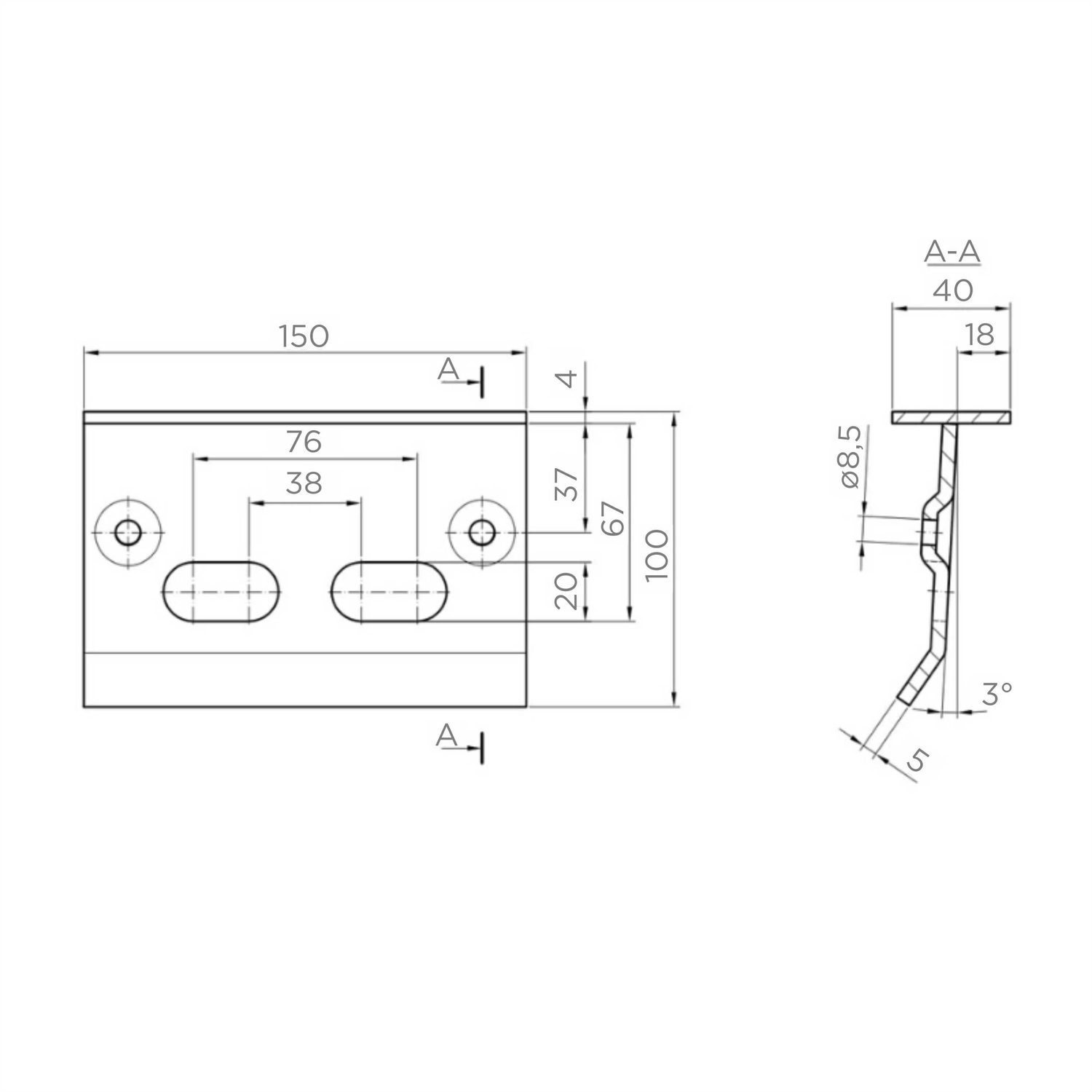

Dimensions and technical parameters
- Overall width: 150 mm
- Plate height: 100 mm
- Upper plate depth: 40 mm
- Material thickness (upper plate): 4 mm
- Material thickness (lower part): 5 mm
- Distance from rear edge to plate face: 18 mm
- Lower part bend angle: 3°
- Mounting hole diameter: Ø 8.5 mm (for countersunk screws)
- Round hole spacing (between centres): 76 mm
- Oblong hole spacing (between centres): 38 mm
- Distance of round hole centres from top edge: 37 mm
- Distance of oblong hole centres from top edge: 67 mm
- Material: galvanised steel
- Weight: 0.78 kg
- EAN: 5901431940604
Application
The stop is dedicated to swing gates — mounted at the meeting point of leaves, it functions as a movement limiter and bolting point. Oblong holes enable bolt position adjustment, facilitating precise fitting to different gate types. The galvanised surface guarantees corrosion resistance, making the element ideal for outdoor mounting — in residential, industrial fencing and public utility facilities.
