Galvanised straight shackle 8 mm – M8 threaded pin
Leave feedback on the product
Dromet SK 8 mm galvanised D shackle, made of C10–C15 steel. Type D (dee shackle) with M8 threaded pin. Internal width B 16 mm, internal height H 32 mm. Working load limit 200 kg, breaking load 600 kg. Weight 0.051 kg.
Product code: 002-200
Description

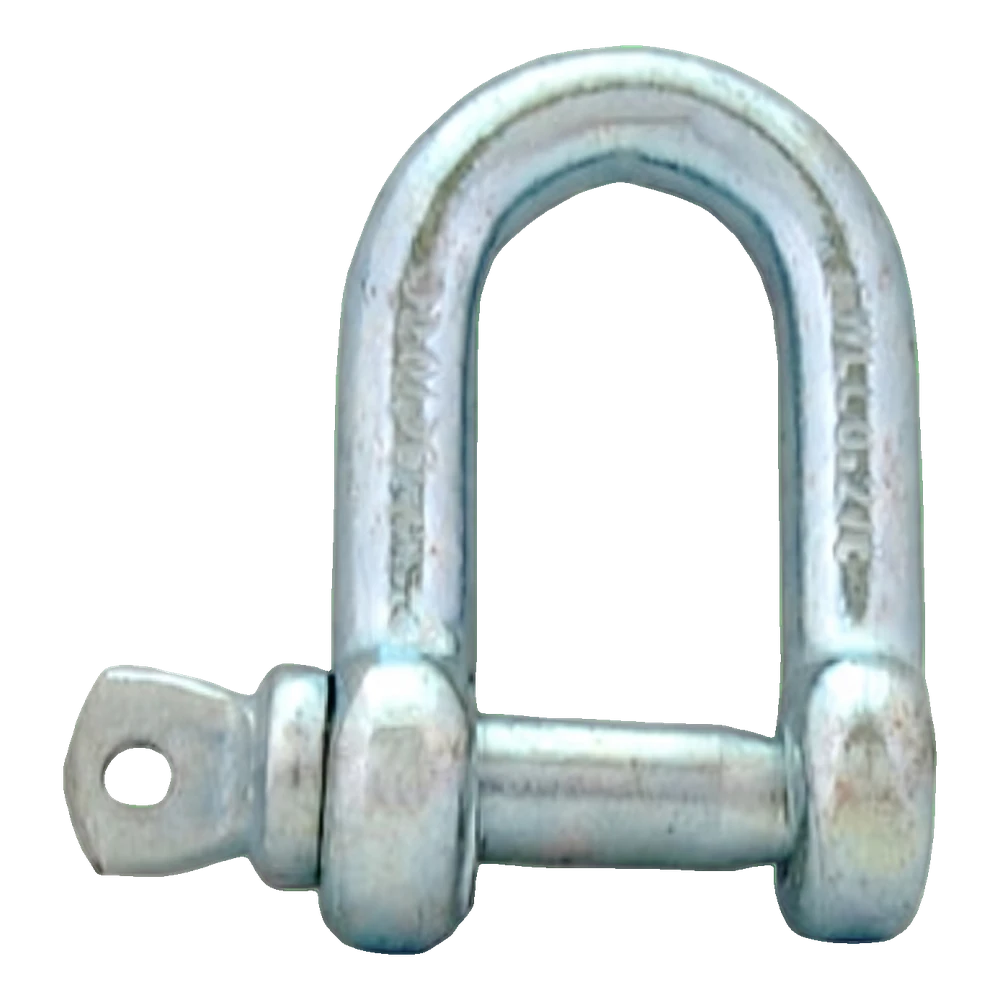

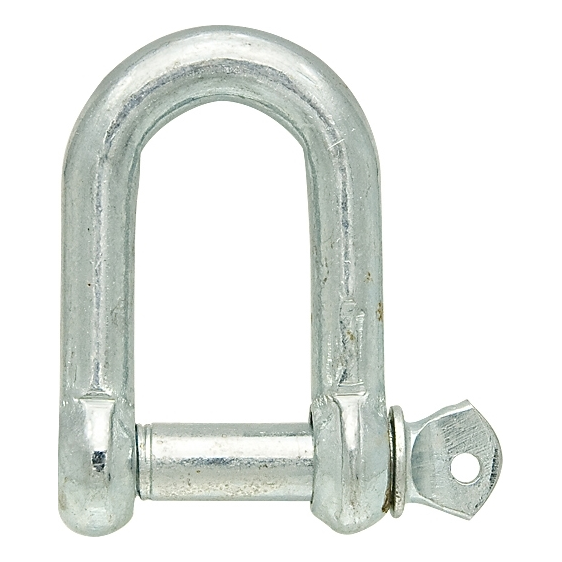

Dromet SK 8 mm Galvanised D Shackle
The galvanised SK 8 D shackle from Dromet is a reliable piece of hardware for steel wire ropes and chains, designed for creating detachable connections in rigging and sling systems. The galvanised coating provides lasting corrosion protection even in demanding outdoor conditions, ensuring a long service life on building sites and in roof installations. The D-type (dee) shackle distributes forces evenly across the bow, and the threefold safety factor between the working load limit and the breaking load gives confidence in everyday use. Sales unit: 1 piece.
Key features of SK 8 shackles
- D-type (dee shackle) design ensuring even distribution of forces across the bow
- Threaded pin enabling quick fitting and removal without specialist tools — a standard spanner is all you need
- Galvanised coating protecting against corrosion in outdoor weather conditions
- High safety margin thanks to a breaking load three times the working load limit
- Part of the broad Dromet SK series — makes it easy to select the right size for a specific application

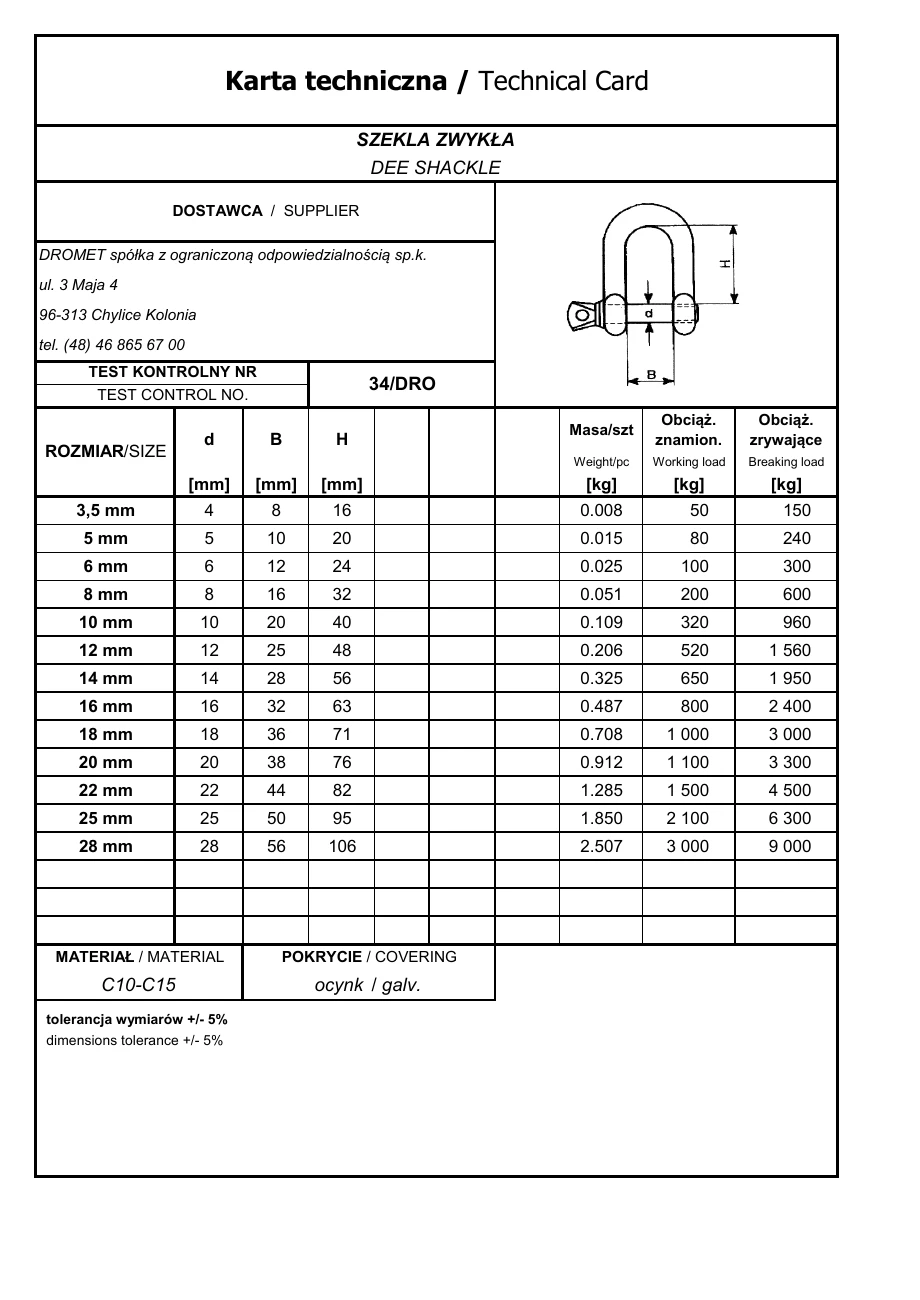

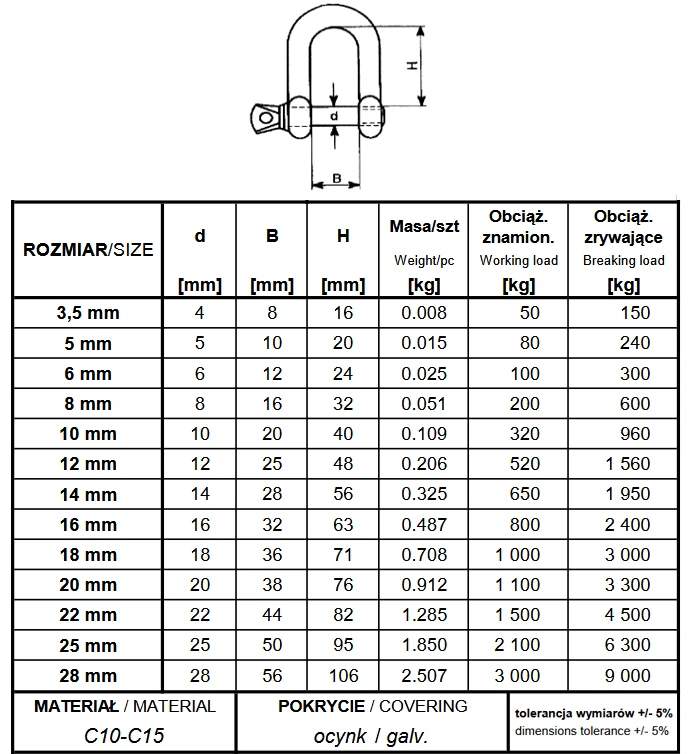

The SK 8 shackle belongs to the broad SK series manufactured by Dromet, covering sizes from 3.5 mm to 28 mm. This makes it possible to choose the right variant for a specific application and required working load. The adjacent image shows the data sheet for the entire series together with a dimensional drawing — the designations d (pin diameter), B (internal width) and H (internal height) correspond to the dimensions given in the specification below.
The Dromet manufacturer's documentation, marked with inspection test number 34/DRO, confirms the strength and material parameters of the entire SK series. Detailed values for the 8 mm size can be found in the specification tables below.
