Galvanised steel wire rope Ø8.0 mm 6×37 with fibre core FC
0
Description
Galvanised steel wire rope Ø8.0 mm 6×37 with fibre core FC
Galvanised steel wire rope Ø8.0 mm in 6×37 construction with a fibre core (FC) — the most flexible of the classic ropes, easy to guide over pulleys. Made from wires with a tensile strength class of 1770 N/mm² and protected against corrosion with a zinc coating. Perfect wherever rope flexibility is key while maintaining high tensile strength.
Technical parameters
- Diameter: 8.0 mm
- Construction: 6×37 (six strands of 37 wires each)
- Core: fibre (FC)
- Wire tensile strength class: 1770 N/mm²
- Anti-corrosion coating: zinc (Zn)
- Weight: approx. 0.21 kg/m
- CE marking
- Manufactured in the European Union

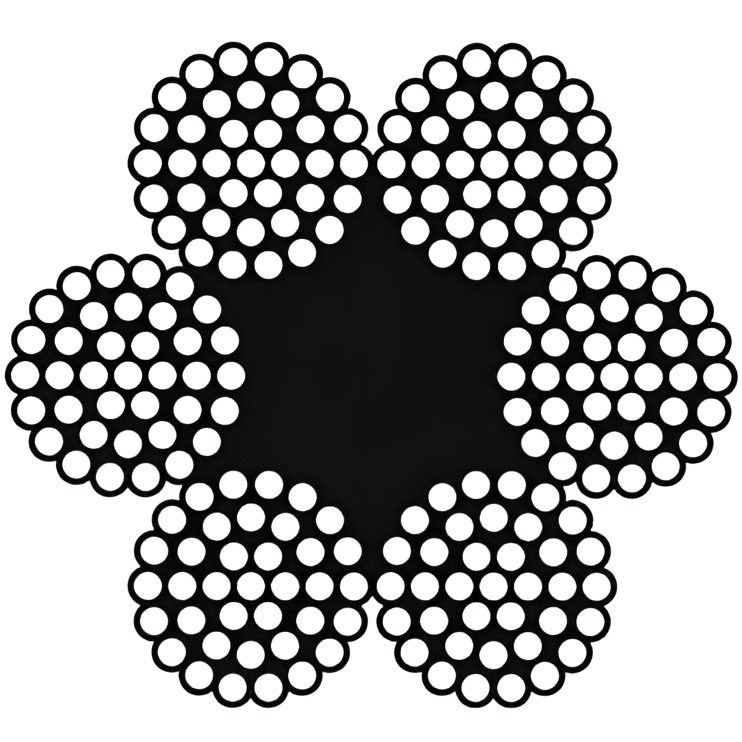

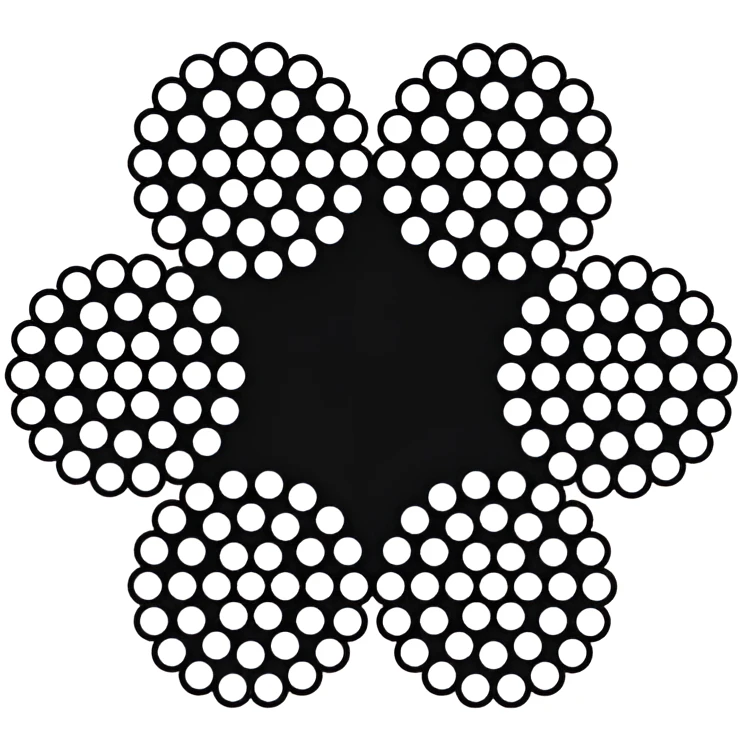

6×37 construction — maximum flexibility
The six-strand 6×37 construction consists of six strands, each containing 37 wires twisted around a common fibre core. The large number of thin wires in each strand results in exceptional flexibility of the rope — it is easy to guide over pulleys and drums, which is crucial in multi-pulley systems and on winches with a small winding radius. The fibre core (FC) further increases flexibility compared to ropes with a steel core.
Typical applications
- Winches and davits
- Pulley and multi-pulley systems
- Automotive and transport
- Technical applications requiring high rope flexibility
Technical rope — not intended for lifting people.
Sale and delivery

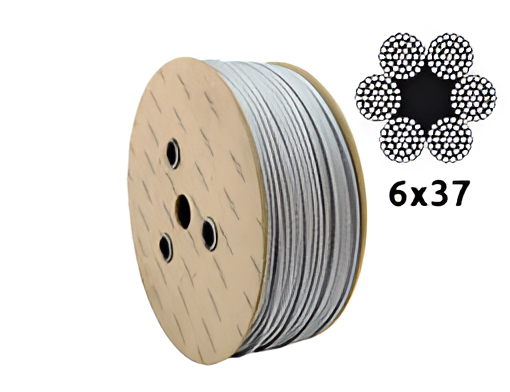

The rope is sold by the running metre — the ordered length is delivered as a single piece. Factory-wound onto a reel of 50 m; when ordering 50 m, you will receive a full, originally packaged reel.
Technical data
| Diameter | 8 |
| Construction | 6×37 |
