Galvanised steel wire rope 6×37 Ø14.0 mm with fibre core FC
0
Description
Galvanised steel wire rope 6×37 Ø14.0 mm with fibre core FC
Galvanised steel wire rope Ø14.0 mm in a 6×37 construction (six strands of thirty-seven wires each) with a fibre core (FC) — the most flexible of the classic wire ropes, ideal for running over sheaves and winch drums. The high flexibility resulting from the large number of wires in each strand makes the rope easy to handle even on small sheave diameters, making it the first choice for hoisting and lifting systems.
The wires are manufactured in tensile strength grade 1770 N/mm², and the whole rope is protected against corrosion with a zinc (Zn) coating, ensuring long-lasting protection against corrosion in outdoor conditions. The rope is intended solely for technical applications — it is not intended for lifting persons. Manufactured in the European Union.
Construction and technical parameters
- Rope diameter: 14.0 mm
- Construction: 6×37 — six strands of 37 wires each
- Core: fibre (FC)
- Wire tensile strength grade: 1770 N/mm²
- Anti-corrosion coating: zinc (Zn)
- Weight: approx. 0.678 kg/m
- Factory reel length: 50 m

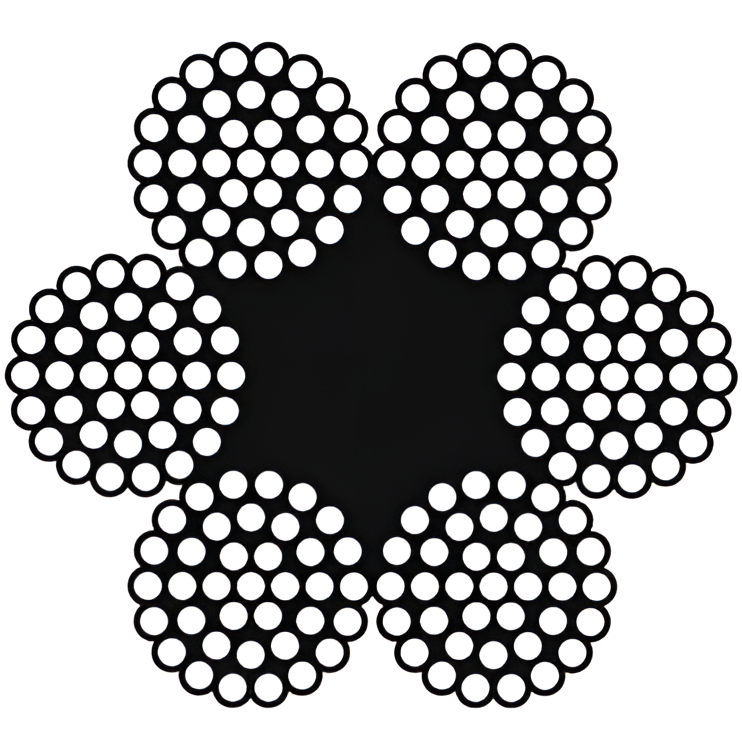

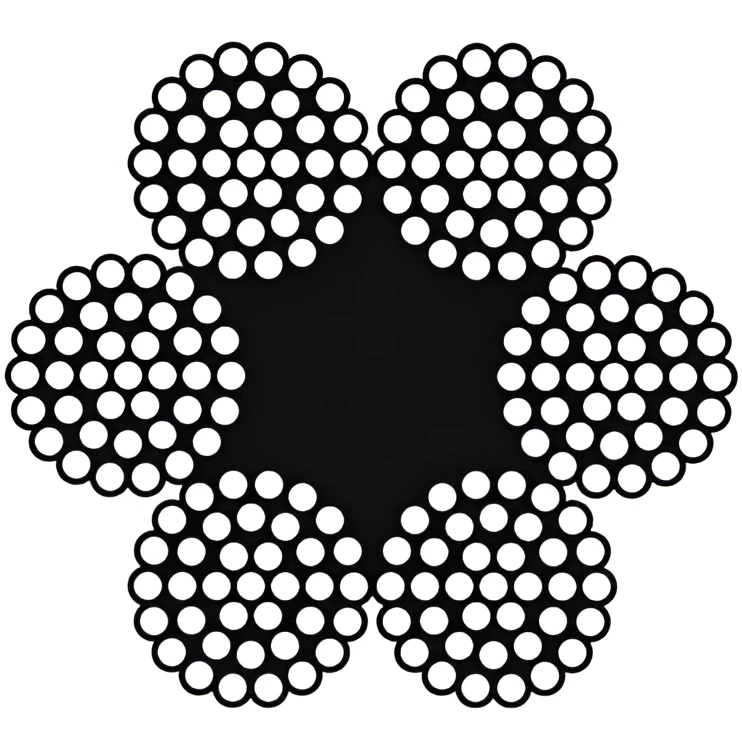

The 6×37 construction with a fibre core FC provides exceptional rope flexibility. The fibre core acts as a cushion, increasing bending flexibility and making it easier to run over pulley blocks and winch drums. Each of the six strands consists of 37 thin wires, which — compared to 6×19 ropes — significantly increases flexibility at a comparable load capacity.
Applications
The 6×37 rope with FC core is intended for use wherever flexibility and ease of running over guide elements are important:
- Winches and hoists
- Cranes and small lifting equipment
- Pulley systems and block-and-tackle setups
- Automotive and transport
- Other technical applications requiring a flexible rope
Sales and delivery form
The rope is sold by the running metre — the ordered length is delivered in one continuous section. The factory reel has a length of 50 m — when ordering 50 m, you receive a full, originally packaged reel.
Technical data
| Diameter | 14 |
| Construction | 6×37 |
