Galvanised steel wire rope Ø10.0 mm 6×19 with fibre core FC
0
Description

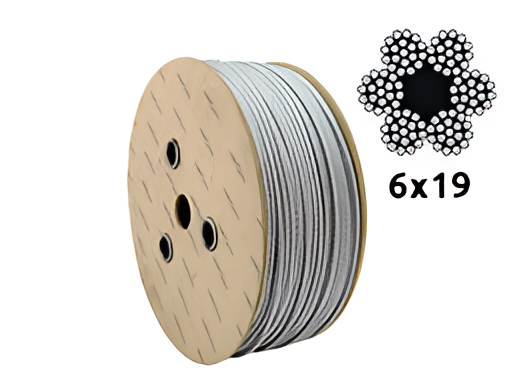

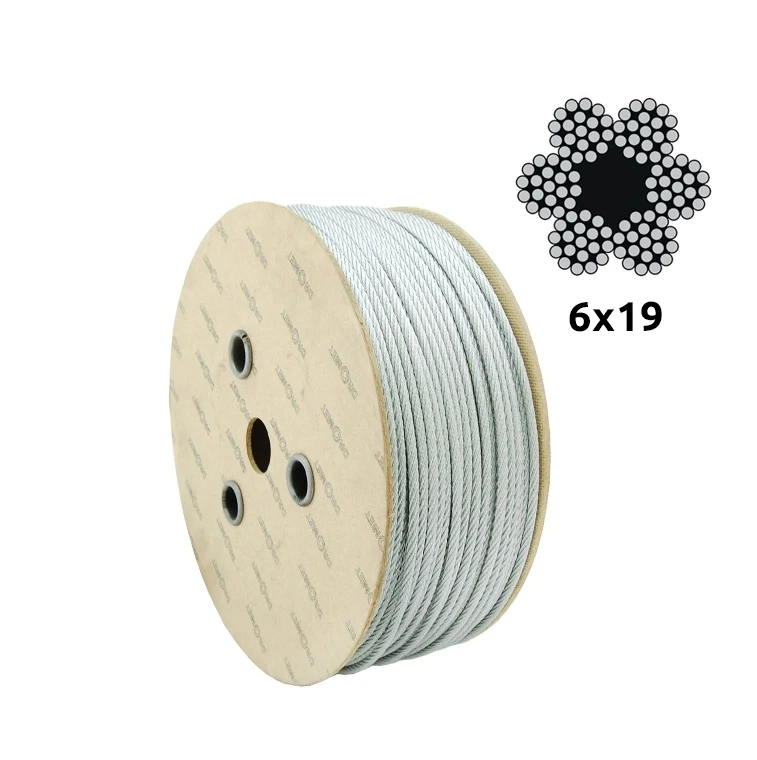

Galvanised steel wire rope Ø10.0 mm 6×19 with fibre core FC
Galvanised steel wire rope with a diameter of Ø10.0 mm in 6×19 construction with a fibre core (FC) — soft, flexible and durable. Wires in strength class 1770 N/mm² ensure high load capacity, while the zinc coating effectively protects against corrosion. The rope performs well wherever reliable work under load is required, in demanding weather and industrial conditions.
Sales are made per running metre — the ordered length is delivered in a single piece. When ordering 50 running metres, you receive a complete, originally packaged factory reel. Manufactured in the European Union.
6×19 construction with FC core

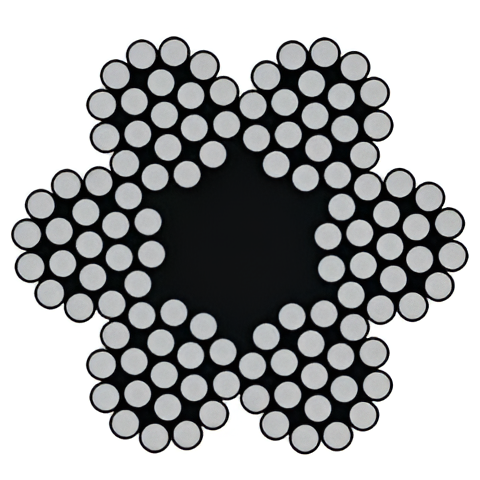

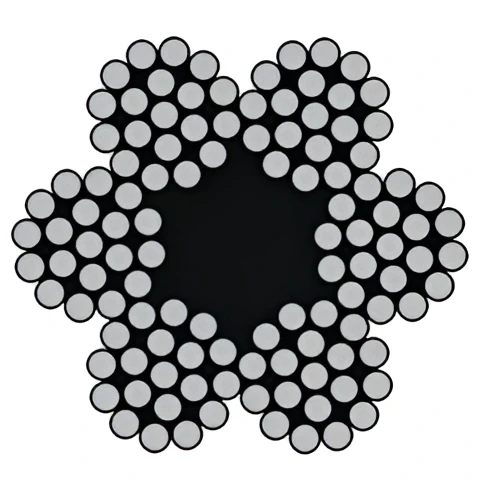

The rope is made of six strands, each consisting of 19 wires arranged in layers of 1+6+12 around a common fibre core (FC). The fibre core gives the rope flexibility and softness, making it easier to guide over pulleys and drums. The six-strand construction ensures even load distribution and high resistance to material fatigue.
Technical parameters
- Rope diameter: 10.0 mm
- Construction: 6×19 (6 strands × 19 wires)
- Layer arrangement in strand: 1+6+12
- Core: fibre (FC)
- Wire strength class: 1770 N/mm²
- Anti-corrosion coating: zinc (Zn)
- Weight: approx. 0.36 kg/m
- Factory reel length: 50 running metres
- Marking: CE
- Manufactured in: European Union
Typical applications
- Construction and transport machinery
- Winches and pulling equipment
- Agriculture and fishing
- General industrial applications
Technical rope — not intended for lifting people.
Technical data
| Diameter | 10 |
| Construction | 6×19 |
