Galvanised steel wire rope Ø1.0 mm 1×7 single-strand – sold by the metre
0
Description
Galvanised steel wire rope Ø1.0 mm 1×7 single-strand – sold by the metre
Galvanised steel wire rope Ø1.0 mm in a single-strand 1×7 construction is a rigid, high-strength technical rope designed for guying and bracing masts and fencing, support cables, as well as modelling and technical applications. Seven wires twisted into a single strand ensure low elongation and high dimensional stability, which is essential wherever precise rope tension and resistance to deformation matter.
Wires manufactured to tensile strength class 1770 N/mm² guarantee high load capacity despite a small diameter. The zinc (Zn) coating protects the rope against corrosion, allowing outdoor use — in installations exposed to moisture and changing weather conditions. The rope is manufactured in the European Union.
Sold by the running metre

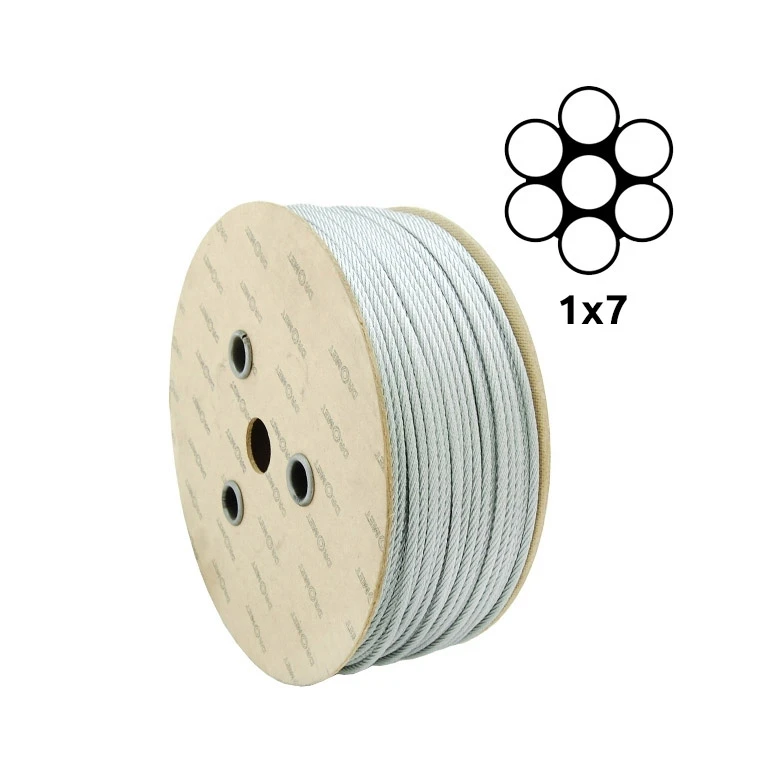

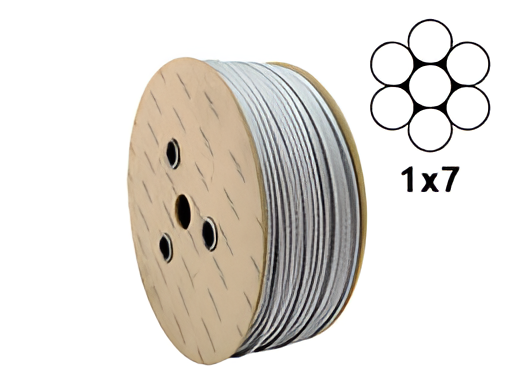

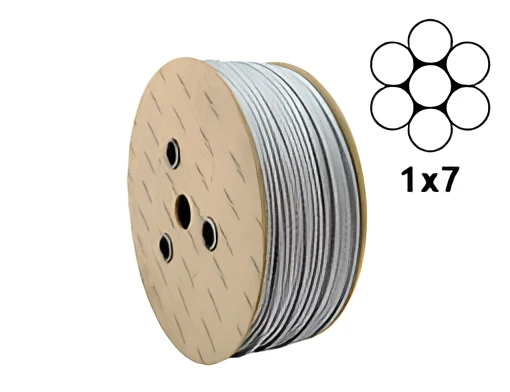

The product is sold by the metre — the ordered length is supplied as a single piece. The rope is factory-wound onto a 200 m reel; ordering 200 m gets you a full, originally packaged reel.
1×7 construction – one strand, seven wires

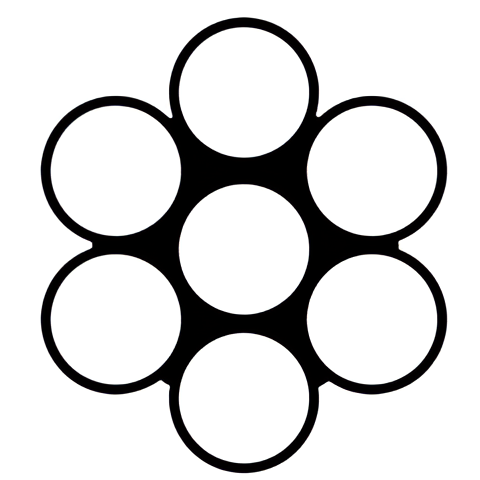

The 1×7 construction means the rope consists of a single strand made up of seven wires — one core wire and six wires wound around it. The absence of a separate textile or steel core makes the rope rigid and resistant to elongation under load. This construction is typical for static applications: guying, bracing, supports and guides.
Technical parameters
- Diameter: 1.0 mm
- Construction: 1×7 (single-strand, 7 wires)
- Core: none (single-strand construction)
- Wire tensile strength class: 1770 N/mm²
- Anti-corrosion coating: zinc (Zn)
- Weight: approx. 0.005 kg/m
- Reel length: 200 m
- Sales unit: 1 running metre
- Origin: manufactured in the European Union
Typical applications
- Guying and bracing of antenna masts
- Fence bracing
- Support cables in technical installations
- Modelling and precision applications
- Guiding and tensioning of cables
Note: this is a technical rope — not intended for lifting people.
Technical data
| Diameter | 1 |
| Construction | 1×7 |
