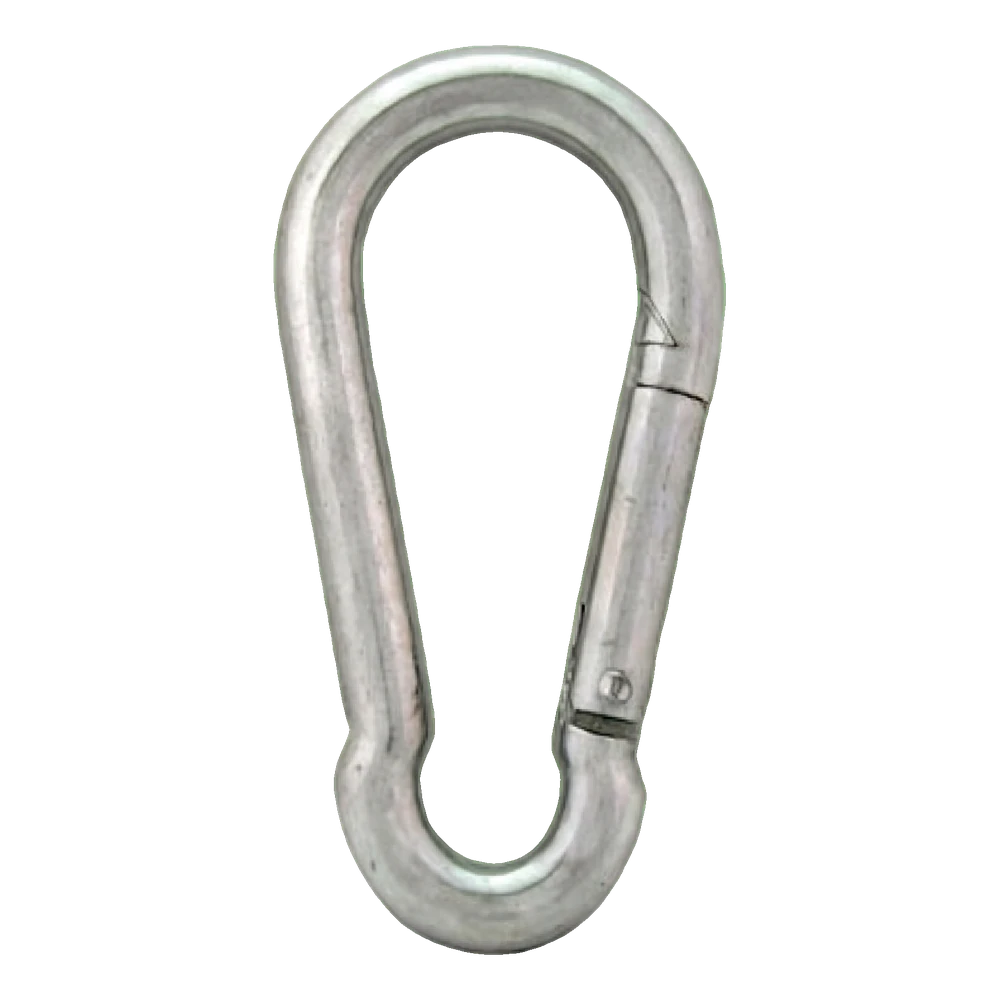

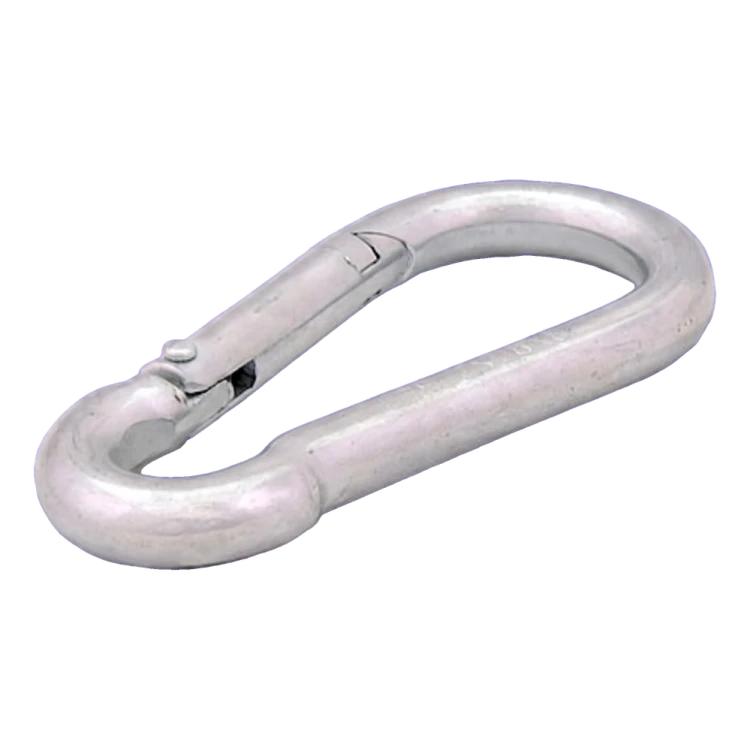

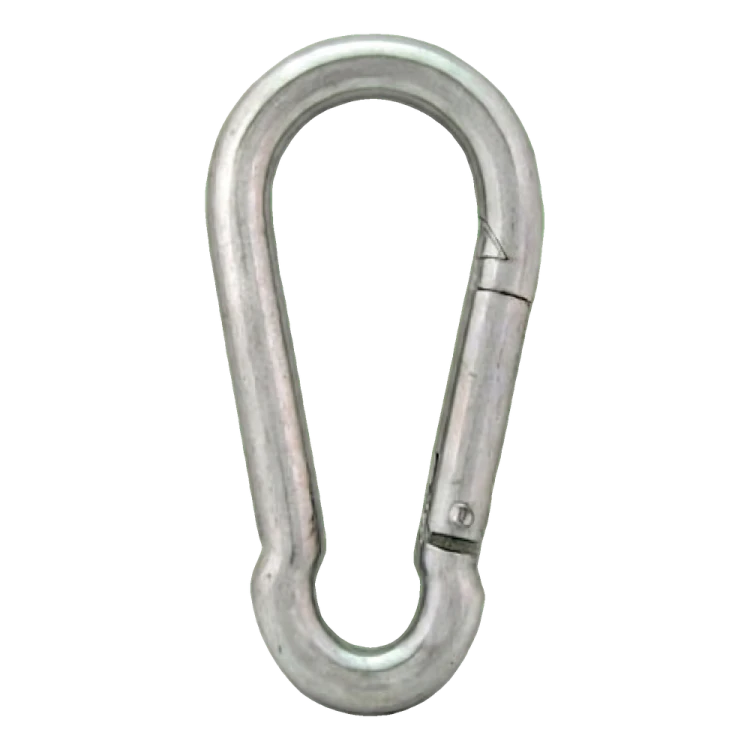

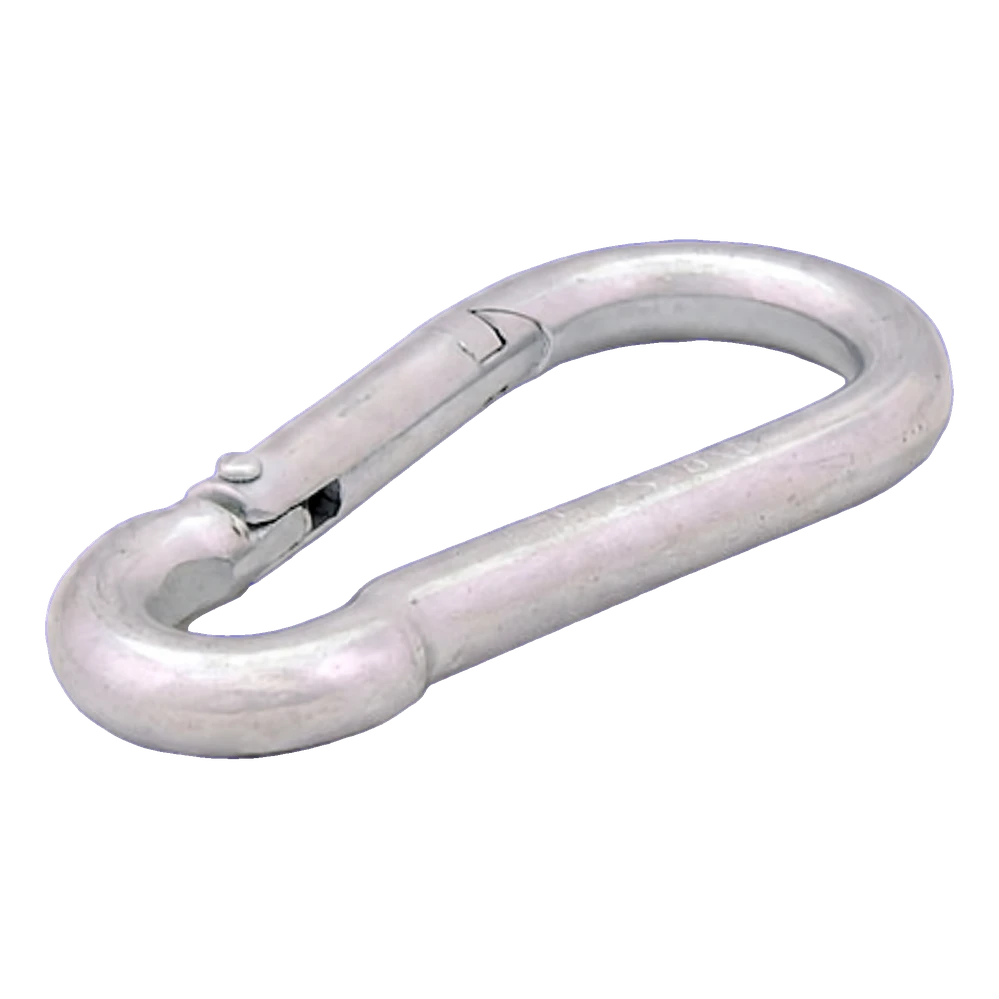

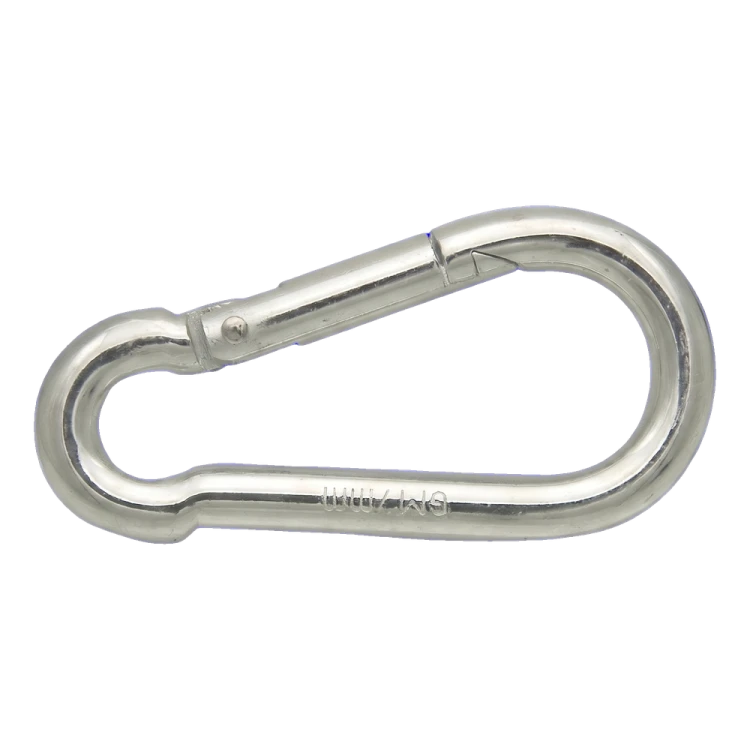

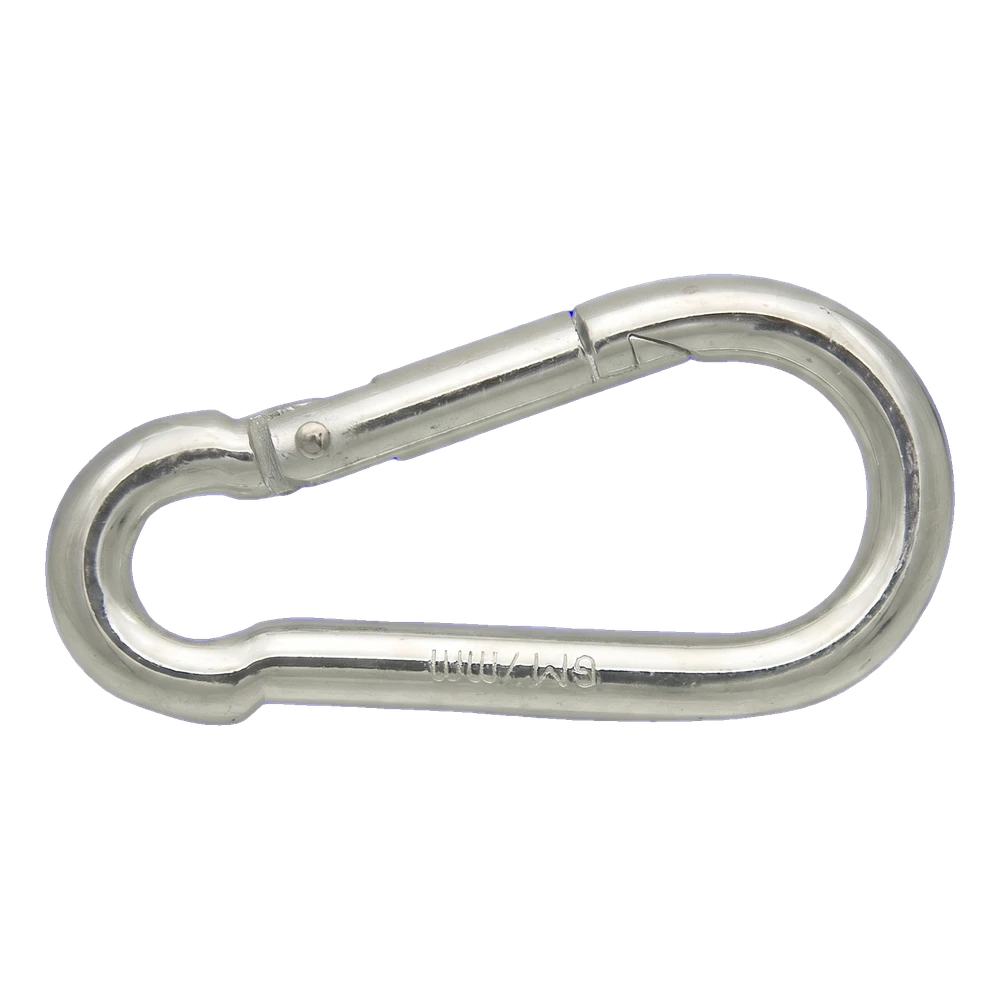

Galvanised snap hook 12×140 mm – DIN 5299 C

Snap hook with a spring-loaded gate for quick connection of ropes, chains and fittings; zinc-plated steel

Open the dimension drawing in full size

About the product

The snap hook with a spring-loaded gate according to DIN 5299 C is used for quick connection and disconnection of ropes, cords, chains, attachment points and fittings without tools.

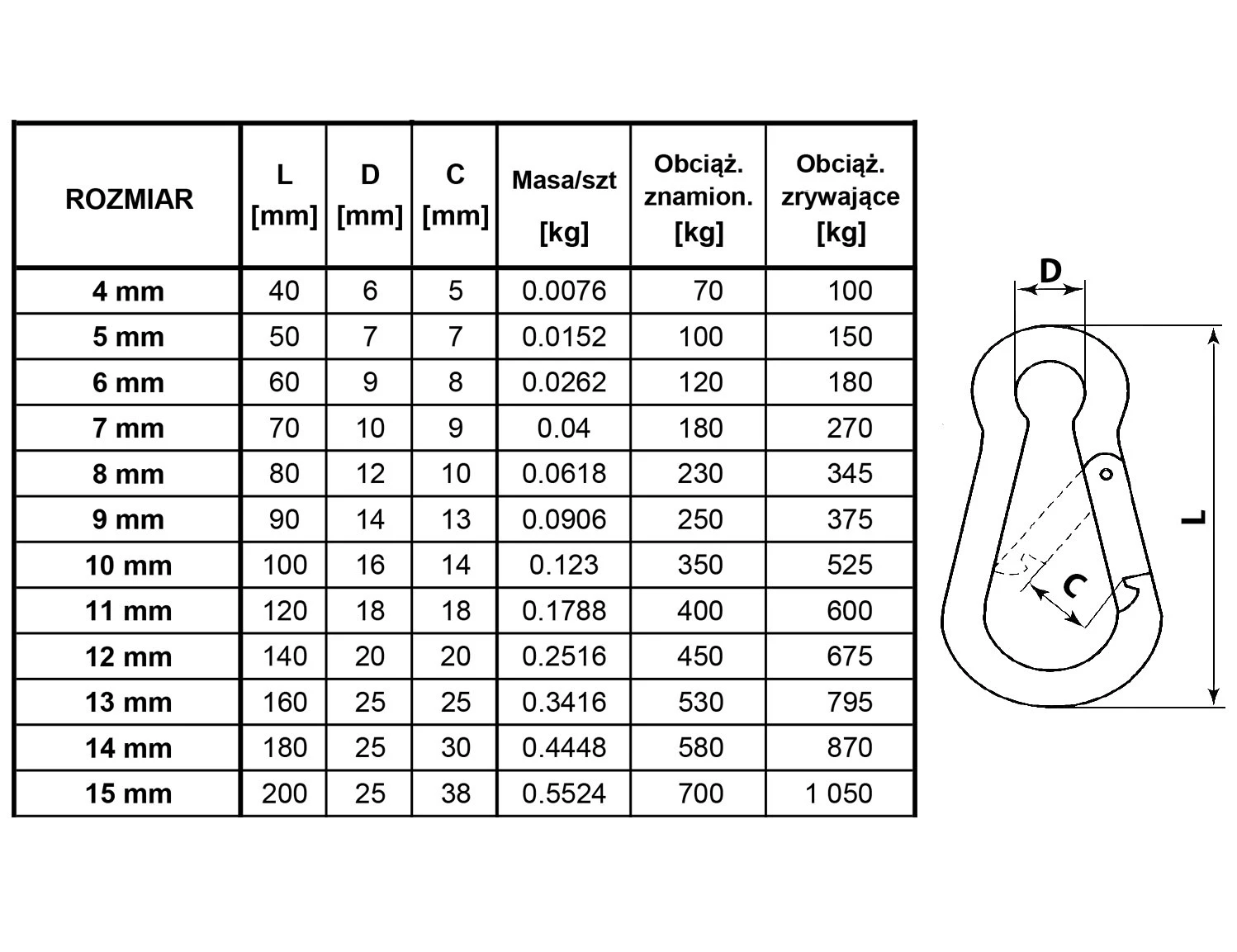

The size 12 × 140 mm denotes the wire diameter d = 12 mm and the overall length L = 140 mm. Dimension D = 20 mm specifies the internal width of the eye, and C = 20 mm specifies the gate opening. Check that the component to be attached (eye, link or rope) fits through this opening. Select the carabiner according to its working load limit of 450 kg and do not exceed this value. After attachment, check that the gate has returned automatically and rests against the nose.

Material: C10 steel. Coating: zinc-coated. The zinc coating protects the steel against corrosion under typical conditions; where contact with salt, chemicals or constant moisture is expected, choose a version suited to the exposure conditions. The working load limit applies to loading along the carabiner's axis; sideways loading of the gate reduces the load-bearing capacity. The breaking load is 675 kg and is not the working load limit. The carabiner is not intended for lifting loads over people or for personal fall protection.

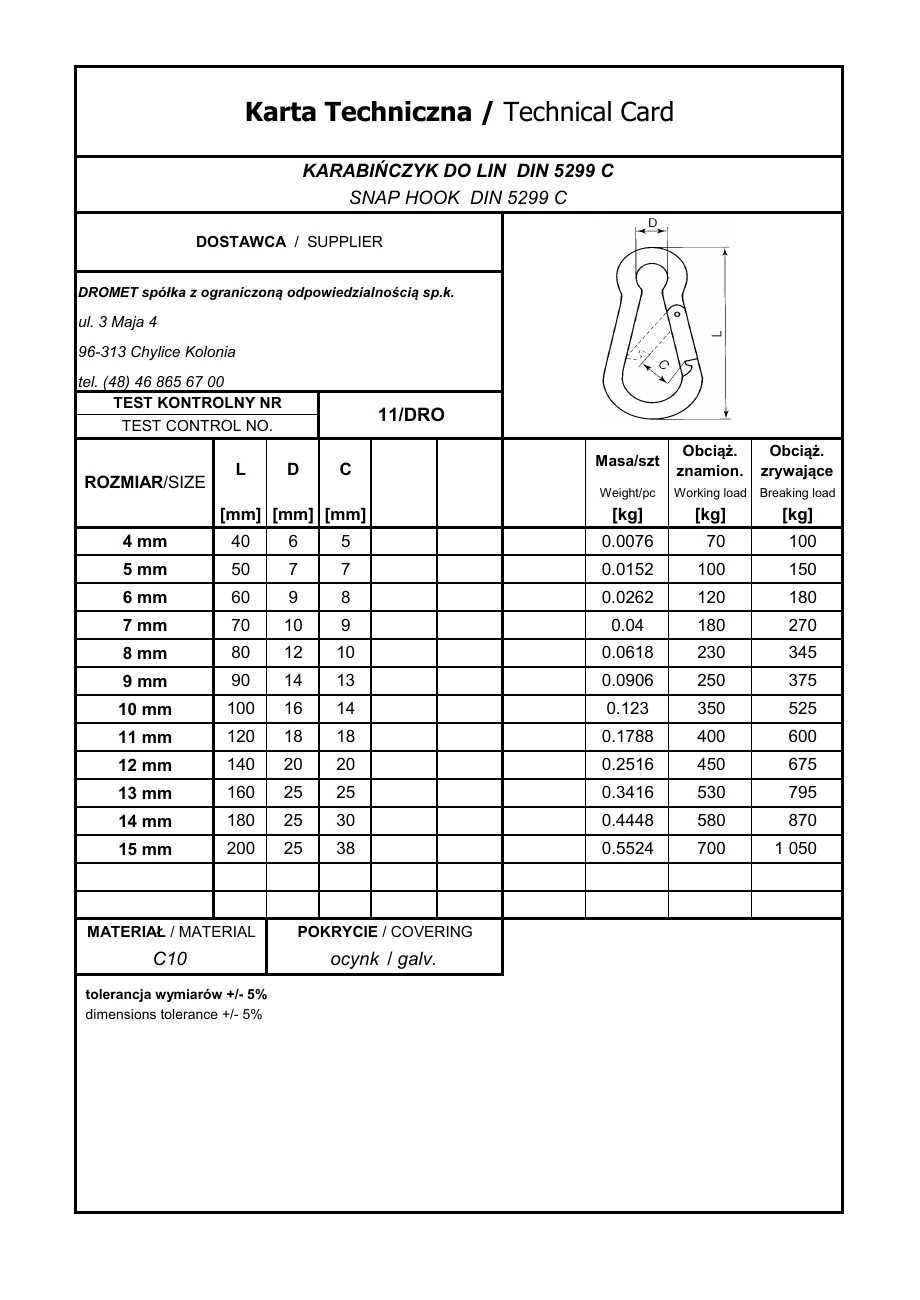

Dimensions per data sheet

Material and strength

Unit of sale

Selection and installation

• ✓Select the carabiner according to the load – do not exceed the working load limit of 450 kg.
• ✓Check that the component to be attached (eye, link or rope) fits through the gate opening C = 20 mm.
• ✓After attachment, check that the gate has returned automatically and rests against the nose.
