Galvanised rivet link 8 mm – chain connector, working load 140 kg
Leave feedback on the product

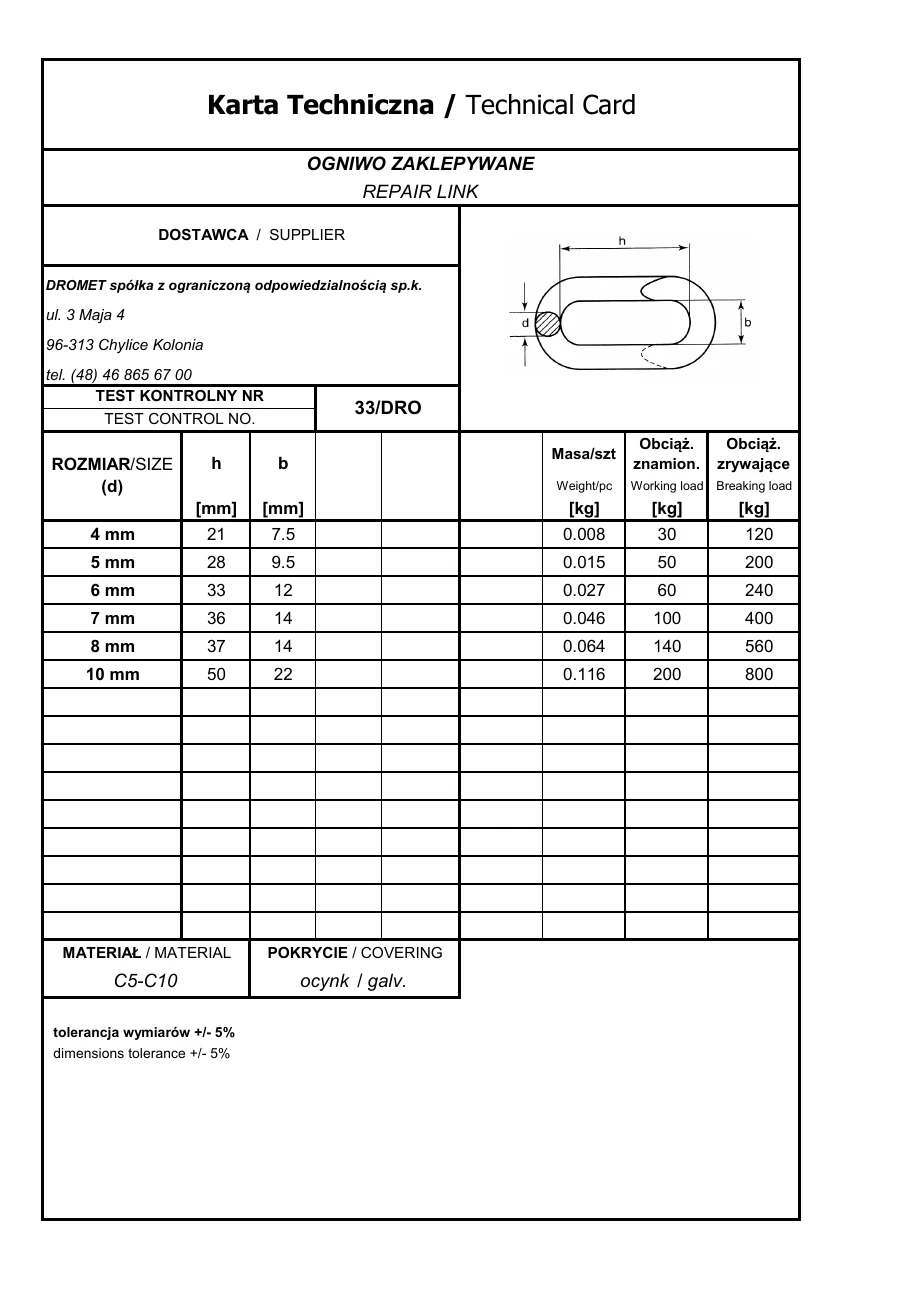

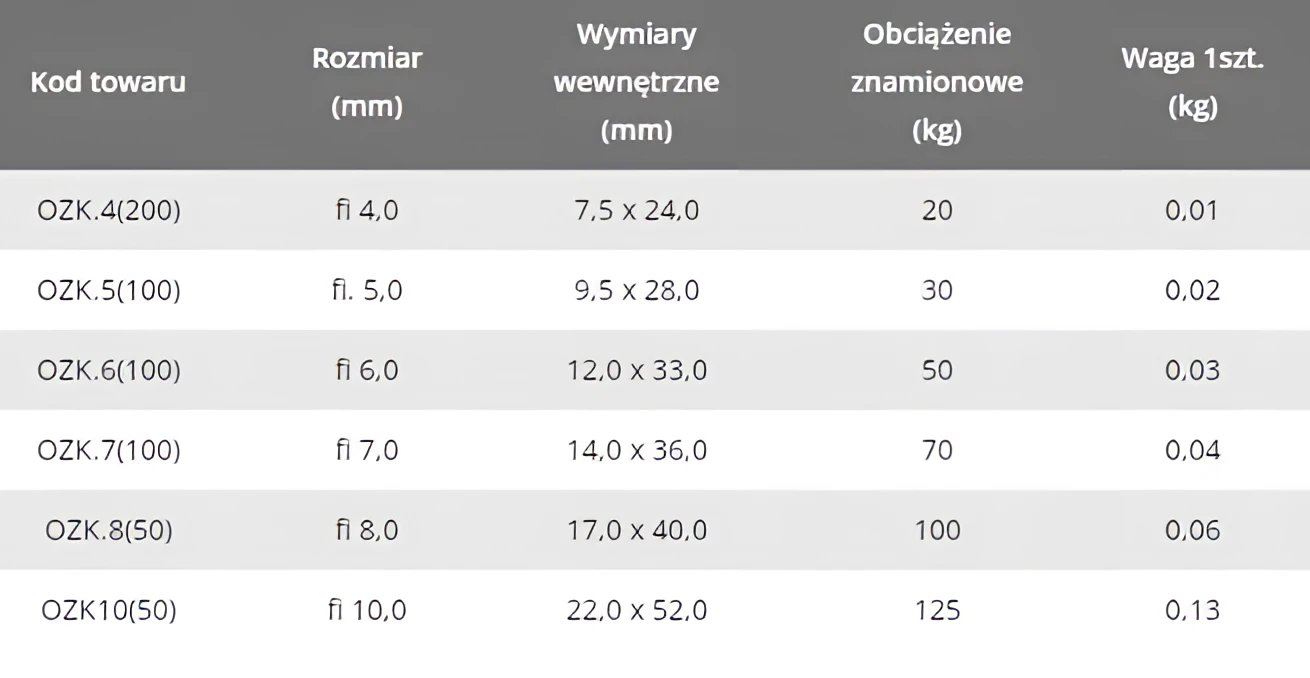

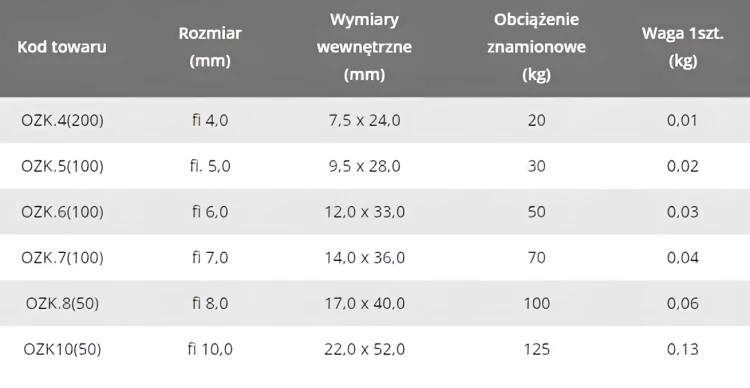

OZK rivet link made of C5–C10 steel, galvanised. Nominal diameter Ø 8 mm, height 37 mm, width 14 mm, internal dimensions 17 x 40 mm (tolerance ±5%). Weight 0.064 kg. For permanently joining lengths of chain.
Product code: 002-550
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Rivet repair link
- Diameter 8
- Max. load capacity [kg] 140
Description
Galvanised rivet link 8 mm – chain connector, working load 140 kg

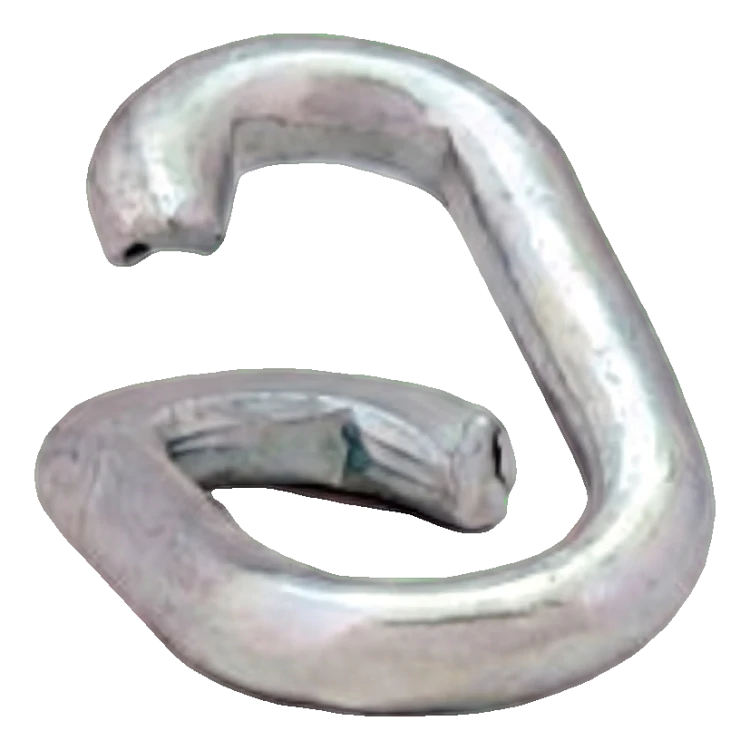

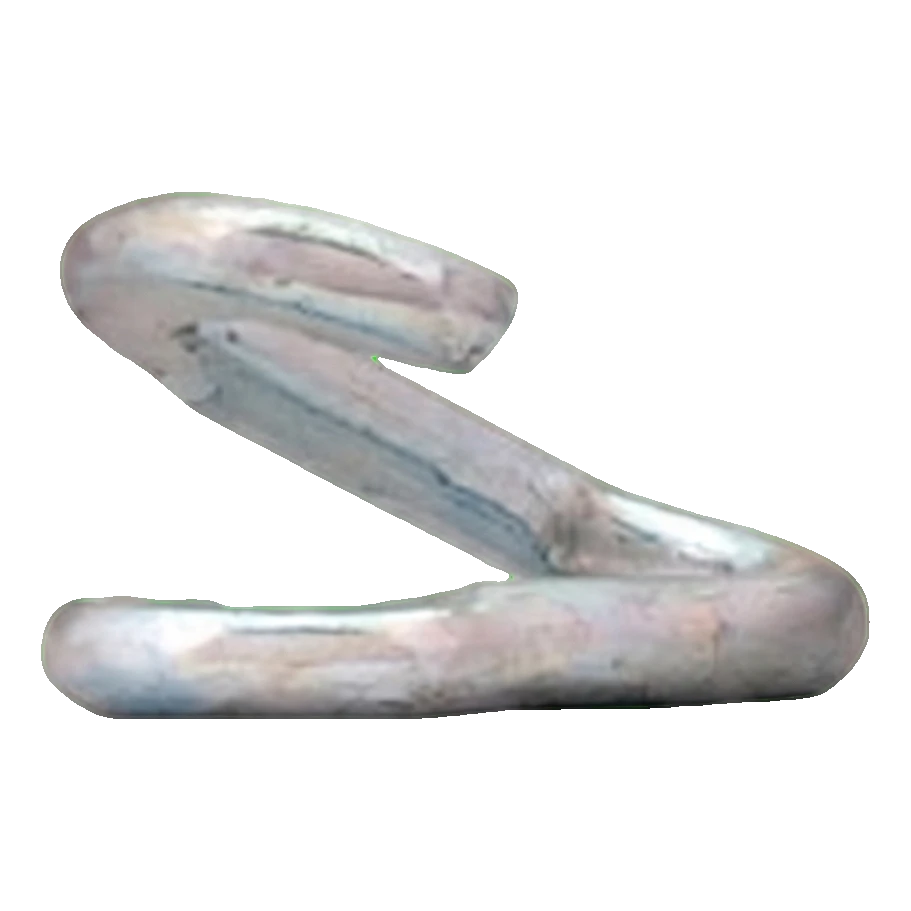

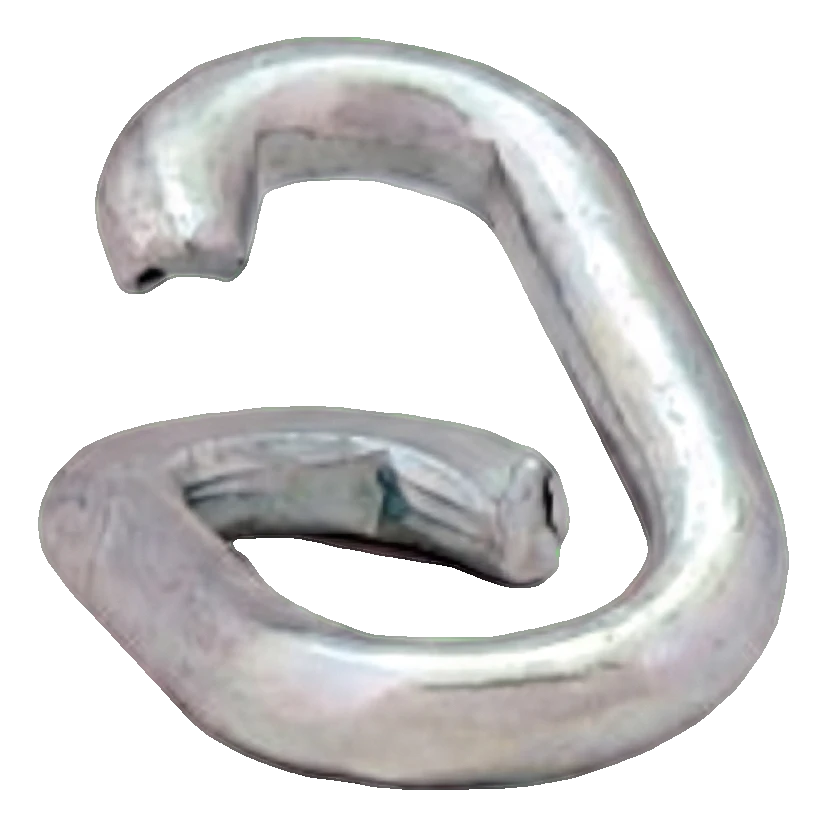

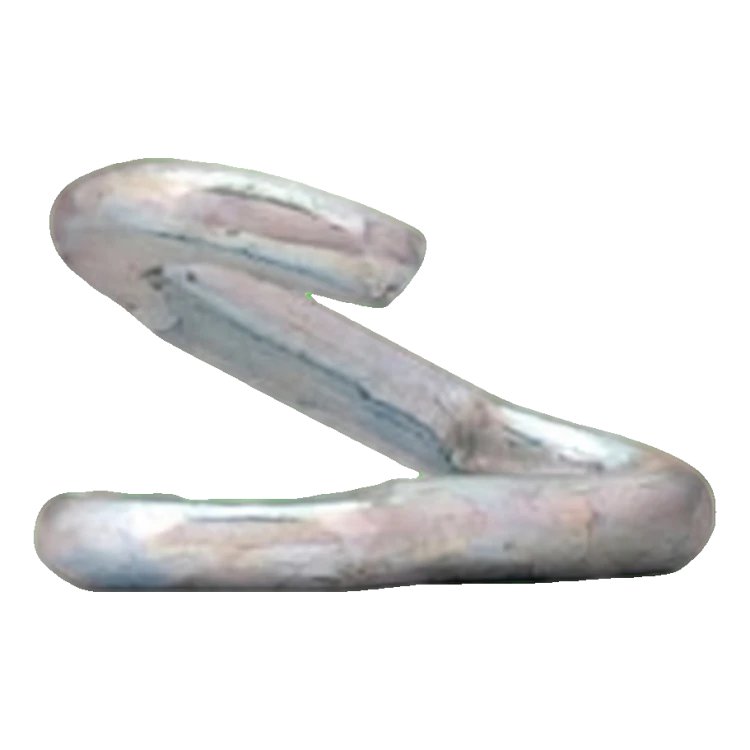

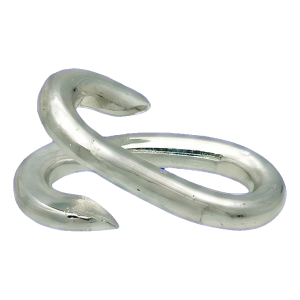

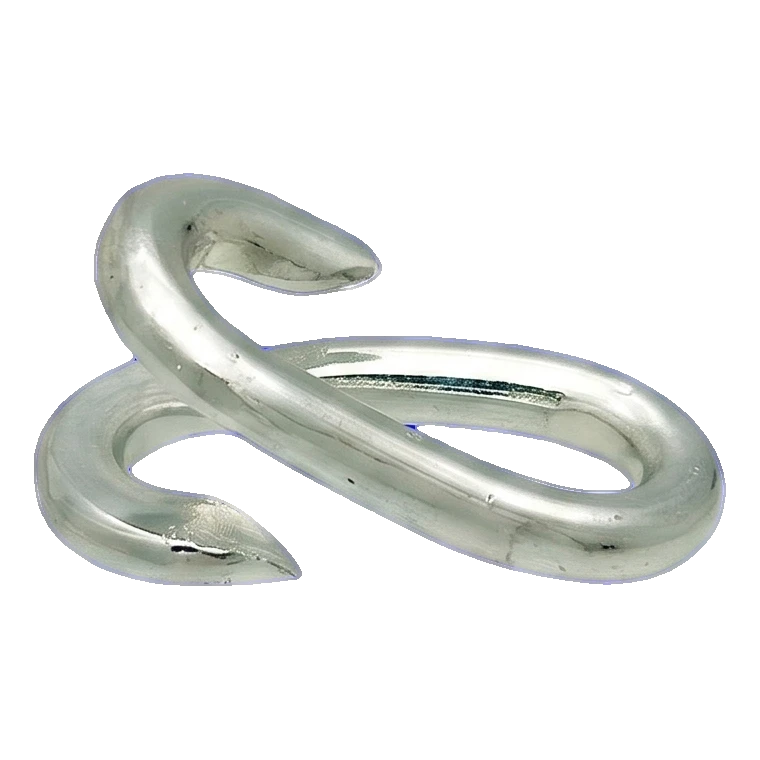

The OZK Rivet link, Ø 8 mm is a durable repair connector designed for permanently joining lengths of chain. The S-shaped element with open ends is fitted by placing it through the links of adjacent chain lengths and then riveting – that is, mechanically closing – the ends. The resulting connection is permanent and single-use: once riveted, the link must not be opened again for disassembly. The steel construction with a galvanised coating provides effective corrosion protection, so the link is suitable for use both indoors and outdoors. Compact dimensions and low unit weight make it easy to store and transport. The product is sold as single pieces, so you can order exactly the quantity you need for current repair or installation work.
Key features of the OZK Rivet link
- Permanent, single-use connection – once riveted, the link forms a non-detachable connector between lengths of chain
- Galvanised coating on C5–C10 steel provides corrosion resistance and a long service life in changeable weather conditions, which is important for outdoor applications
- Design suited to chains with a wire diameter of 8 mm
- Sold individually – order exactly as many as you need, with no requirement to buy a full bulk pack
- Manufacturer – Polish producer of rope and chain fittings
