Galvanised eye bolt M20 DIN 580 – C15 steel
Leave feedback on the product

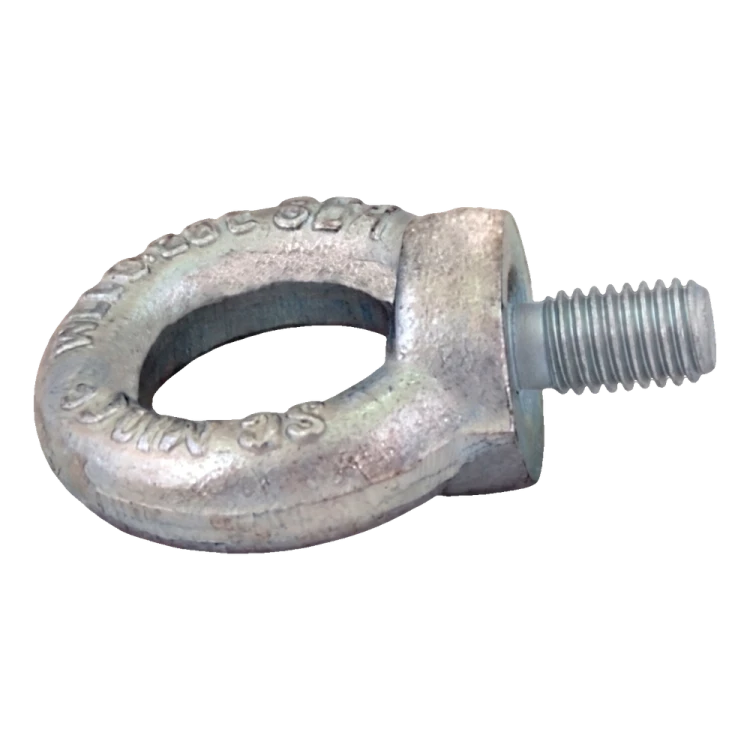

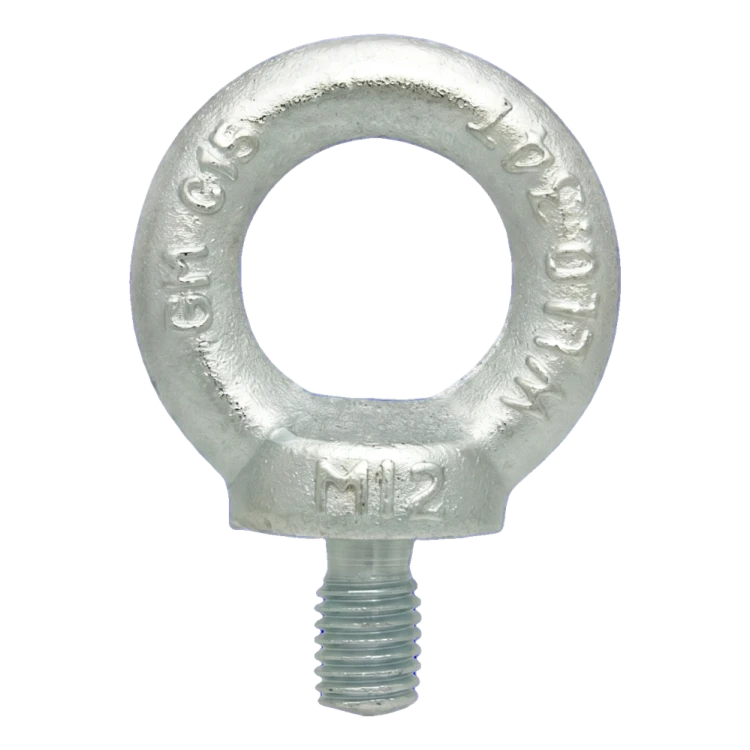

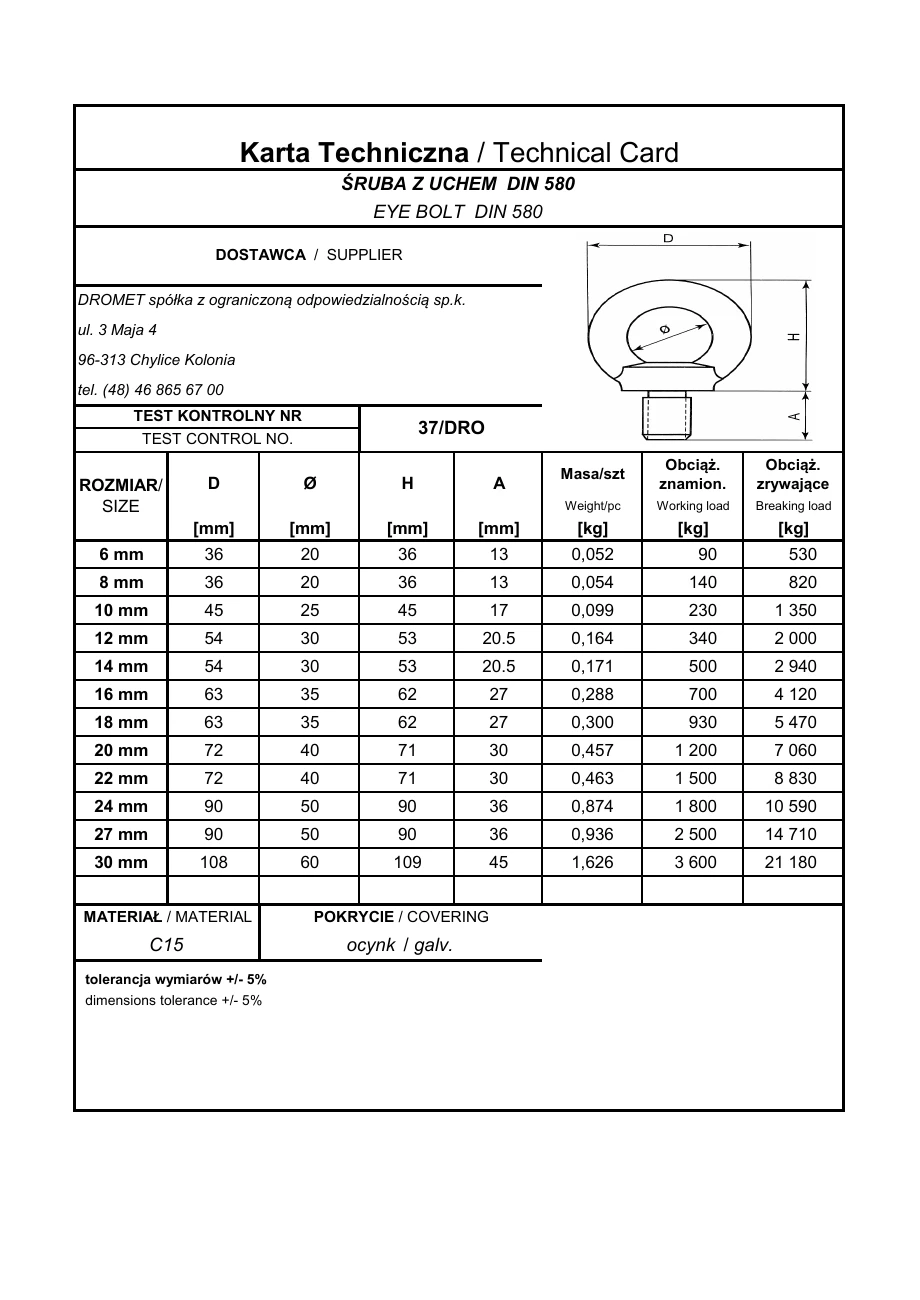

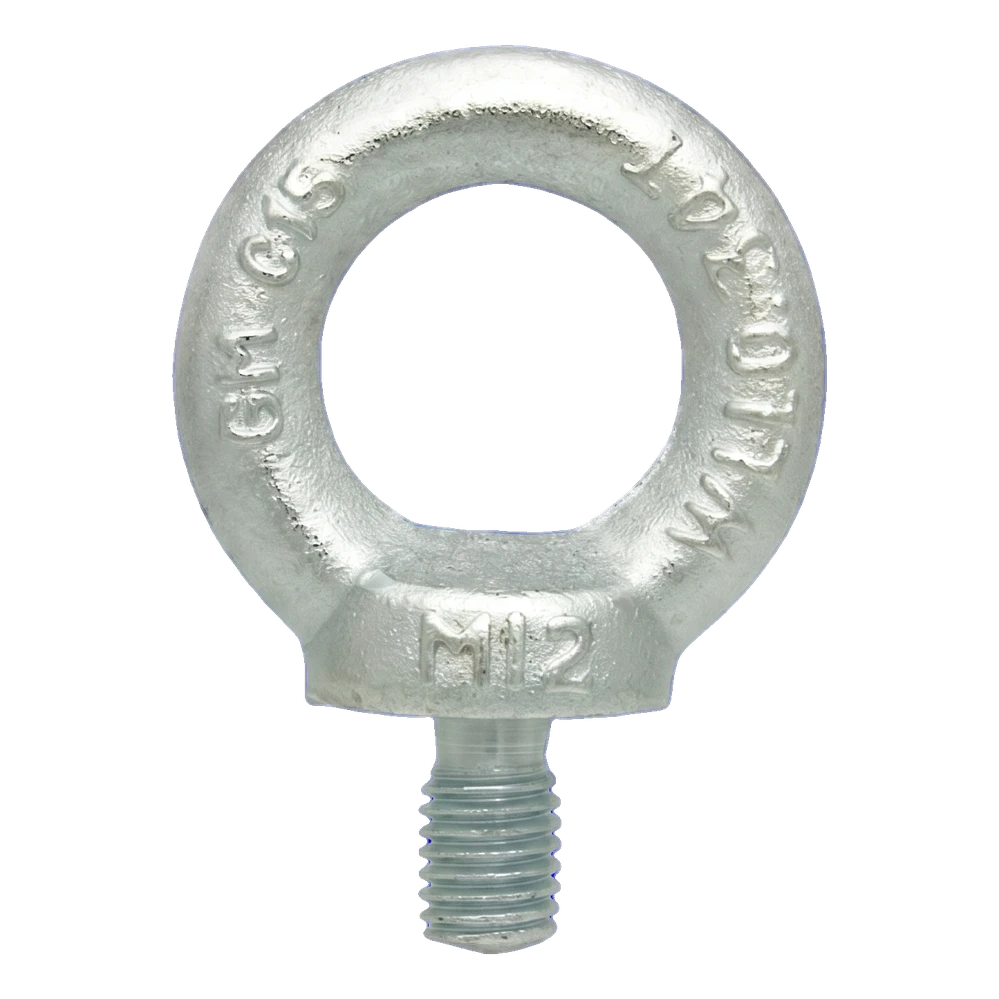

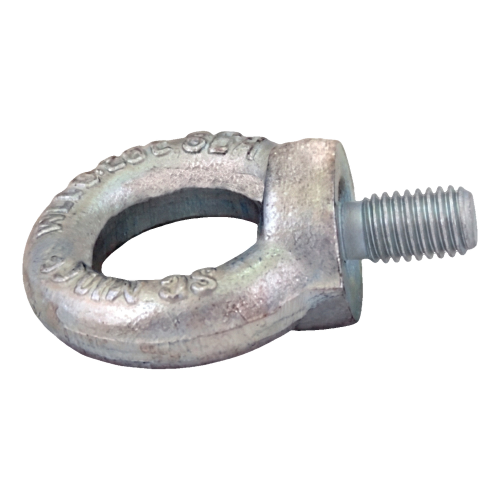

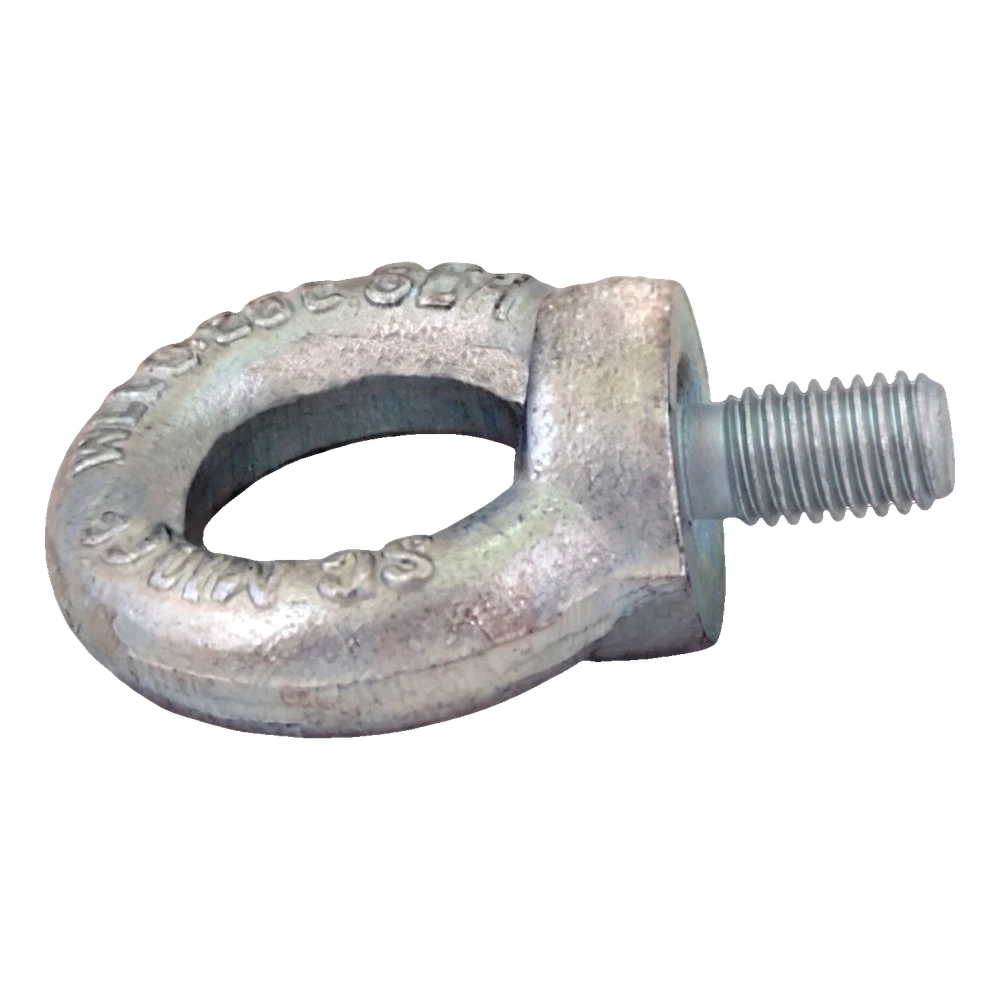

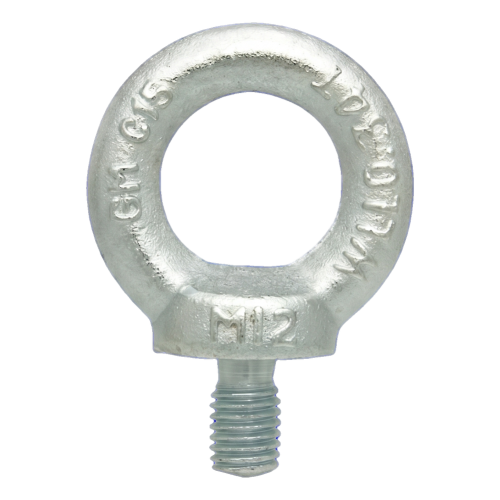

DIN 580 galvanised eye bolt, M20, made of C15 steel. Eye dimensions: D 72 mm, Ø 40 mm, H 71 mm, shank length A 30 mm. Working load limit 1,200 kg, breaking load 7,060 kg. Weight 0.457 kg. Dimensional tolerance ±5%.
Product code: 002-396
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Eye bolt
- Thread type M20
- Max. load capacity [kg] 1200
Description
Eye bolt for creating an attachment point in a tapped hole; eye with collar, zinc-plated C15 steel
About the product
The eye bolt is used to create an attachment point for ropes, chains and rigging equipment in a tapped hole. It has an eye with a collar and a thread that screws into the hole. The product complies with standard DIN 580.
The bolt thread is M20 — the thread in the hole must match. The bolt thread length A is 30 mm; the thread in the hole must be at least this long. The external eye diameter D is 72 mm, and the internal eye diameter Ø is 40 mm. Height H is 71 mm. These are nominal values according to the manufacturer's datasheet (dimensional tolerance ±5% as stated in the datasheet). Screw the bolt in until the collar is fully seated against the surface — the entire face of the collar must be in contact with it. Before attaching a rope or chain, align the plane of the eye with the direction of loading.
Material: C15 steel. Coating: zinc-coated. The zinc coating protects the steel against corrosion under normal conditions; where there is contact with salt, chemicals or persistent moisture, choose the material according to the exposure conditions. The rated load of 1200 kg stated in the manufacturer's datasheet applies to a correctly screwed-in component. When pulling at an angle to the axis, the permissible load is lower, and the working load for a specific application is determined by the design. The breaking load is 7060 kg and is not the working load. Do not use the component for lifting people.
Selection and installation
- ✓Check the thread in the hole: it must match the bolt thread M20 and be at least 30 mm long.
- ✓Screw the bolt in until the collar is fully seated against the surface – the entire face of the collar must be in contact with it.
- ✓Align the plane of the eye with the direction of loading before attaching a rope or chain.
Important
The rated load stated in the datasheet applies to a correctly screwed-in component; it is lower when loaded at an angle. Do not use the component for lifting people. The working load for a specific application is determined by the design.
Reviews
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
