Galvanised Wire rope grip 22 mm – DIN 741 equivalent
Leave feedback on the product

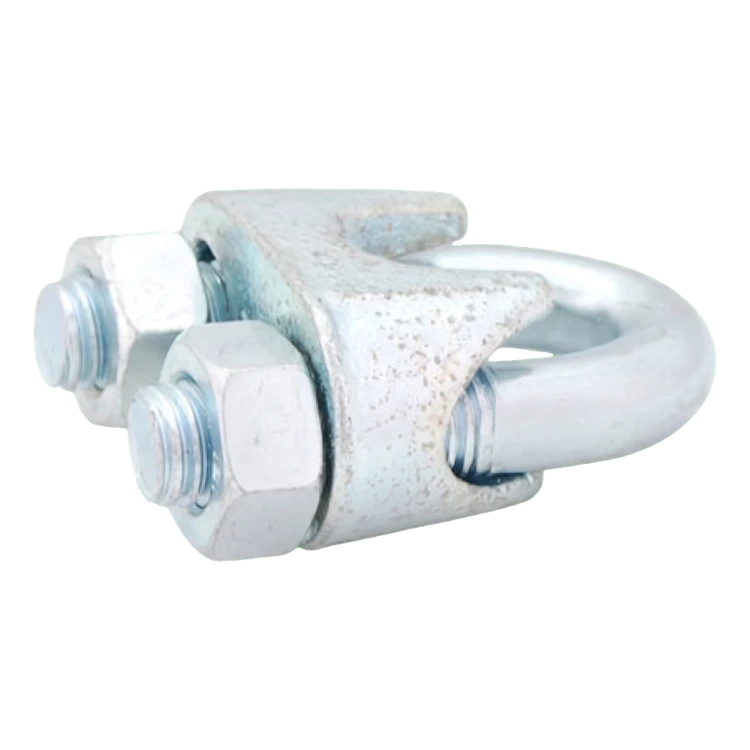

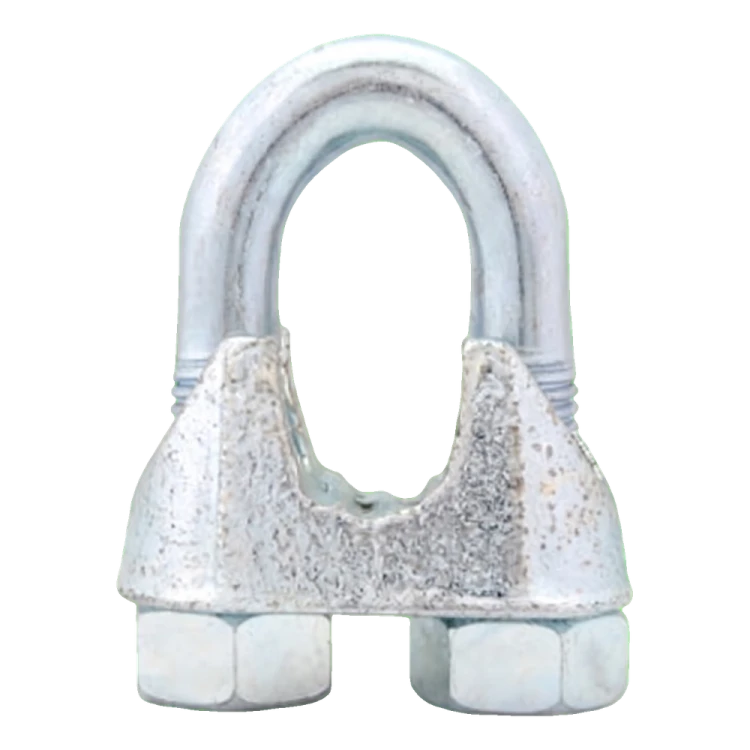

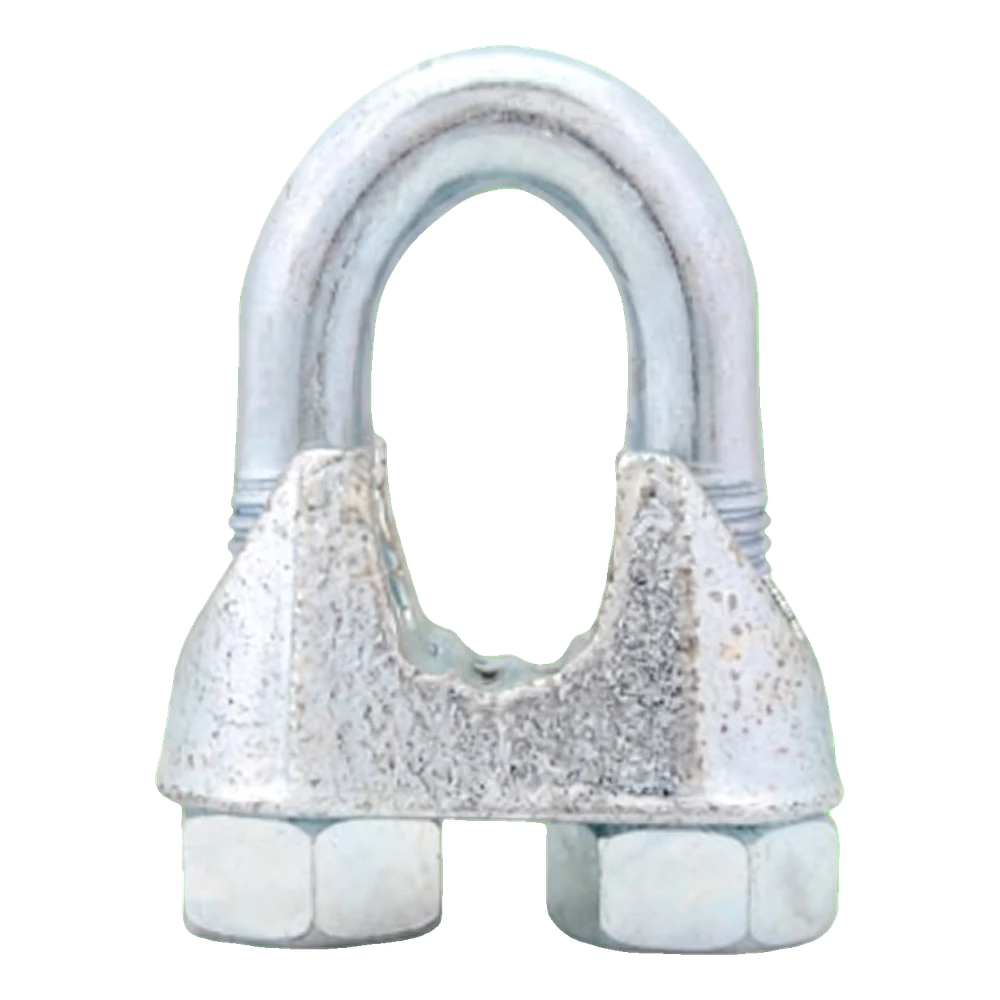

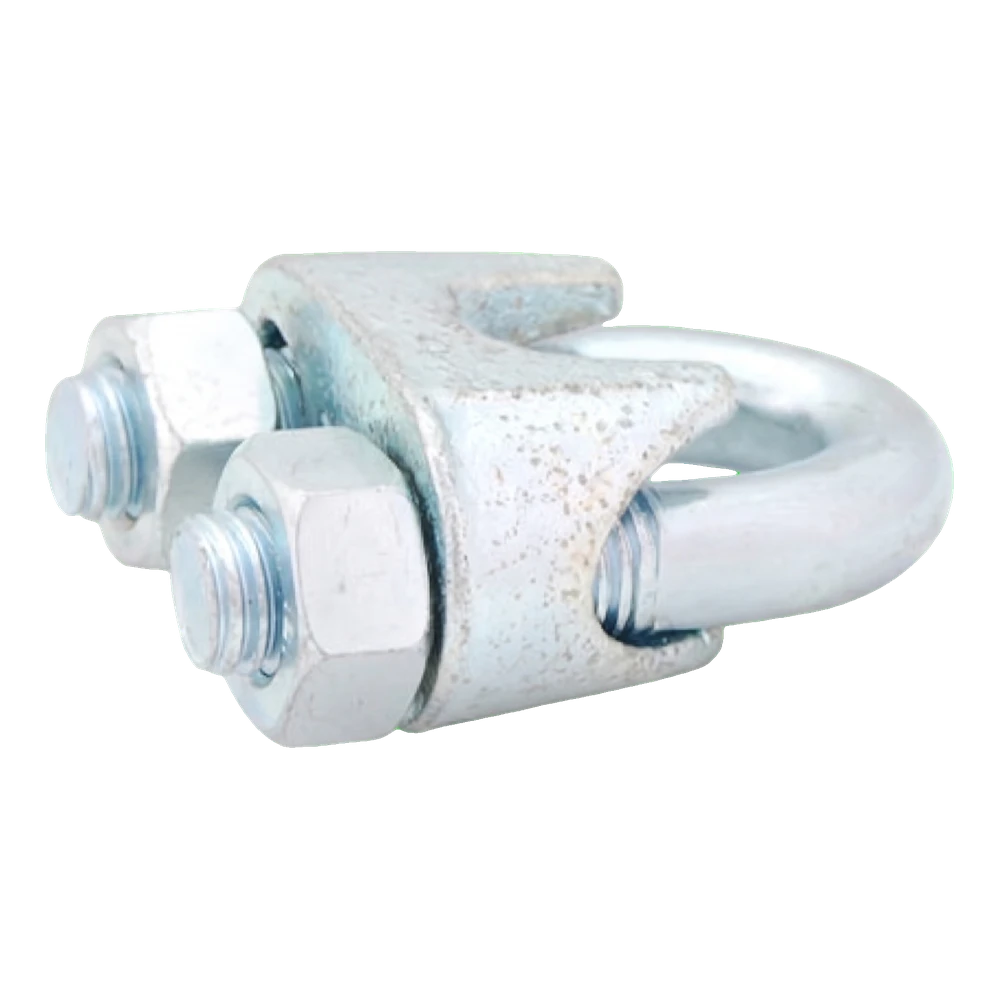

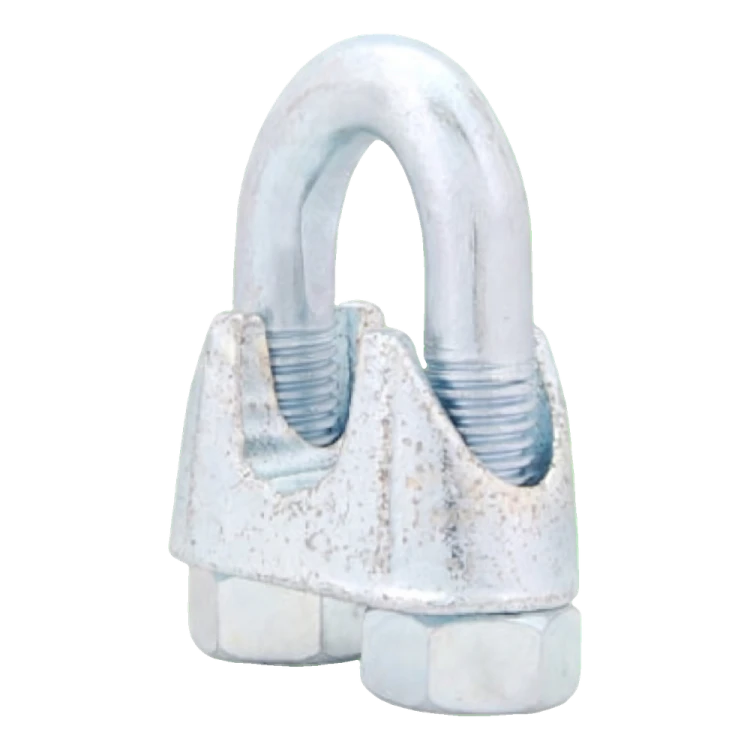

Wire rope grip for 22 mm steel wire ropes, galvanised, compliant with DIN 741. M14 thread, U-bolt and nuts made of C15 steel, cast iron body. Height 86 mm, leg spacing 37 mm, weight 0.346 kg/pc. For terminating and joining ropes.
Product code: 002-559
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Wire rope clip
- Diameter 22
- Thread type M14
Description
Galvanised Wire rope grip 22 mm – DIN 741 equivalent

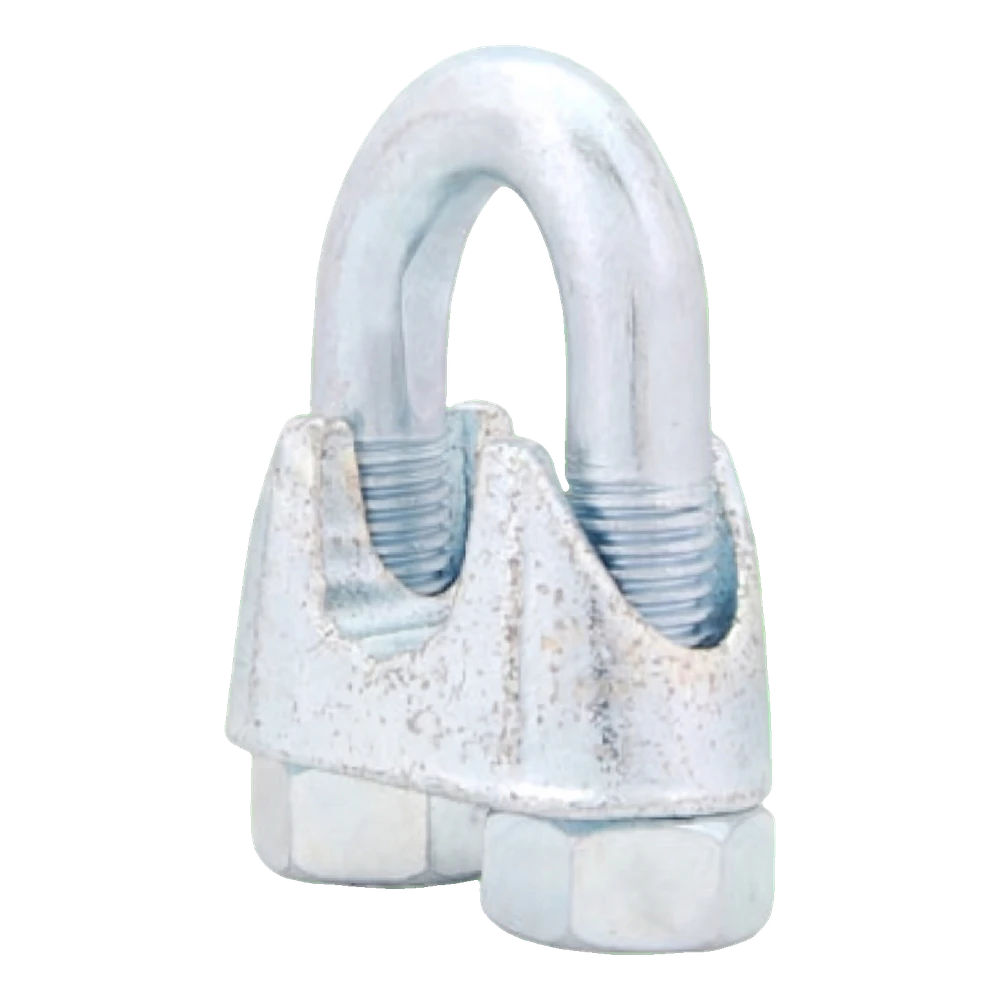

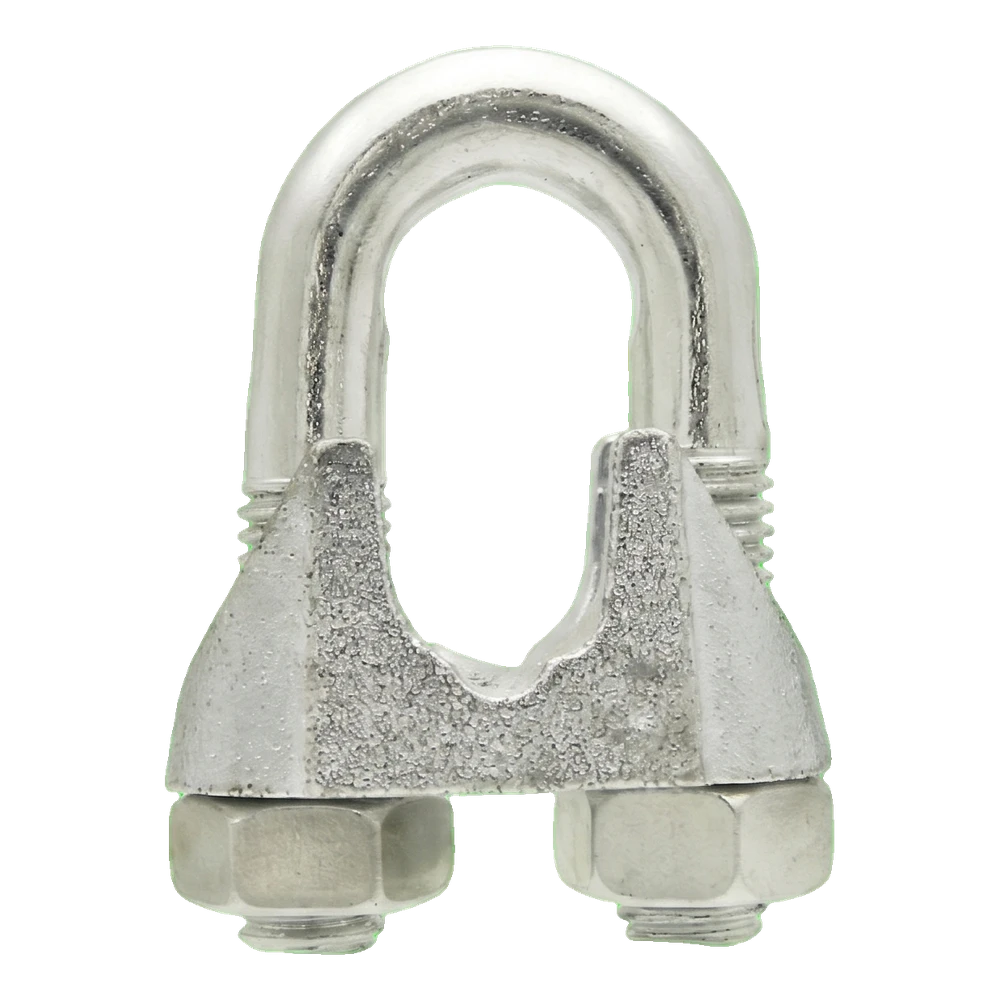

DIN 741 Wire rope grip for steel wire ropes with a diameter of 22 mm — reliable rope fittings for forming loops, joining and terminating ropes. The U-bolt design consists of a U-shaped bolt, a body (saddle) and two clamping nuts. The component is made of C15 steel (U-bolt and nuts) and cast iron (body), protected with a galvanised coating that provides corrosion resistance in harsh weather conditions. The product meets the requirements of the DIN 741 standard, which guarantees repeatable dimensions and secure installation on every construction site. Sold individually — you order exactly as many pieces as you need for a specific job.
Advantages of the U-bolt design
- The standardised saddle geometry ensures even clamping pressure across the full width of the rope — with no point compression that could damage the strands
- The manufacturer provides precise installation guidelines (the required number of grips per loop and the spacing between them), which makes it easier to terminate the rope correctly
- Two nuts on the U-bolt allow precise adjustment of the clamping force using standard spanners
- The galvanised coating protects against corrosion and allows the grips to be used outdoors — in guy-wire installations, mast rigging or structural safety systems

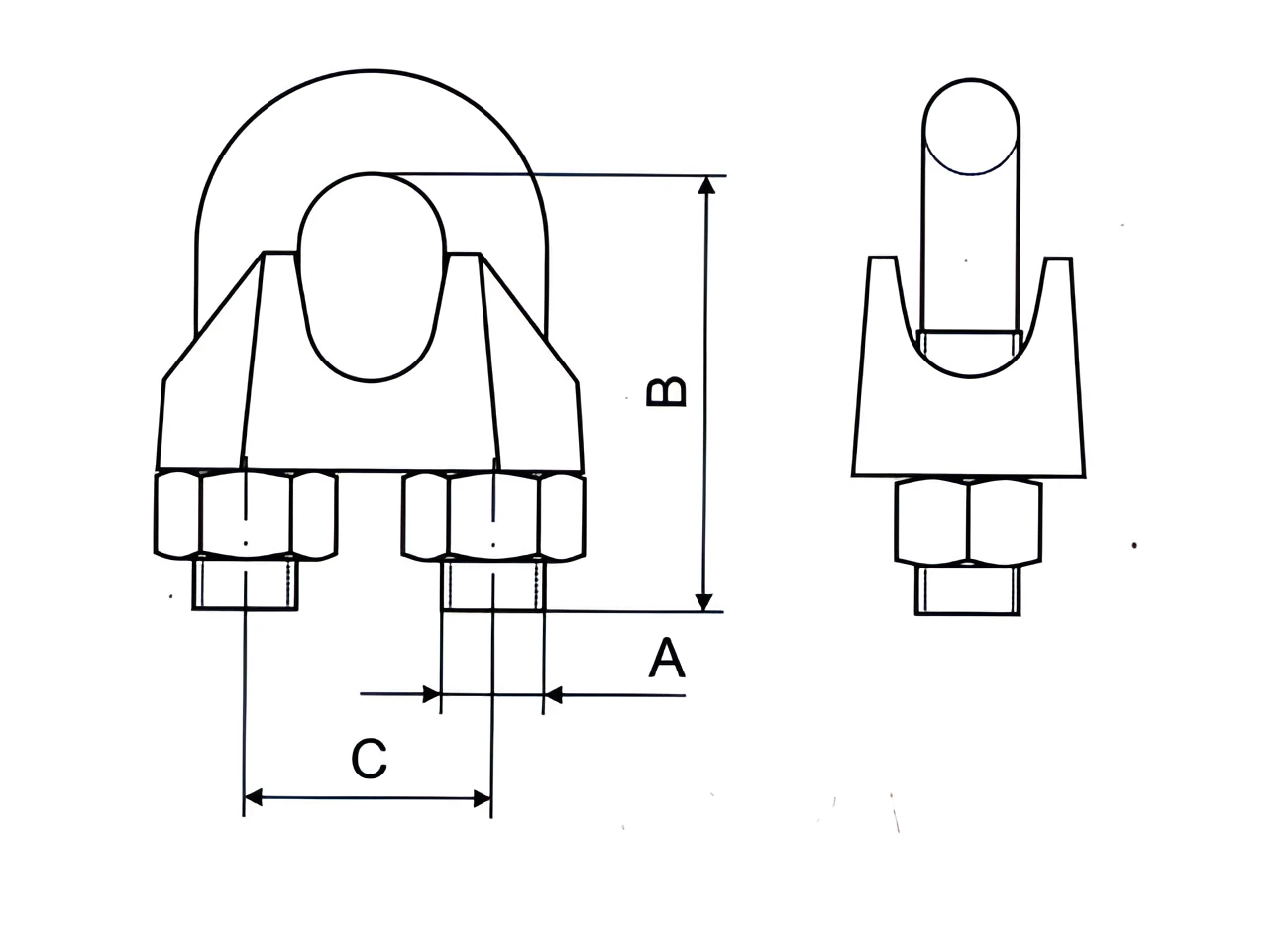

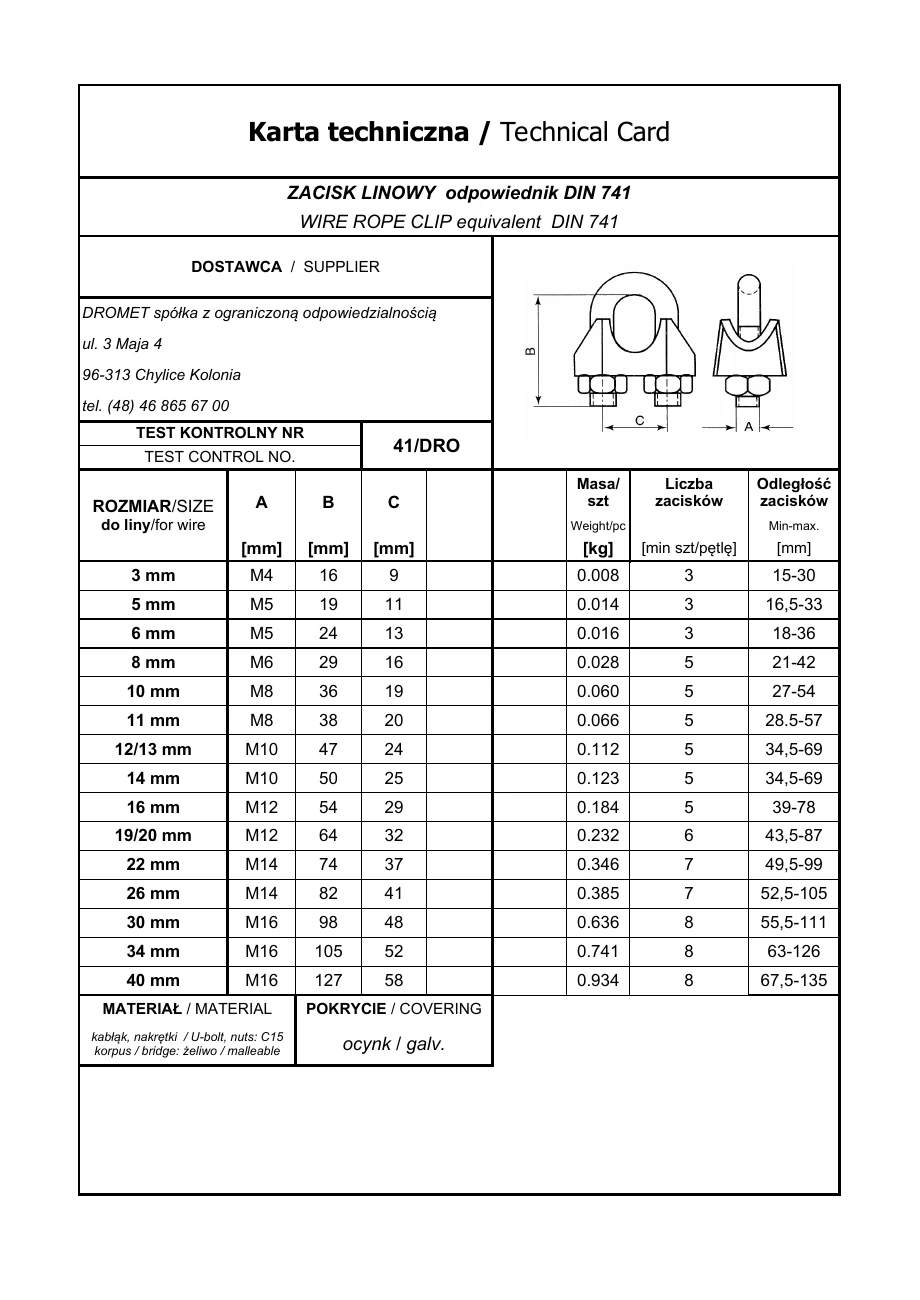

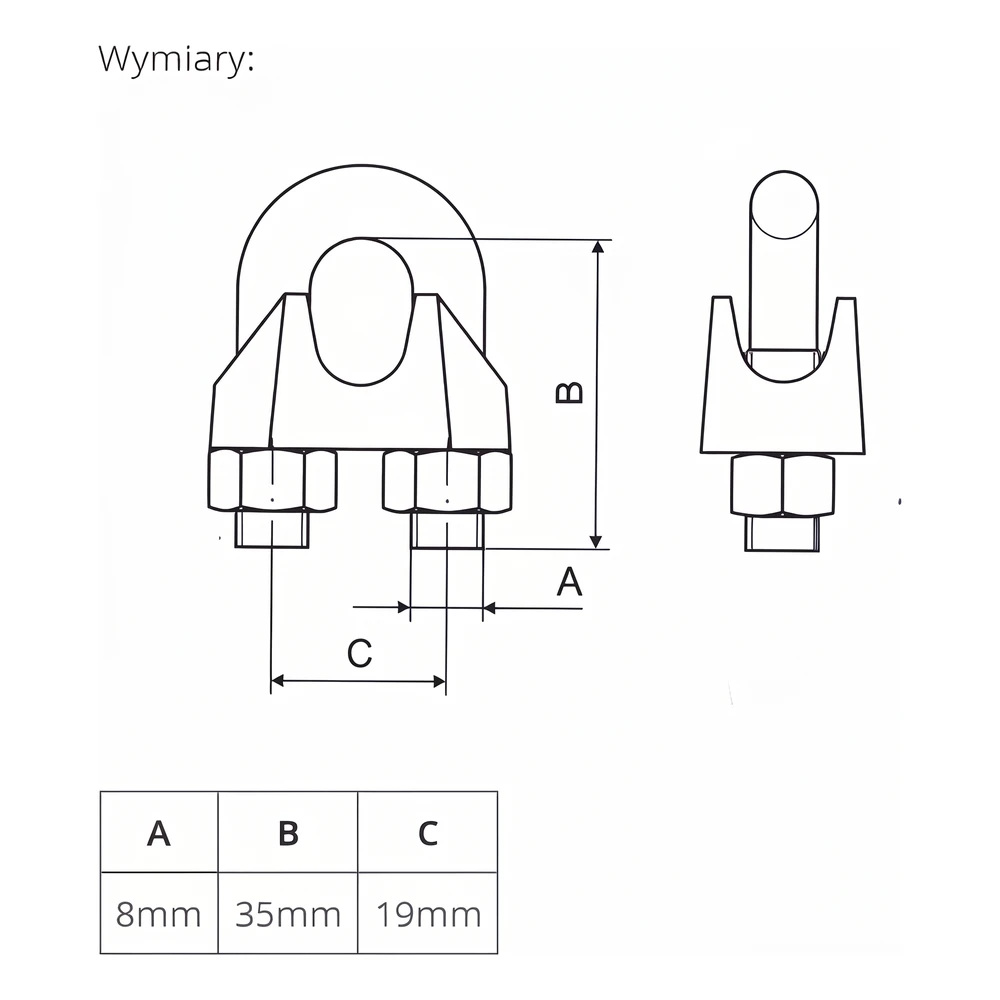

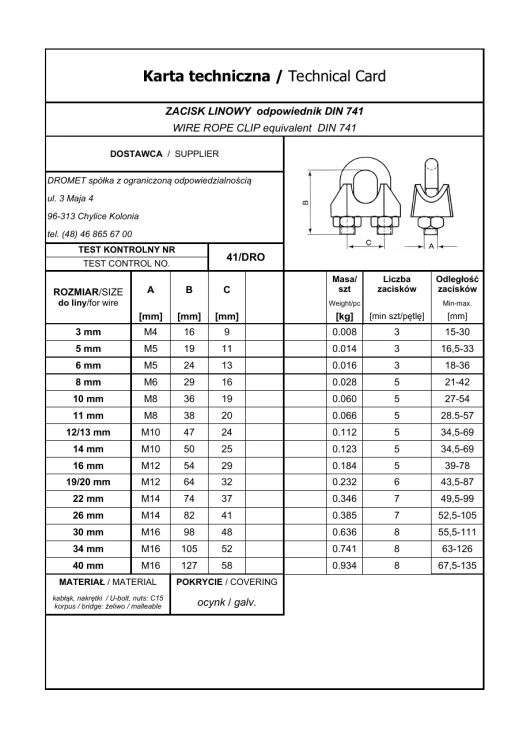

Dimension markings on the technical drawing correspond to the grip parameters: A — nut thread, B — overall height of the grip, C — U-bolt leg spacing (saddle width). Thanks to the standardised design, the dimensions are repeatable in every production batch, which eliminates the need to fit components individually on site.
