Galvanised Turnbuckle M24×255 mm – Hook-Eye, DIN 1480
Leave feedback on the product
Hook-eye turnbuckle, galvanised, M24, DIN 1480. Length L 254 mm, L1 130 mm, E 26 mm, eye Ø 28 mm. C15 low-alloy steel, electro-galvanised. Minimum breaking force 41.44 kN. Weight 3.03 kg. For tensioning steel wire ropes, chains and tie rods.
Product code: 002-449
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M24
Description
Galvanised Turnbuckle M24×255 mm – Hook-Eye, DIN 1480

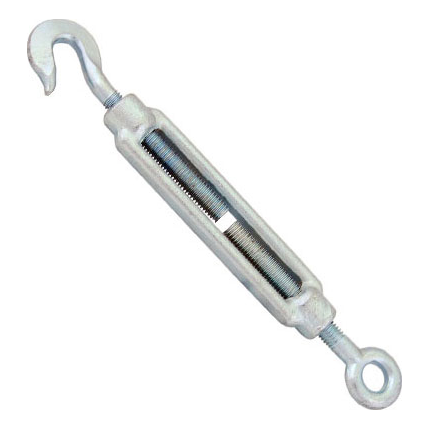

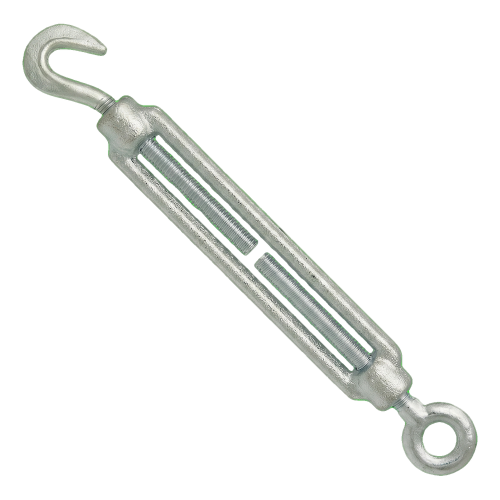

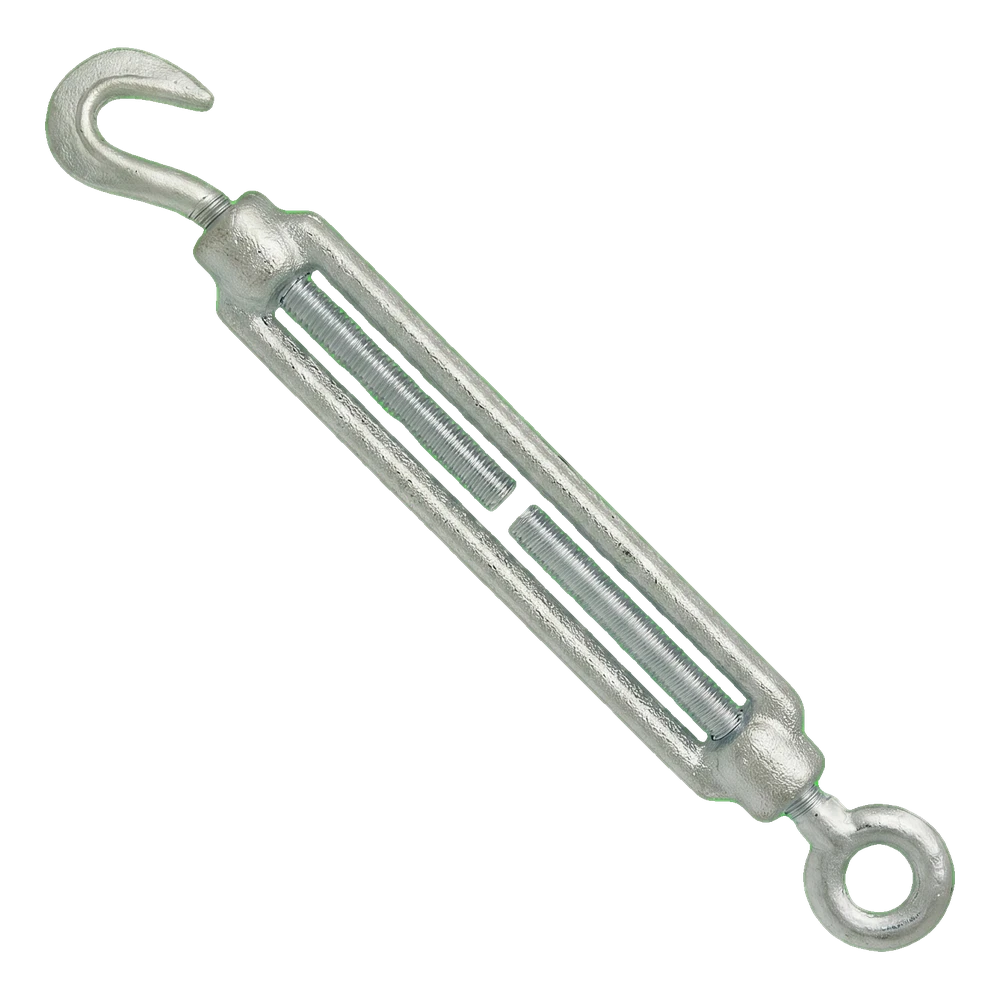

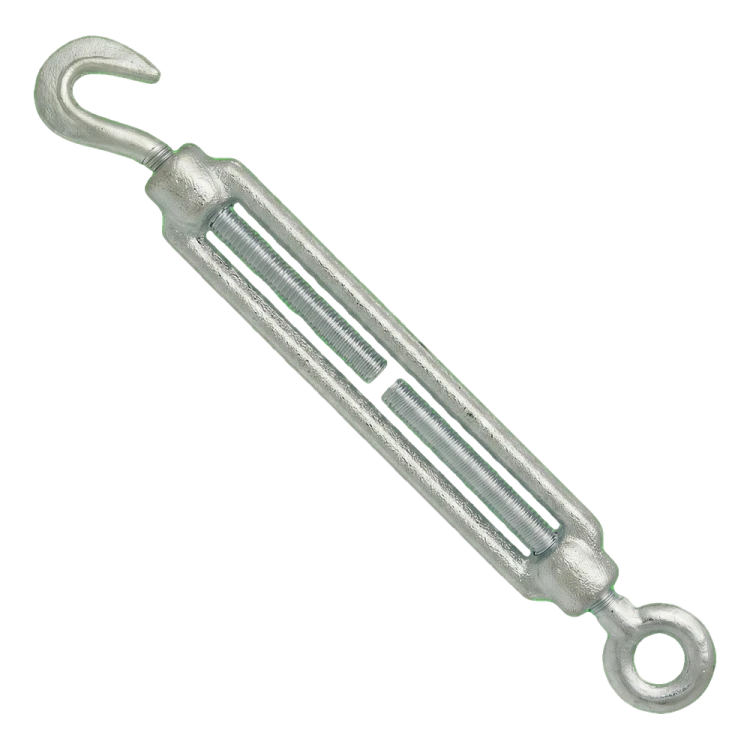

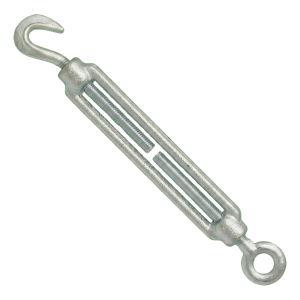

The hook-eye turnbuckle is a forged tensioning screw designed for adjusting the tension of steel wire ropes, chains and tie rods. The hook-eye end combines two types of fixing in a single component – the hook allows the rope to be attached and detached quickly without undoing the connection, while the eye provides a permanent, closed attachment, e.g. to a shackle or anchor. Thanks to its forged low-alloy steel construction and galvanised coating, the turnbuckle retains full corrosion resistance even in demanding outdoor conditions – on building sites, in guy-wire installations or in the rigging of steel structures. The high breaking force guarantees the load capacity required in professional assembly and installation applications.
Applications and advantages
- Tensioning and adjusting steel wire ropes in guy-wire and antenna installations and in structural rigging
- Hook-eye end – a versatile connection: quick attachment on the hook side, secure closure on the eye side
- Forged construction ensures high strength and resistance to plastic deformation
- Galvanised coating protects against corrosion in outdoor conditions
- Smooth length adjustment by turning the central body with opposite-hand threads

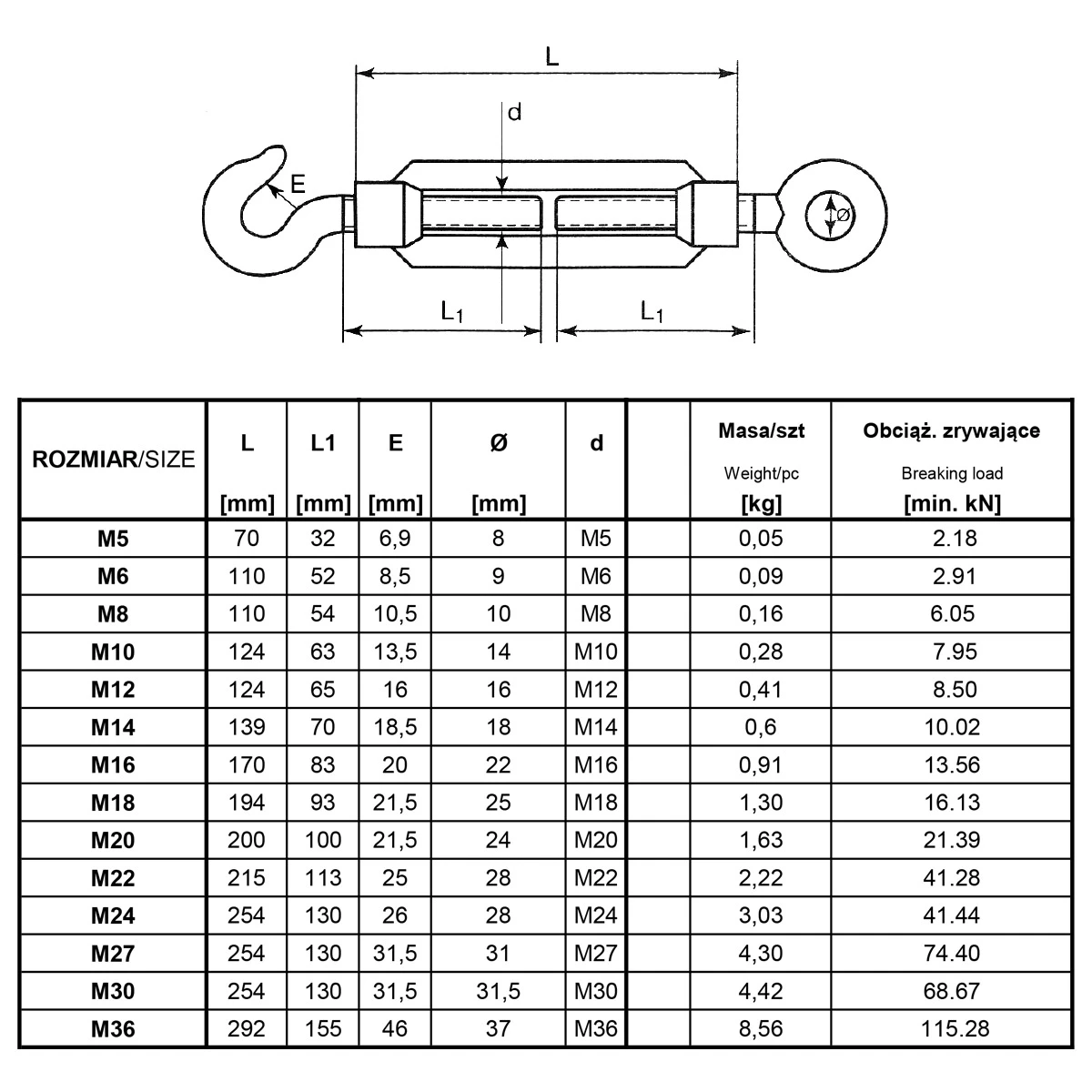

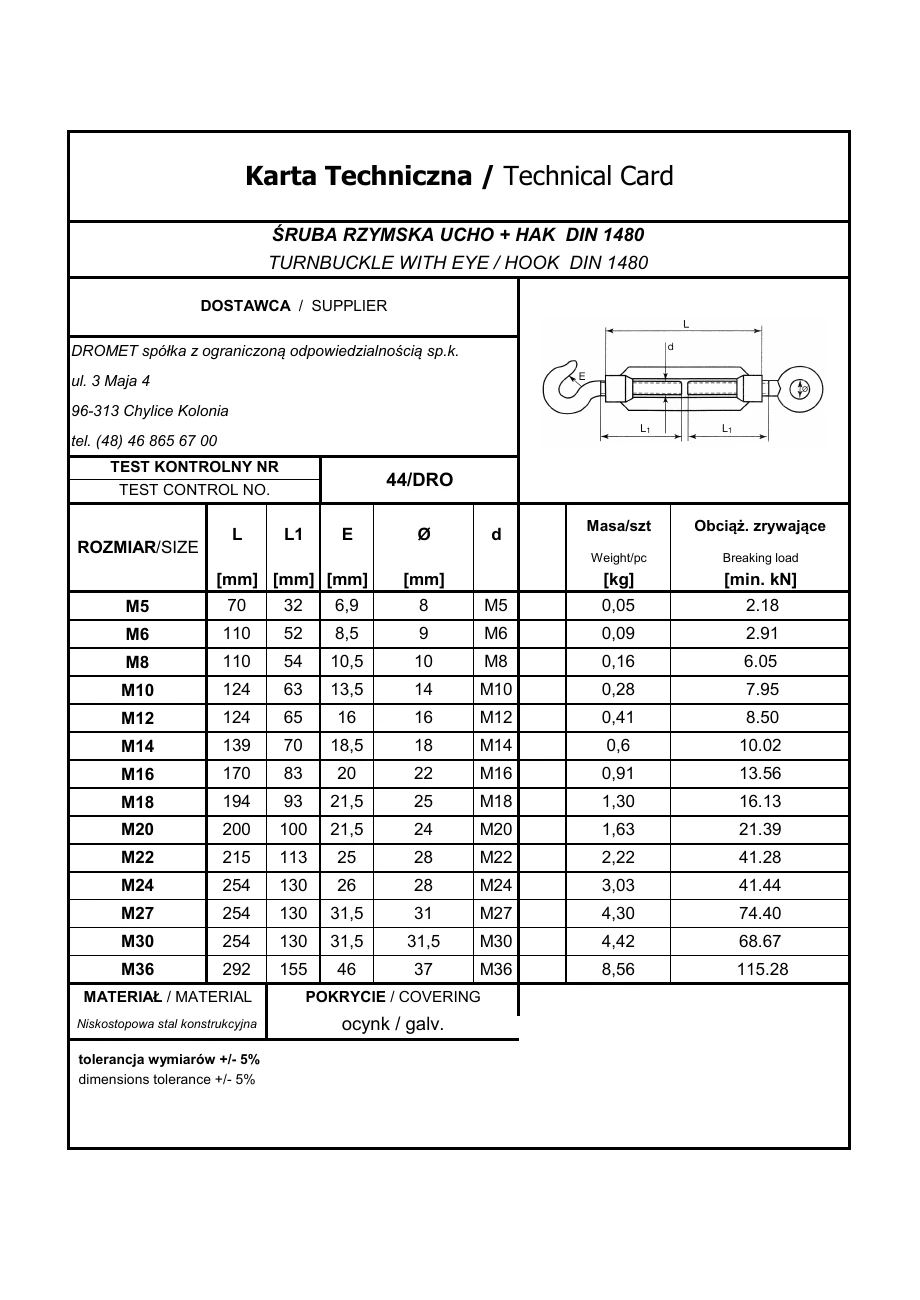

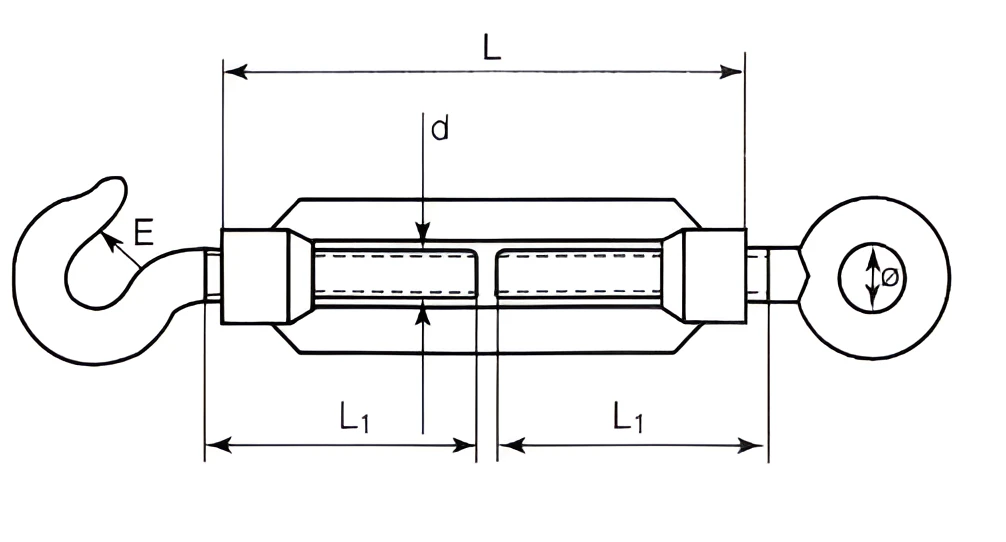

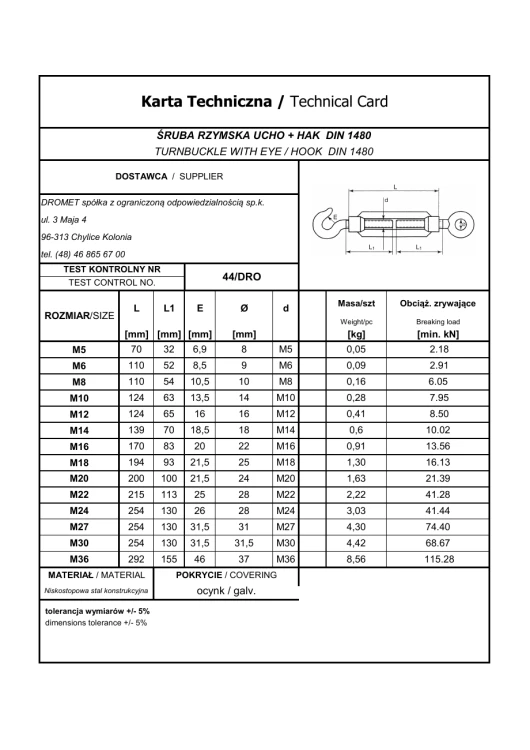

The turnbuckle body has an open frame with two threaded rods with opposite-hand threads, which allows smooth length adjustment by turning the central body. The technical drawing shows the key dimensions: L – overall length, L1 – threaded arm length, E – hook opening, d – thread diameter, Ø – eye diameter. This makes it possible to select the turnbuckle precisely for a specific rope arrangement and load.
