Galvanised Turnbuckle M16×170 mm – Hook and Eye, DIN 1480
Leave feedback on the product

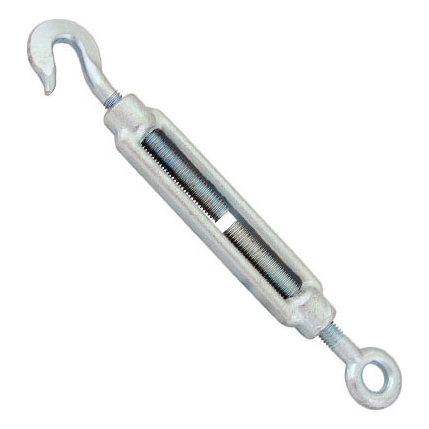

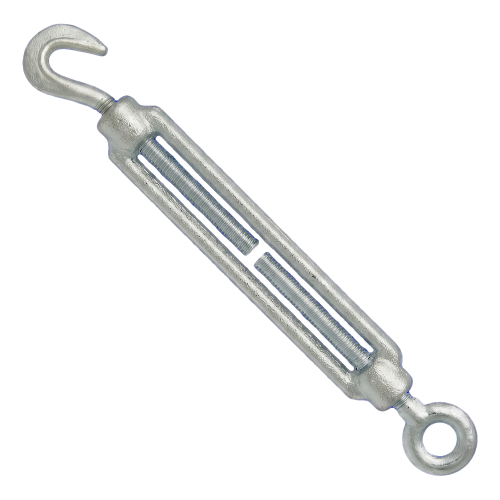

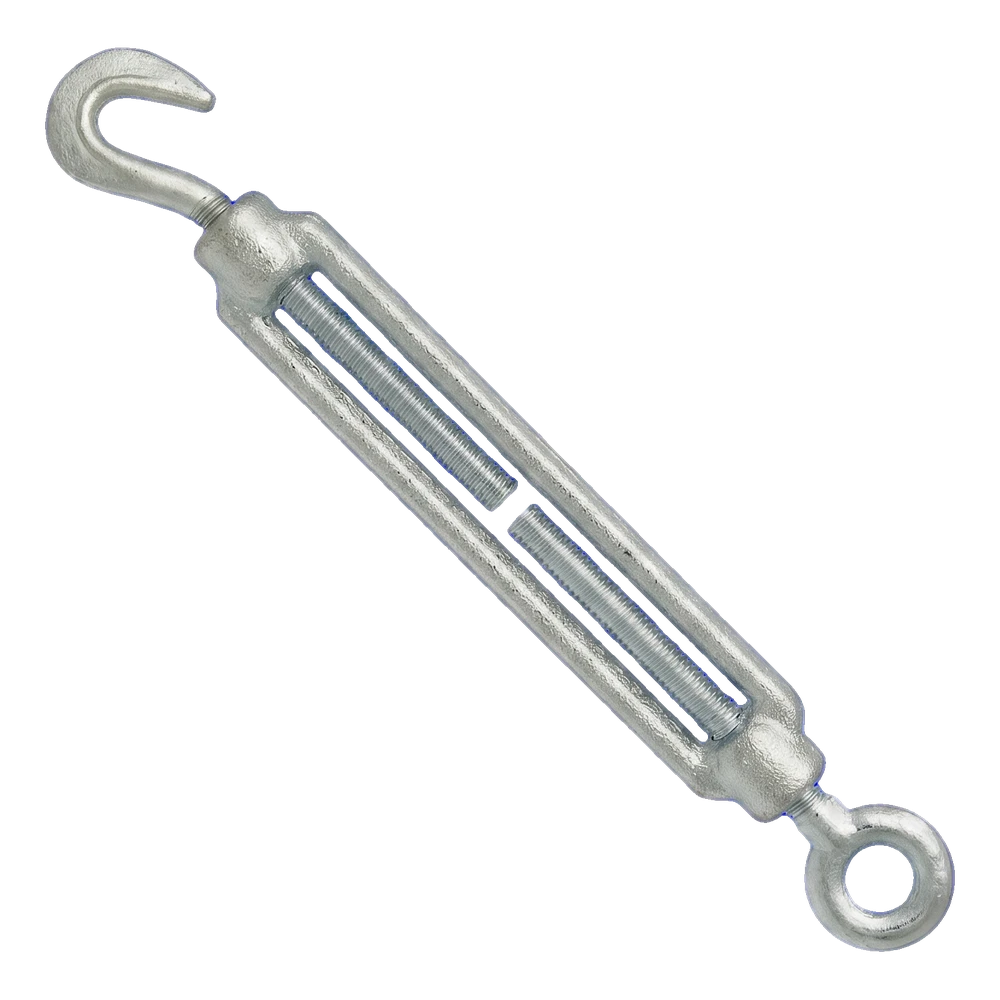

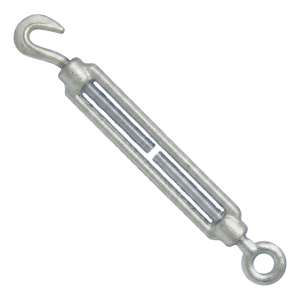

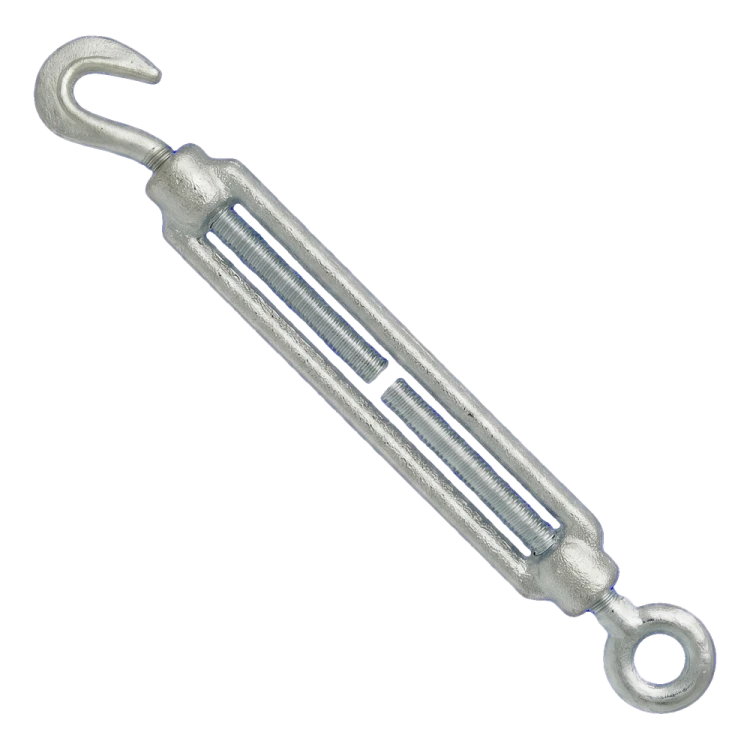

Hook-and-eye turnbuckle M16x170 mm, DIN 1480, made of C15 steel with an electro-galvanised finish. Thread length 83 mm, hook spacing 20 mm, eye diameter 22 mm. Weight 0.91 kg. Minimum breaking force 13.56 kN. For tensioning ropes and chains.
Product code: 002-447
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M16
Description
Galvanised Turnbuckle M16×170 mm – Hook and Eye, DIN 1480

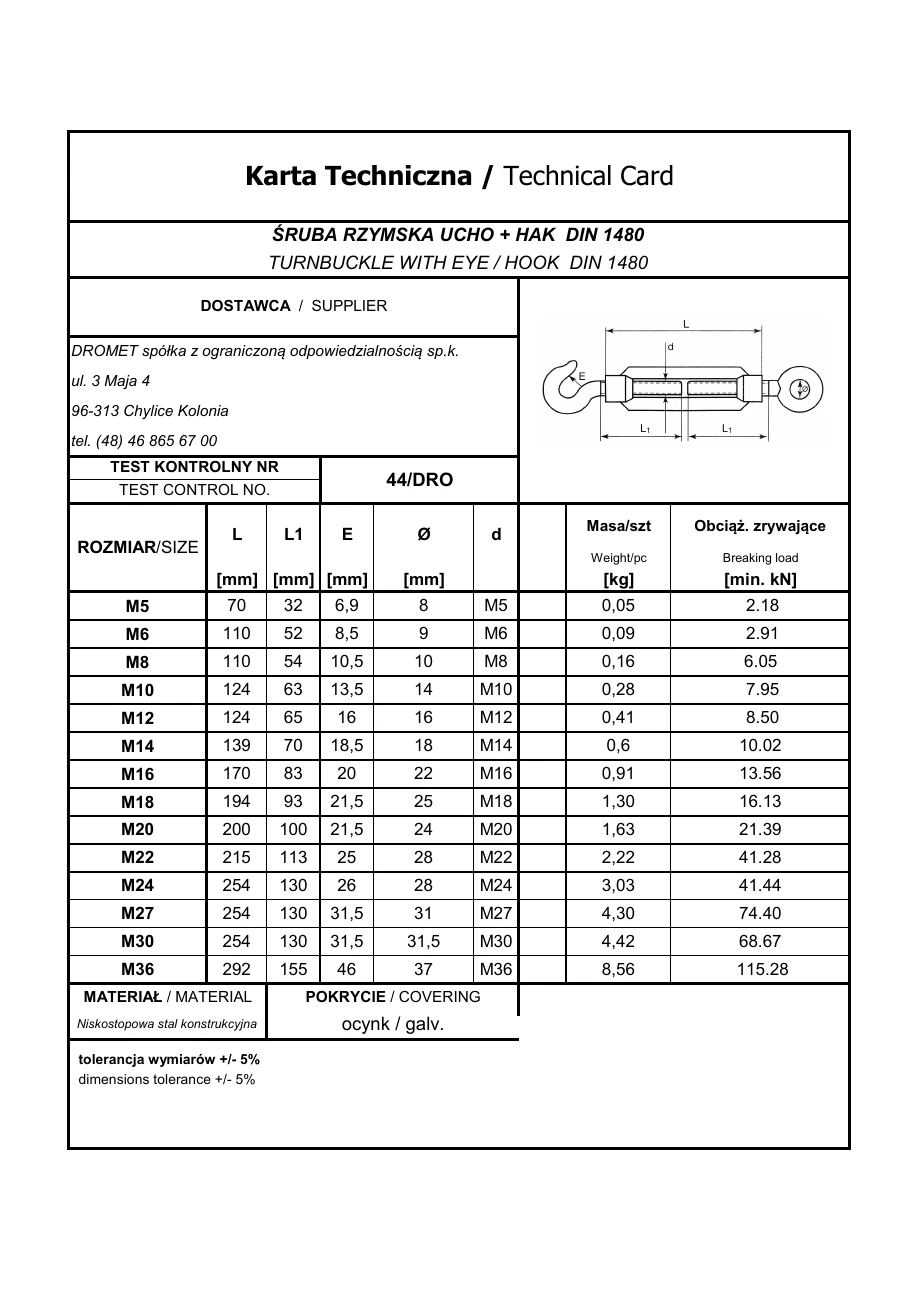

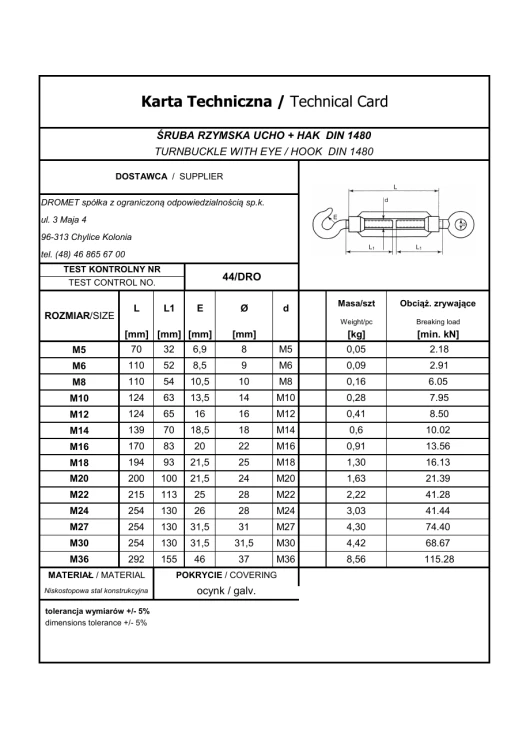

Forged hook-and-eye turnbuckle M16x170 compliant with DIN 1480 is a durable tensioning element designed for adjusting the tension of steel wire ropes, chains and tie rods. Made of low-alloy structural steel C15 and protected with an electro-galvanised coating, it provides effective corrosion protection in outdoor conditions. The hook-and-eye end fitting allows convenient connection to various types of hardware — the hook enables quick attachment of a rope or chain, while the eye provides a secure fixing using a shackle or pin. The forged body construction guarantees high mechanical strength — the minimum breaking force is 13.56 kN (approx. 1383 kg), as confirmed by the manufacturer's data sheet (control test 44/DRO). The dimensional tolerance is within ±5%.
Features and applications
- Forged construction providing high strength and durability in demanding applications
- Hook-and-eye end fittings — a versatile connection to shackles, eyes, hooks and other rope hardware
- Electro-galvanised coating protects against corrosion in atmospheric conditions
- M16 thread allows smooth adjustment of rope or chain tension by turning the body
- Compliant with DIN 1480 — a standardised component used in guy installations, steel structures, wind bracing and tensioning systems

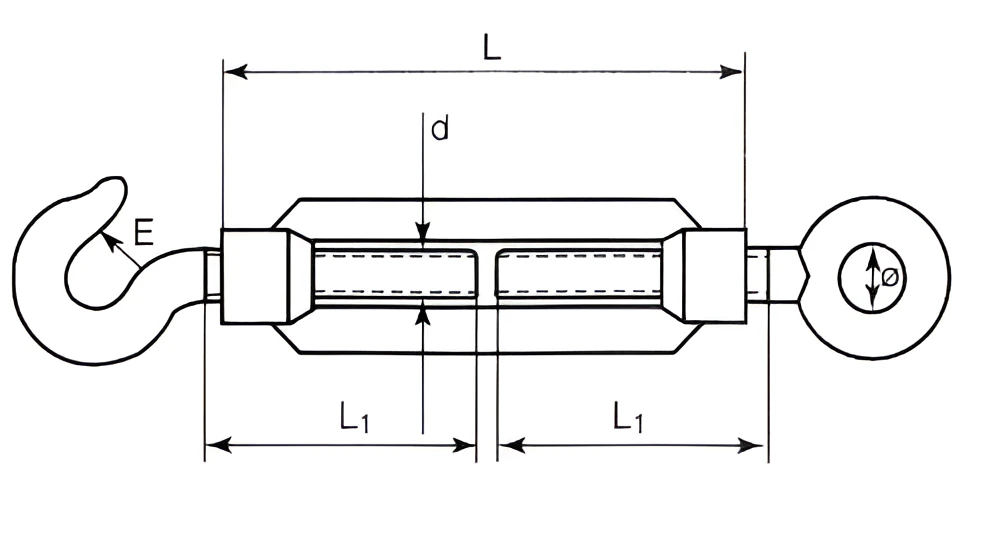

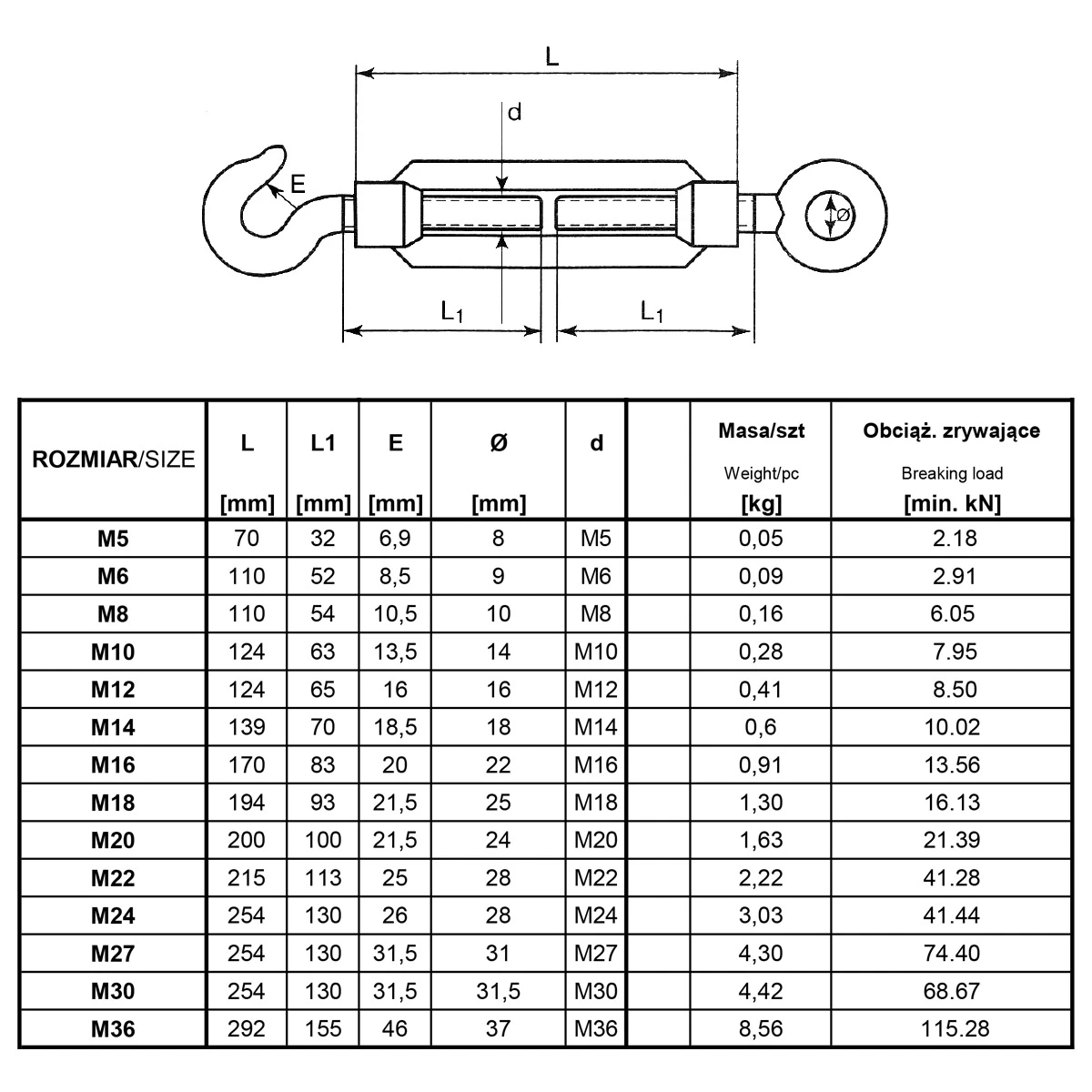

The technical drawing shows the key dimensions of the turnbuckle: overall working length L, thread length L1, hook spacing E, eye diameter Ø and thread diameter d. Thanks to standardisation to DIN 1480, the components are fully interchangeable with other turnbuckles of this standard, which makes it easier to assemble hardware on site.
