Galvanised Thimble for 8 mm Wire Rope – DIN 6899 B
Leave feedback on the product

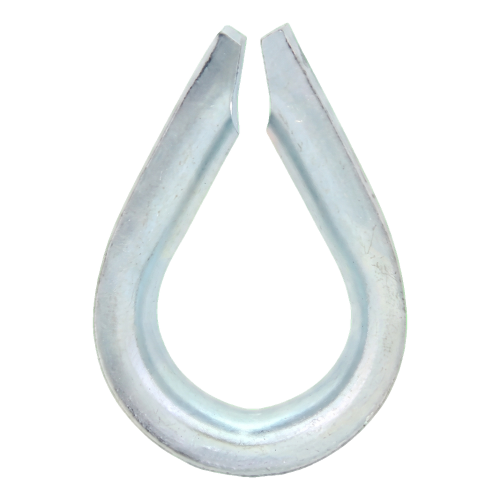

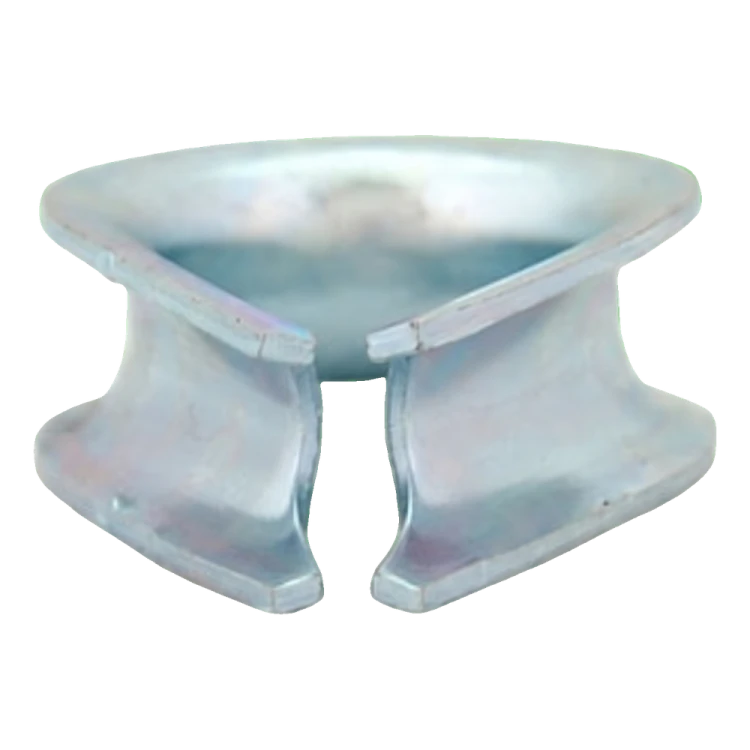

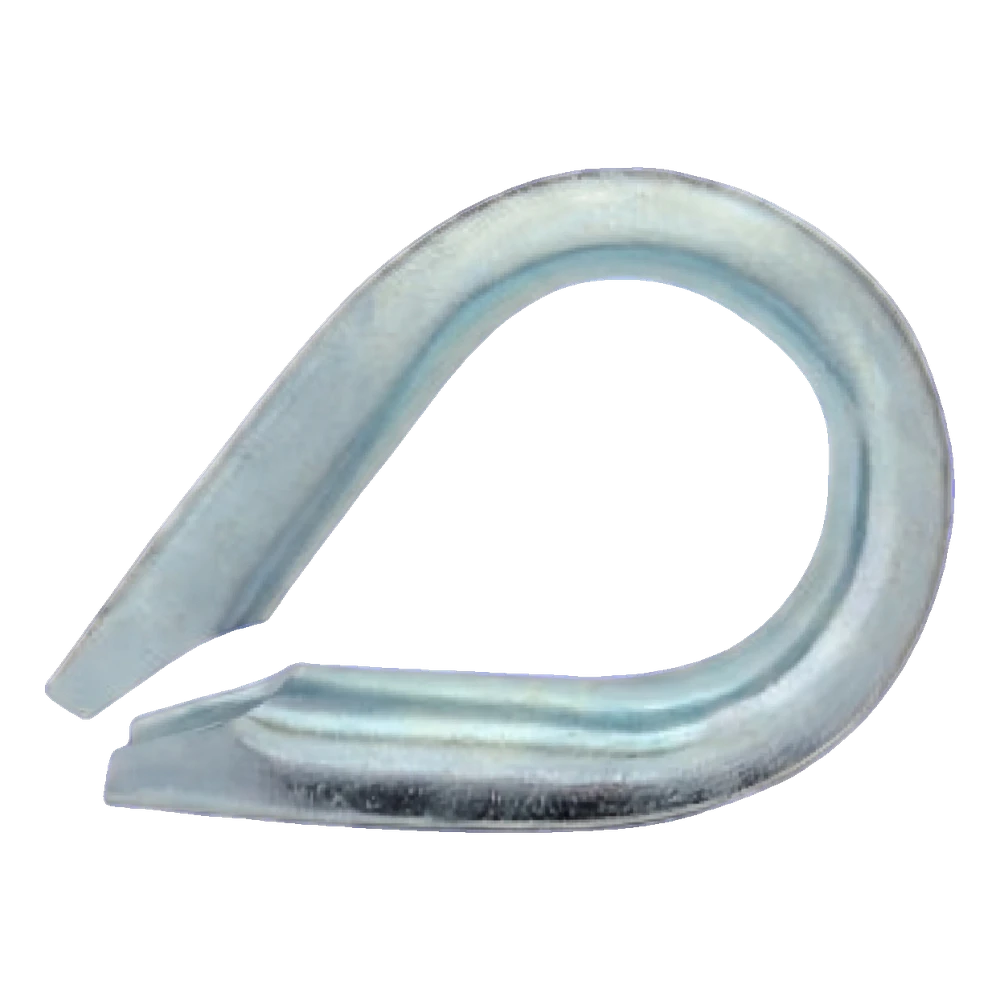

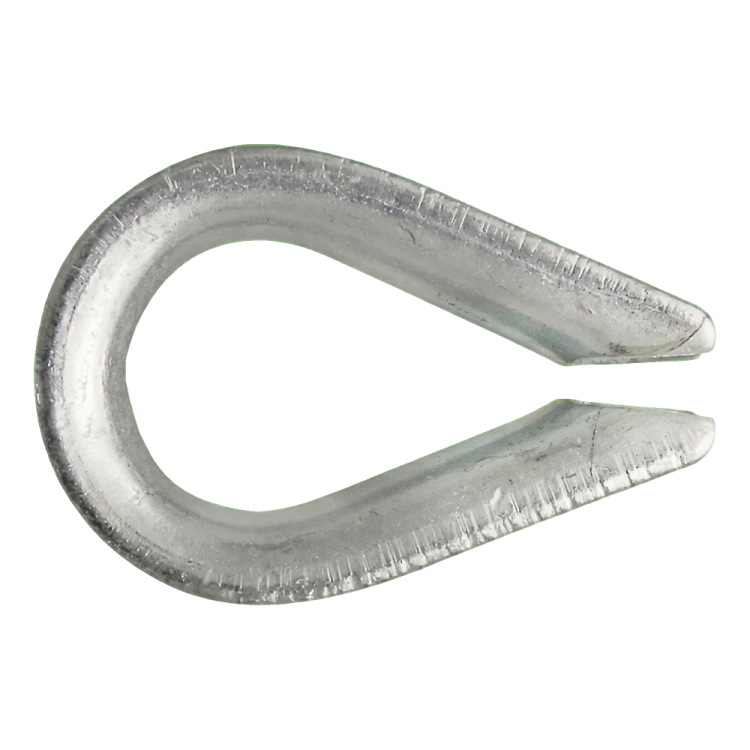

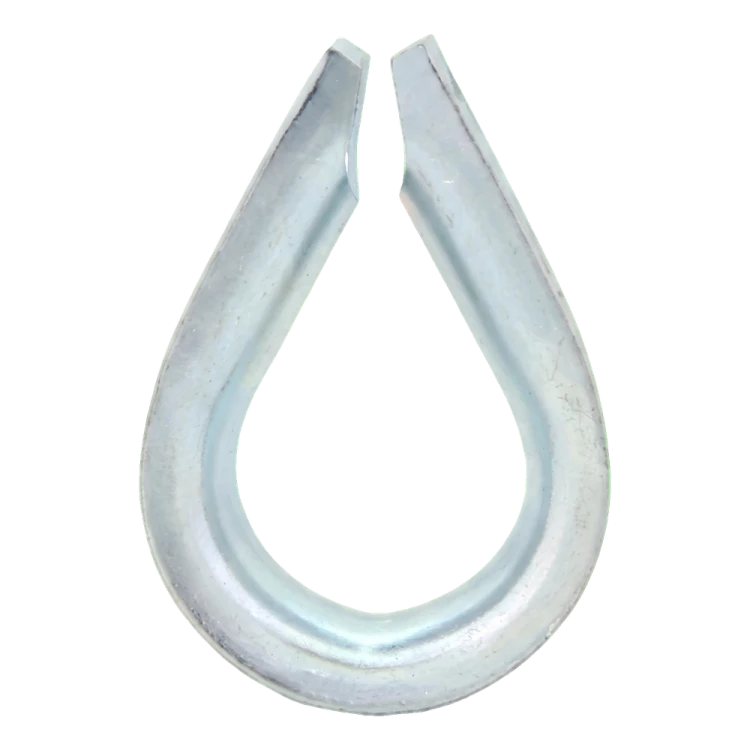

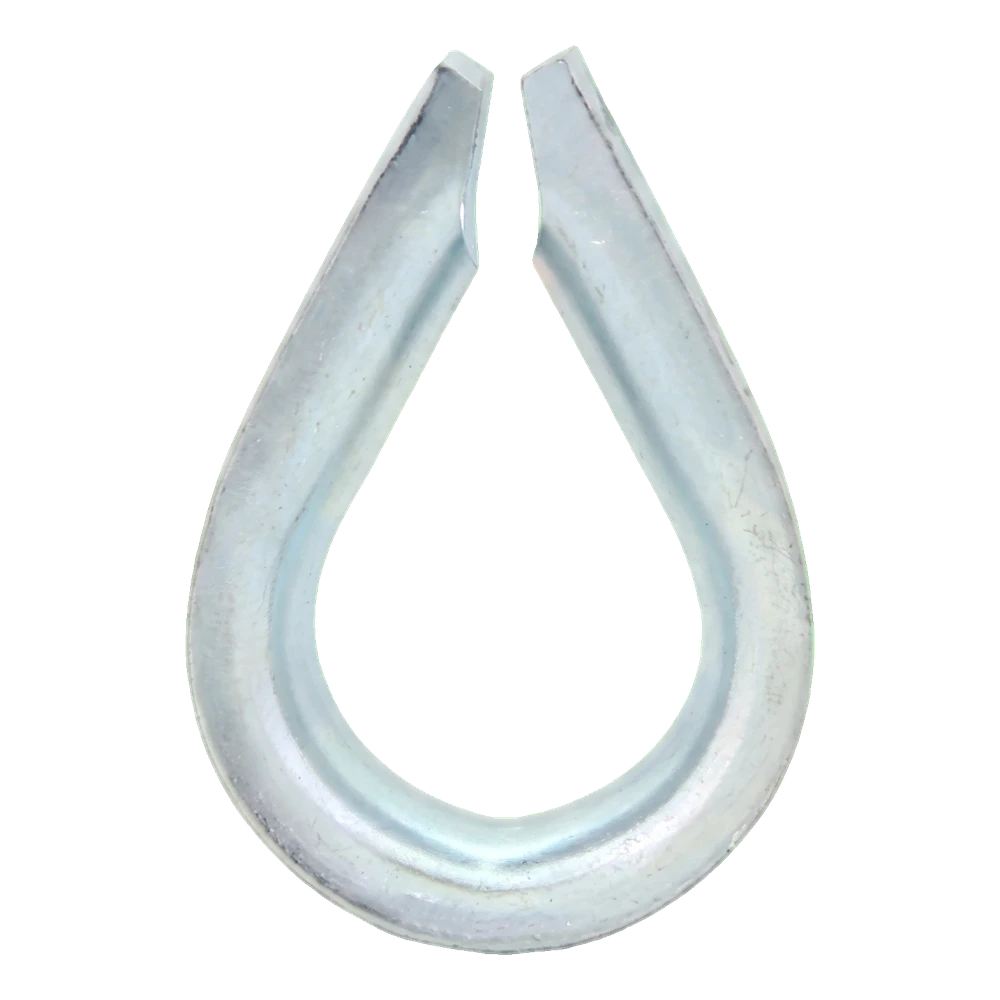

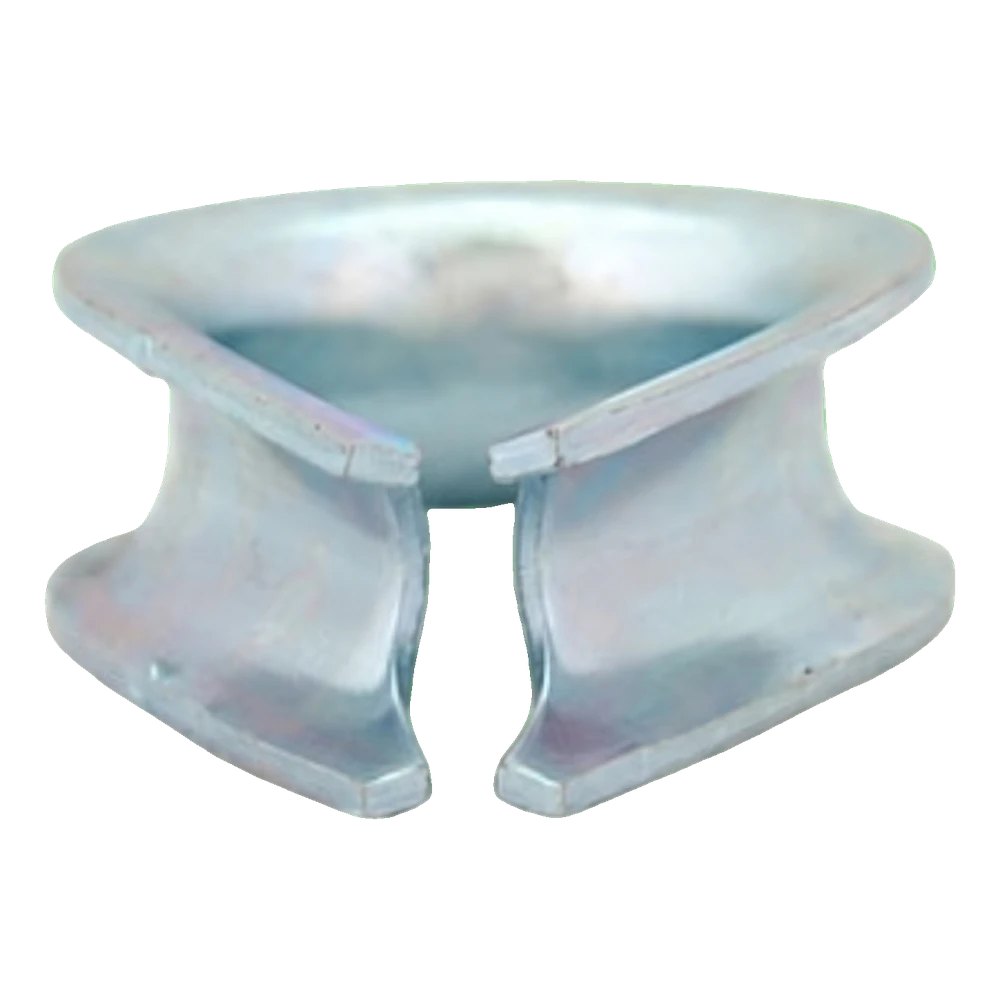

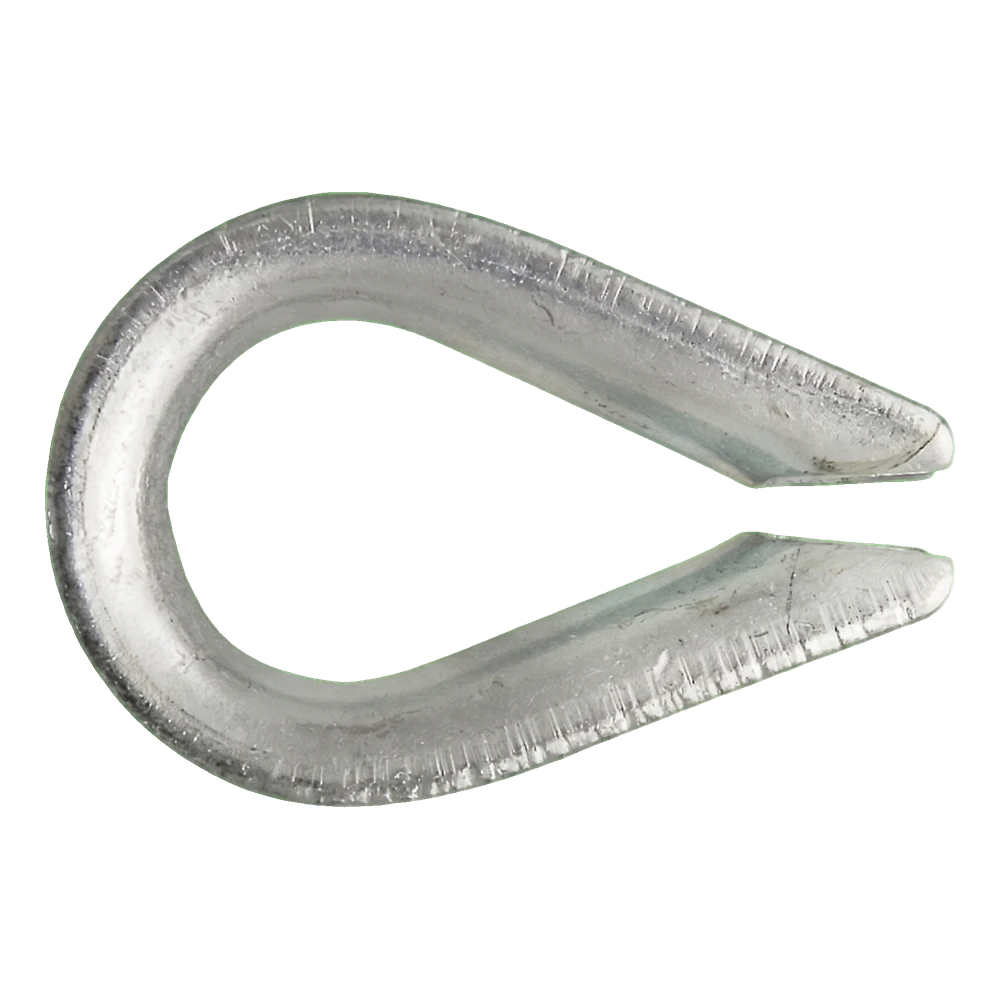

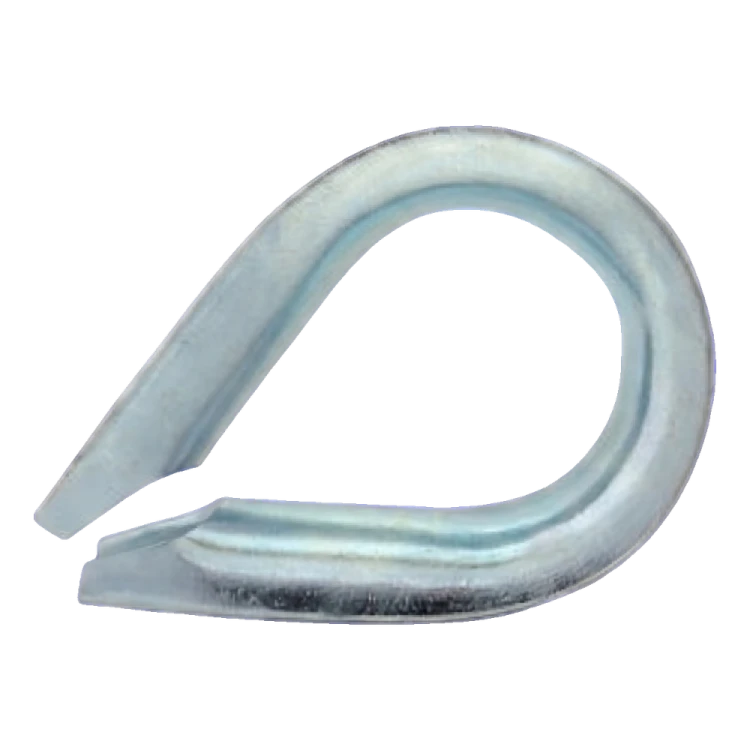

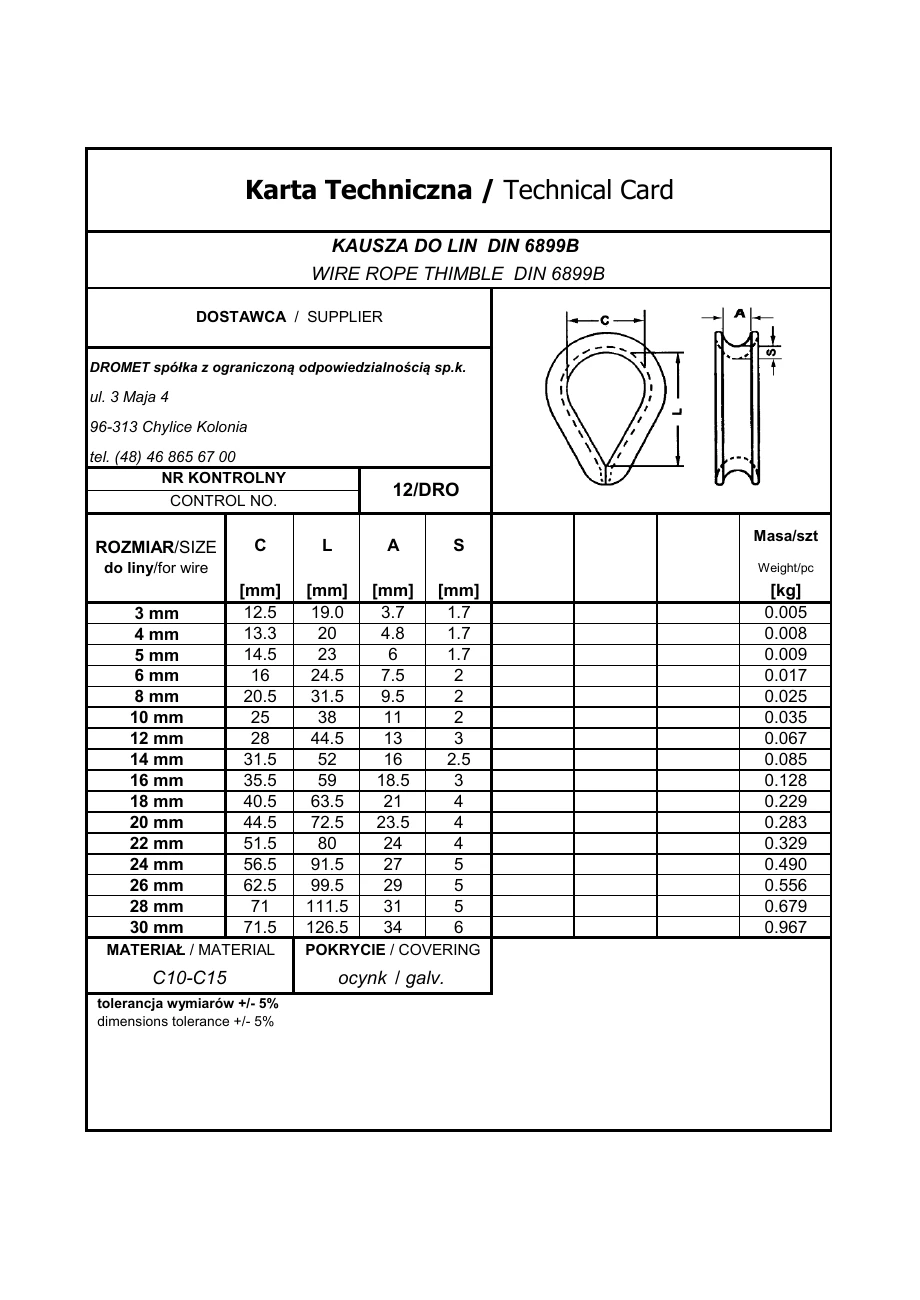

Dromet DIN 6899B wire rope thimble made of C10–C15 steel, galvanised. Rope size 8 mm, width 20.5 mm, length 31.5 mm, opening width 9.5 mm, material thickness 2 mm. Weight 0.025 kg. For guy wires and slings.
Product code: 002-199
Description
Thimbles 8 DIN6899B
The Dromet 8 mm DIN 6899B wire rope thimble is a steel rope fitting designed to protect the wire rope loop from kinking and abrasion. The thimble shapes the rope eye into a characteristic teardrop form, ensuring even pressure distribution across the entire arc and extending the service life of the connection. Made of C10–C15 structural steel with a galvanised coating, it provides effective protection against corrosion, even in demanding outdoor conditions. Dimensions compliant with the DIN 6899B standard guarantee full interchangeability with other rope fittings available on the European market. A dimensional tolerance of ±5% confirms consistent production and makes it easier to select components at the design stage. The product is sold per 1 piece, allowing you to order exactly as many items as a given project requires.
Advantages and applications
- Protects a wire rope loop with a diameter of 8 mm from mechanical damage and premature wear
- The galvanised surface provides durable anti-corrosion protection in outdoor conditions
- Compliance with the DIN 6899B standard guarantees compatibility with clamps, shackles and other rope fittings
- Compact dimensions and low weight (0.025 kg) make storage and transport easier
- Versatile use: guy wires, slings, rope installations, steel structures, rigging systems
