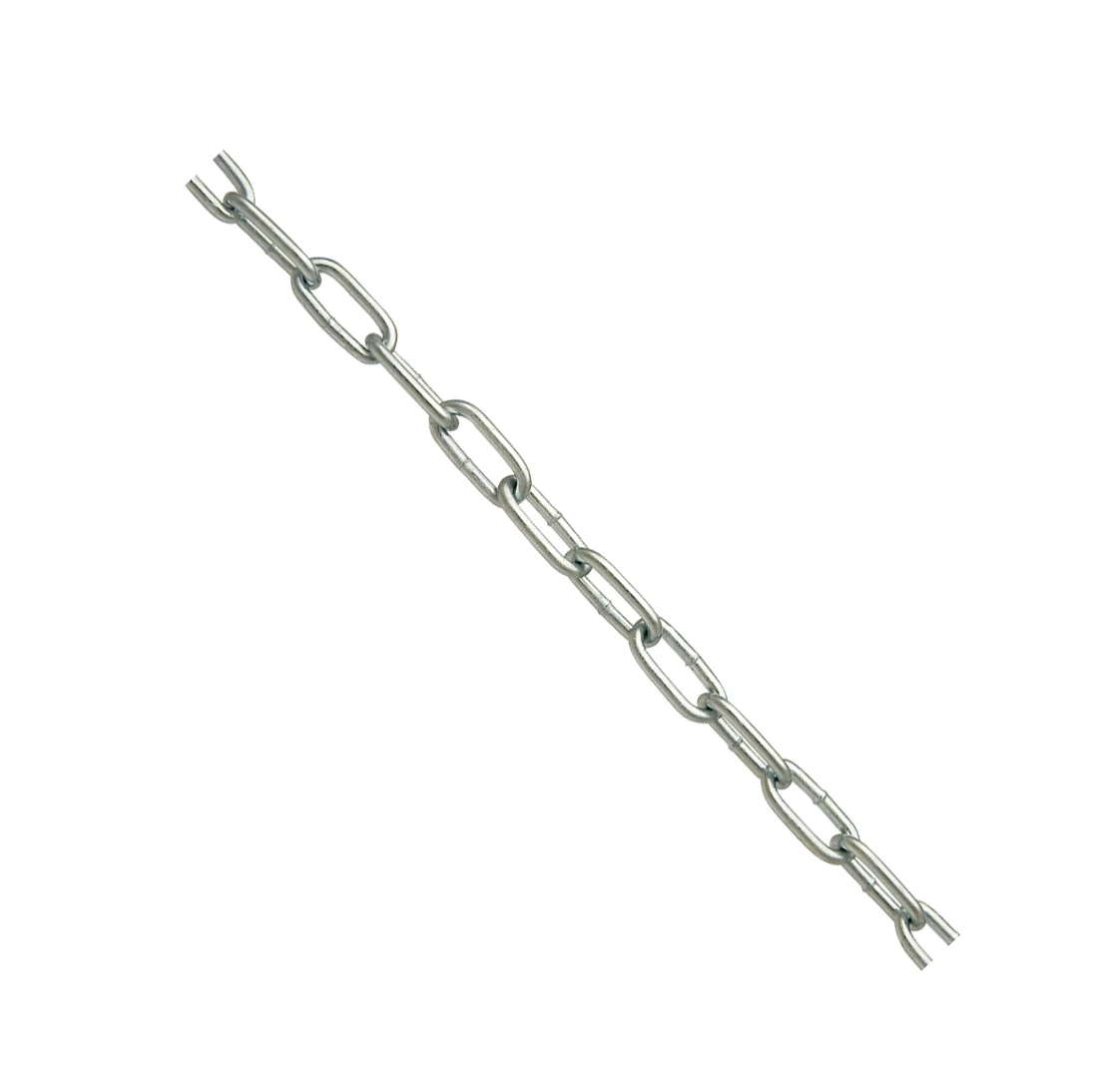

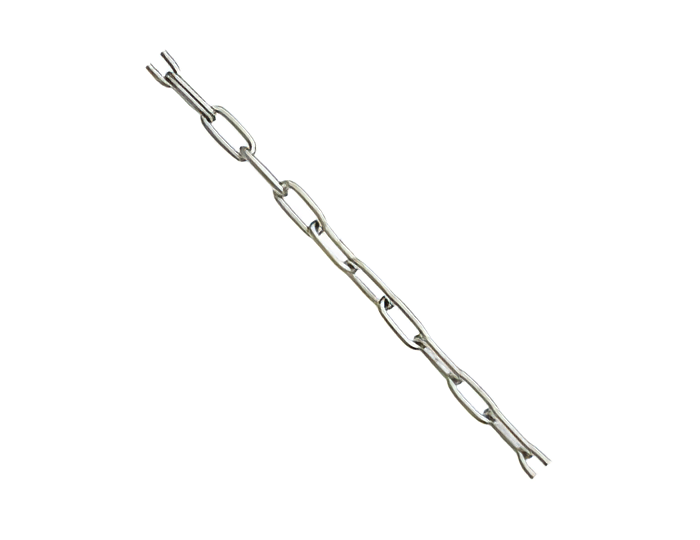

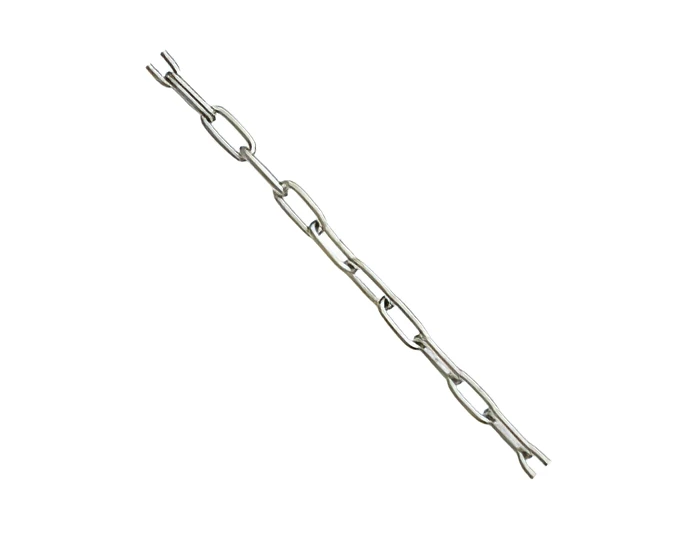

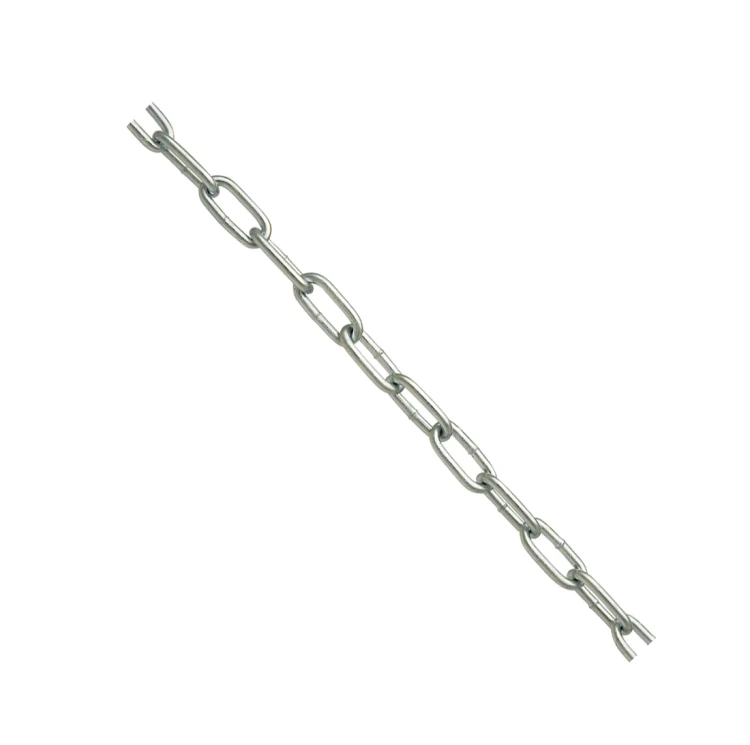

Galvanised Technical Chain DIN 5685/A Ø6.0 mm – Short Welded Link
Description
Galvanised Technical Chain DIN 5685/A Ø6.0 mm – Short Welded Link
Galvanised technical chain with a short welded link compliant with the DIN 5685/A standard. Designed for fastening, securing and barrier applications in technical installations, agriculture and household use. The zinc (Zn) coating provides effective corrosion protection, ensuring the chain remains durable in harsh weather conditions. Manufactured in the European Union.

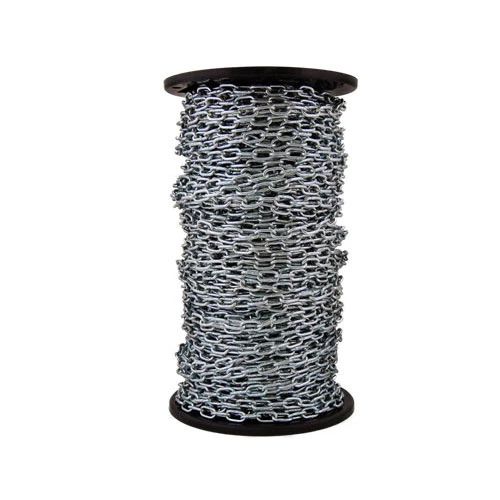

The chain is sold by the running metre — the specified parameters (weight, dimensions) refer to 1 running metre. A full coil contains approximately 36 m of chain wound onto a reel.
Applications
- Securing and fastening installation components
- Cordoning off working and technical areas
- Technical suspensions (not for lifting loads)
- Agricultural and household work
Technical parameters
- Standard: DIN 5685/A – short link
- Rod diameter: 6.0 mm
- Outer link dimension: 23.0 × 36.0 mm
- Breaking load: 24 kN
- Weight: 0.68 kg/m
- Link type: welded
- Coating: zinc (Zn)
- Coil length: approx. 36 m
Important information
The technical chain is not intended for lifting loads — it does not constitute a sling and should not be used as a lifting element. It is intended solely for fastening, securing and barrier applications. When ordering 36 m, you will receive a full coil wound onto a reel.
Technical data
| Diameter | 6 |
