Galvanised Steel Wire Rope Grip 26 mm – DIN 741 Equivalent
Leave feedback on the product

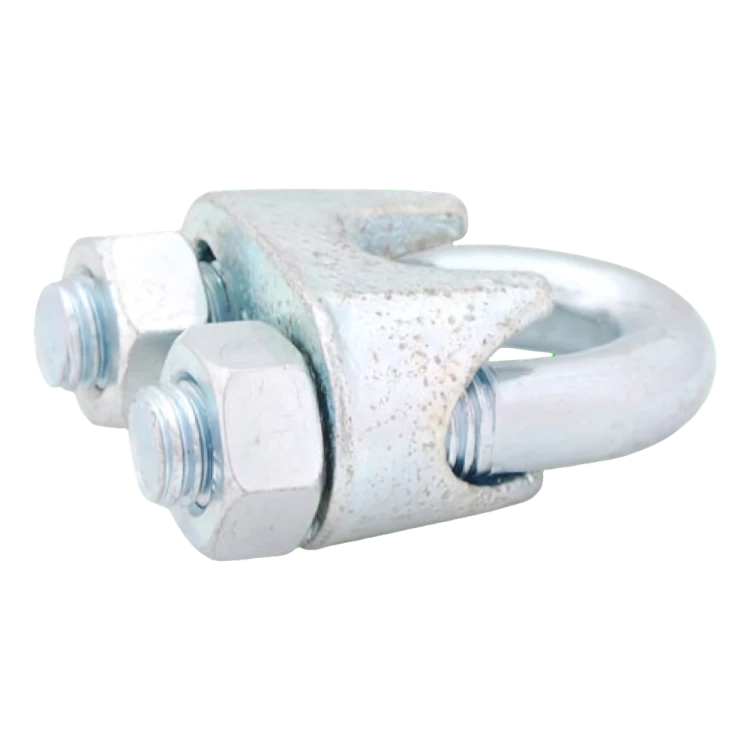

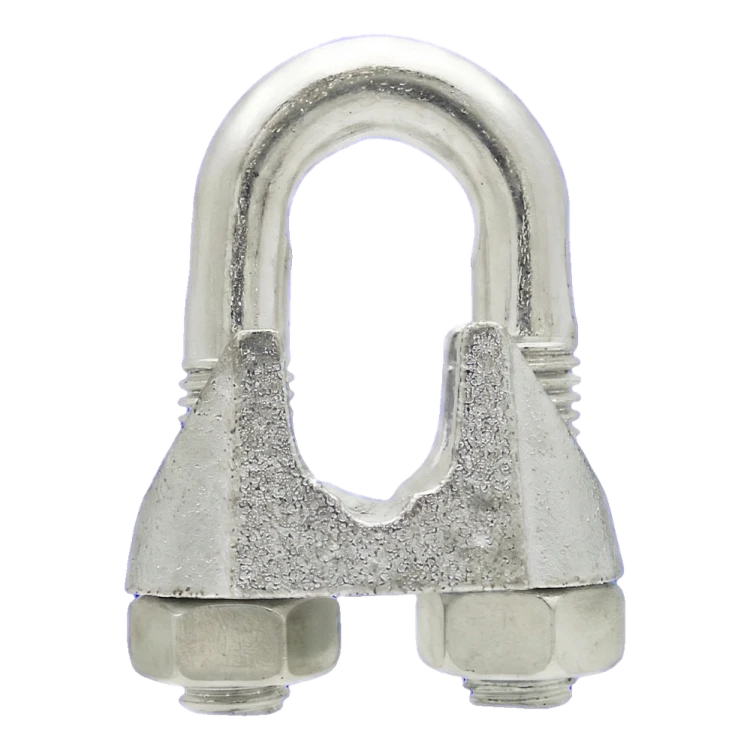

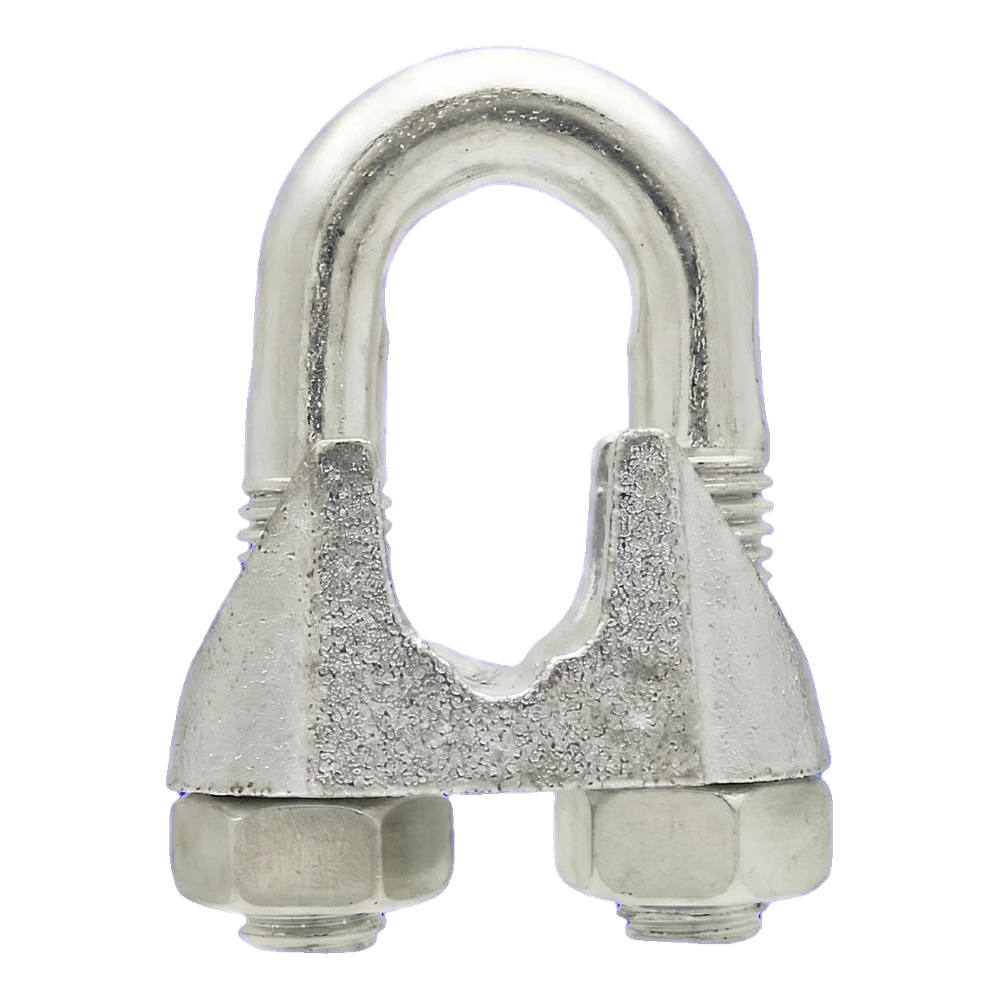

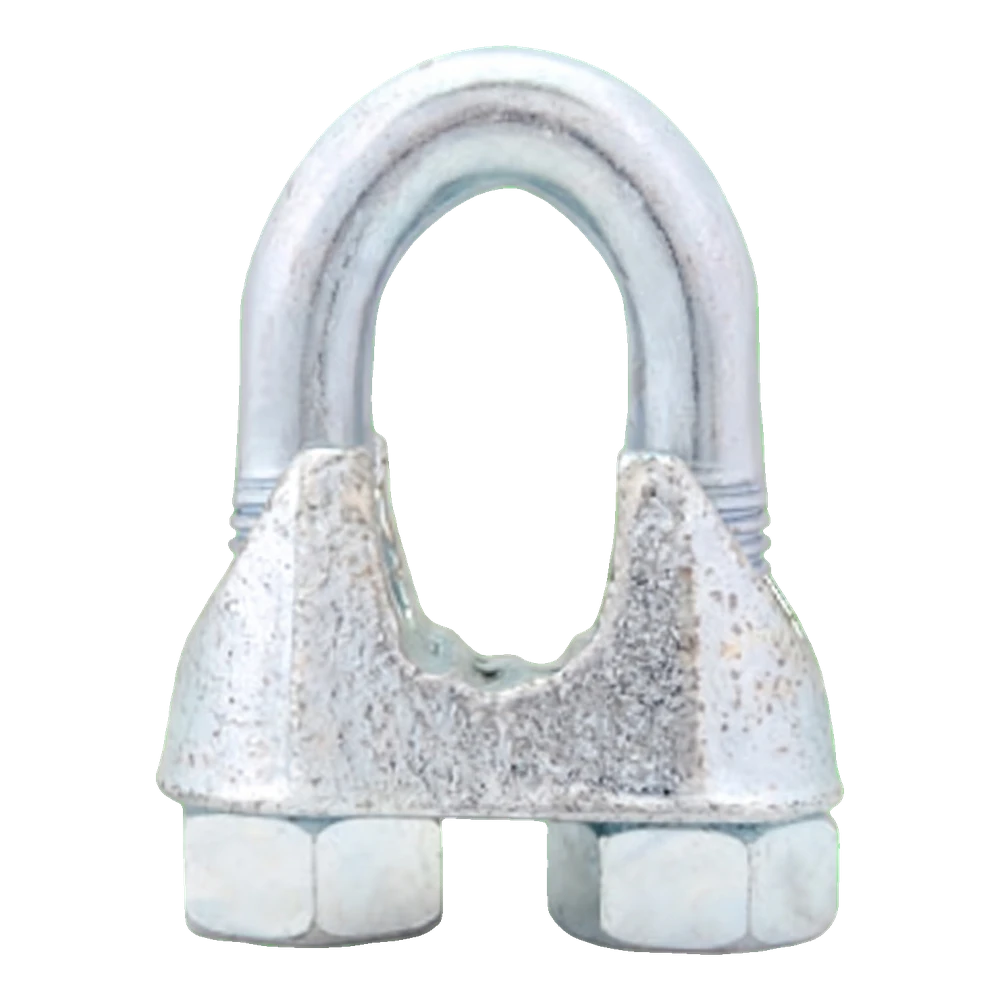

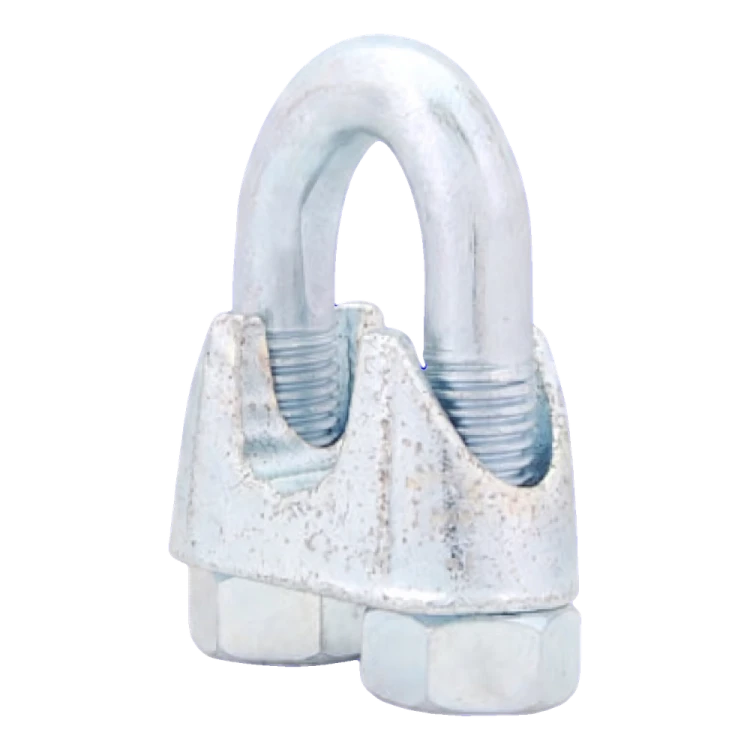

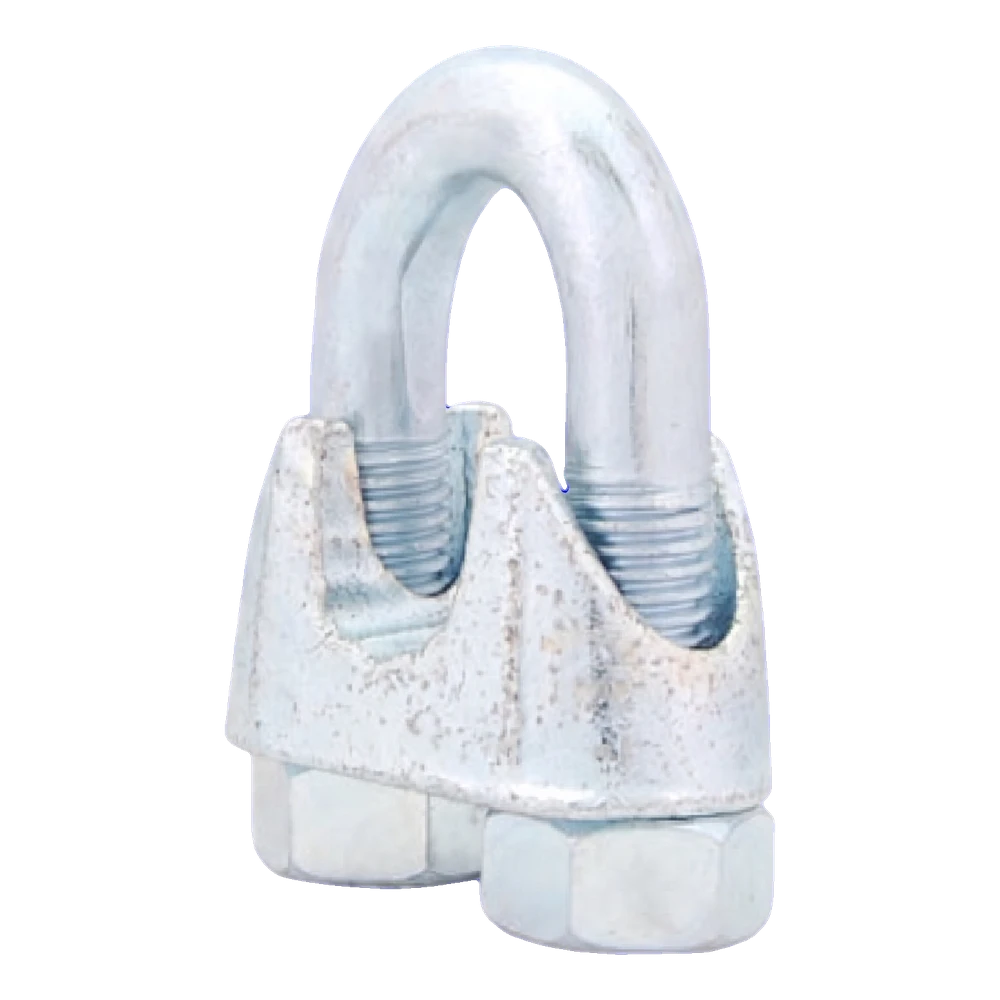

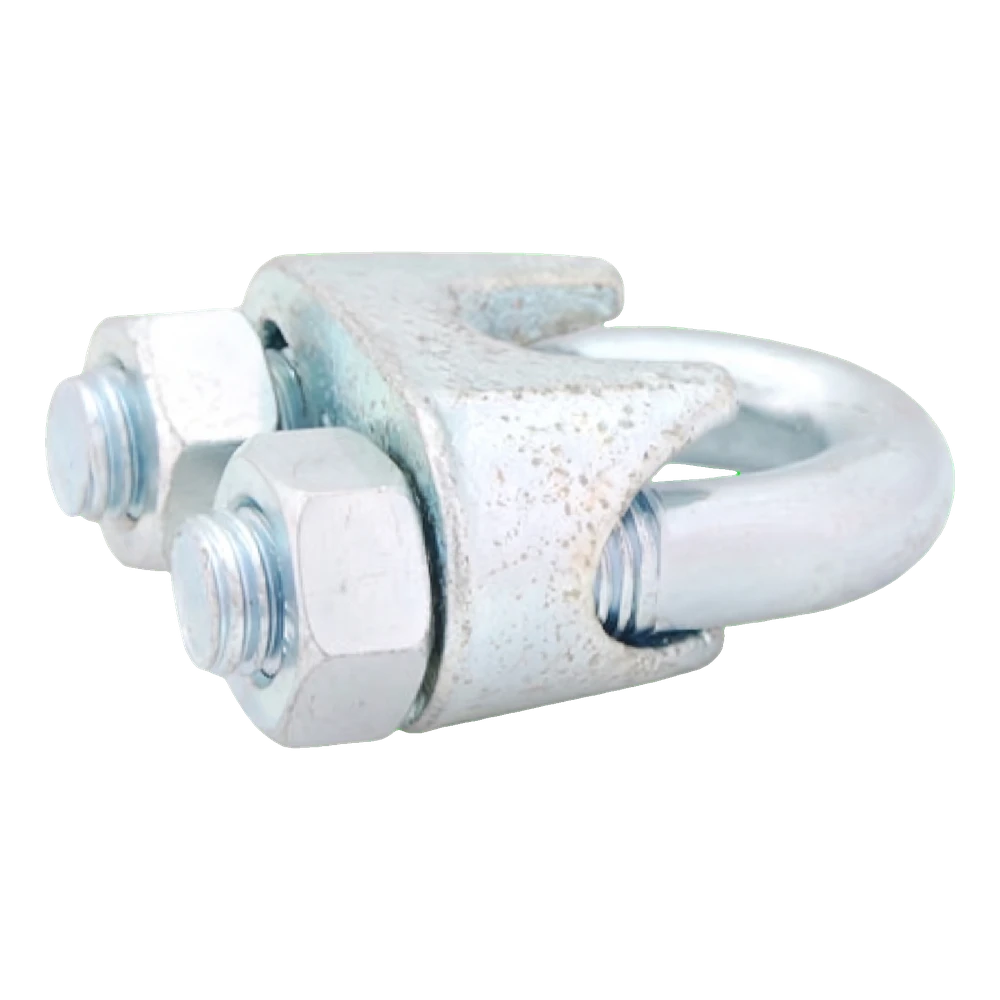

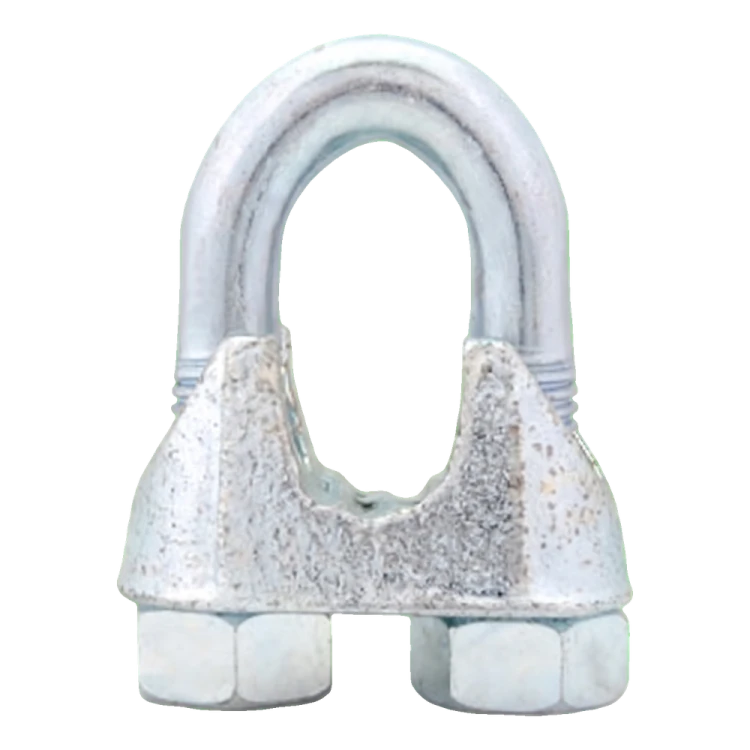

Wire rope grip for steel wire ropes, galvanised, to DIN 741. For ø26 mm rope, M14 thread. Dimensions: A 14 mm, B 82 mm, C 41 mm. U-bolt and nuts made of C15 steel, cast iron body. Galvanised coating.
Product code: 002-560
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Wire rope clip
- Diameter 26
- Thread type M14
Description
Galvanised Steel Wire Rope Grip 26 mm – DIN 741 Equivalent
The DIN 741 wire rope grip is designed for permanently joining and terminating steel wire ropes with a diameter of 26 mm. The construction consists of a U-bolt and nuts made of C15 steel and a cast iron body, all protected by a galvanised coating that provides long-lasting corrosion protection, even in demanding weather conditions. The grip meets the requirements of the DIN 741 standard, which guarantees repeatable dimensions and a reliable connection. The product is sold in a unit of 1 piece, and the manufacturer's bulk pack contains 10 pcs, which makes it easier to order larger quantities for installation projects.
Advantages of the wire rope grip
- Compliance with the DIN 741 standard guarantees full dimensional compatibility with fittings from other manufacturers
- Two-material construction – the C15 steel U-bolt provides strength, while the cast iron body provides rigidity and clamping stability
- The galvanised coating protects against corrosion, allowing the grip to be used outdoors without additional protection

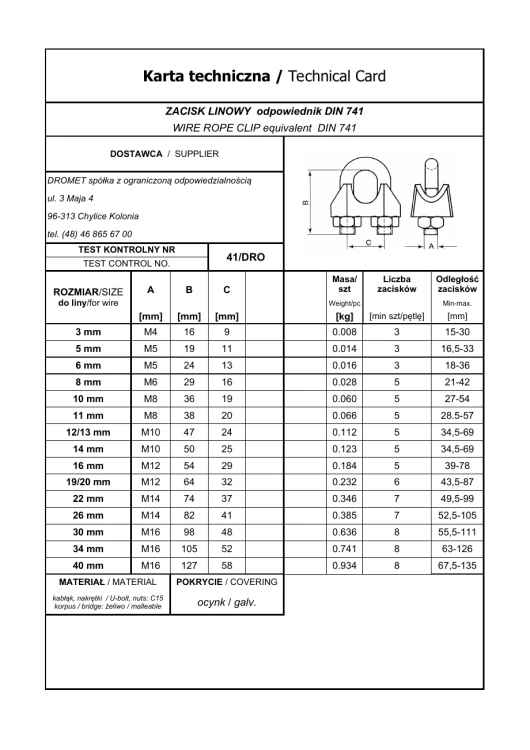

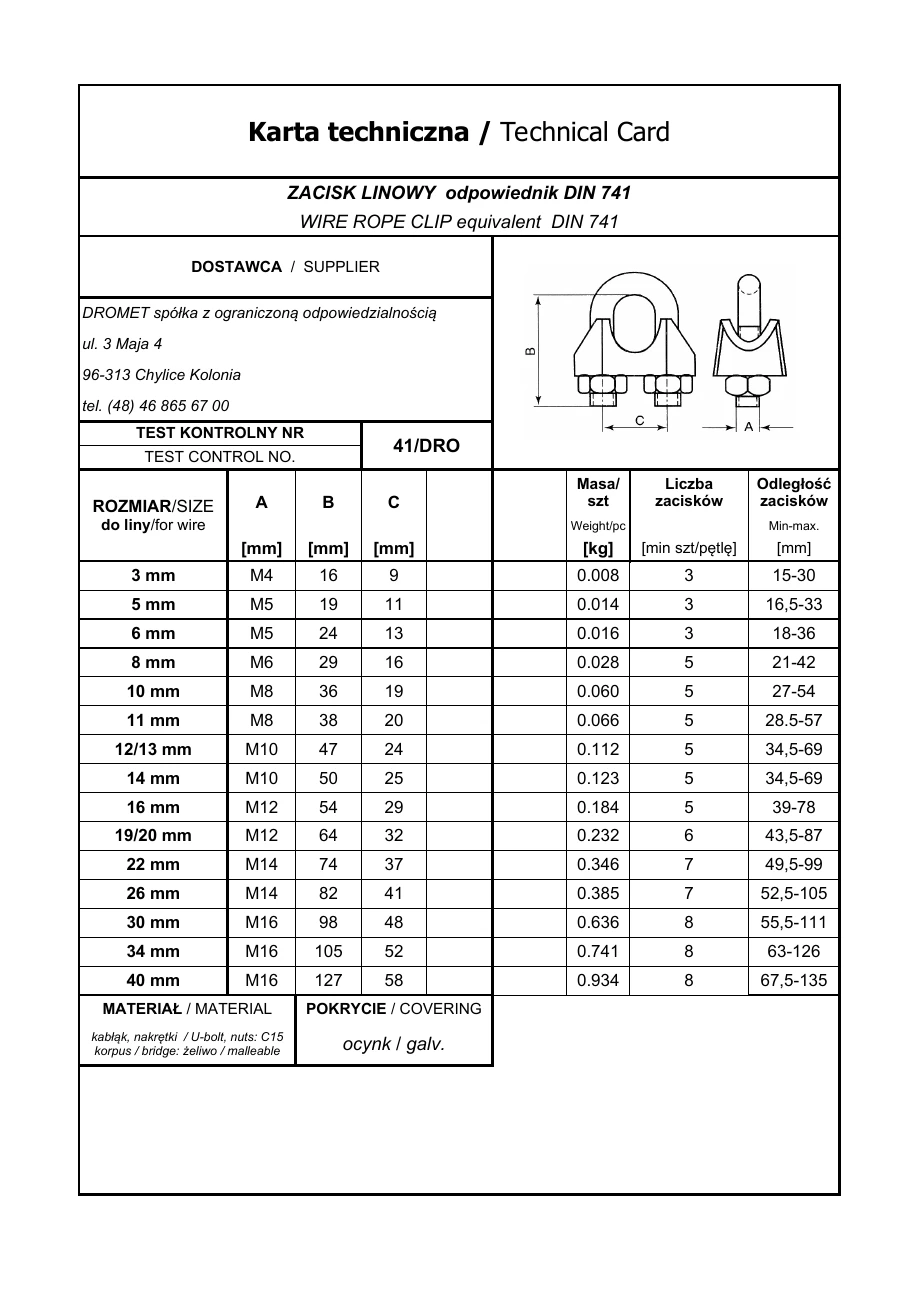

- The manufacturer provides precise installation guidelines (required number of grips and spacing), which makes it easier to form the rope loop correctly
- Availability in bulk packs of 10 pcs makes it easier to put together materials for larger projects

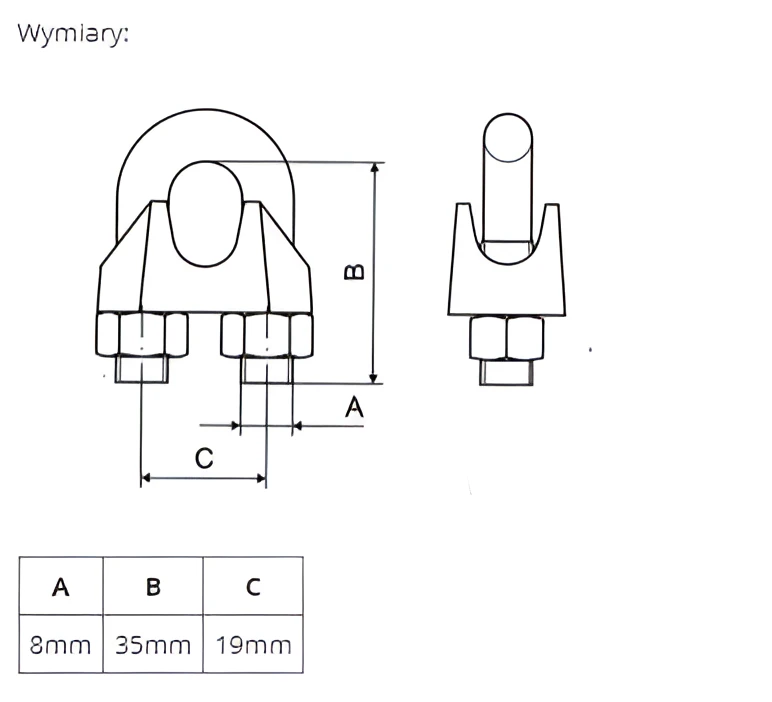

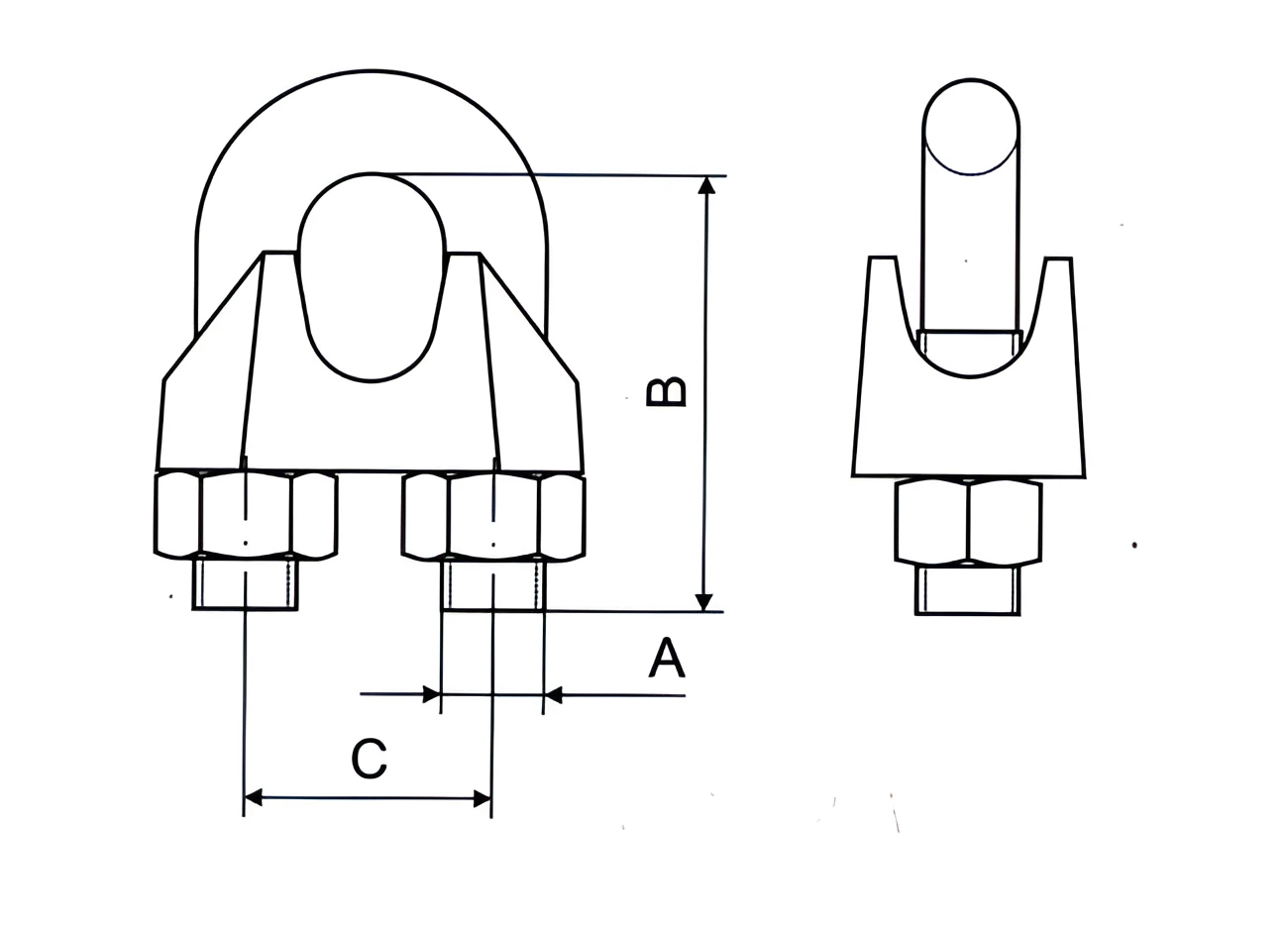

The dimensions of the grip are marked with the letters A (thread/nut spacing), B (U-bolt height) and C (body width). The markings follow the manufacturer's standard and enable quick identification of the variant when ordering, as well as verification of compliance with the project specification. The technical drawing on the right shows the dimensional diagram in two views – front and side.
