Galvanised Steel Wire Rope Clip 8 mm – U-Bolt Type, DIN 741 Equivalent
Leave feedback on the product

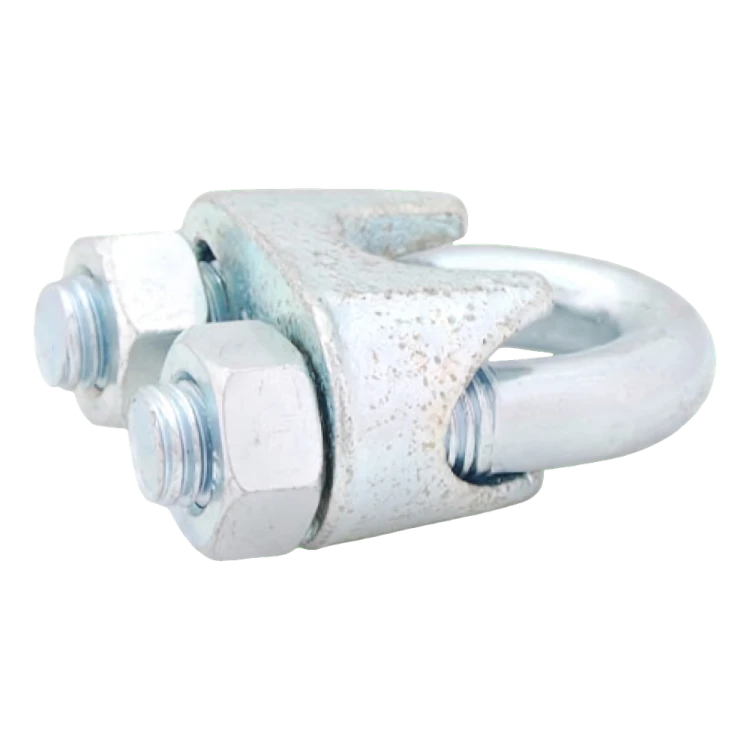

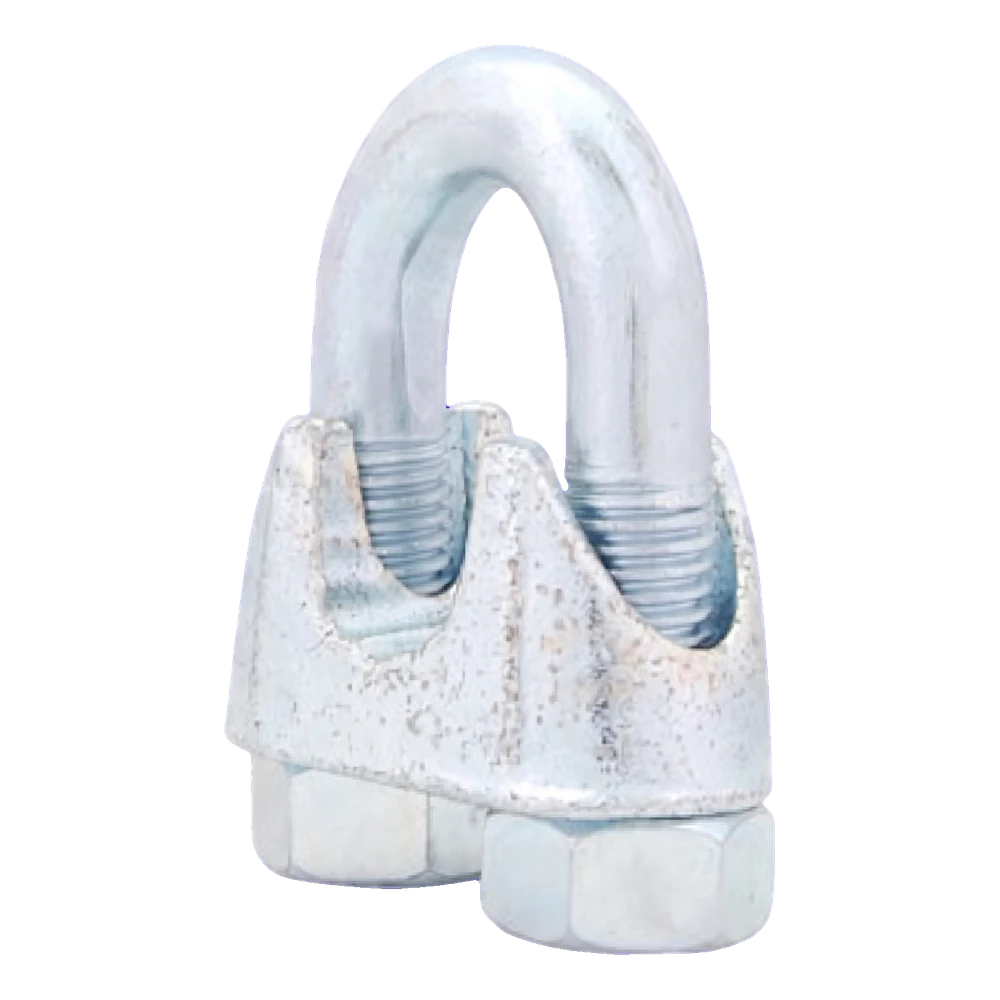

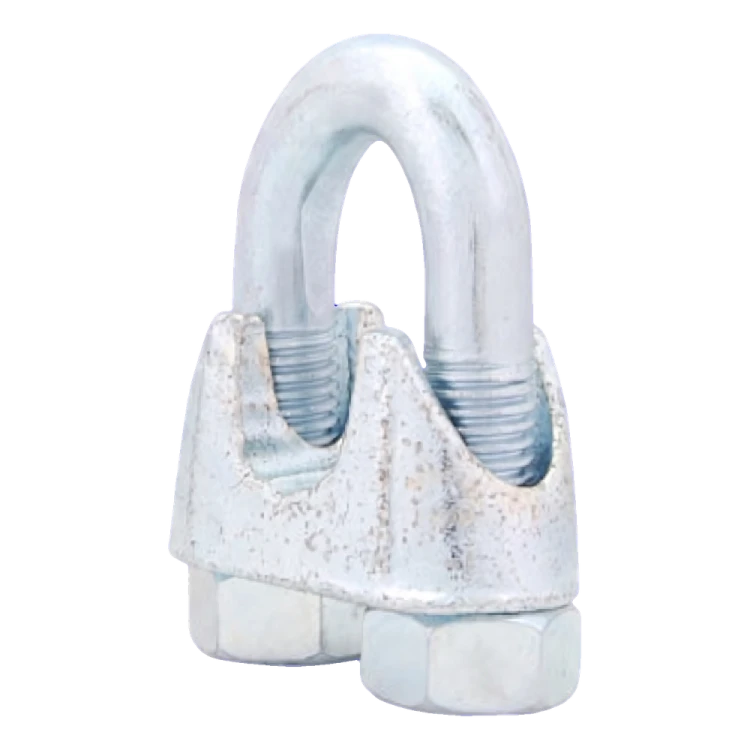

Dromet U-bolt wire rope clip, equivalent to DIN 741, for steel wire ropes Ø 8 mm, galvanised. U-bolt and nuts made of C15 steel, body made of cast iron. U-bolt thread M6, height 29 mm, U-bolt leg spacing 16 mm, weight 0.028 kg.
Product code: 002-207
Description
Wire rope clips 8 DIN741

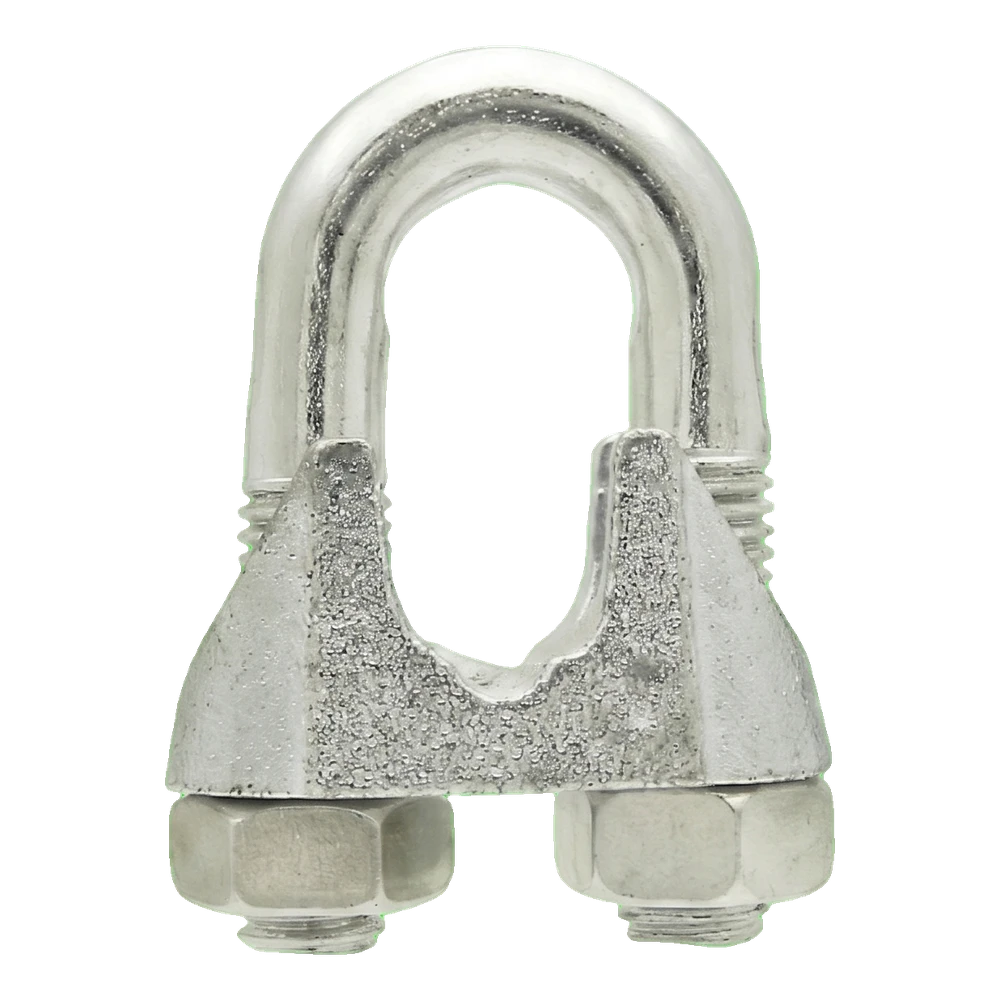

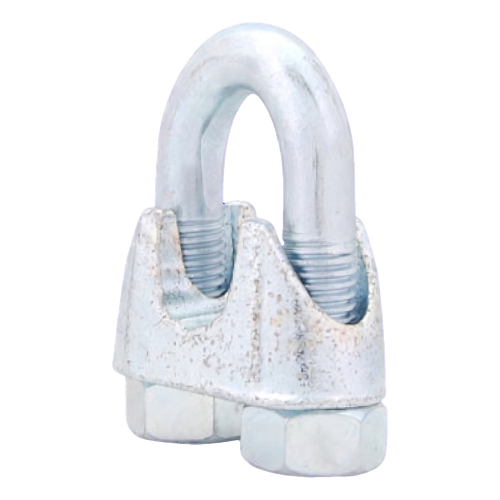

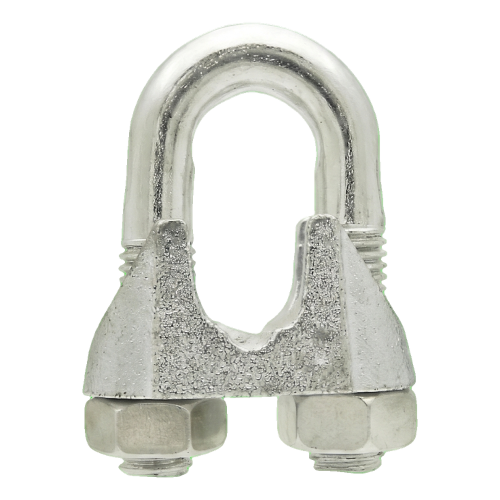

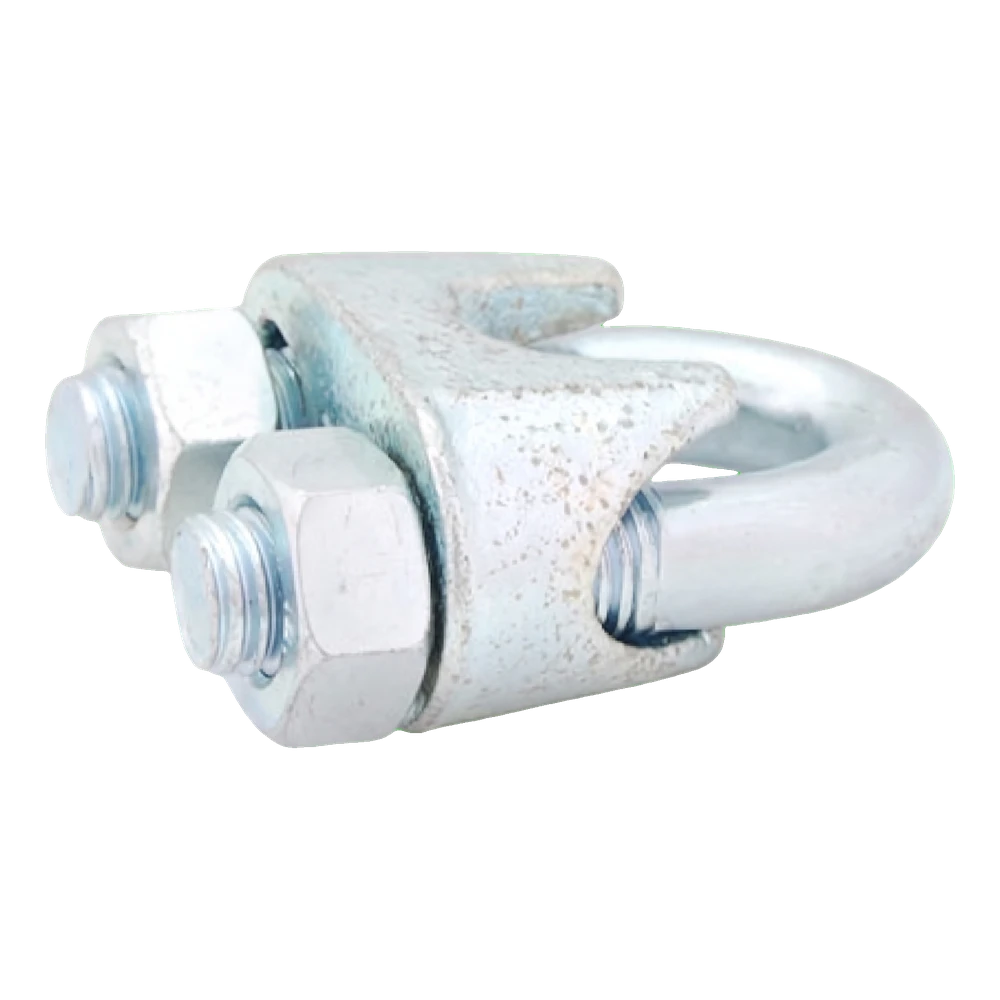

DIN 741 U-bolt wire rope clip for steel wire ropes with a diameter of ⌀8 mm, manufactured by Dromet. The clip consists of a C15 steel U-bolt, a cast iron body and two nuts with an M6 thread, protected by a galvanised coating that provides corrosion resistance. The clip is used to form durable loops and to join lengths of steel wire rope — it is essential hardware wherever a reliable rope termination is required, e.g. when installing guy wires, structural safety lines or rope installations. According to the manufacturer's technical data sheet, a minimum of 5 clips spaced 21 to 42 mm apart is required to form one loop on ⌀8 mm rope. The product is sold in units of 1 piece, allowing you to order exactly the number of components you need.
Advantages of the Dromet U-bolt wire rope clip
- Design compliant with the DIN 741 standard — a proven standard in rope hardware
- U-bolt and nuts made of C15 steel, cast iron body — robust construction suited to working loads
- Galvanised coating protects against corrosion in outdoor conditions
- Compact dimensions and low weight (0.028 kg) make storage and transport easier
- Sold per piece — you order exactly as many as you need for a given loop

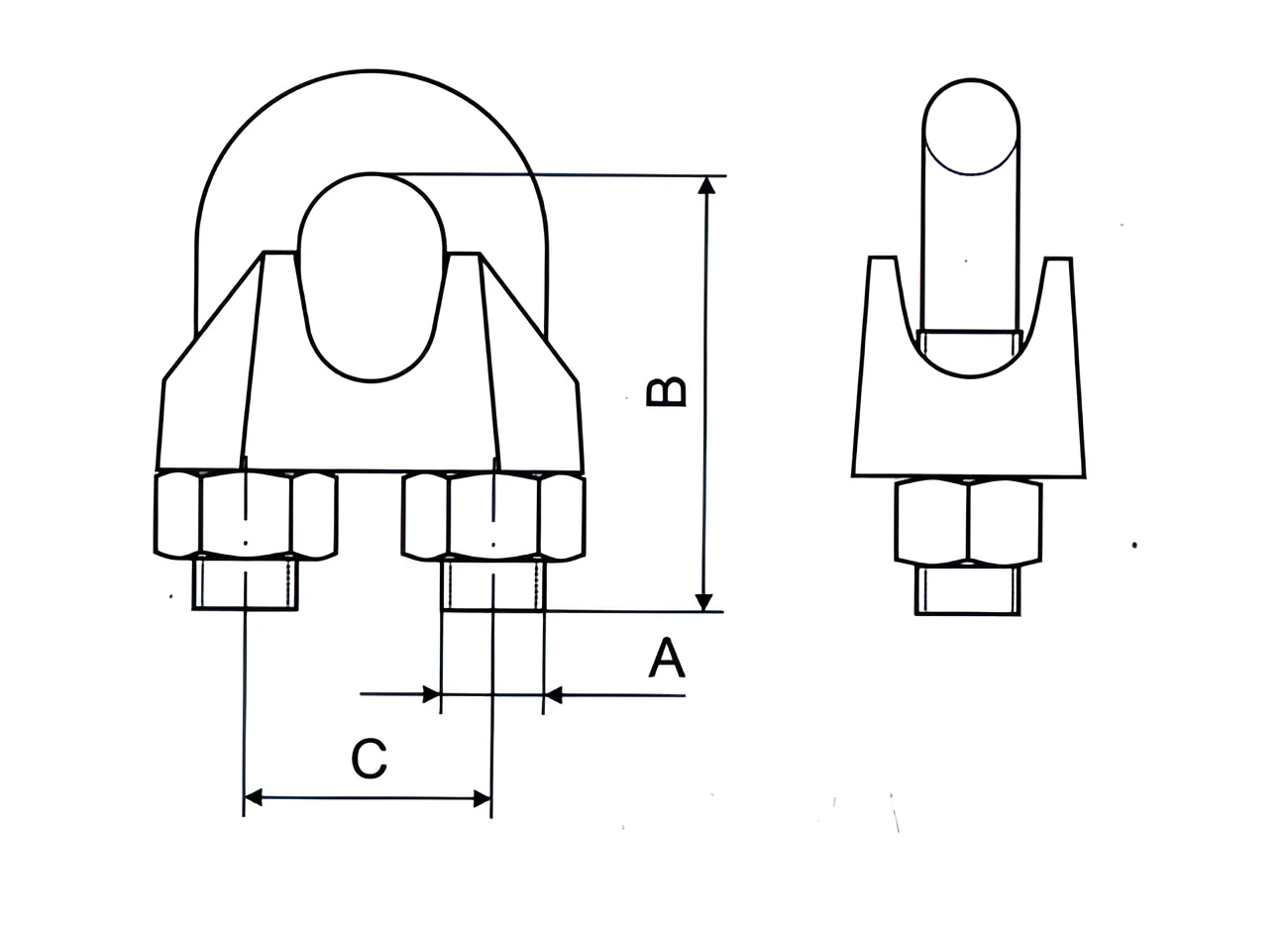

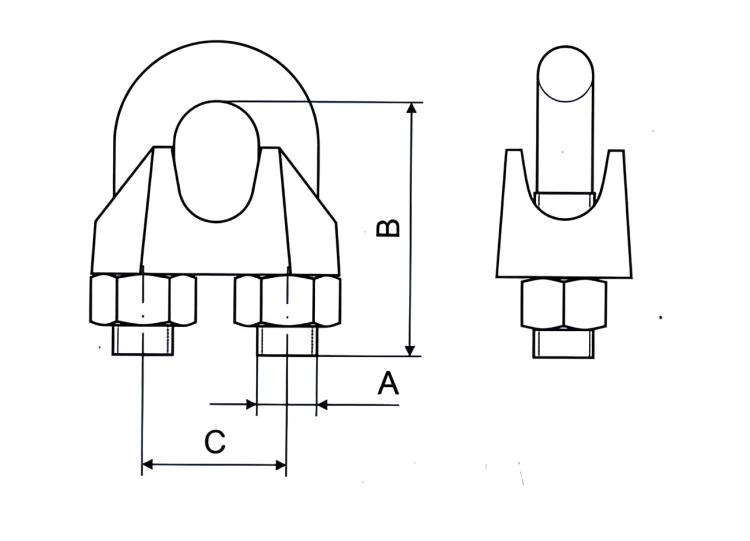

The technical drawing shows the dimensional markings of the clip: A — bolt spacing (thread), B — clip height, C — body width. Thanks to the standardised DIN 741 geometry, the clip is fully interchangeable with other clips conforming to this standard and works with steel wire ropes with a nominal diameter of 8 mm.

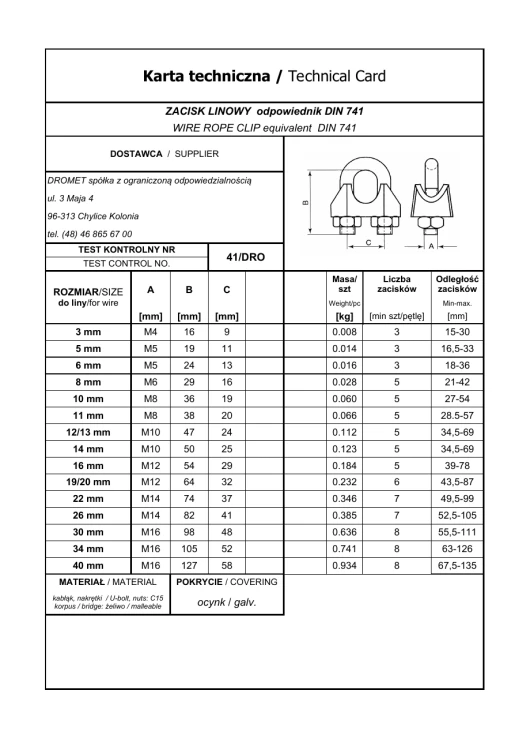

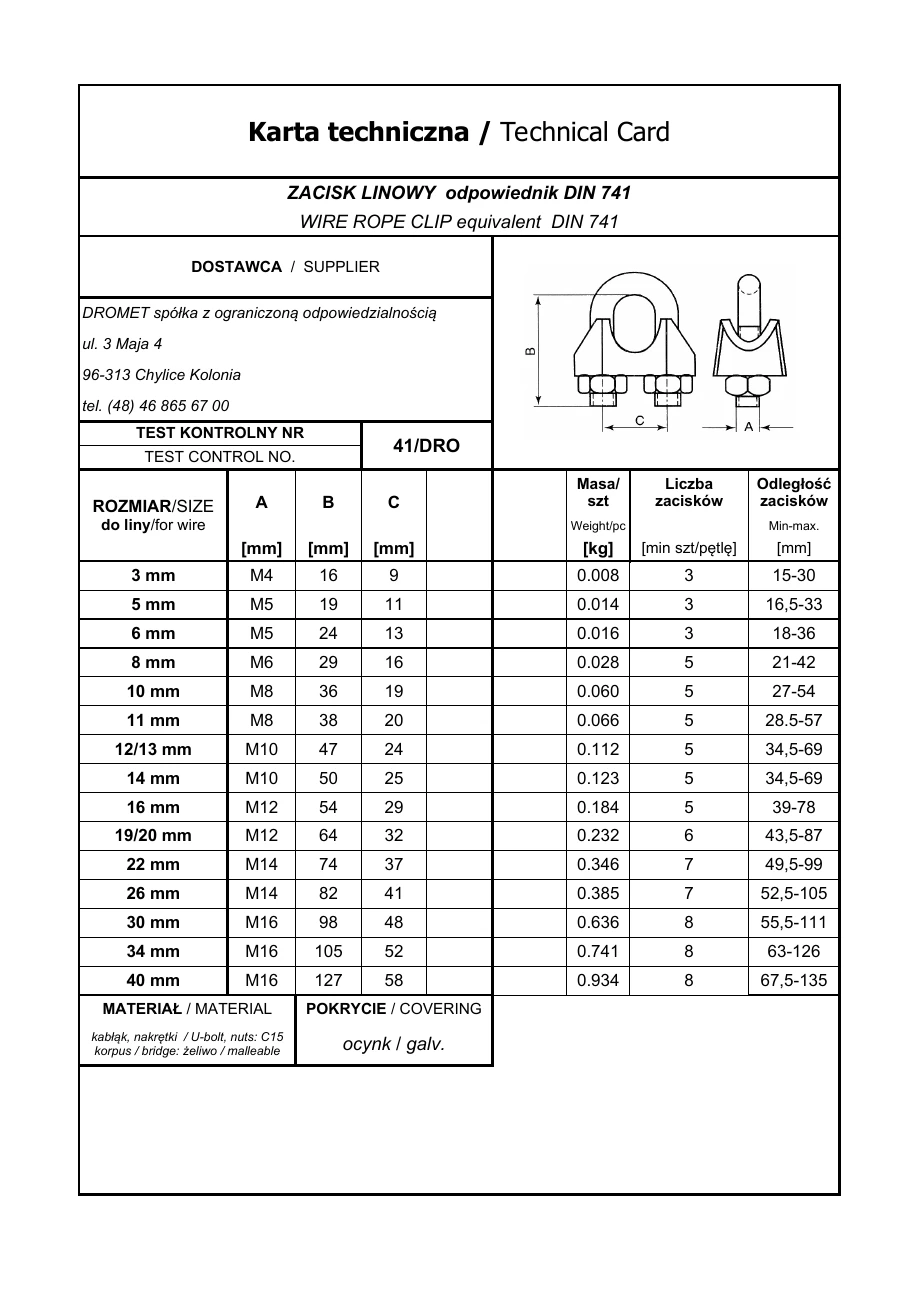

The Dromet manufacturer's data sheet presents the full size range of ZL series U-bolt wire rope clips compliant with DIN 741 — from ⌀3 mm to ⌀40 mm ropes. For ⌀8 mm rope, the relevant row is the one with an M6 thread, dimension B = 29 mm and C = 16 mm.
