Galvanised Steel Wire Rope Ø8.0 mm 6×19 with Fibre Core FC – sold by the metre
0
Description
Galvanised Steel Wire Rope Ø8.0 mm 6×19 with Fibre Core FC – sold by the metre

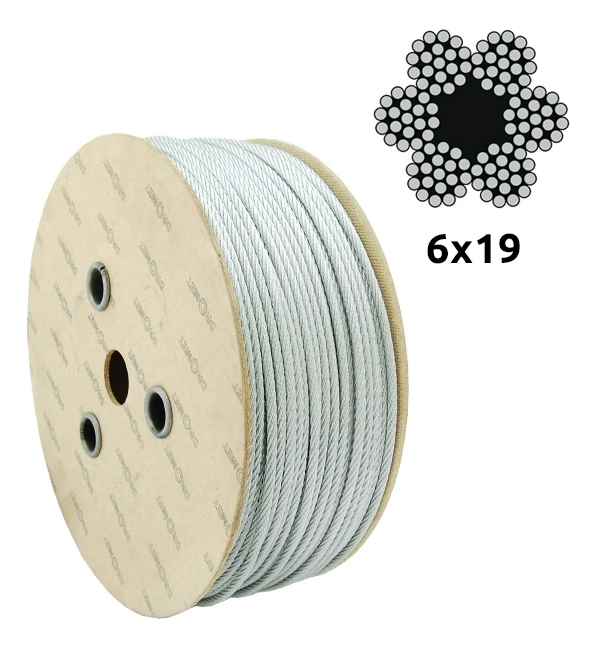

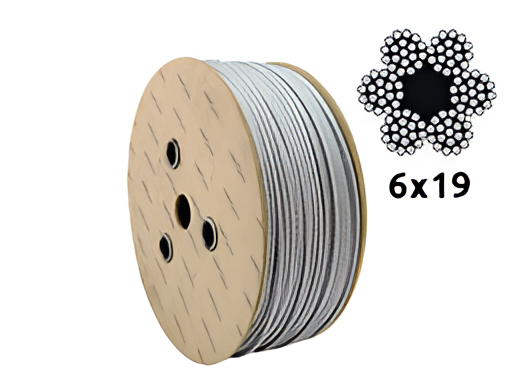

Galvanised steel wire rope Ø8.0 mm in 6×19 construction with fibre core (FC) — a six-strand, soft and flexible technical rope with high load capacity, designed for industrial applications. Thanks to the construction of six strands with nineteen wires each (in a 1+6+12 layer arrangement), the rope combines high strength with flexibility, making it easier to run through sheaves and drums. Wires manufactured in strength grade 1770 N/mm² ensure a high working load, while the zinc coating (Zn) effectively protects against corrosion in harsh weather conditions.
The product is sold by the running metre — the price shown applies to 1 metre, and the ordered length is supplied as a single, continuous section. The rope is factory-wound onto a reel with a length of 50 m — ordering 50 m will get you a full, originally packaged reel.
Construction and design
The 6×19 construction means six strands laid around a central fibre core (FC). Each strand consists of 19 wires arranged in three layers: 1 centre wire, 6 wires in the inner layer, and 12 wires in the outer layer. The fibre core acts as an internal cushion — increasing the rope's flexibility and facilitating internal lubrication, which translates into a longer service life. This type of construction is valued wherever both strength and flexibility of the rope are required.
Technical parameters
- Diameter: 8.0 mm
- Construction: 6×19 (six-strand)
- Wire arrangement per strand: 1+6+12
- Core: fibre (FC)
- Wire strength grade: 1770 N/mm²
- Anti-corrosion coating: zinc (Zn)
- Weight: approx. 0.212 kg/m
- Factory reel length: 50 m
- EAN: 5907518669789
- Manufactured in the European Union
Applications
The galvanised steel wire rope 6×19 Ø8.0 mm has a wide range of applications in professional industrial and technical installations. Typical areas of use include:
- Construction and transport machinery
- Winches and pullers
- Agriculture and fishing
- General industrial applications — guy wires, tie rods, securing
Important information: this is a technical rope — not designed for lifting persons. Using the rope to transport people is not permitted and is contrary to its intended purpose.
Technical data
| Diameter | 8 |
| Construction | 6×19 |
