Galvanised Screw Eye M8×120 mm – Closed End (Eye)

Go to Product feedback

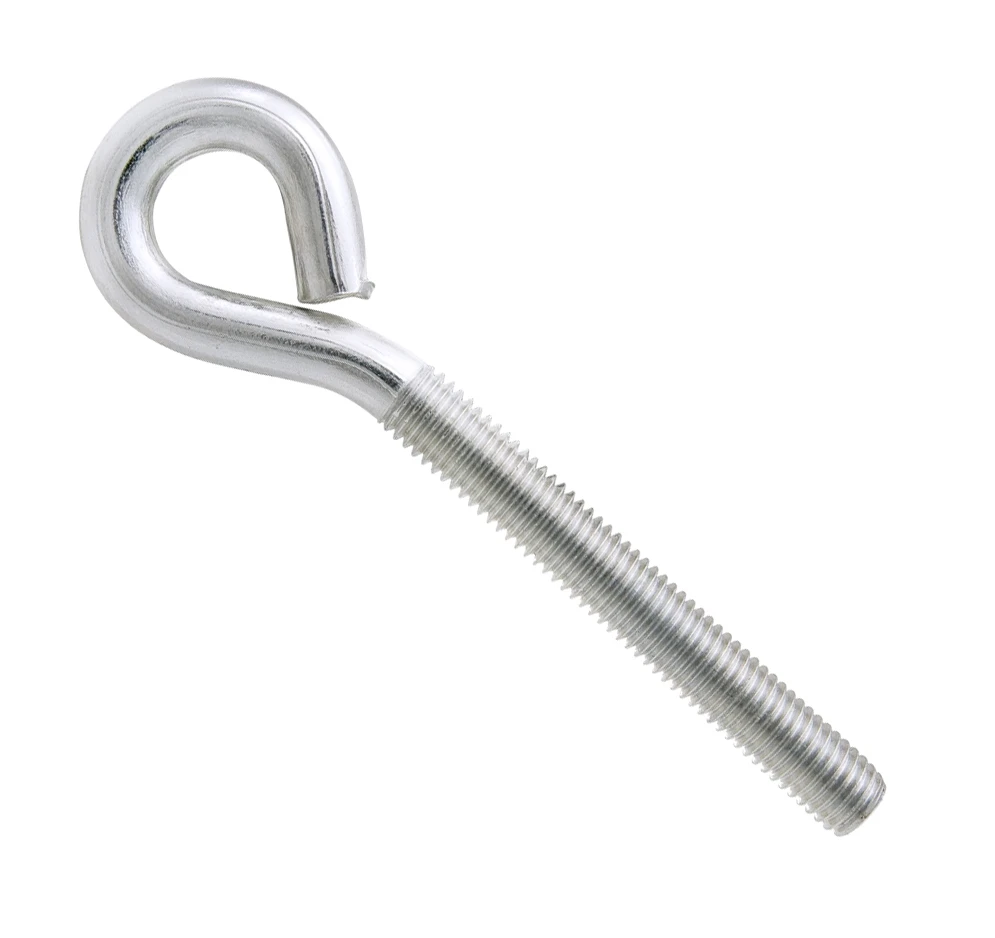

Dromet construction hook with closed (eye) end HO M8x120, electro-galvanised steel. Length 120 mm, thread length 80 mm, outer bend diameter Ø29 mm, class 5.8, weight 0.049 kg. For securing ropes, chains and guy wires.

Go to full description
with VAT without VAT
Price €0.54
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Hook with Closed End HO 8x120

Galvanised steel eye hook HO M8x120
Galvanised steel eye hook HO M8x120

Construction hook with closed (eye) end HO 8x120 made by Dromet — a steel fixing element designed to be cast into concrete or screwed into the substrate. The closed eye provides a secure attachment point for ropes, chains, guy wires and other installation components. The thread length ensures solid anchorage in the structural material, and the electro-galvanised coating protects against corrosion in typical construction conditions. The hook is made of steel with a verified strength class, which ensures adequate load capacity while maintaining the ductility of the material.

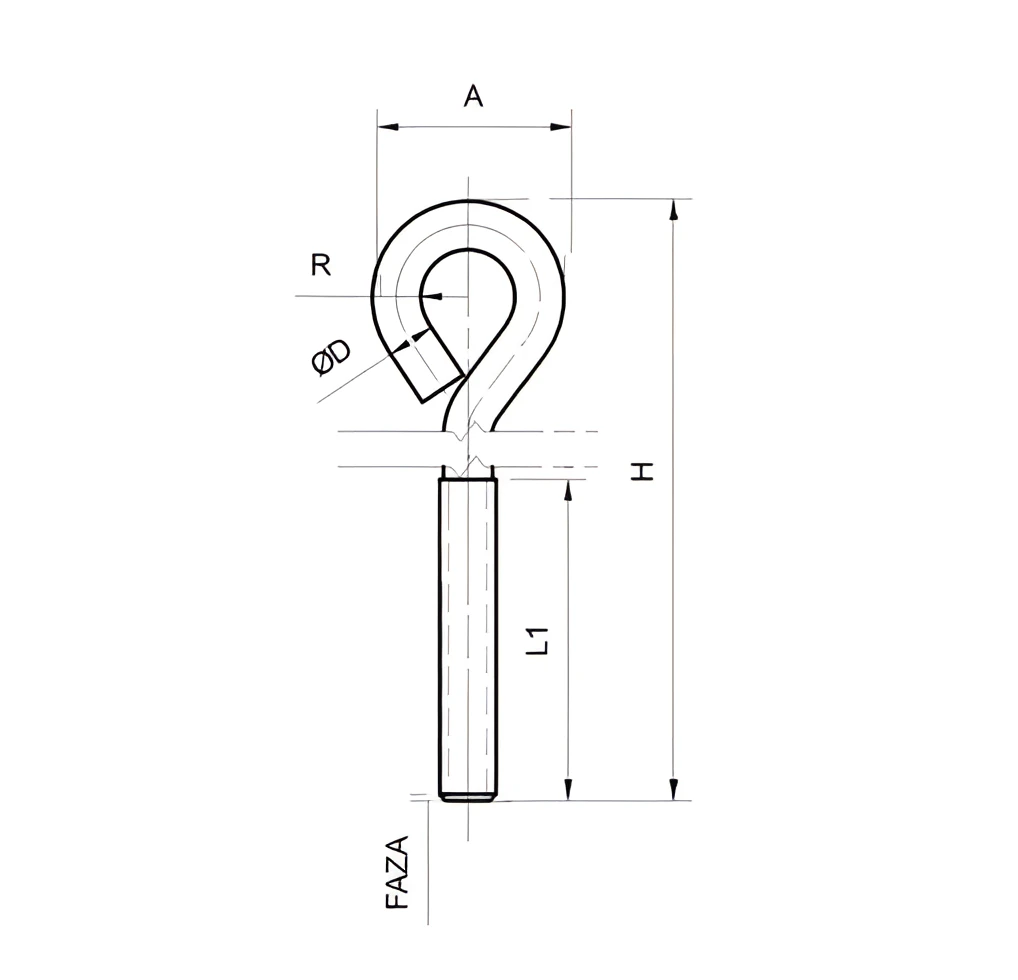

Technical drawing of the HO eye hook with dimensions A, R, ØD, H, L1
Technical drawing of the HO eye hook with dimensions A, R, ØD, H, L1

Features and applications

  • Closed eye (HO type) — secure fixing with no risk of the attachment slipping off
  • The eye is of sufficient diameter to allow a rope, wire or carabiner to be threaded through freely
  • Electro-galvanised coating provides corrosion protection in standard operating conditions
  • Proven material for construction and installation applications
  • Available in the HO series covering sizes from M6 to M16

Technical parameters

Thread / nominal diameterM8
Length120 mm
Thread length80 mm
Strength class5.8
Head type / shapeclosed end (eye)
Outer bend diameterØ29 mm
Weight0.049 kg

Material and coating

Materialsteel
Coating / finishelectro-galvanised zinc

Other parameters

Quantity per pack100 pcs
Applicationsecuring ropes, chains, guy wires, slings
SeriesHO
