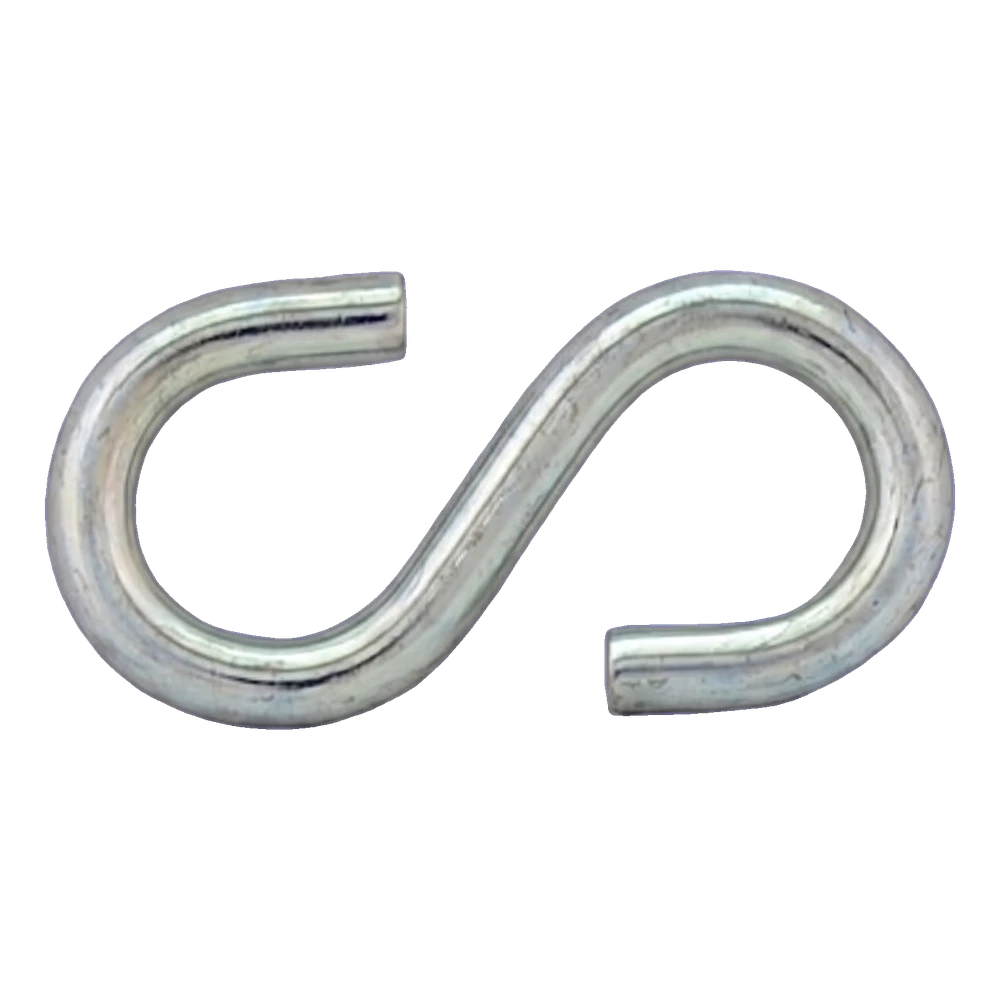

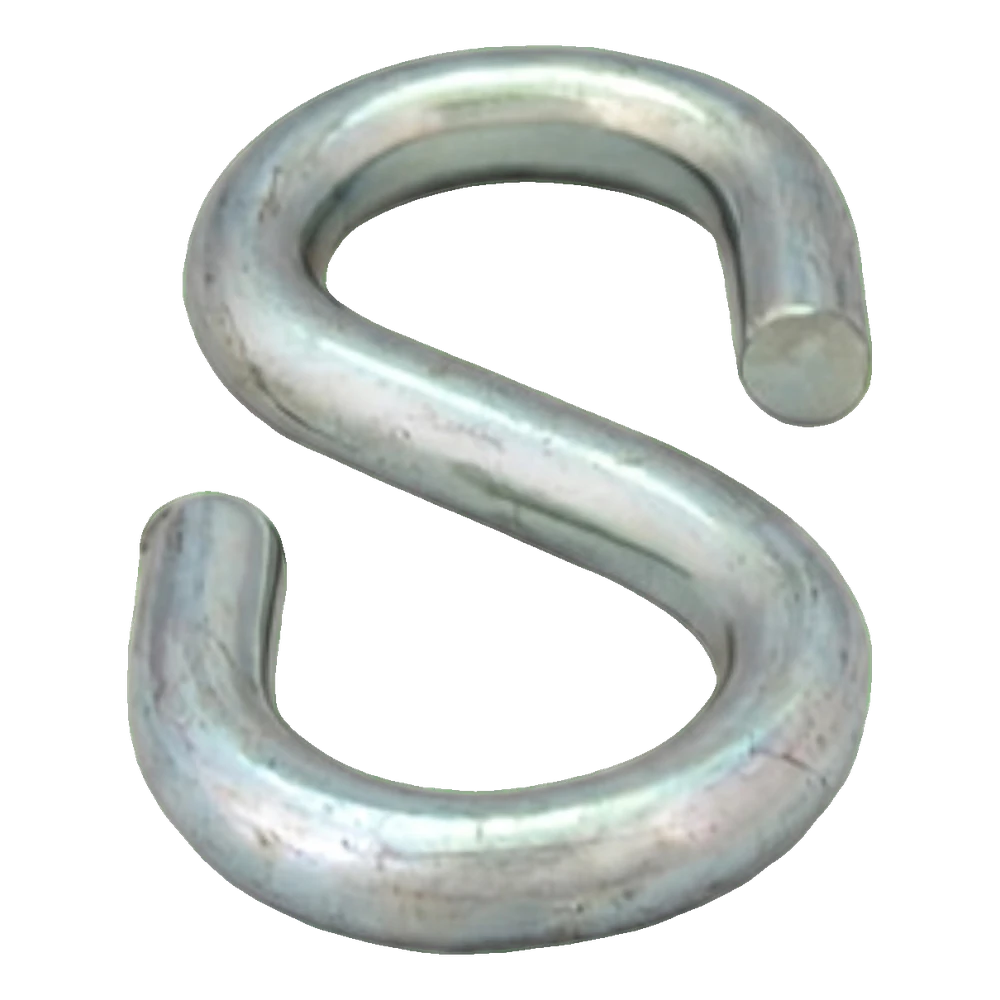

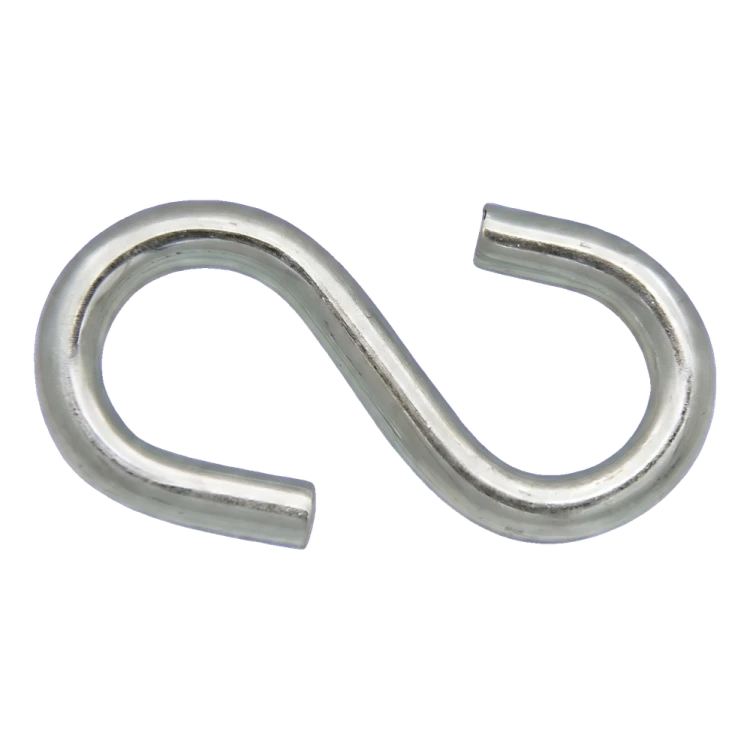

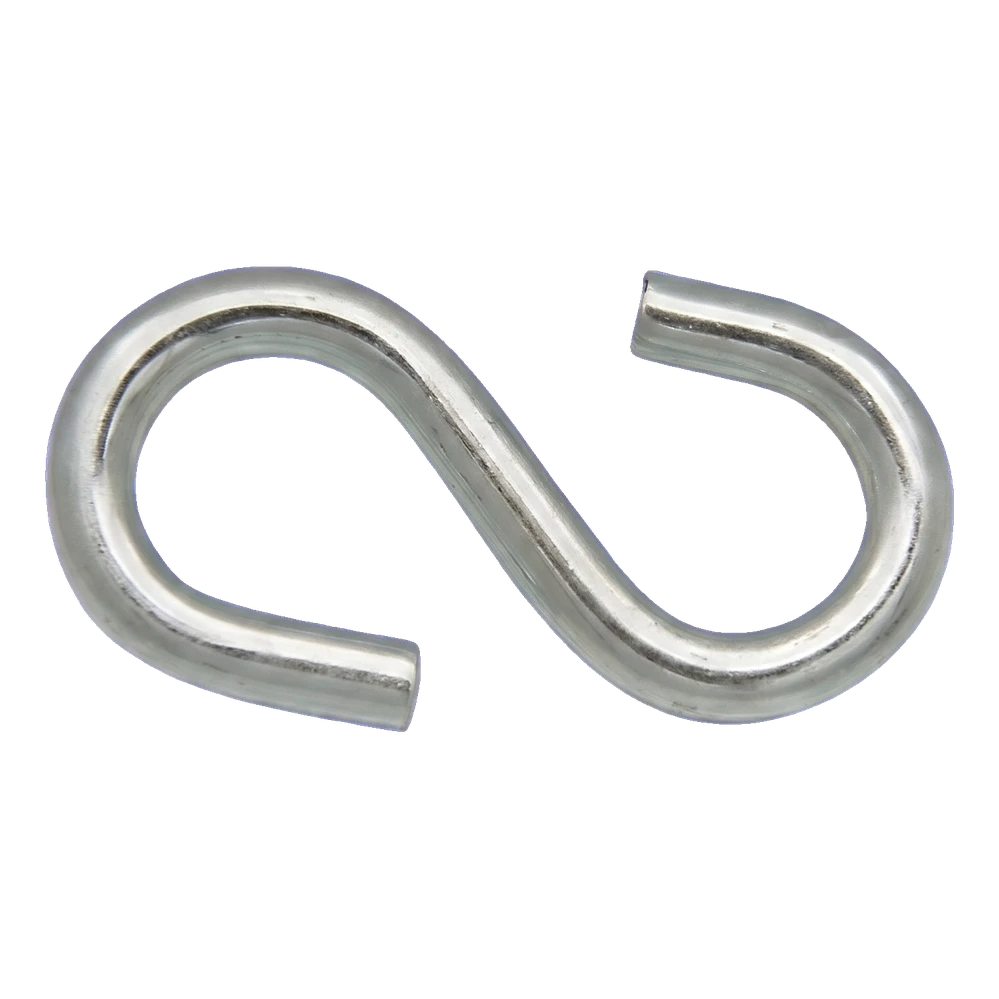

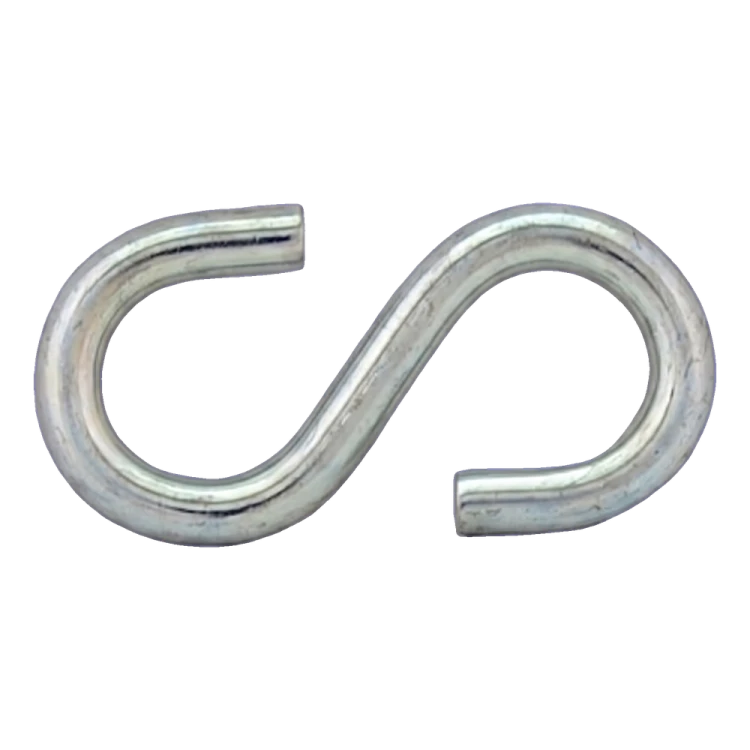

Galvanised S-shaped chain connecting link 5 mm – rated load 30 kg
Leave feedback on the product

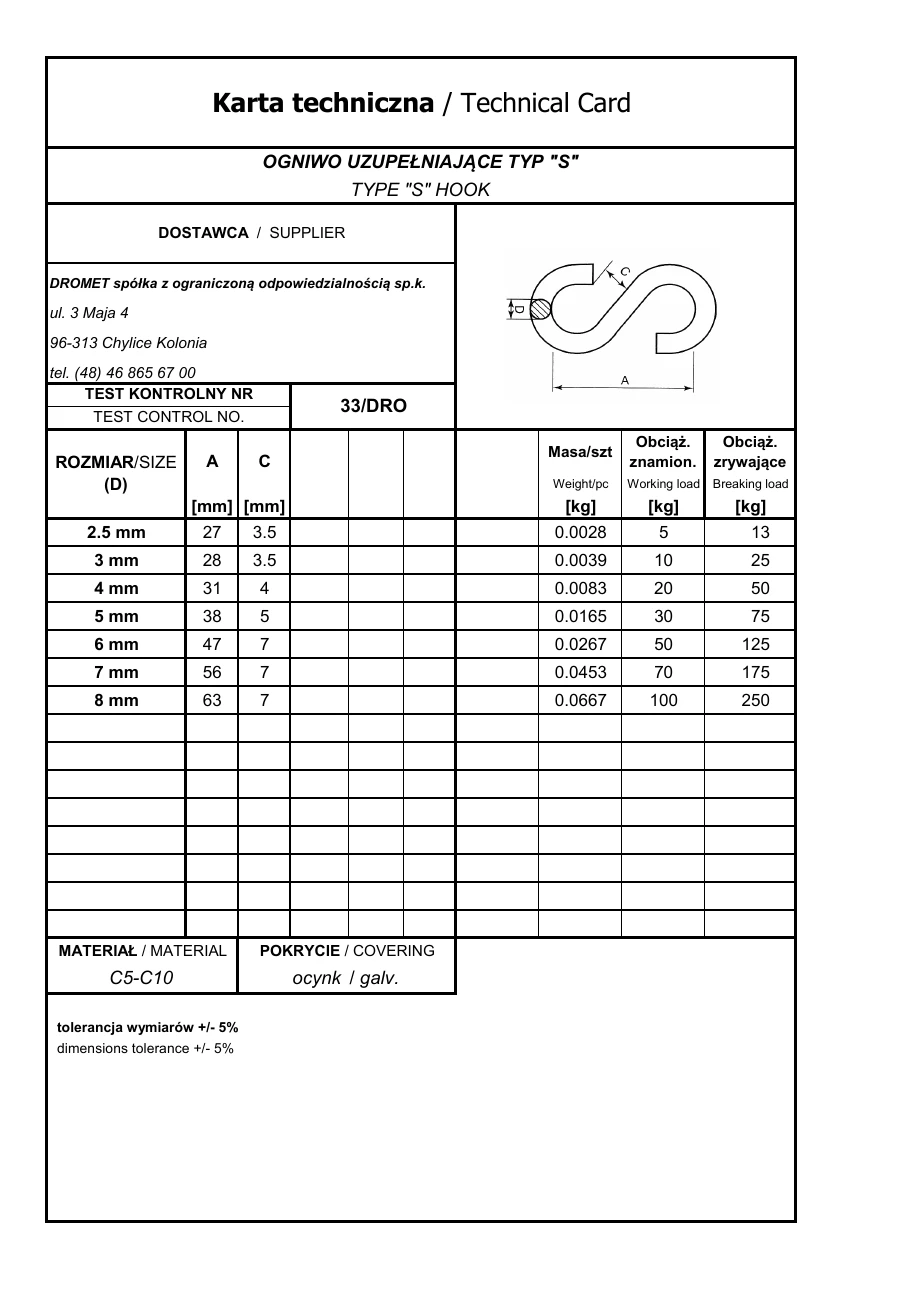

S-shaped chain connecting link, electro-galvanised, made of C5–C10 steel. Wire diameter 5 mm, length 38 mm, weight 0.0165 kg. Rated load 30 kg, breaking load 75 kg. For joining sections of link chain.
Product code: 002-553
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type S-hook link
- Diameter 5
- Max. load capacity [kg] 30
Description
Galvanised S-shaped chain connecting link 5 mm – rated load 30 kg
The S-shaped chain connecting link is designed for quickly joining chain sections without the need for any special tools. The chain ends are hooked onto both hooks of the link and then closed with pliers, so the connection is ready in a matter of seconds. The link is made of C5–C10 steel with a galvanised coating, which protects against corrosion and extends service life in outdoor conditions. With a wire diameter of 5 mm, the link carries a rated load of up to 30 kg and has a breaking strength of 75 kg, giving a clear safety margin in typical installation and household applications.
Applications and advantages
- Joining and extending sections of 5 mm link chain
- Installation without welding – standard pliers are all you need to close the ends
- The galvanised surface protects against rust when exposed to moisture and changeable weather conditions
- The compact S-shaped design makes it easy to fit onto chain links
- Sold individually (1 piece) – order exactly as many links as your project requires
