Galvanised D shackle 32 mm – M32 threaded pin
Leave feedback on the product

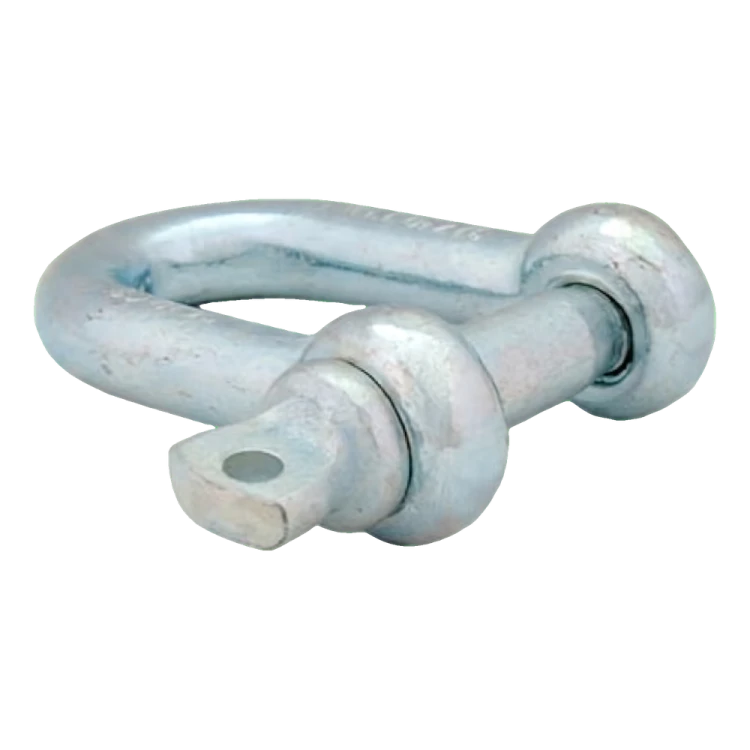

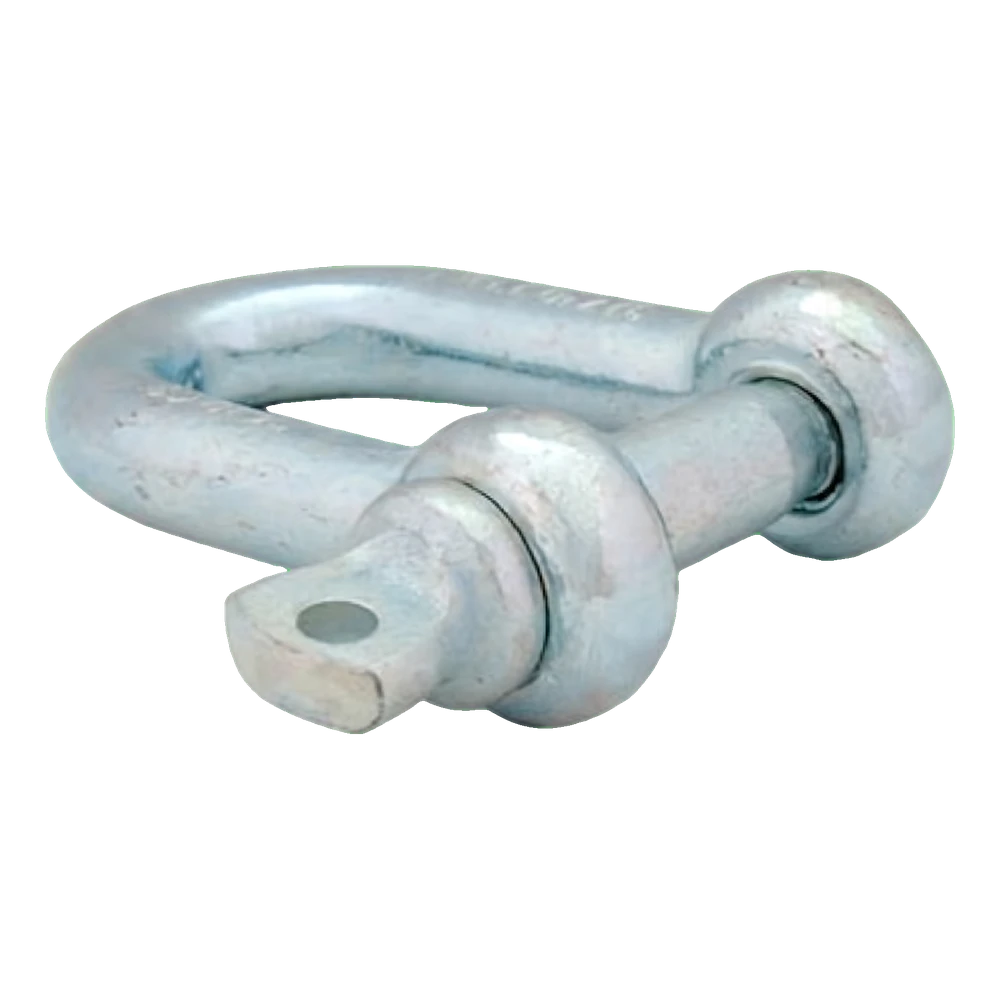

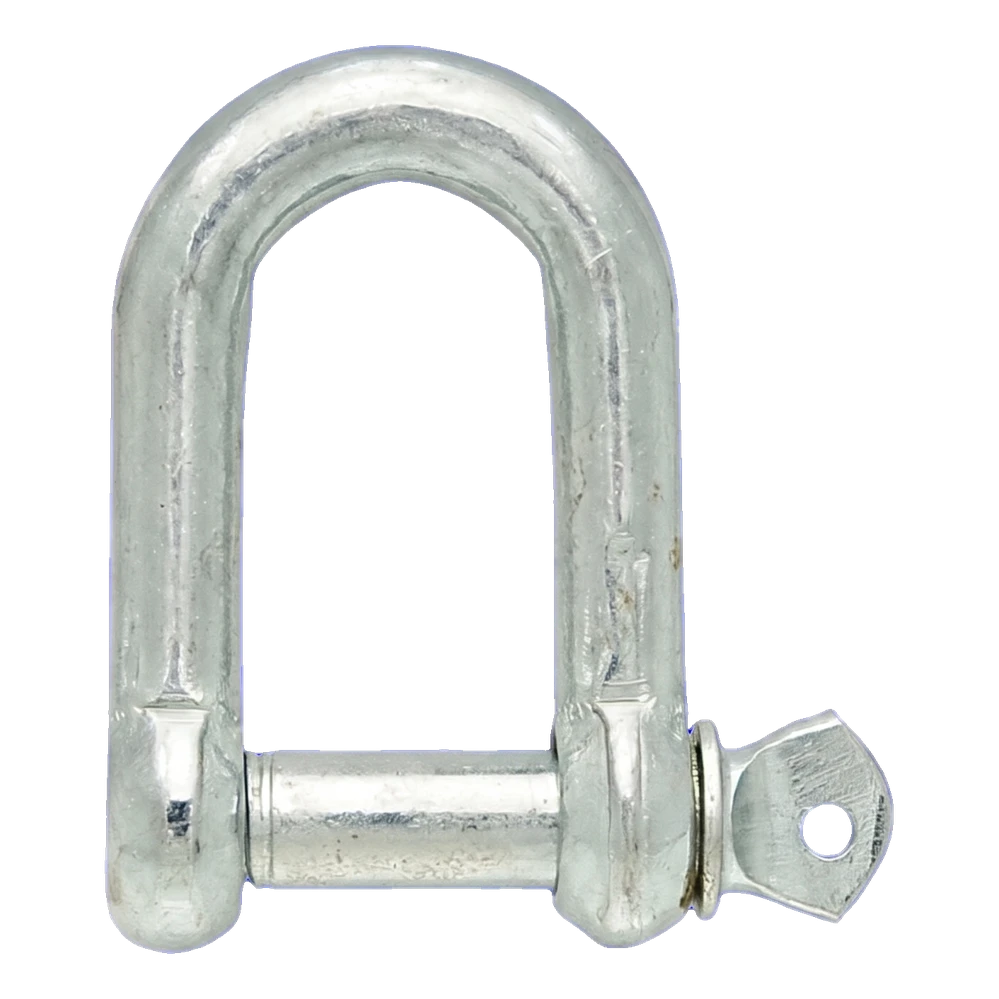

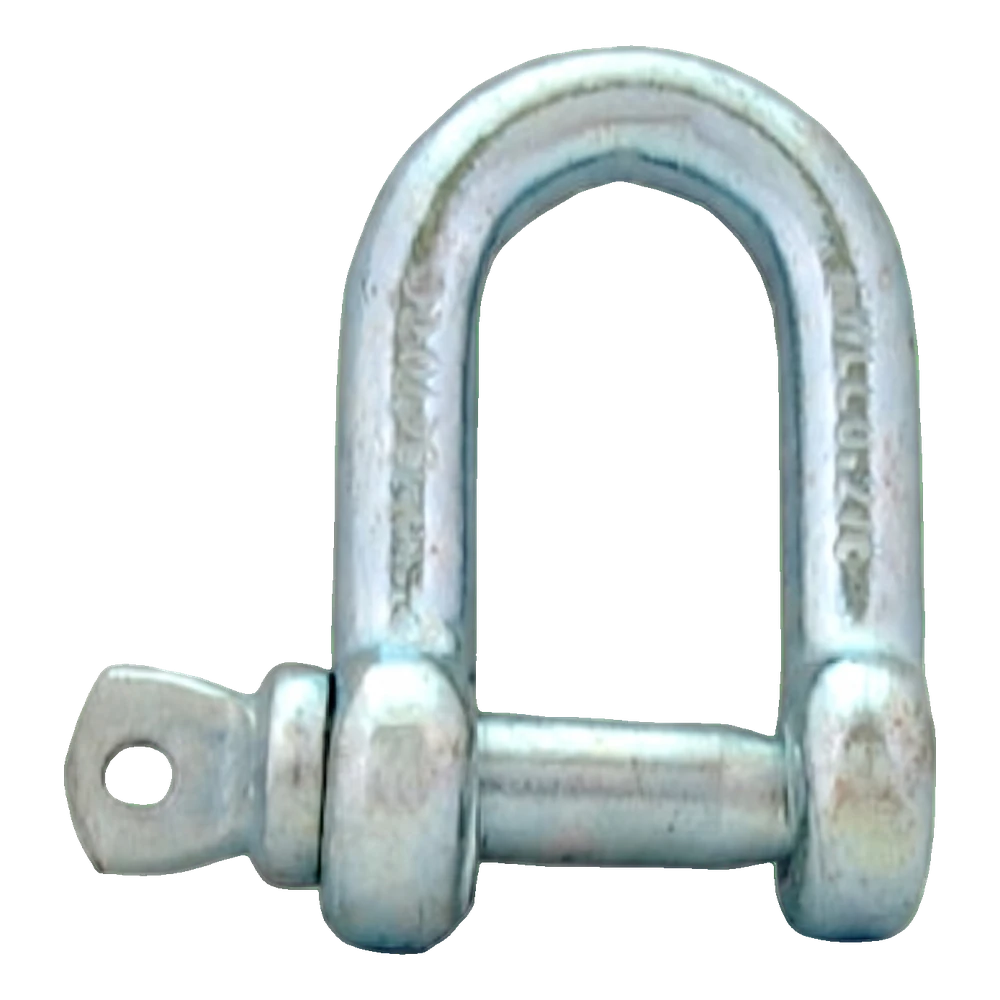

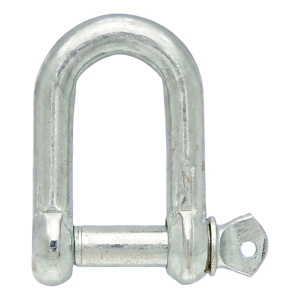

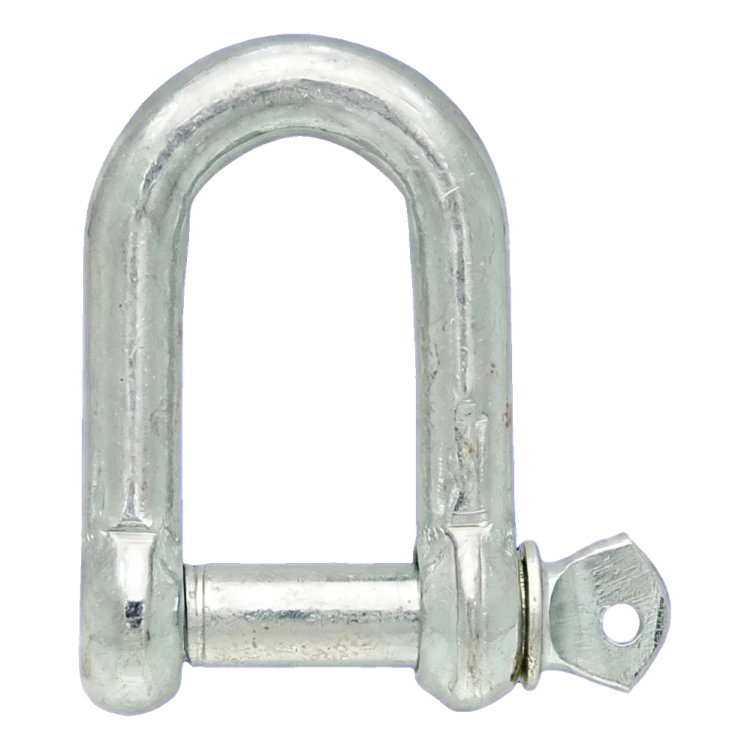

Long D shackle SK 32 mm, galvanised, made of C15 steel. Pin thread M32, assembly dimension 64.0 × 120.0 mm. Rated load 3500 kg, weight 3.17 kg. For rope and chain fittings.
Product code: 002-525
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Dee shackle
- Diameter 32
- Max. load capacity [kg] 3500
Description
Long D shackle SK 32 mm, galvanised
Galvanised SK32 long D shackle is a durable rope and chain fitting designed for professional use in assembly, transport and load lifting. Made of C15 steel with a galvanised coating, it offers high corrosion resistance even in demanding weather conditions. The long SK-type design with an M32 pin and an assembly dimension of 64.0 × 120.0 mm ensures a secure connection of rope fittings at a rated load of 3500 kg. The shackle is sold as a single piece, which allows assembly sets to be put together flexibly to suit a specific project.
Applications and advantages of SK32 shackles
- Connecting steel wire ropes, chains and slings in lifting and load transport systems
- The elongated bow shape allows use in places with limited installation space, where a standard bow shackle would not fit
- The pin with a safety hole makes it easier to lock with a split pin and to visually check that it is correctly closed
- The galvanised coating protects against corrosion on building sites, in production halls and outdoors
- Universal use in construction, the power industry and transport, as well as in photovoltaic installations and rope guy systems
