Galvanised Construction Hook M8×140 mm – Swing End

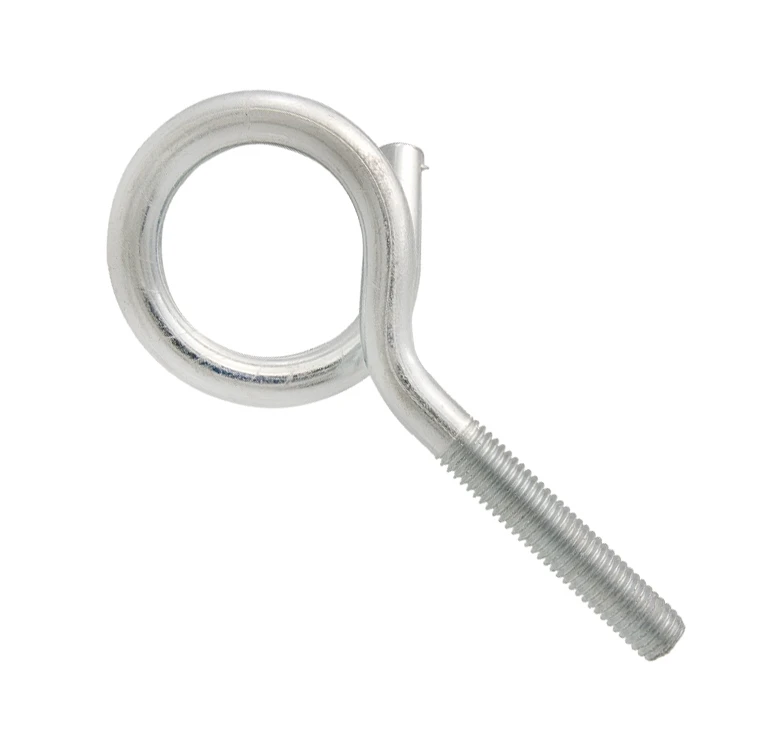

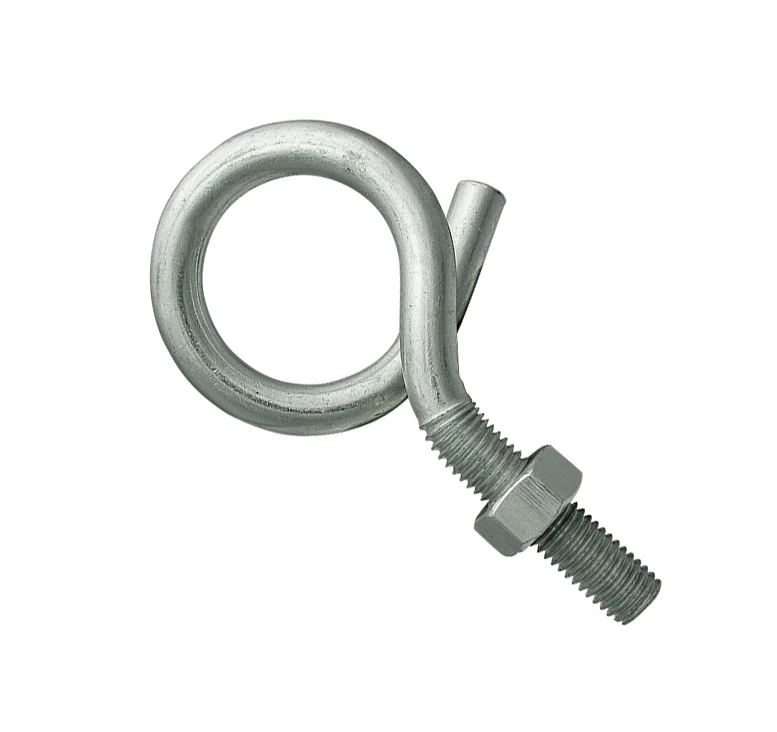

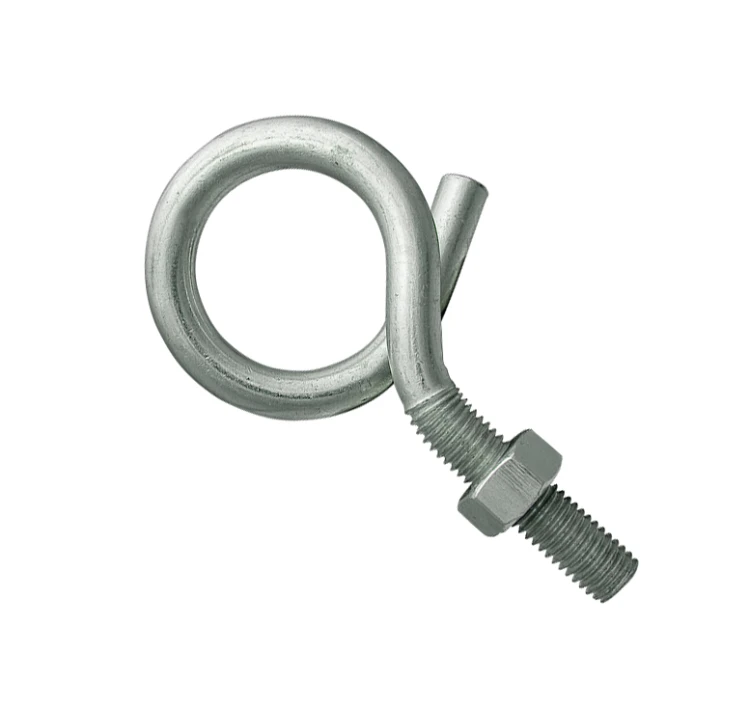

The HOH 8×140 swing eye hook from Dromet is a robust fixing element designed for construction applications. The distinctive round eye (swing end) with an outer bend diameter of Ø41 mm makes it easy to hang ropes, chains, hammocks, swings and other items that need to rotate freely at the fixing point. The hook is made of class 5.8 steel and protected with an electro-galvanised coating, which provides effective corrosion protection in typical construction conditions. The M8 thread, 85 mm long, allows the hook to be securely fitted in an expansion plug, in timber, or directly in a prepared hole with a nut. The total shank length is 140 mm, so the hook is suitable for both surface mounting and deeper anchoring.

Features and applications

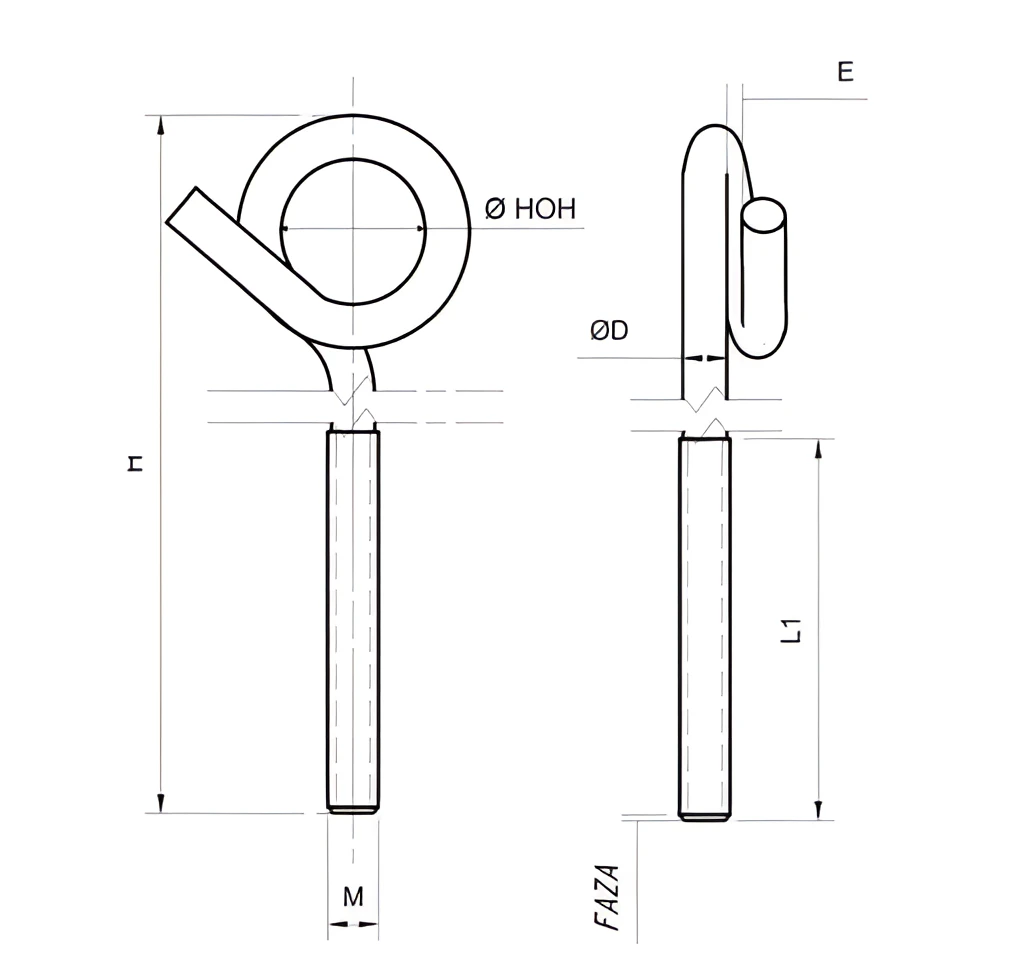

The technical drawing shows the key dimensions of the hook: Ø HOH is the outer diameter of the swing eye, L is the total length of the shank, L1 — the thread length, M — the thread diameter, and ØD — the rod diameter. These dimensions allow you to select the hook precisely for a specific substrate and expansion plug.

The hook is supplied as a single piece. In the manufacturer's Dromet range, the HOH series covers sizes from M6 to M10, so you can choose the right hook for the planned load and type of substrate. The bulk pack contains 50 pieces, which makes purchasing easier for larger construction and installation projects.
