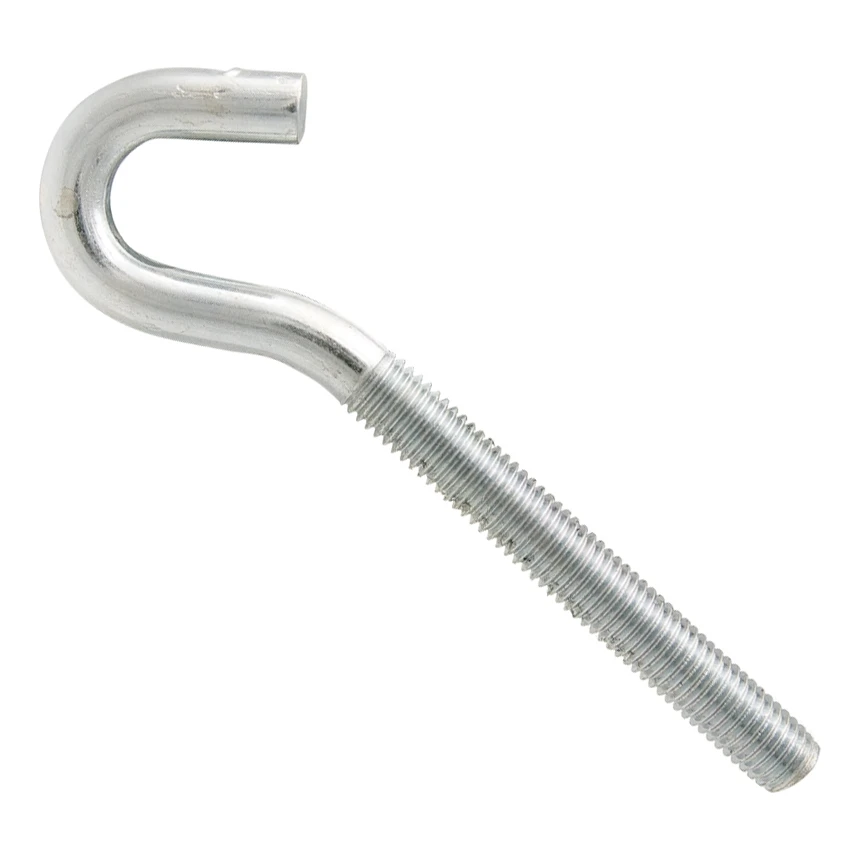

Galvanised Construction Hook M8×120 mm – Open End
Leave feedback on the product
Dromet HZ M8x120 open-end construction hook, steel, electro-galvanised. M8 thread, 80 mm thread length, 120 mm overall length, property class 5.8. Bend diameter Ø27 mm, weight 0.045 kg. For concrete and masonry substrates.
Product code: 002-196
Description
Open-End Hook HZ 8x120
The HZ M8x120 open-end construction hook from Dromet is a steel fixing element with an electro-galvanised coating, designed for permanent anchoring in concrete or masonry substrates. The open end shape allows items to be hung and removed quickly without having to thread them through a loop, which speeds up installation work on site, in technical installations and when fixing cables, pipes or support structures. The threaded section of suitable length ensures a secure fit in an expansion plug or directly in the substrate, while the steel core with a protective coating guarantees durability in indoor and covered conditions.
Key advantages of the HZ hook
- The open end allows suspended items to be quickly attached and removed without dismantling the fixing point
- The electro-galvanised coating protects against corrosion in indoor and covered conditions
- Proven design used in construction, electrical and plumbing installations
- Available in a full size range, making it easy to select the right hook for a specific installation task
- Versatile use: hanging cables, pipes, structural elements and accessories

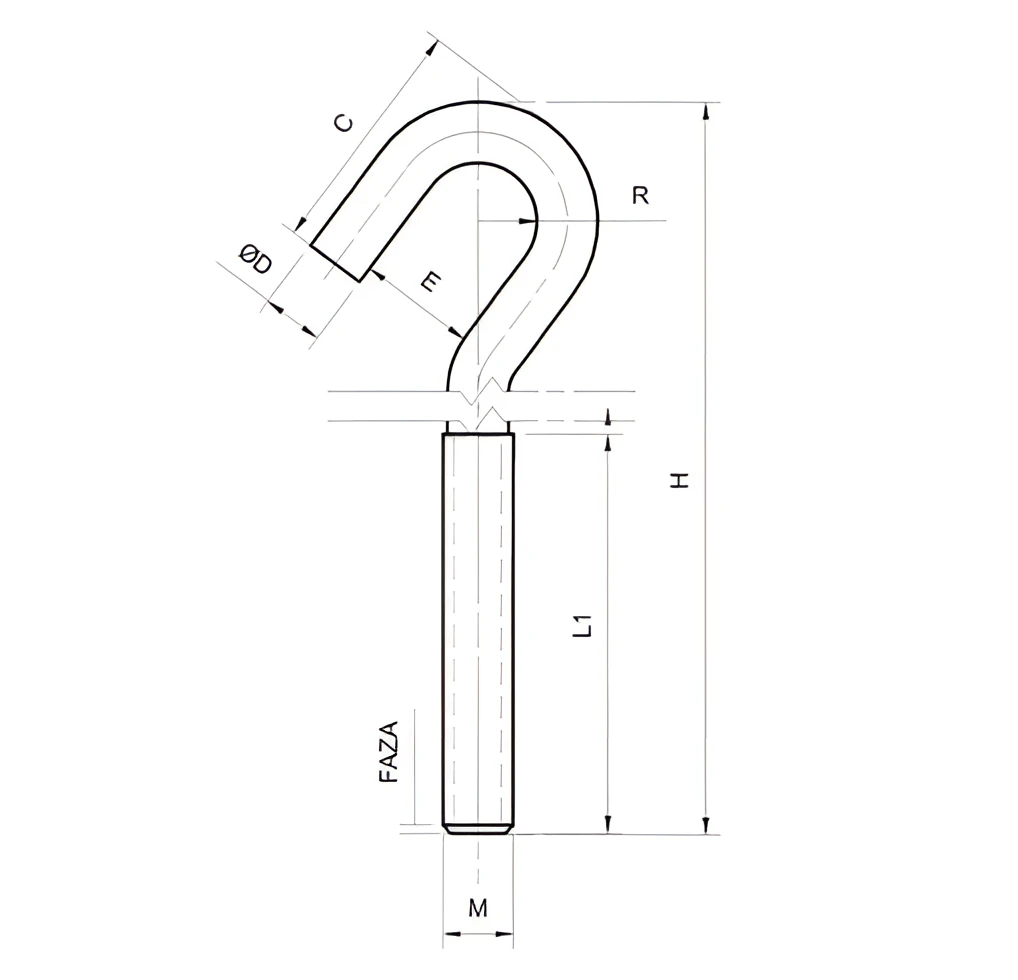

The technical drawing shows the hook geometry with the key dimensions marked: M – thread diameter, L1 – length of the threaded section, H – height of the straight section of the shank, R – bend radius, C and E – dimensions of the open end, ØD – rod diameter. The open end design (as opposed to a closed eye) allows suspended items to be fitted without dismantling the entire fixing point.
