Forged turnbuckle hook-hook 16x170 DIN 1480
Leave feedback on the product

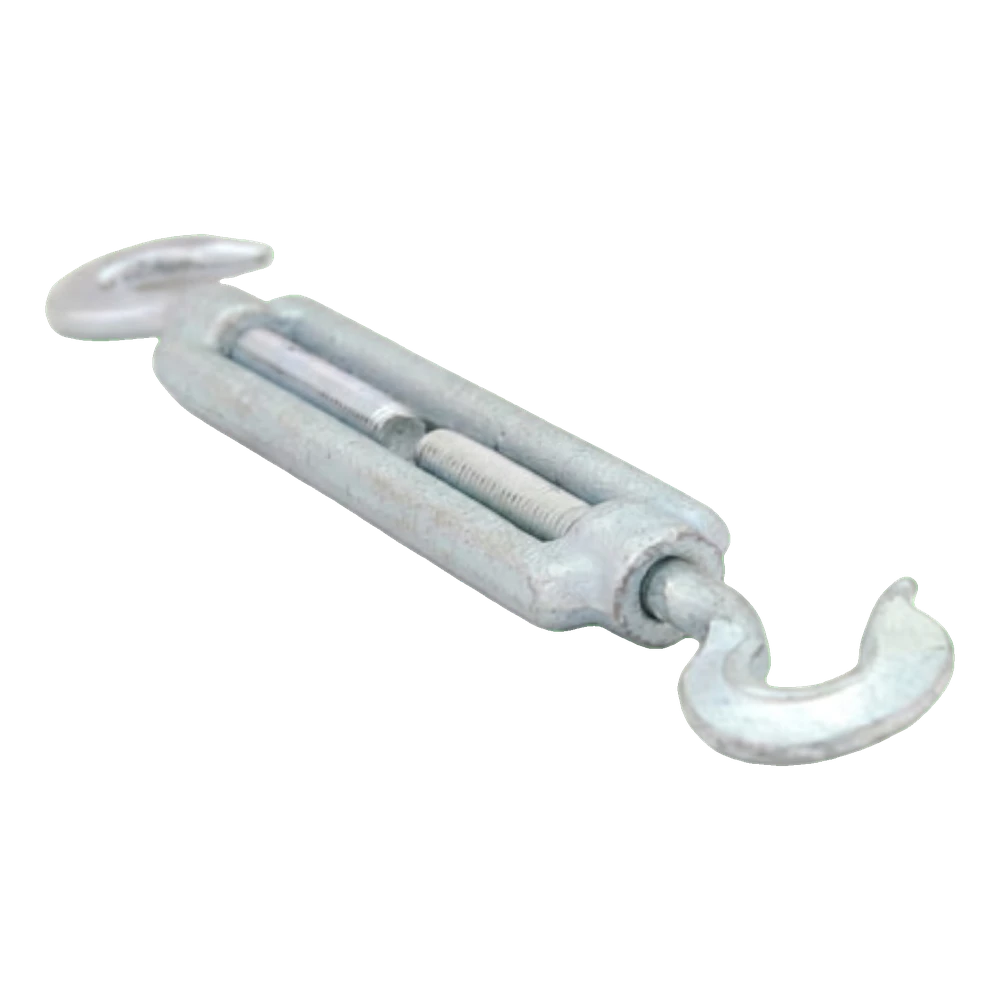

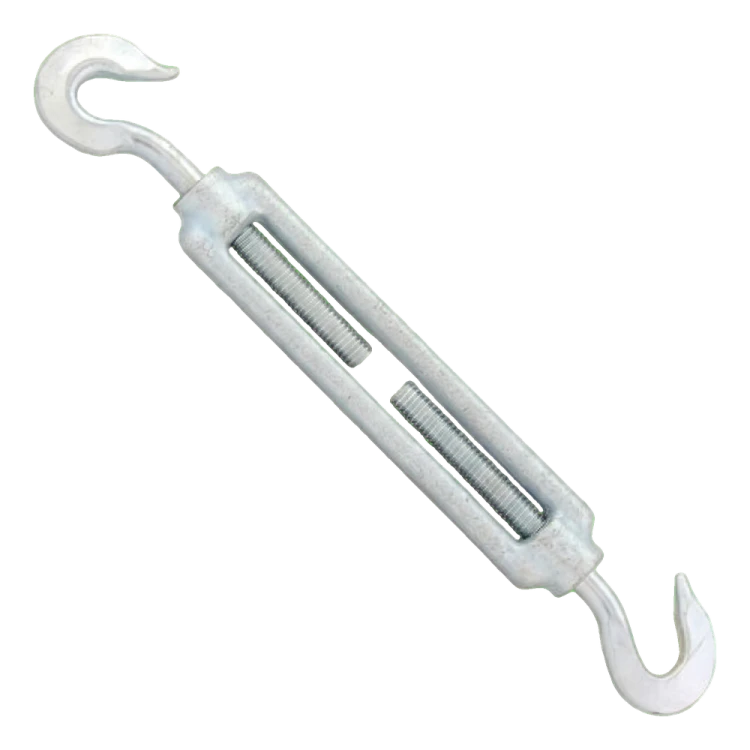

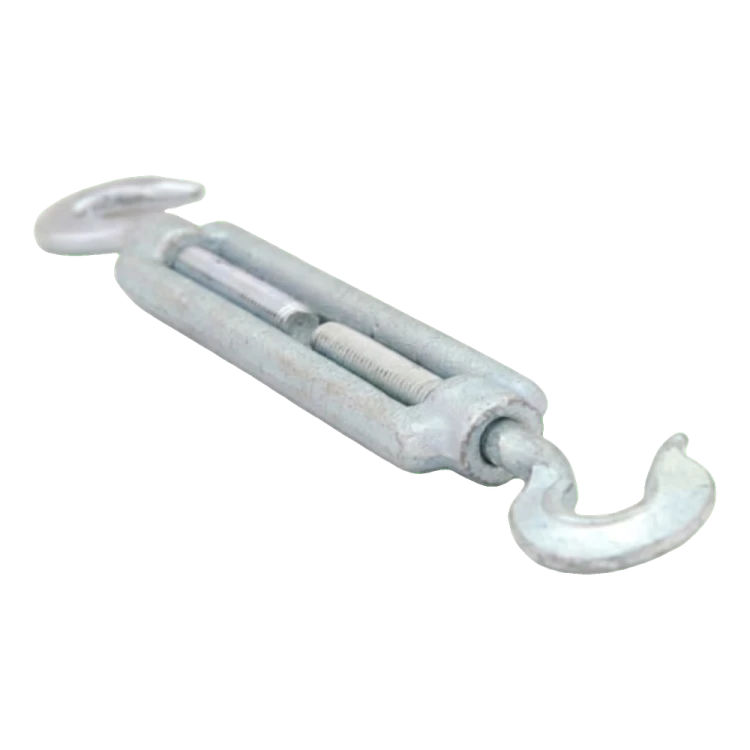

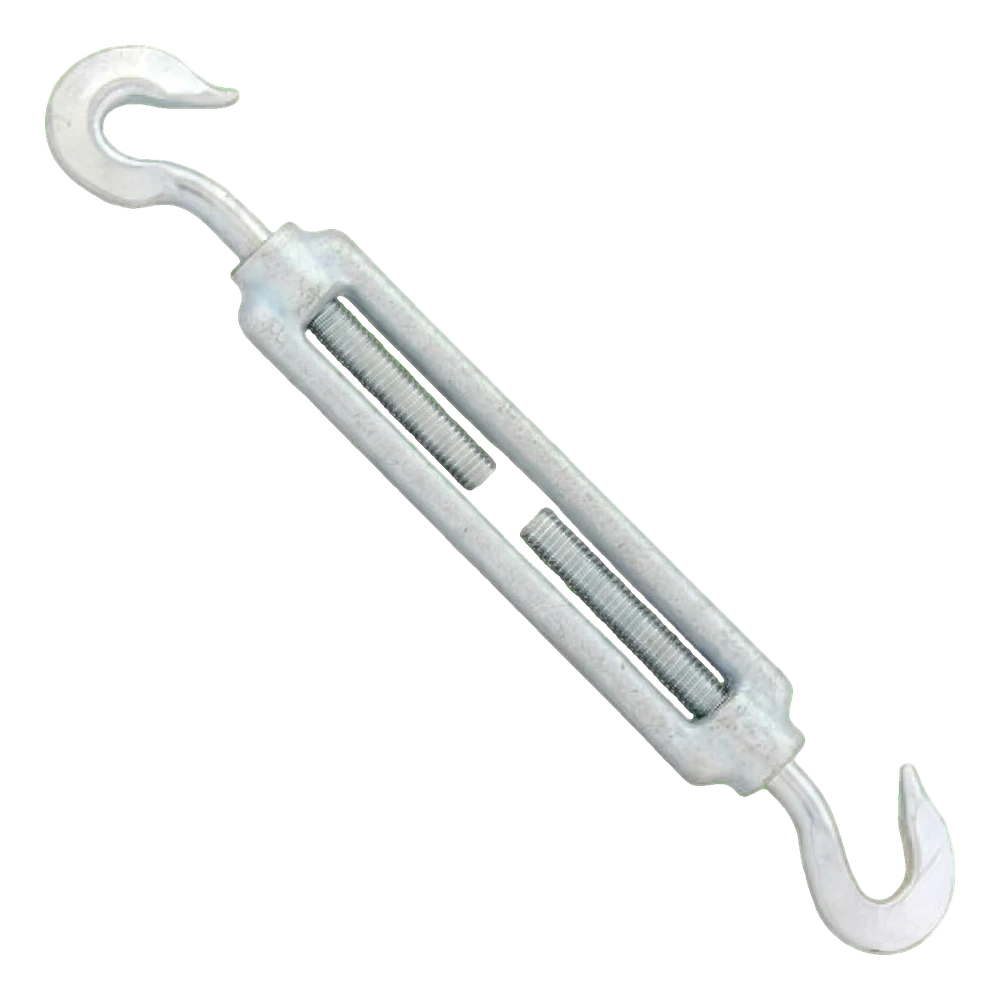

Forged hook-hook turnbuckle M16x170, DIN 1480, electro-galvanised. Body made of low-alloy steel (C15), overall length L 170 mm, hook length L1 83 mm, body width E 20 mm, weight 0.95 kg. For tensioning ropes, chains and guy lines.
Product code: 002-514
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M16
Description
Forged turnbuckle hook-hook 16x170 DIN 1480
Forged hook-hook turnbuckle M16x170 is a durable piece of rigging hardware manufactured in accordance with DIN 1480. It is used to adjust the tension of steel wire ropes, chains and guy lines, wherever precise tensioning and easy adjustment of the connection length are required. The turnbuckle body is forged from low-alloy steel, which provides high mechanical strength and resistance to dynamic loads. The hook-hook end fittings allow quick connection to eyes, links, shackles or directly to structural elements without additional hardware. The electro-galvanised coating protects against corrosion in outdoor and industrial conditions. Strength is confirmed by the manufacturer's data sheet, which guarantees consistent parameters in every item supplied.
Features and applications
- Hook-hook end fittings: quick connection to links, shackles and structural elements without additional hardware
- Forged body made of low-alloy structural steel (C15): high resistance to dynamic loads and material fatigue compared with cast versions
- Electro-galvanised finish: corrosion protection suitable for outdoor use
- Tension adjustment of steel wire ropes, mast guy lines, barriers and steel structures
- DIN 1480 standard: repeatable dimensions and compatibility with European hardware

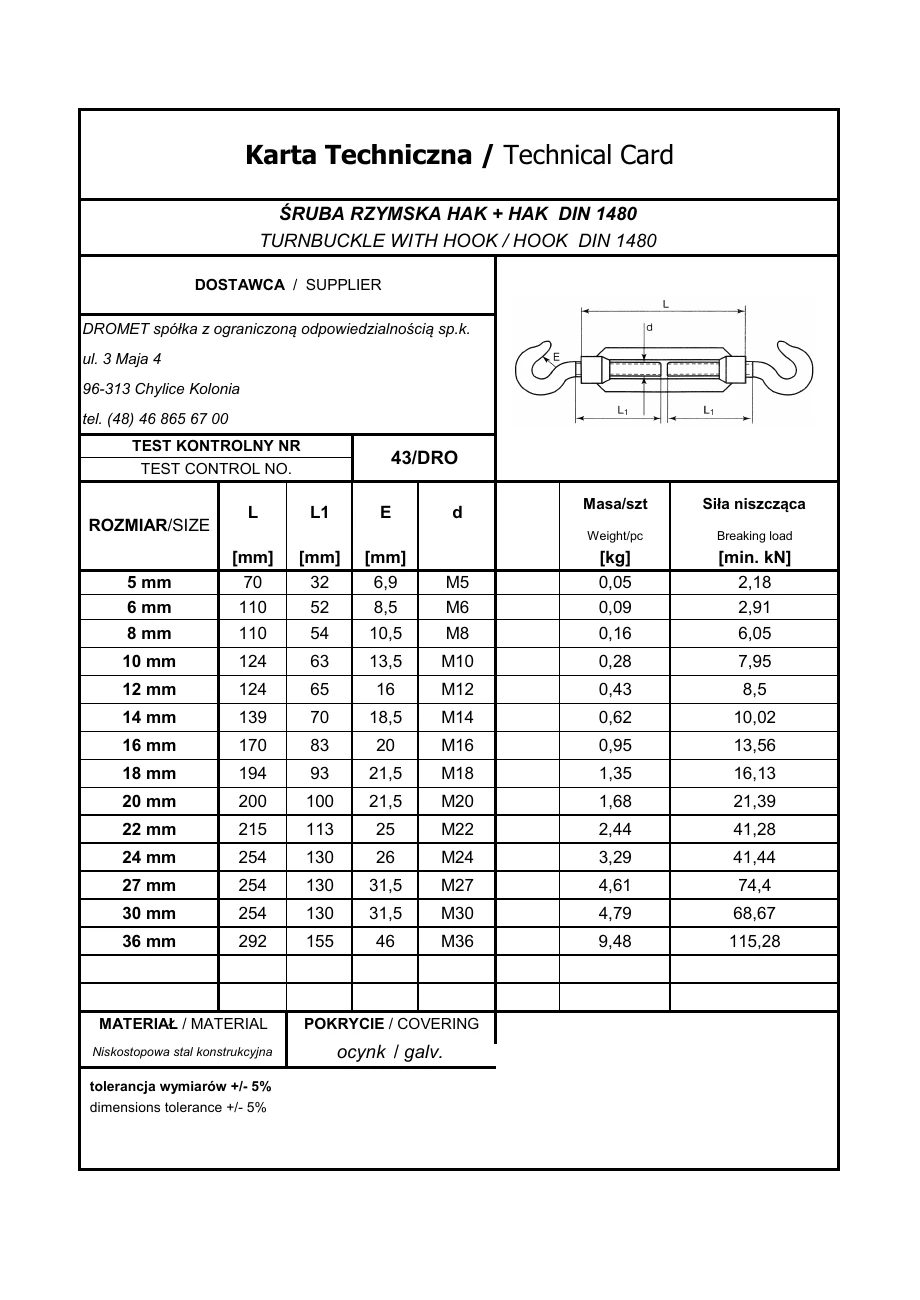

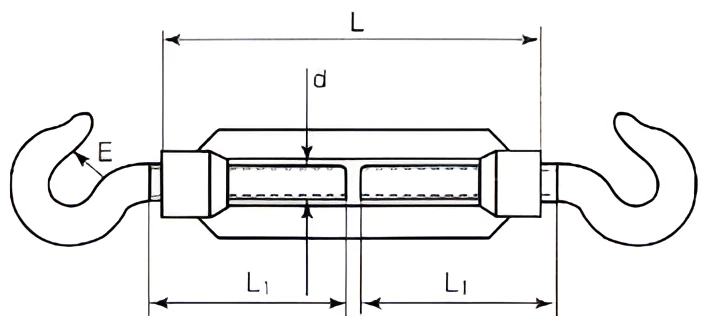

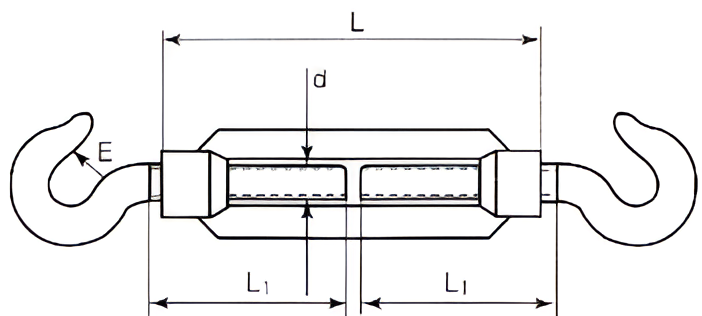

The manufacturer's data sheet presents the full series of forged hook-hook turnbuckles DIN 1480 in sizes from 5 mm to 36 mm. The document contains a dimensional drawing with the markings L, L₁, E and d, as well as a table of weights and minimum breaking loads for each size. The data sheet confirms the parameters of the material used and of the protective coating.

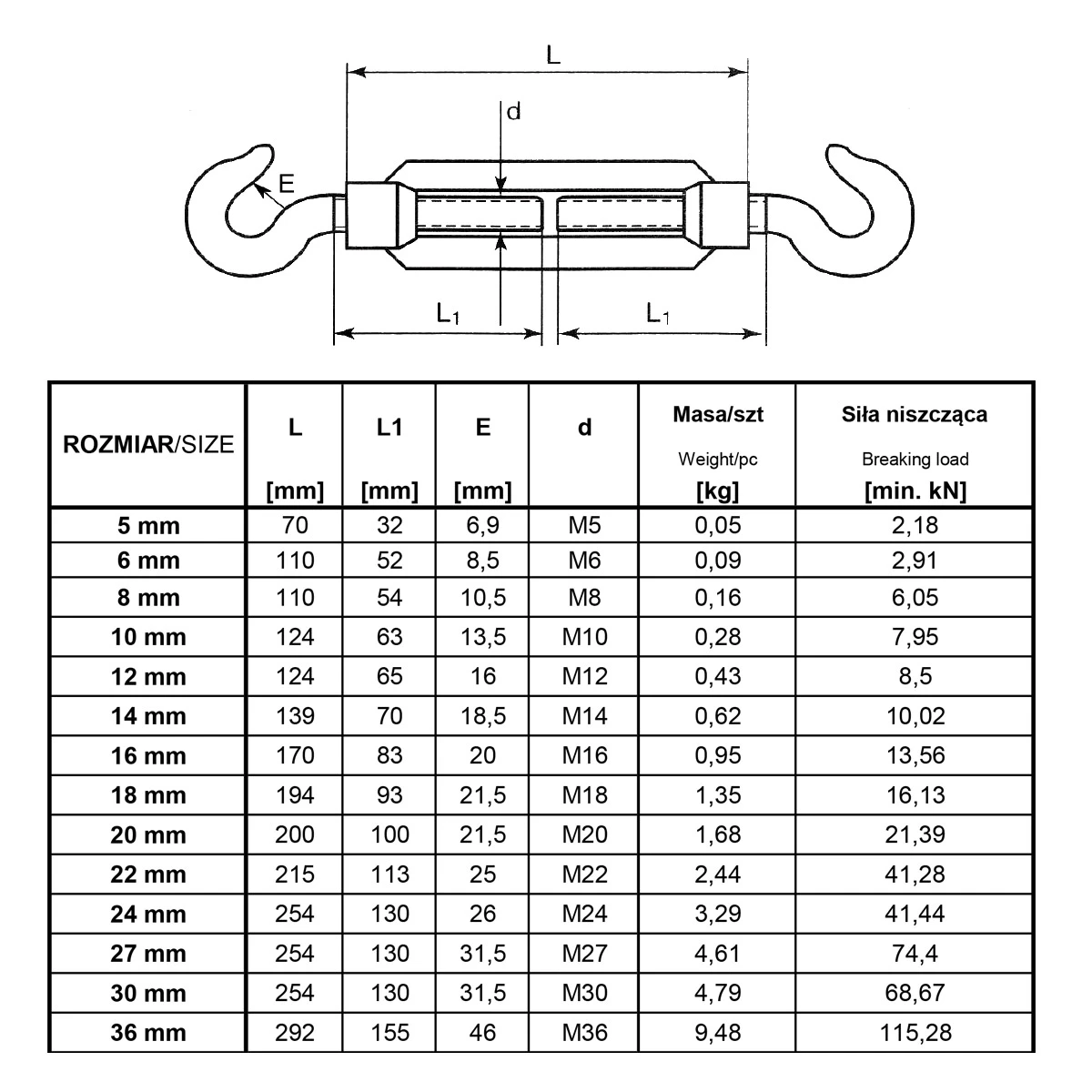

The technical drawing with a comparison table for the whole series makes it easy to select the right turnbuckle size for the intended application. The dimensions L, L₁ and E increase in proportion to the thread diameter, which simplifies the design of connections.
