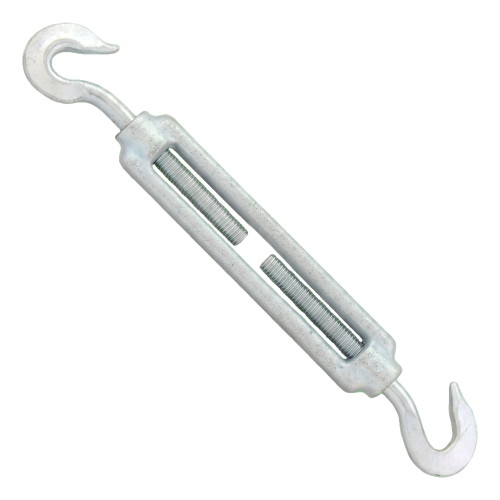

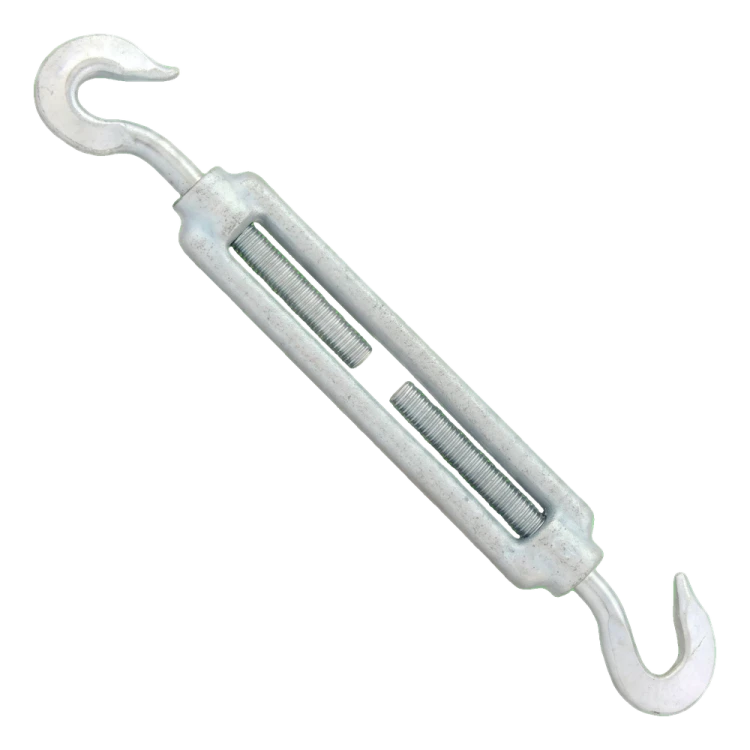

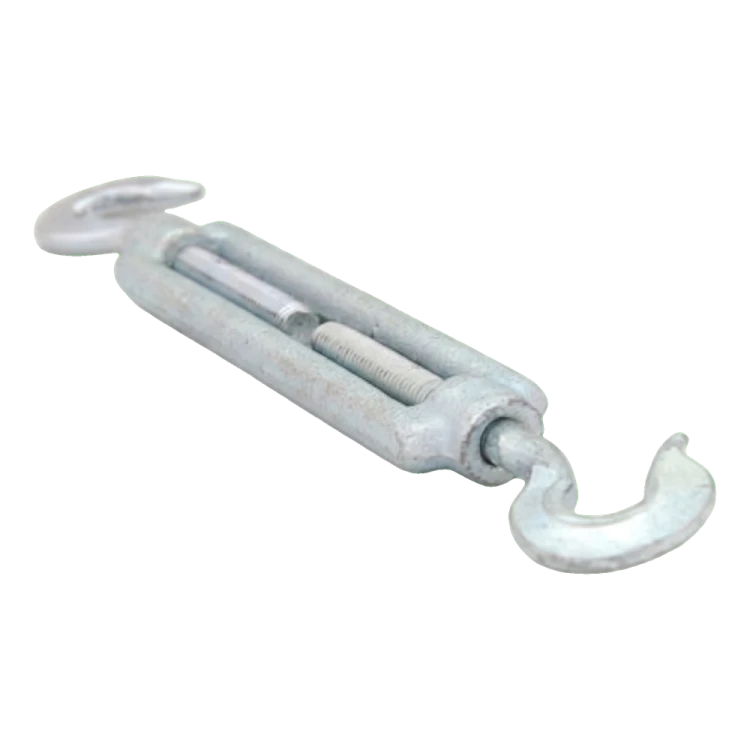

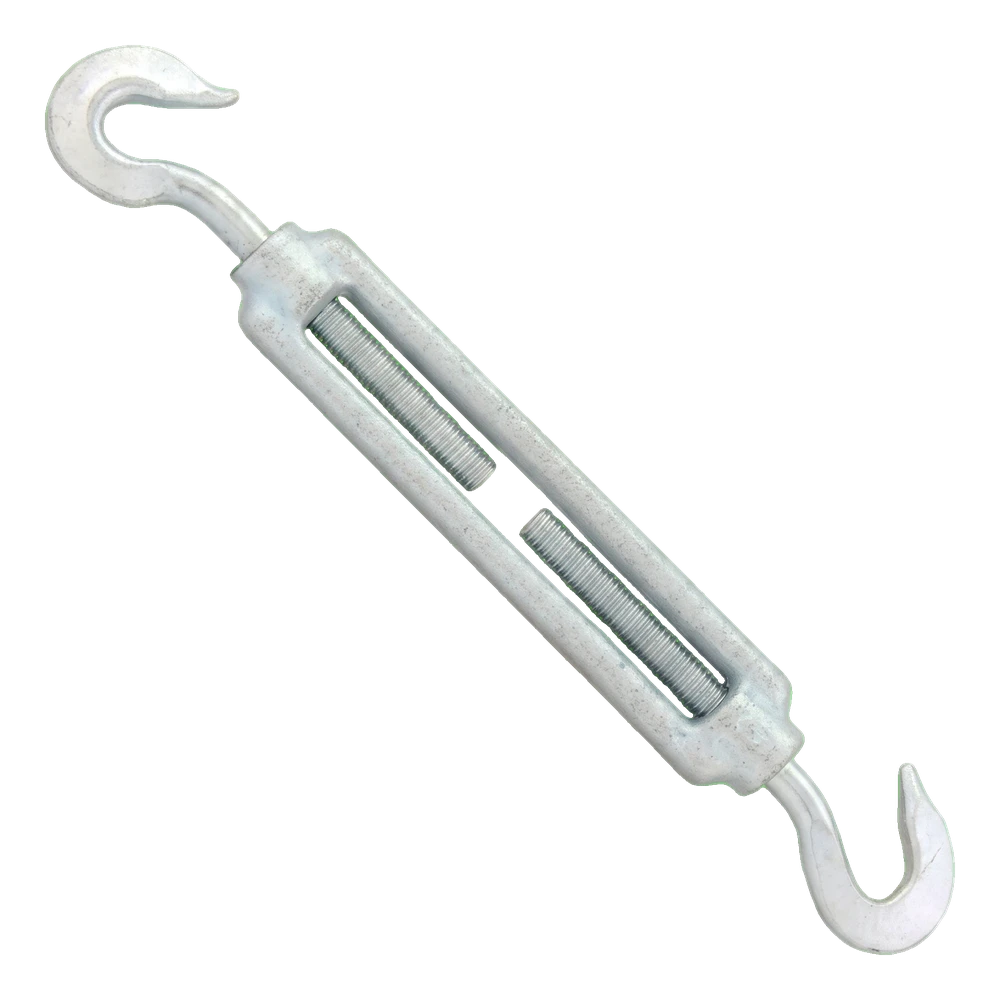

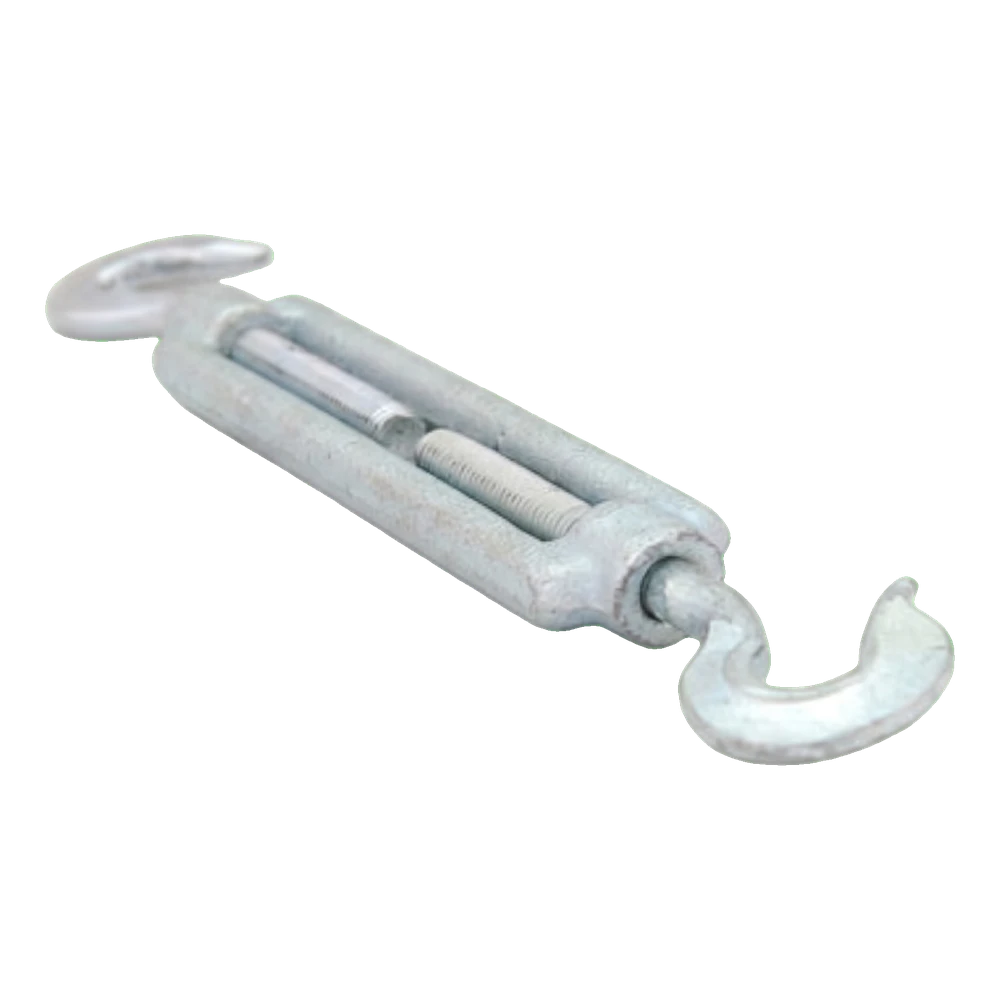

Forged turnbuckle hook-hook 12x125 DIN1480
Leave feedback on the product
Forged turnbuckle hook-hook M12 DIN 1480, galvanised. Low-alloy structural steel. Overall length 124 mm, hook length 65 mm, body width 16 mm. Weight 0.43 kg. Minimum breaking force 8.5 kN. For ropes and chains.
Product code: 002-512
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M12
Description
Forged turnbuckle hook-hook 12x125 DIN1480
The hook-hook turnbuckle from the KHH series is a forged tensioning screw made in accordance with DIN 1480, designed for adjusting the tension of steel wire ropes, chains and guy lines. The body is shaped by forging, which ensures high mechanical strength – the minimum breaking force for size M12 is 8.5 kN. Hooks at both ends make it easy to quickly connect and disconnect rigging components without having to thread ropes through. The galvanised coating protects the surface against corrosion, making the turnbuckle suitable for use both indoors and outdoors. A dimensional tolerance of ±5% ensures repeatable installation when combined with other rope fittings.
Advantages of the forged hook-hook turnbuckle
- Forged construction providing high mechanical strength in compact dimensions
- Hooks at both ends allow rigging components to be connected and disconnected quickly without dismantling the entire installation
- Galvanised surface protects against corrosion in outdoor conditions
- Compliance with DIN 1480 ensures compatibility with typical rope and chain fittings
- Smooth tension adjustment thanks to the double-sided thread in the body
