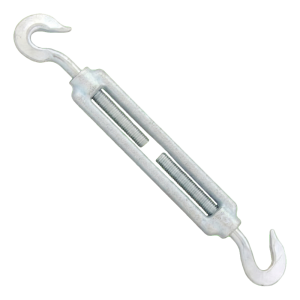

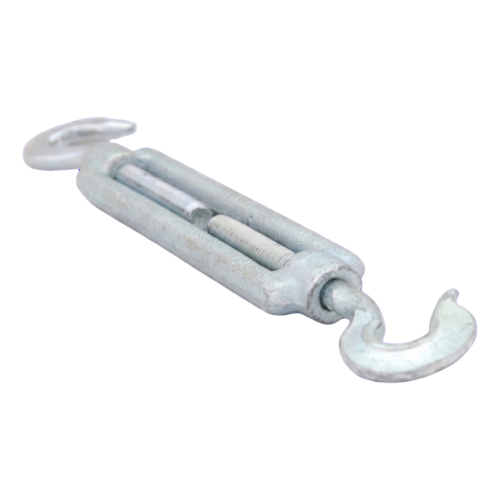

Forged hook-hook turnbuckle 8x110 DIN1480
Leave feedback on the product

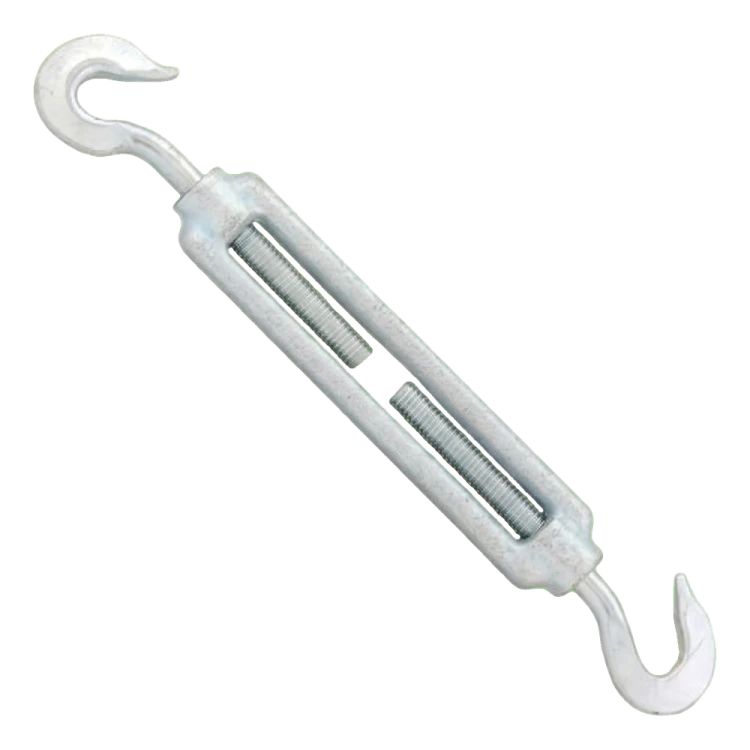

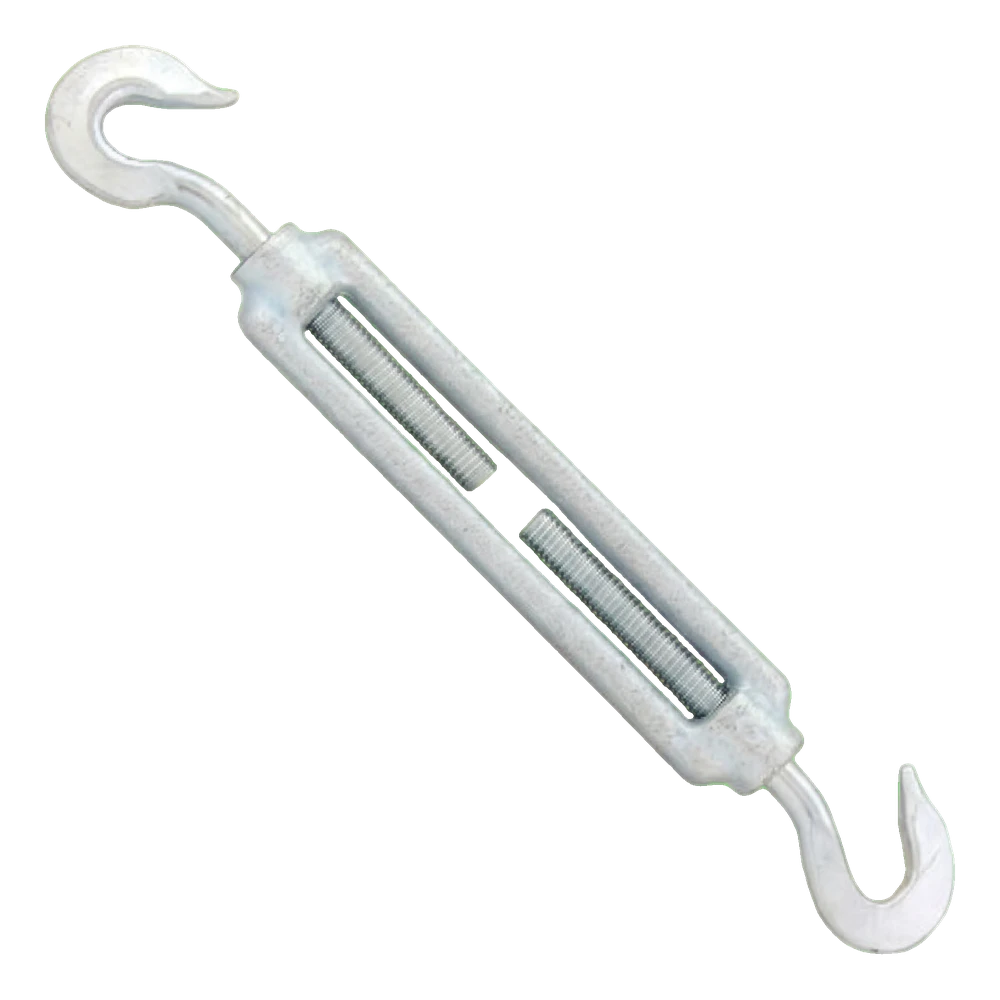

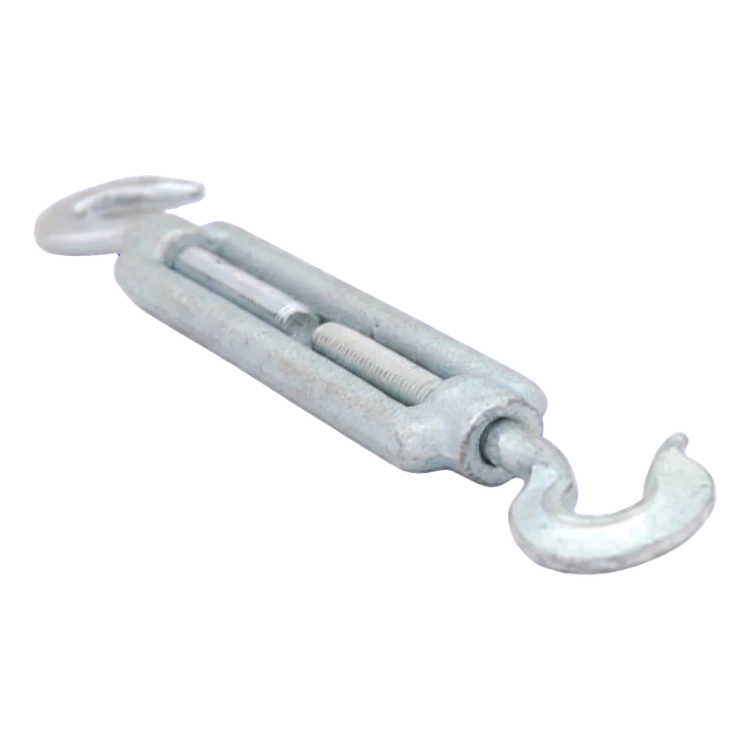

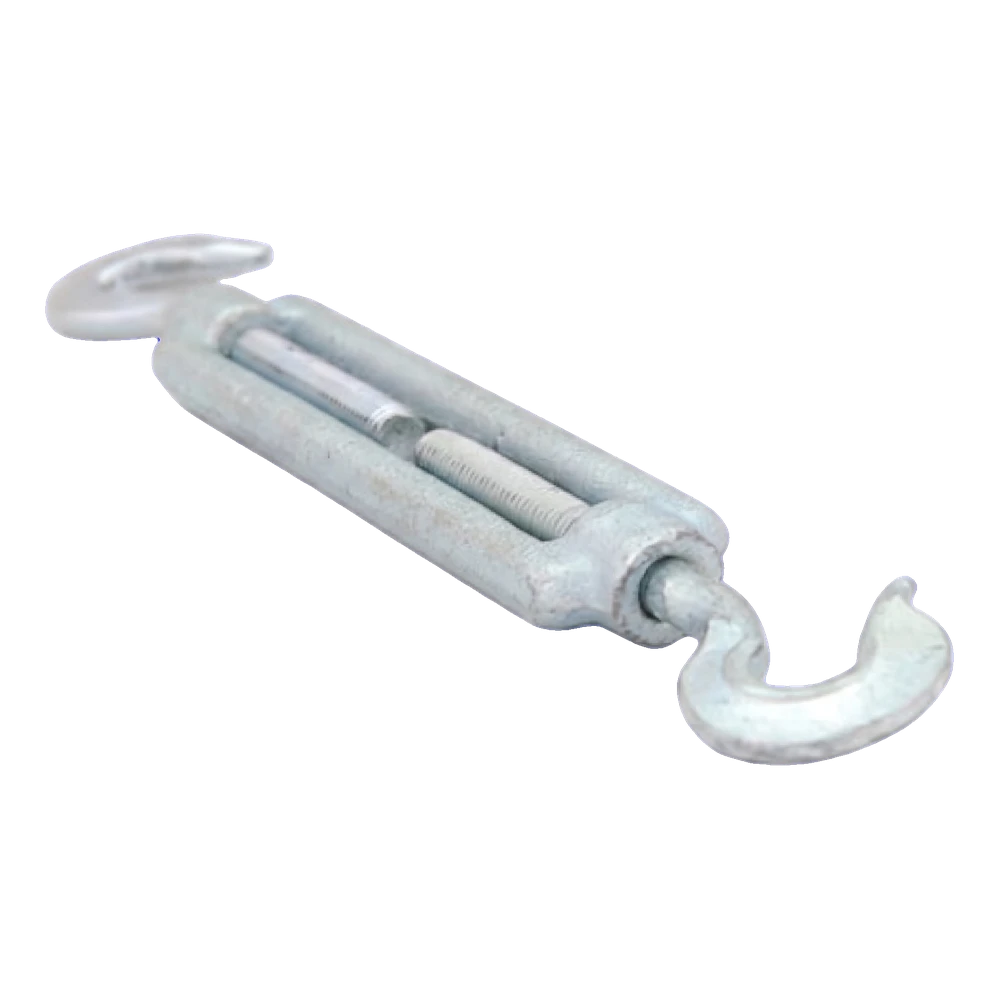

Forged hook-hook turnbuckle M8x110 to DIN 1480, made of C15 structural steel with an electro-galvanised finish. Length L 110 mm, threaded arm L1 54 mm, hook opening E 10.5 mm. Minimum breaking force 6.05 kN, weight 0.16 kg.
Product code: 002-510
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M8
Description
Forged hook-hook turnbuckle 8x110 DIN1480
Forged hook-hook turnbuckle M8x110 is a durable tensioning element made in accordance with DIN 1480, designed for adjusting the tension of steel wire ropes, chains and tie rods. The body of the turnbuckle is forged, which ensures high resistance to deformation and dynamic loads. Both ends, in the form of open hooks, allow quick attachment to links, shackles and other rigging accessories without having to disconnect them. This makes installation and removal on site quick and easy, even in hard-to-reach places.
Advantages and applications
- Forged construction ensures durability and reliability under dynamic loads
- The hook-hook design allows quick attachment without disassembling adjacent rigging components
- The zinc coating protects against corrosion in outdoor installations
- Tension adjustment of steel wire ropes, chains, guy lines, barriers and tie rods
- Use in construction, industrial installations and guyed structures

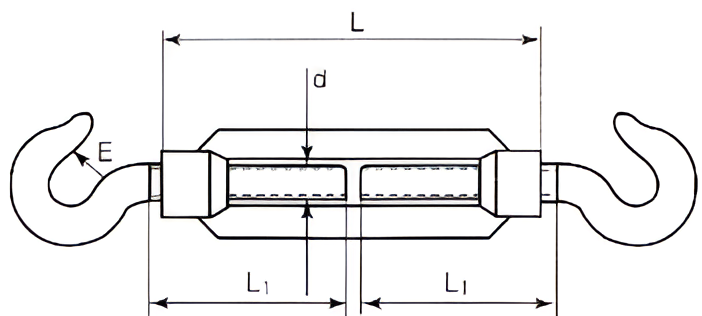

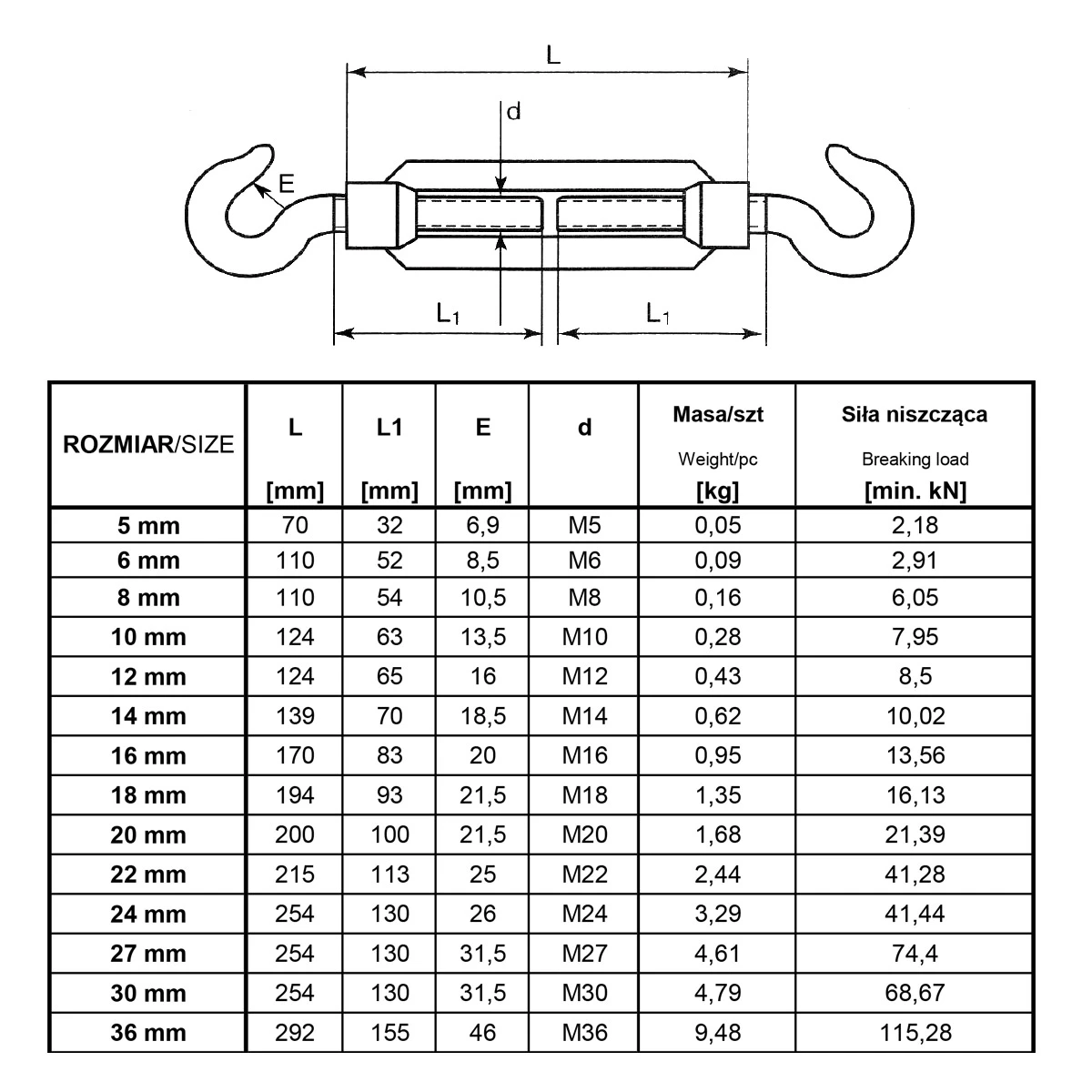

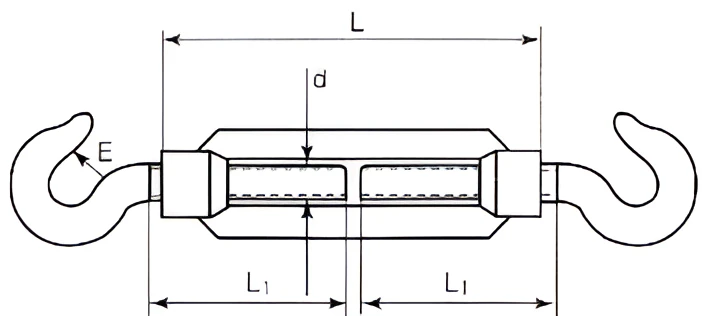

The turnbuckle consists of a central body with two threaded rods ending in hooks. Turning the body allows smooth length adjustment, shortening or lengthening, without having to disassemble the entire connection. The technical drawing shows the key dimensions: L – overall length, L1 – length of the threaded arm, E – hook opening and d – thread diameter. Compact dimensions and low weight make transport and storage easier.
The product is sold in packs of 1 piece, allowing you to order exactly the quantity you need. The DIN 1480 standard guarantees consistent dimensions and full compatibility with other rigging accessories available on the European market. The turnbuckle is a versatile solution wherever rope or chain tension needs to be adjusted with the option of quick attachment using hooks.
