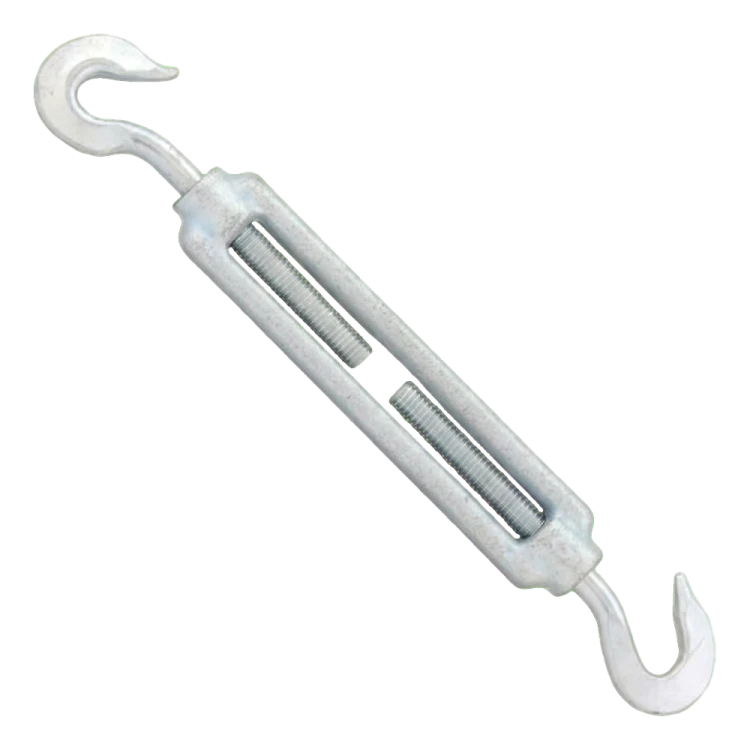

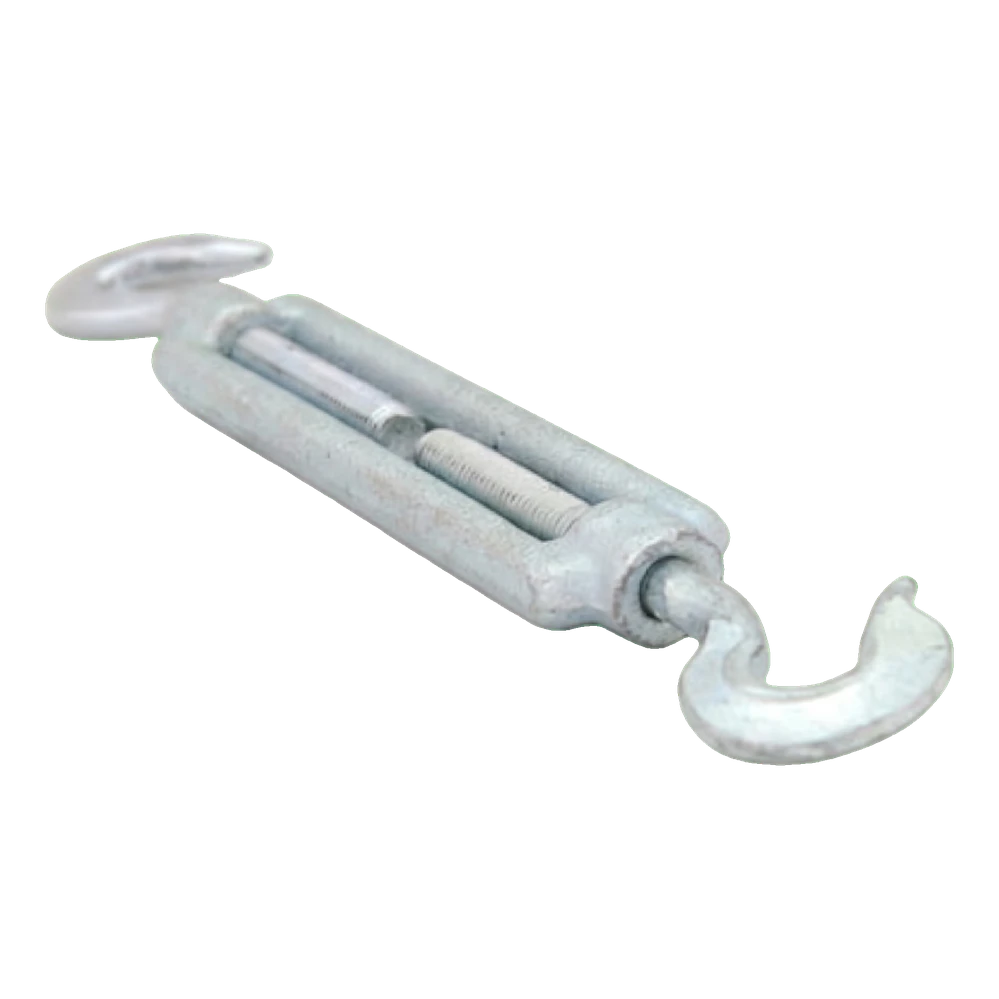

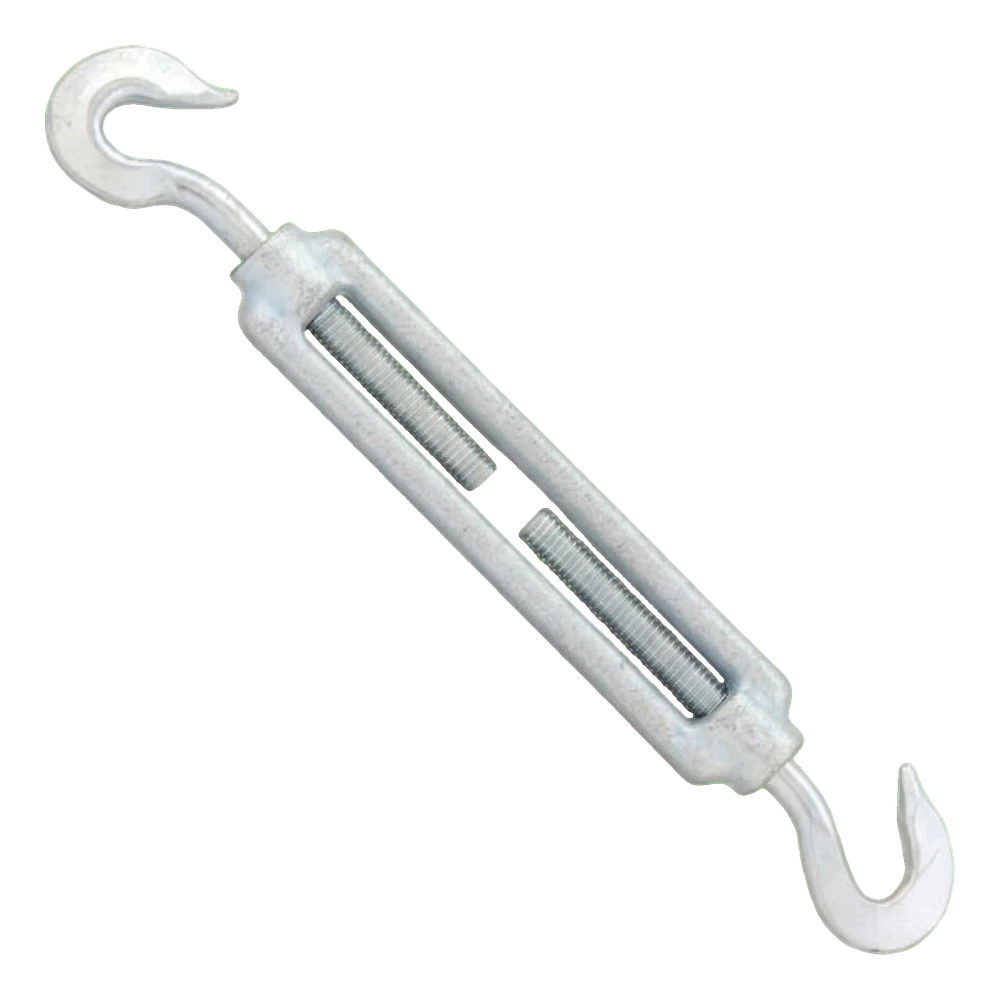

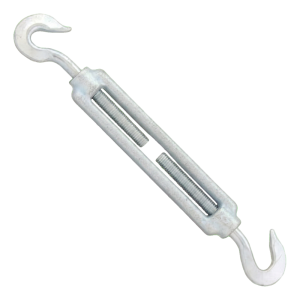

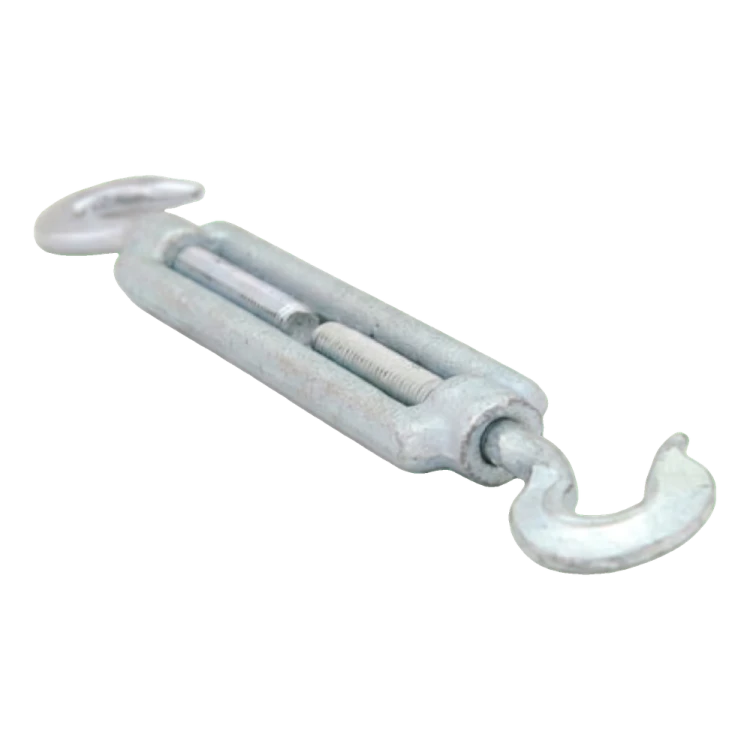

Forged hook-hook turnbuckle 5x70 DIN 1480
Leave feedback on the product
Forged hook-hook turnbuckle M5 x 70 mm, DIN 1480, galvanised. Low-alloy structural steel. Hook length 32 mm, hook opening 6.9 mm, weight 0.05 kg. Minimum breaking force 2.18 kN. For tensioning steel wire ropes, chains and tie rods.
Product code: 002-507
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M5
Description
Forged hook-hook turnbuckle 5x70 DIN 1480
Hook-hook turnbuckle DIN 1480 is a forged tensioner designed for adjusting the tension of steel wire ropes, chains and tie rods. The hook-hook ends allow quick connection to links, shackles and other rigging accessories, with no need to thread the rope end through an eye. The forged steel body with a protective coating ensures durability in outdoor conditions, and the right- and left-hand threads allow precise tension adjustment simply by turning the body, without disconnecting the assembly.
Advantages and applications
- Forged hook-hook ends – quick connection without detaching the rope end
- Tension adjusted by turning the body – smooth and convenient, with no need to dismantle the connection
- Galvanised coating protects against corrosion in outdoor conditions
- Well suited to light guying systems, fencing installations and auxiliary structures
- Single-piece sale – order exactly the number of pieces you need for your specific job
