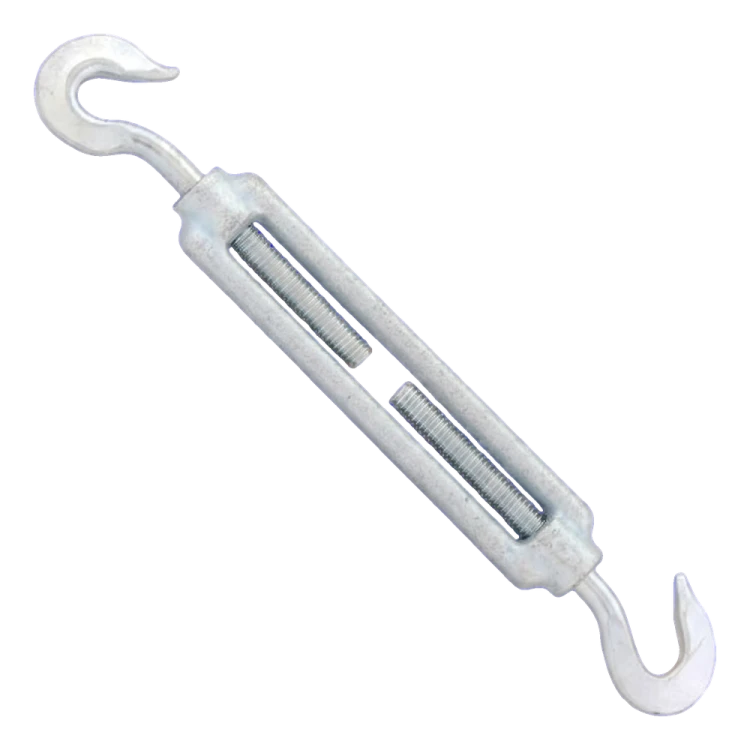

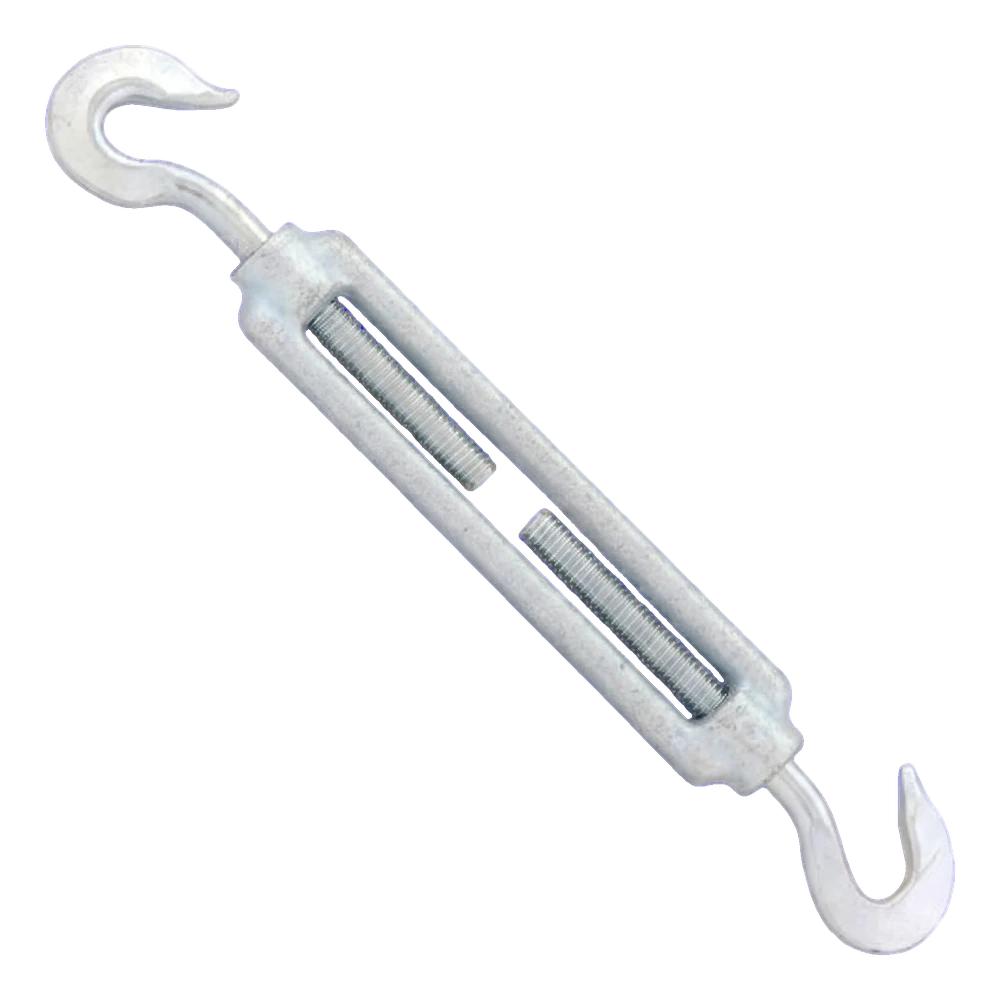

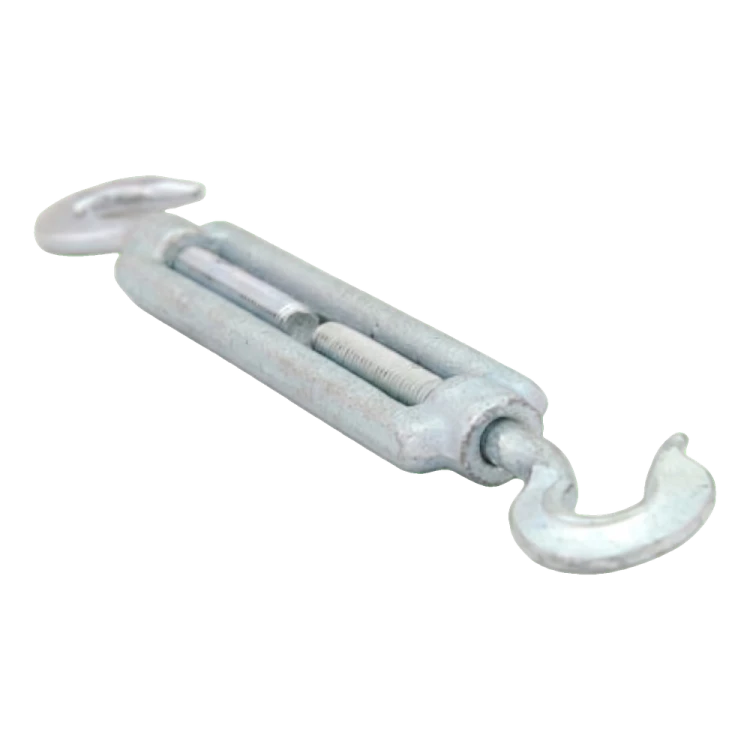

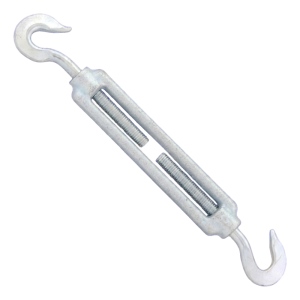

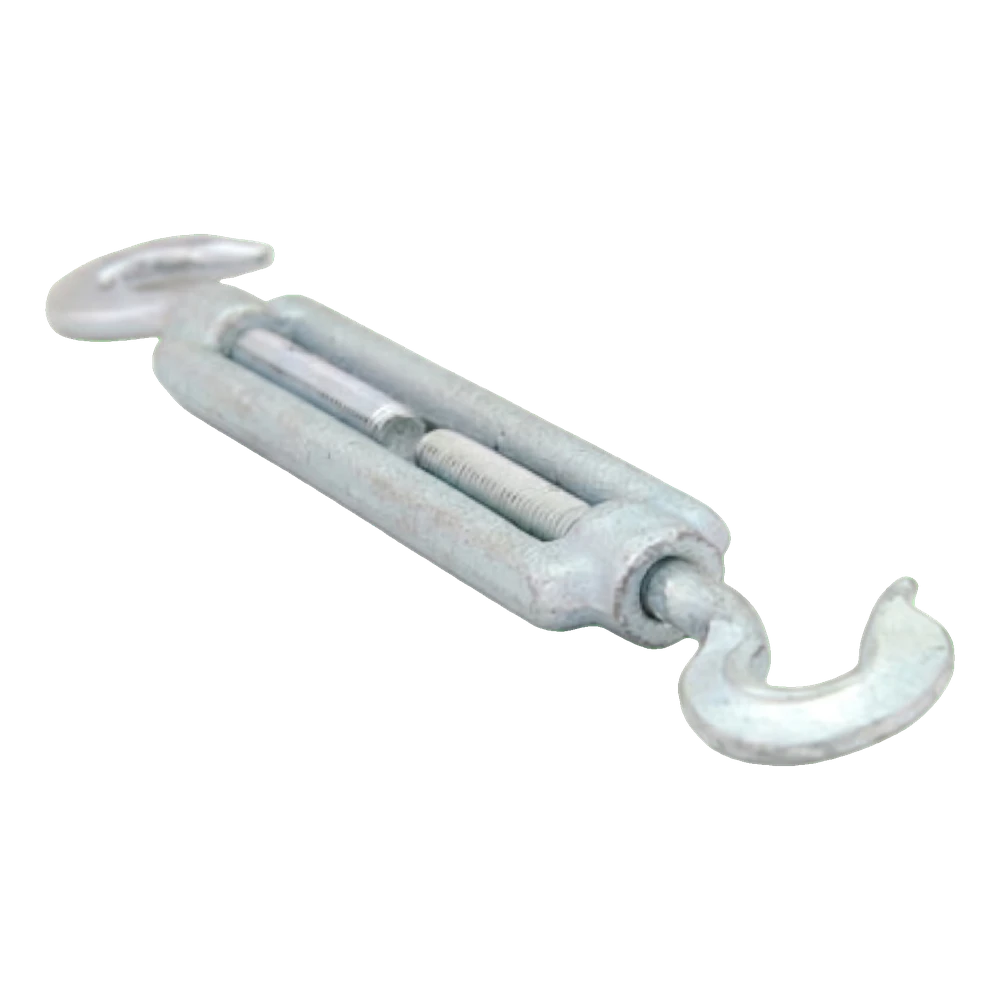

Forged hook-hook turnbuckle 14x140 DIN1480
Leave feedback on the product
Forged hook-to-hook Turnbuckle M14 DIN 1480, galvanised. Low-alloy structural steel. Overall length 139 mm, thread length 70 mm, hook opening 18.5 mm. Weight 0.62 kg. Minimum breaking force 10.02 kN. For tensioning ropes and chains.
Product code: 002-513
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M14
Description
Forged hook-hook turnbuckle 14x140 DIN1480
Forged hook-hook turnbuckle is a durable piece of rigging hardware designed for tensioning steel wire ropes, mast guy wires and chains. The forged hook-hook ends allow quick and secure attachment to links, slings and other rigging components, with no need for additional connectors. The turnbuckle body allows smooth adjustment of tension by rotating the central sleeve, enabling precise tensioning of ropes and guy wires without dismantling the entire assembly. The galvanised coating protects the component against corrosion when exposed to outdoor conditions, making the turnbuckle suitable for long-term use in the open air.
Applications and advantages
- Tensioning steel wire ropes, mast guy wires and rope-based structural restraints
- Forged hook-hook ends allow quick attachment without additional connectors
- Working length adjustment by rotating the central sleeve – precise tension setting
- Galvanised coating protects the component when exposed to outdoor conditions
- Compliance with the DIN 1480 standard ensures repeatable dimensions and compatibility with other manufacturers' hardware

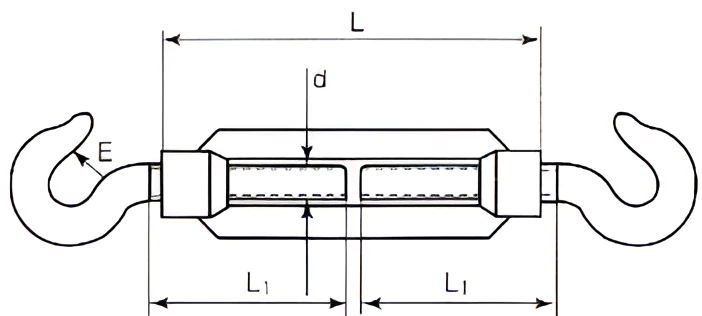

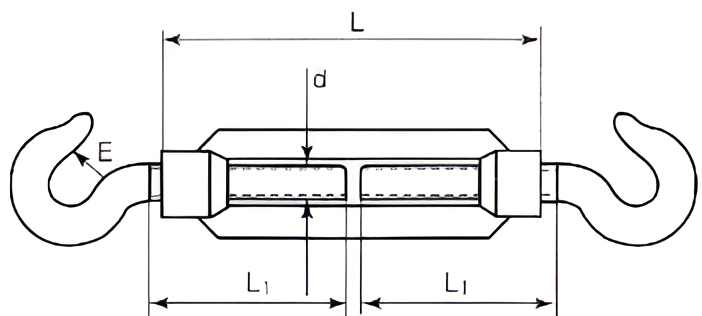

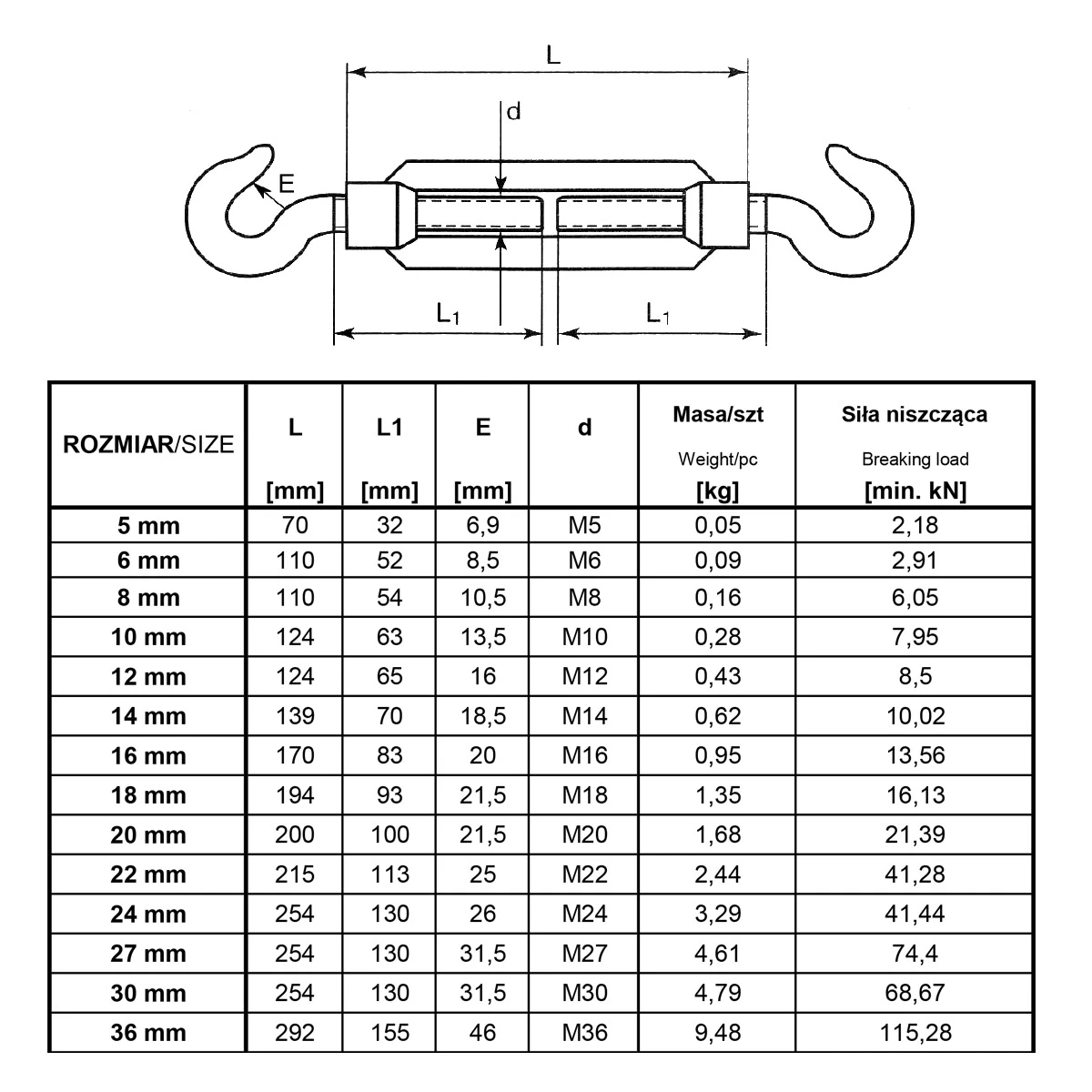

The technical drawing shows the key dimensions of the turnbuckle: L – overall length, L₁ – length of the threaded part of the arm, E – internal hook opening and d – nominal thread diameter.
