Forged eye-eye turnbuckle 8x110 DIN1480
Leave feedback on the product

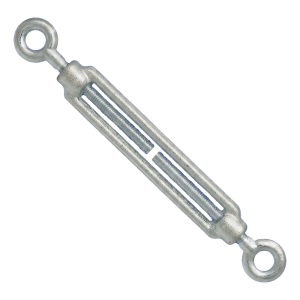

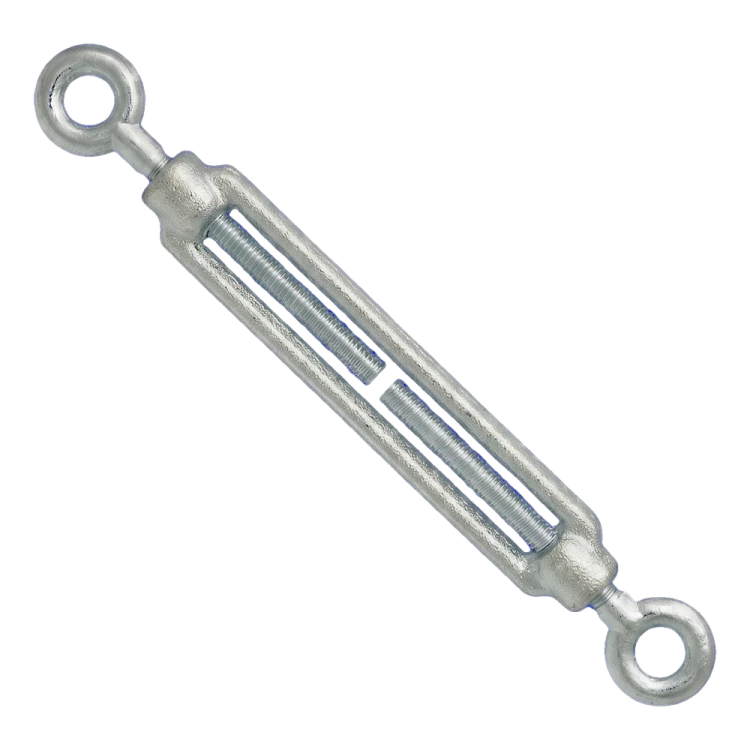

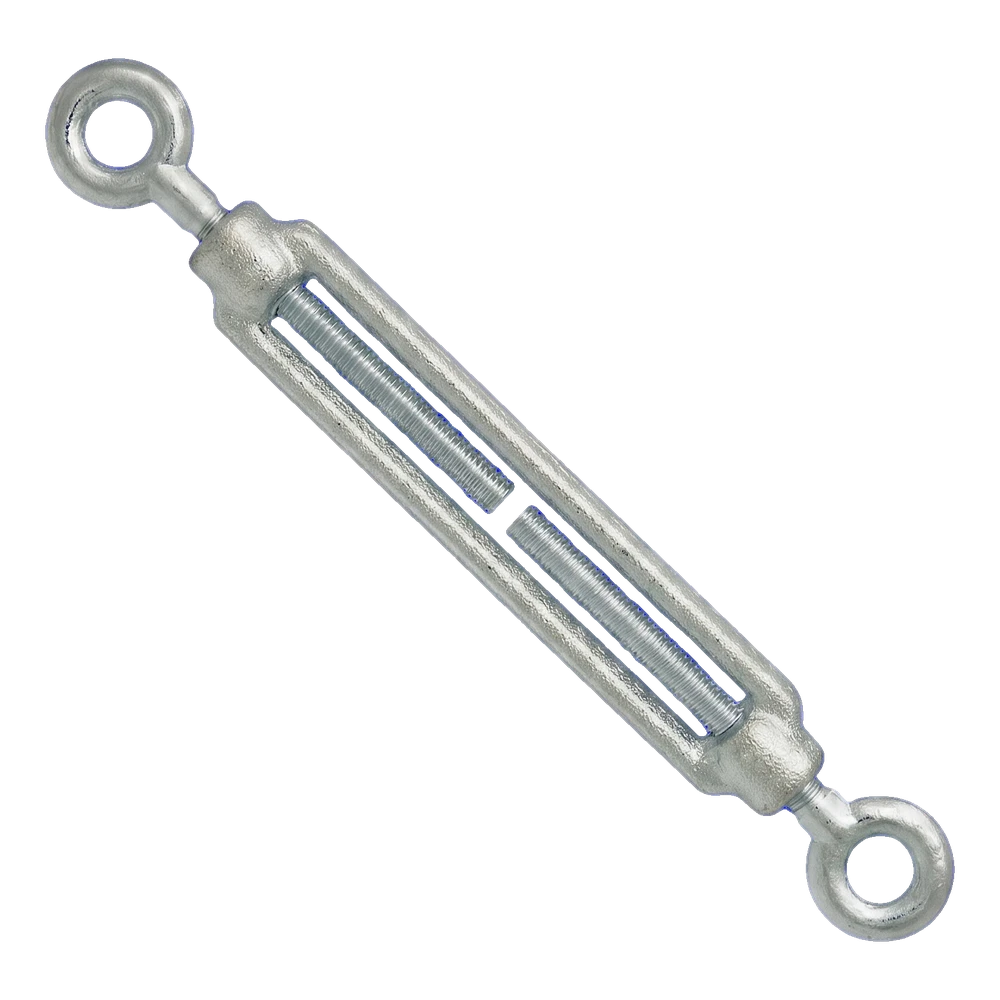

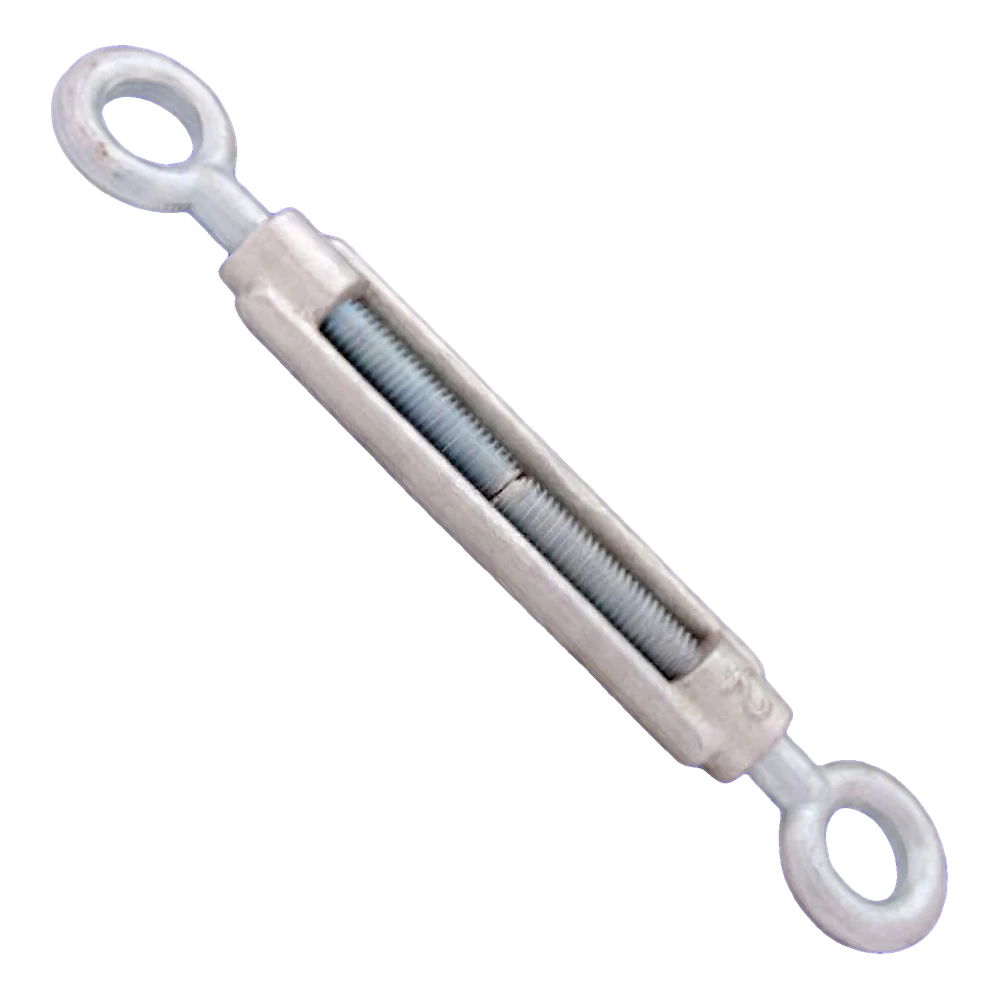

Forged eye-eye turnbuckle M8x110 DIN 1480, made of low-alloy C15 steel, electro-galvanised. Length 110 mm, L1 54 mm, outer diameter Ø10 mm, weight 0.16 kg. Minimum breaking force 14.74 kN. For tensioning steel wire ropes and chains.
Product code: 002-518
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M8
Description
Forged eye-eye turnbuckle 8x110 DIN1480
Eye-eye turnbuckle M8x110 DIN 1480 is a forged, galvanised tensioning device designed for adjusting the tension of steel wire ropes, chains and guy lines. Made of low-alloy structural steel and protected with an electro-galvanised coating, it provides lasting corrosion protection in outdoor conditions. The eye-eye end design allows versatile connection with shackles, wire rope thimbles and other rigging accessories. The forged construction ensures high strength and reliability in typical installation and assembly applications.
Advantages of the DIN 1480 eye-eye turnbuckle
- Forged construction provides high strength and resistance to deformation compared with pressed components
- Eye-eye ends allow quick connection to shackles, wire rope thimbles and other rigging accessories
- Electro-galvanised coating protects against corrosion in outdoor and humid environments
- Smooth adjustment of the working length by turning the body makes precise tensioning of ropes and guy lines easier
- Compliance with DIN 1480 ensures repeatable dimensions and compatibility with fittings from other manufacturers

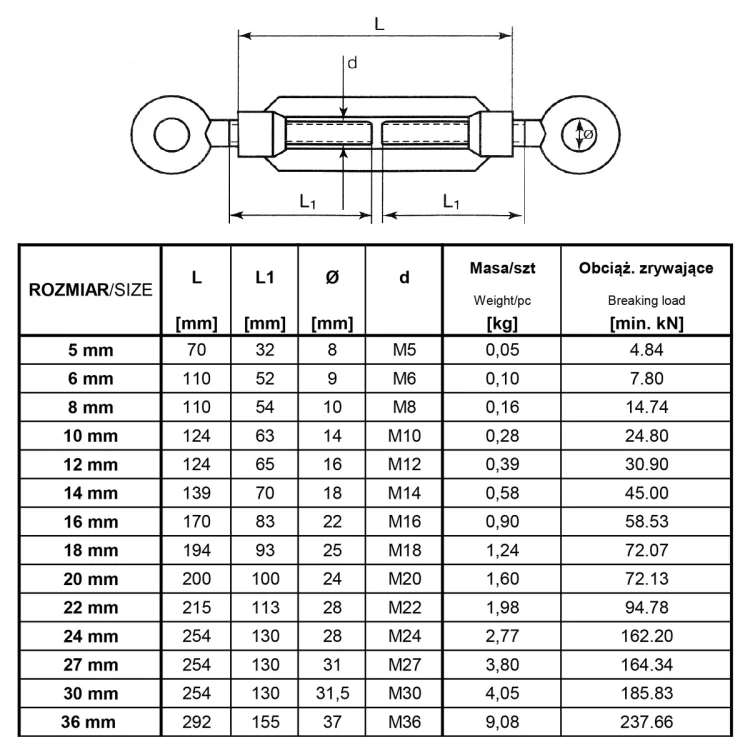

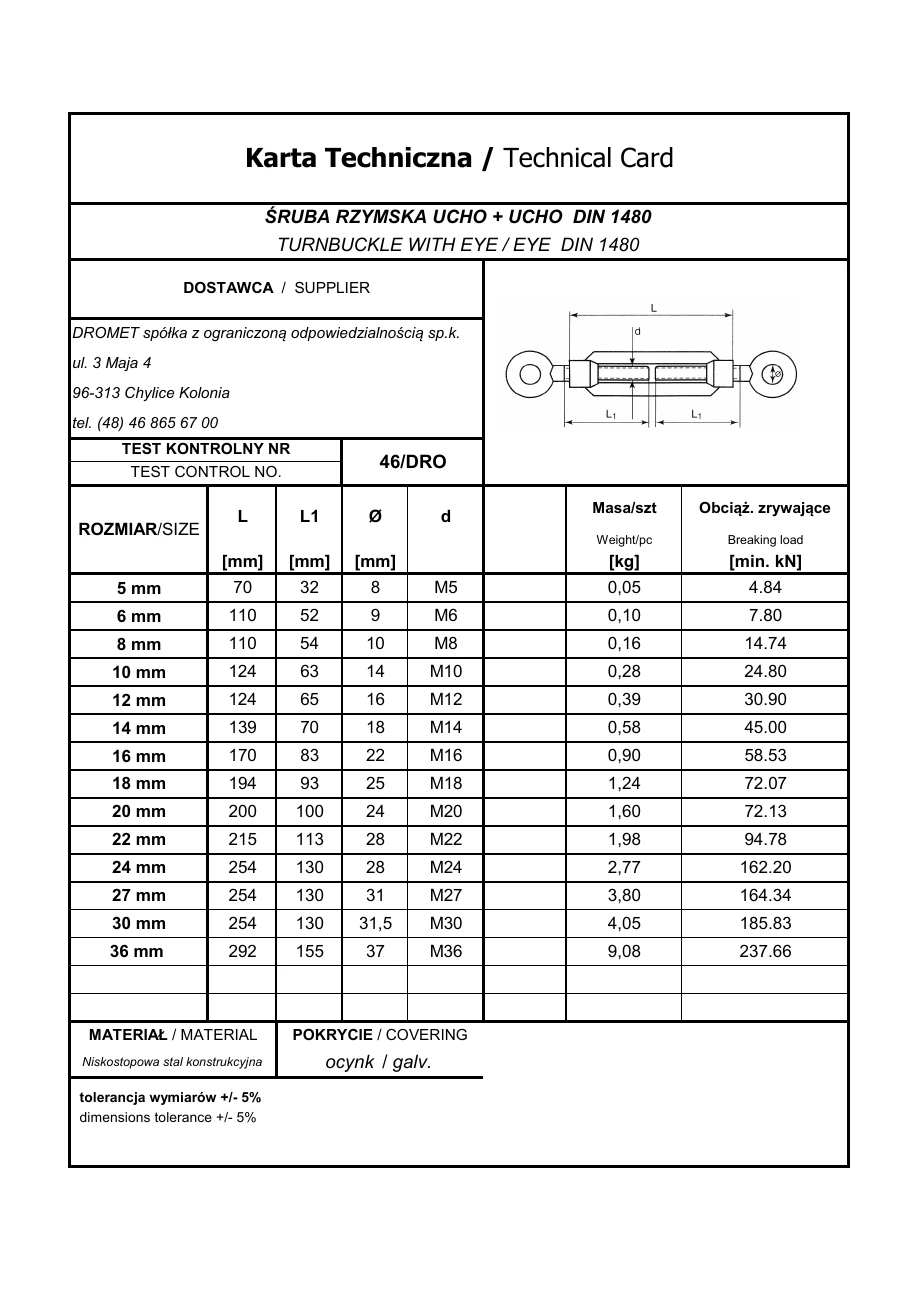

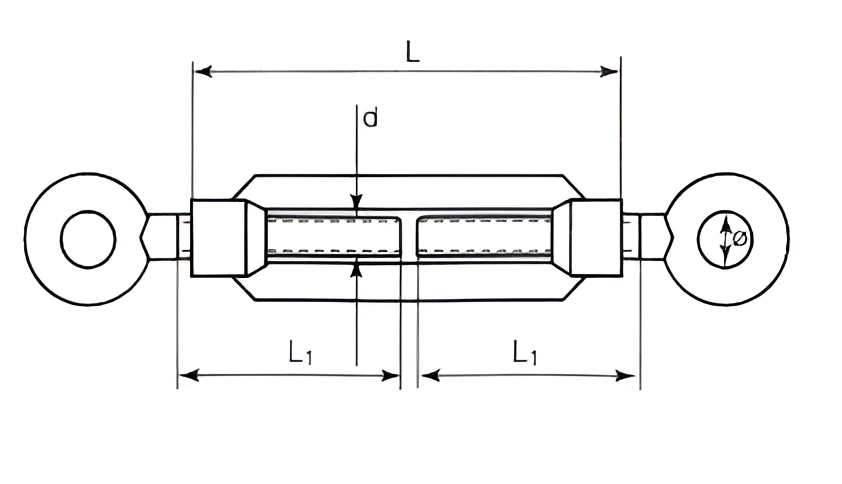

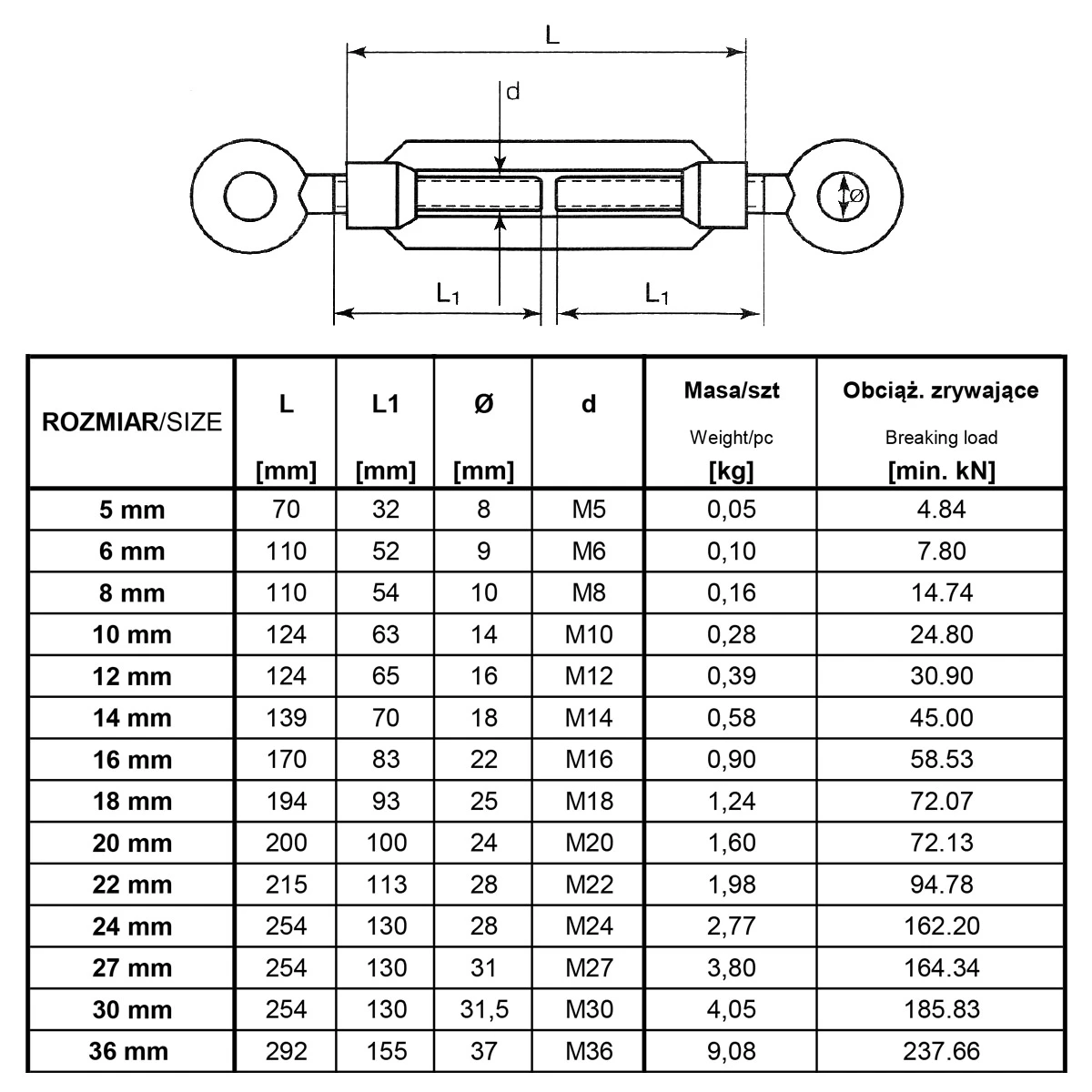

The turnbuckle body features an open inspection window, allowing visual checking of how far the threaded rods are screwed in, which is important in applications requiring full thread engagement. Both eyes are forged integrally with the rods, which eliminates the risk of breakage at a weld. The compact design allows use even in limited installation space. Detailed dimensions and strength parameters are given in the specification below.
