Forged eye-eye turnbuckle 5x70 DIN1480
Leave feedback on the product

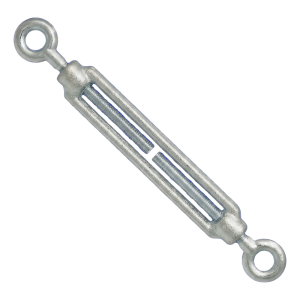

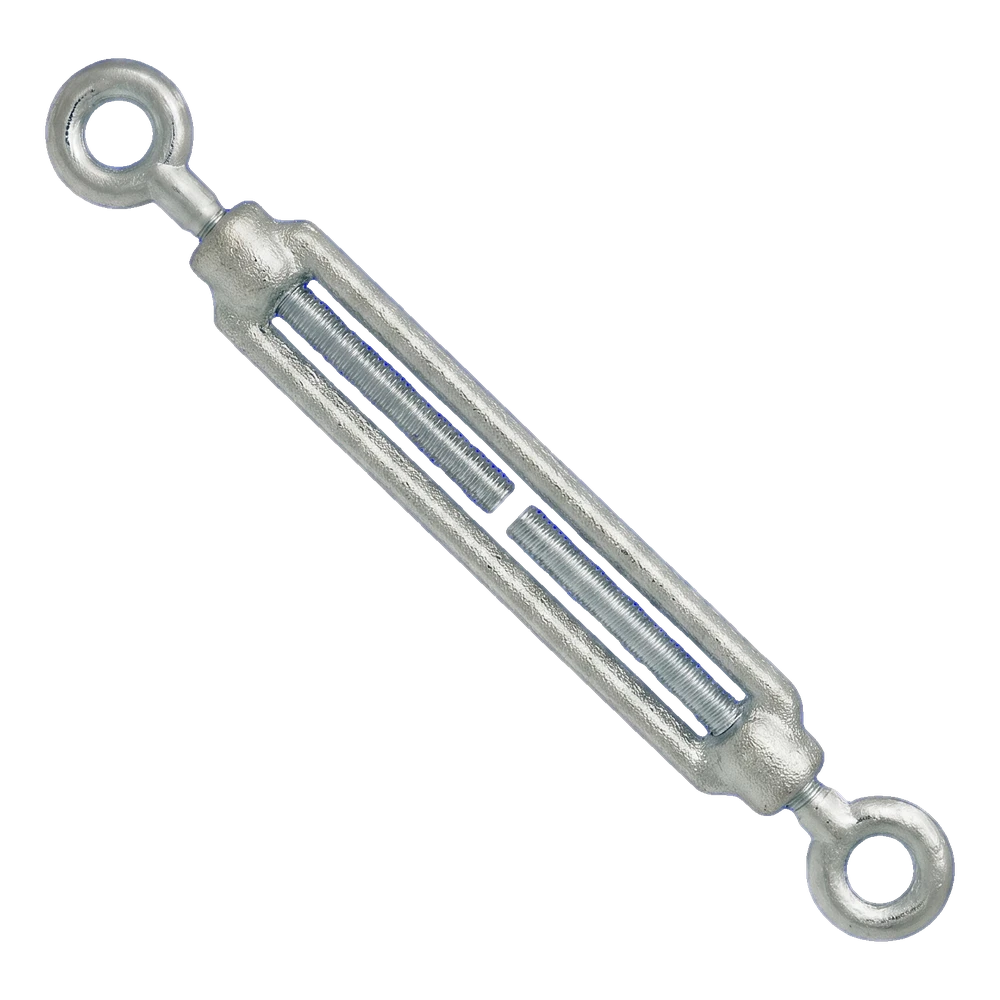

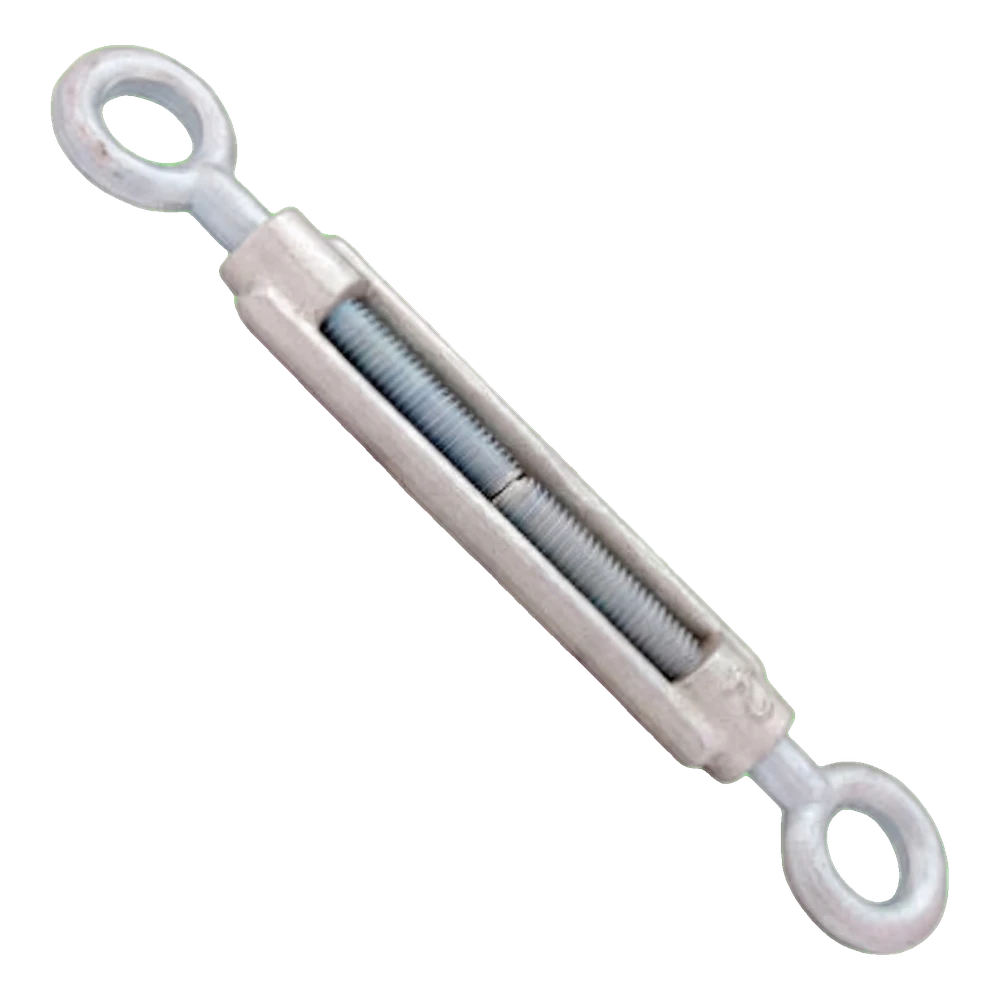

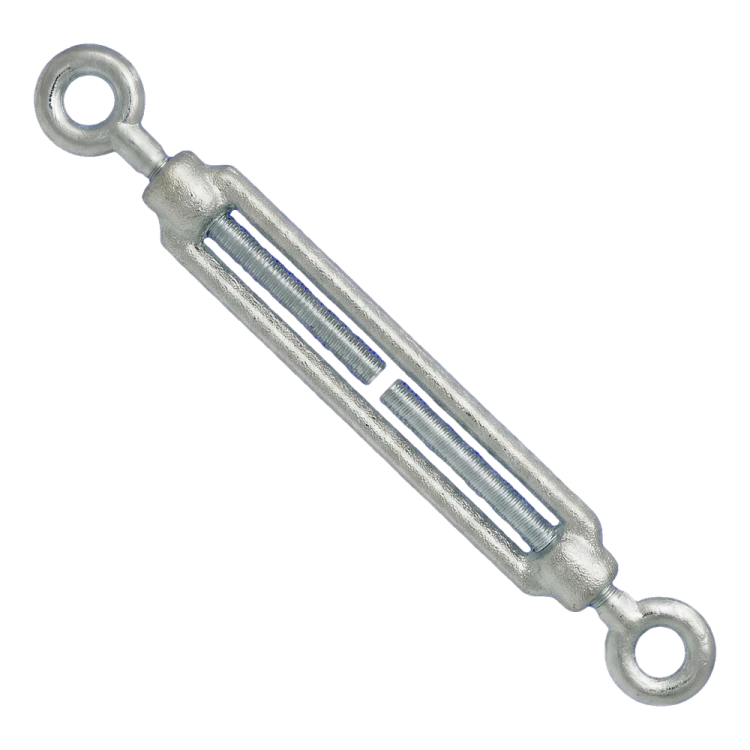

Turnbuckle eye-eye DIN 1480 M5x70 mm, forged, low-alloy steel, galvanised. Outer diameter 8 mm, L1 32 mm, weight 0.05 kg. Minimum breaking force 4.84 kN. For steel wire ropes, chains and guy lines.
Product code: 002-516
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M5
Description
Forged eye-eye turnbuckle 5x70 DIN1480
Eye-eye turnbuckle DIN 1480 in size M5×70 mm from the KOO series is a forged tensioner designed for adjusting the tension of steel wire ropes, chains and guy lines. Made of low-alloy structural steel and protected with a zinc coating, it provides effective protection against corrosion in outdoor conditions. The eye-eye ends allow quick connection to shackles, wire rope thimbles or other rigging accessories, with no need for additional adapters. A minimum breaking force of 4.84 kN guarantees an adequate safety margin in typical mounting and installation applications.
Key features of the KOO turnbuckle
- Forged low-alloy steel construction: high durability and resistance to dynamic loads
- Galvanised coating protects against corrosion, making it suitable for outdoor use and damp environments
- Eye-eye ends make it easy to connect to rigging accessories such as shackles, wire rope thimbles and rings
- Compact dimensions, ideal for light guy lines, tensioning applications and installations

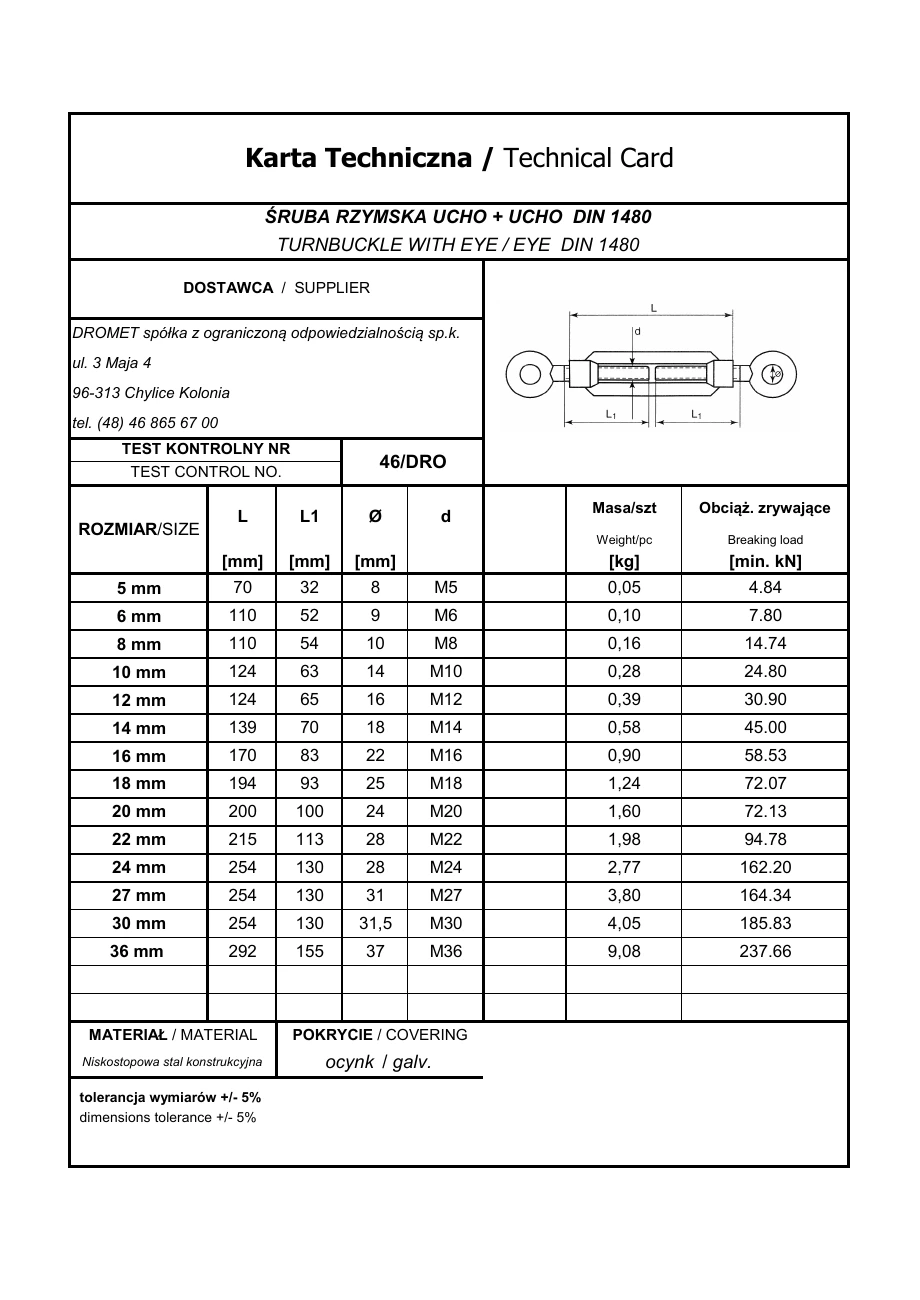

- Dimensions compliant with the manufacturer's technical data sheet: consistent quality in every piece
