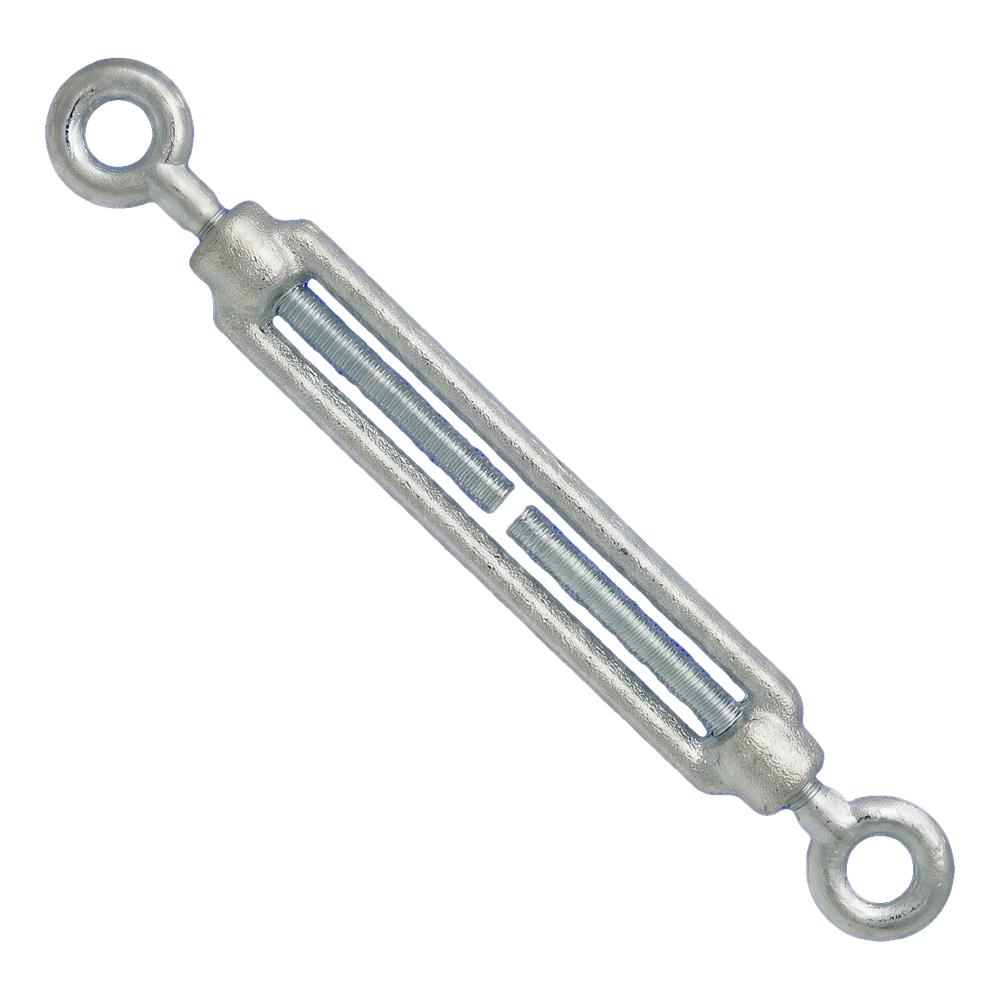

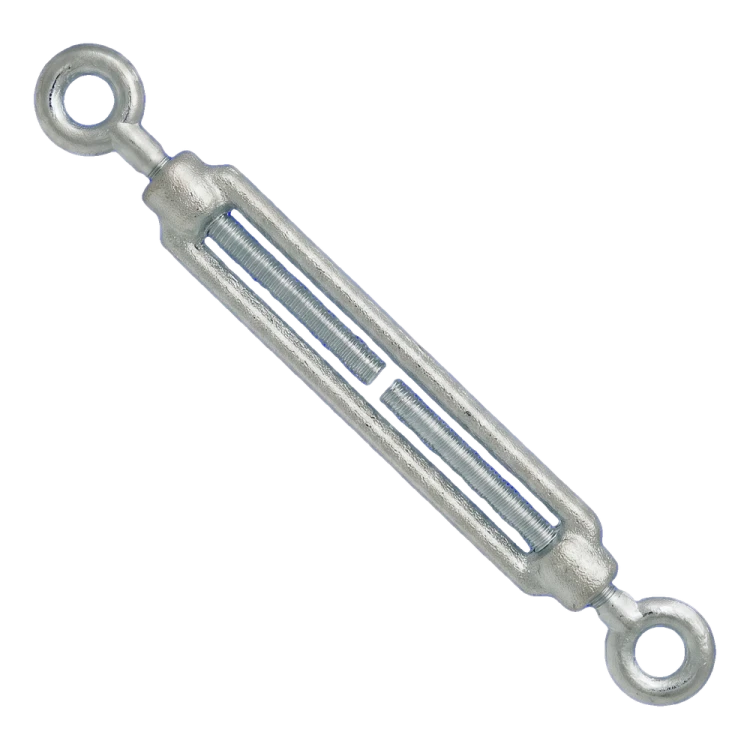

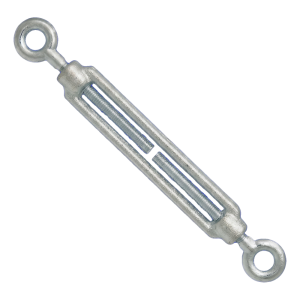

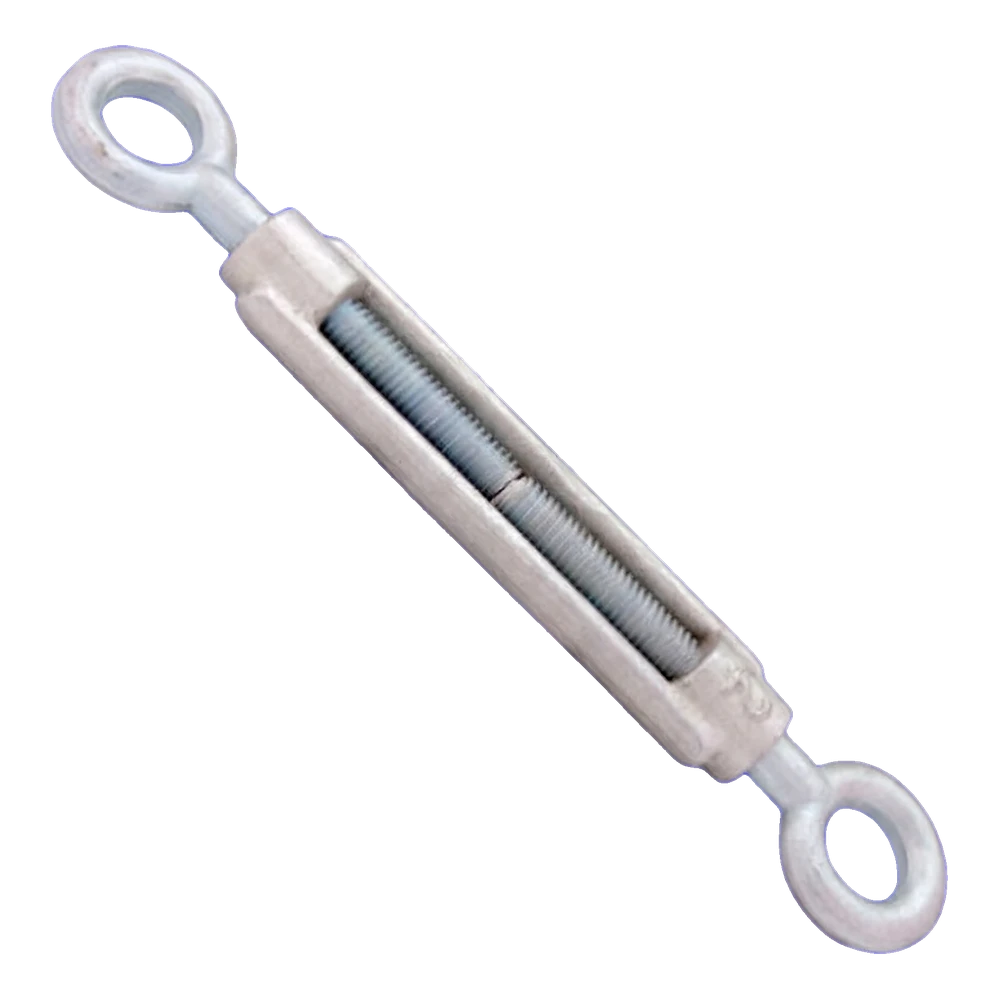

Forged eye-eye turnbuckle 20x200 DIN 1480

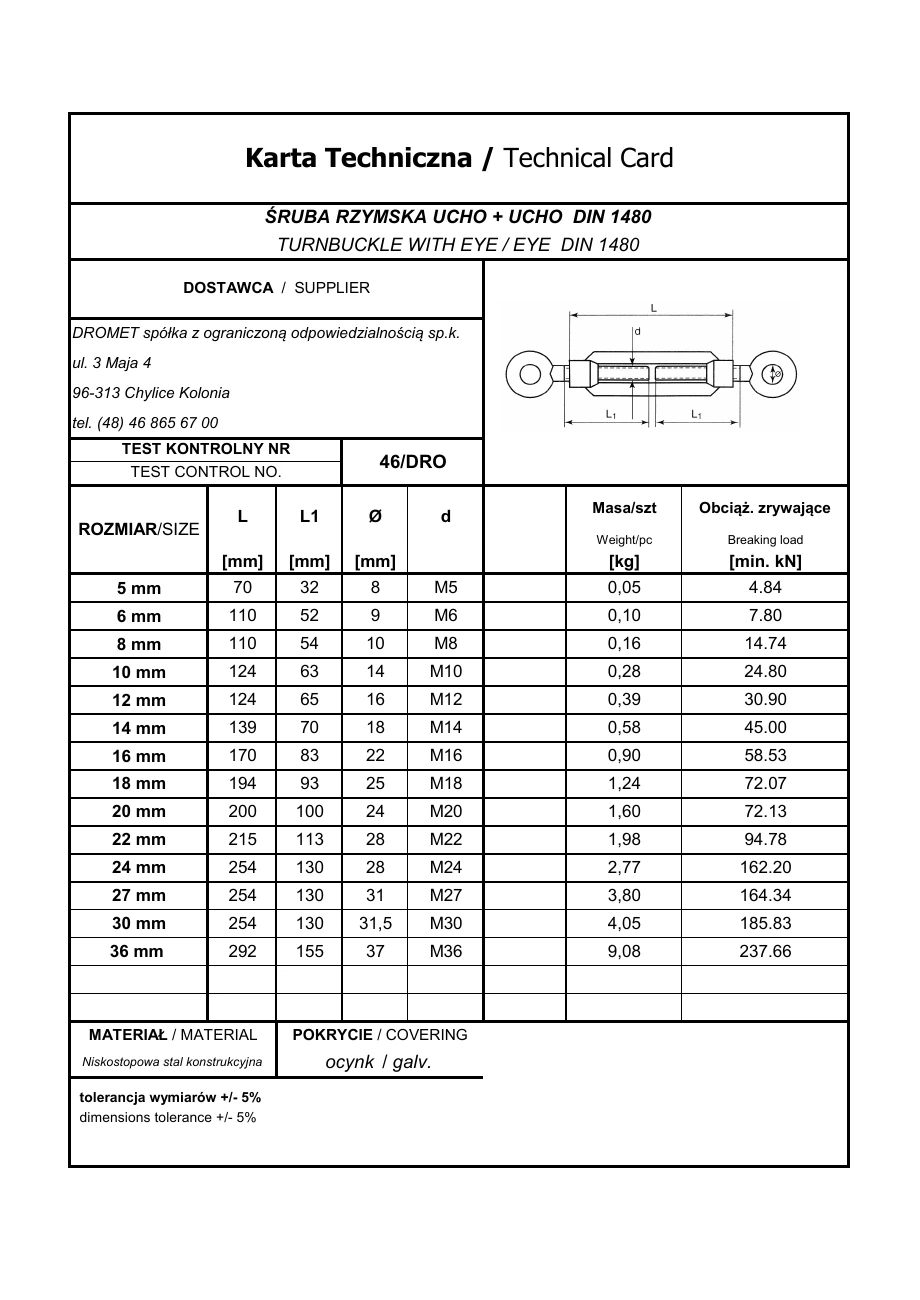

The forged eye-eye turnbuckle M20x200 is a durable tensioning element manufactured in accordance with the DIN 1480 standard. The body, forged from low-alloy structural steel C15 and protected with an electro-galvanised coating, provides lasting corrosion protection even in harsh weather conditions. The eye-eye end design allows convenient connection to shackles, wire rope thimbles or other rigging fittings, making this turnbuckle a versatile solution wherever precise tensioning of steel wire ropes, chains or guy lines is required. A minimum breaking force of 72.13 kN (approx. 7355 kg) confirms the high load capacity of the design — a parameter verified in the manufacturer's tests (inspection test no. 46/DRO). The dimensional tolerance of ±5% is within DIN standards, which guarantees compatibility with typical rigging hardware.

Advantages of the forged DIN 1480 turnbuckle

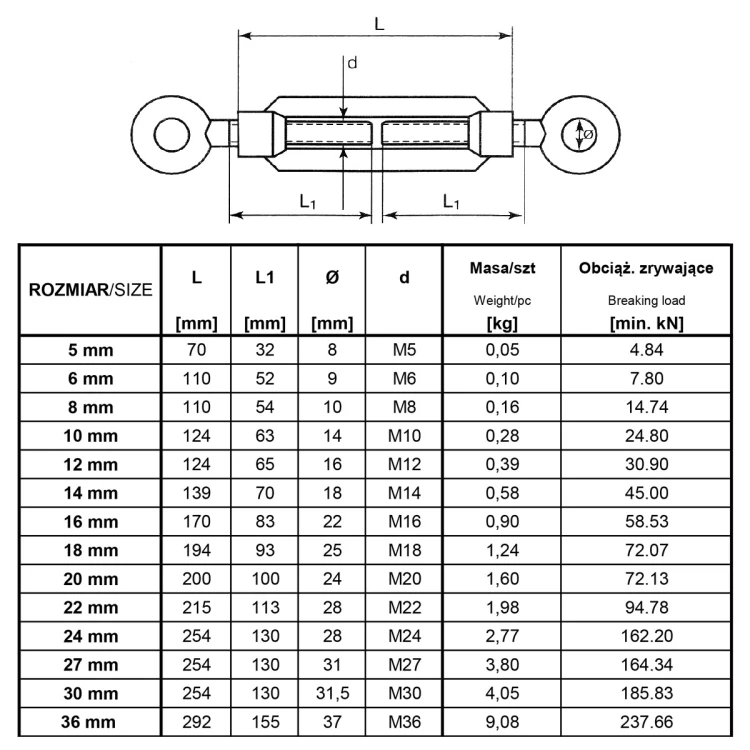

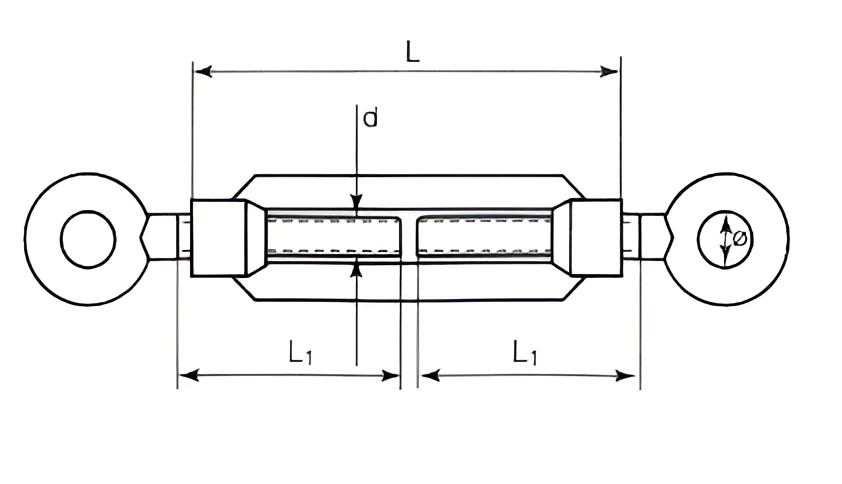

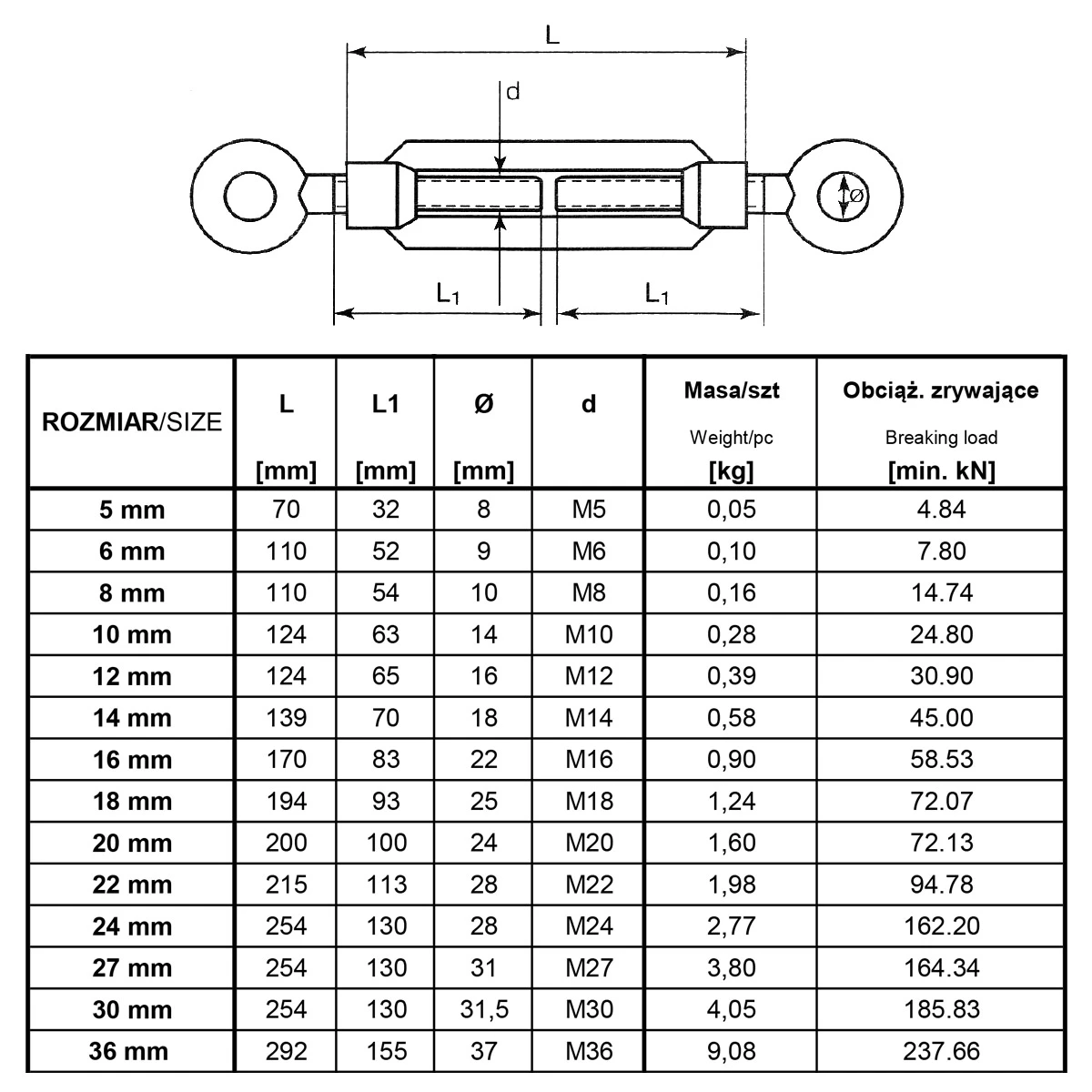

The dimensional drawing shows the key dimensions of the turnbuckle: L — overall body length, L1 — threaded arm length, d — thread diameter, Ø — eye diameter. The symmetrical design with two identical threaded arms allows even tensioning from both sides, which is important for mast guy lines, cable structures and roof installations requiring precise tension adjustment.
