Forged eye-eye turnbuckle 12x125 DIN1480
Leave feedback on the product

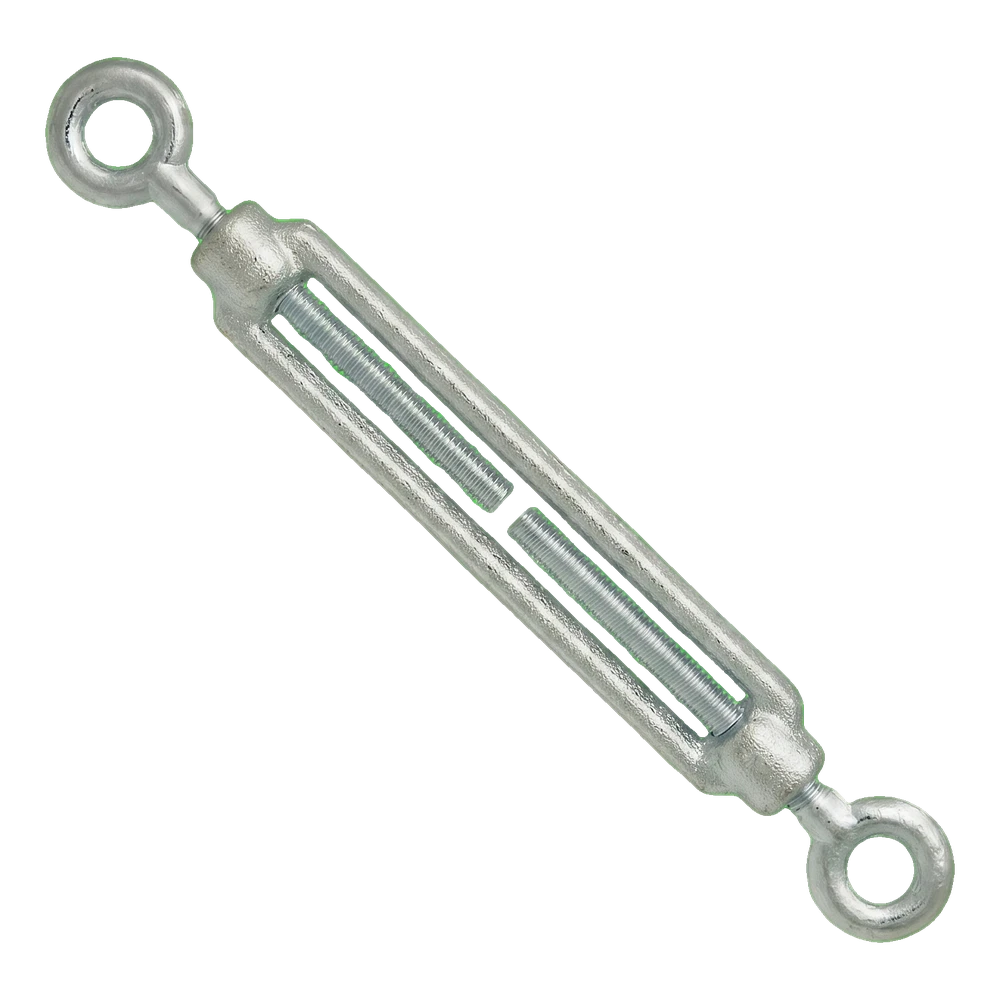

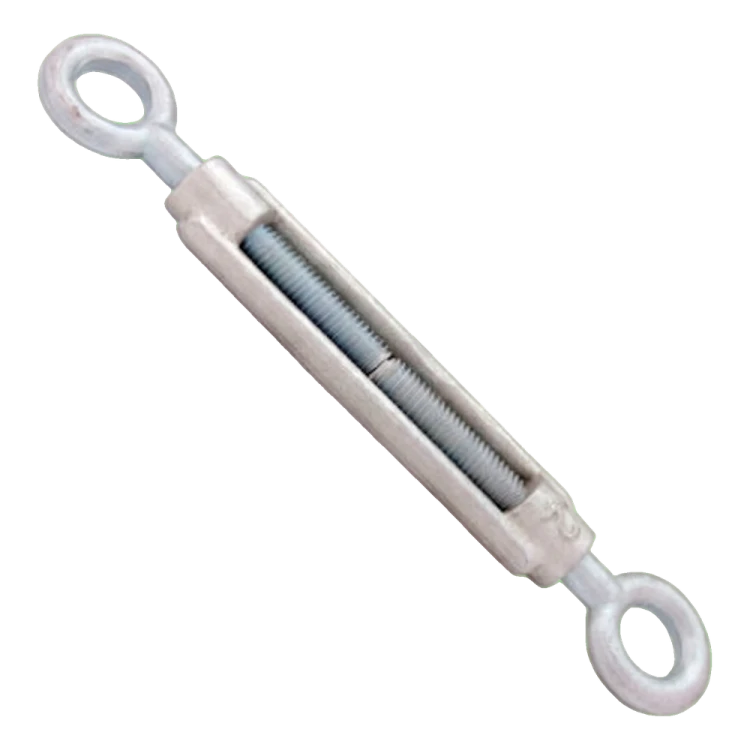

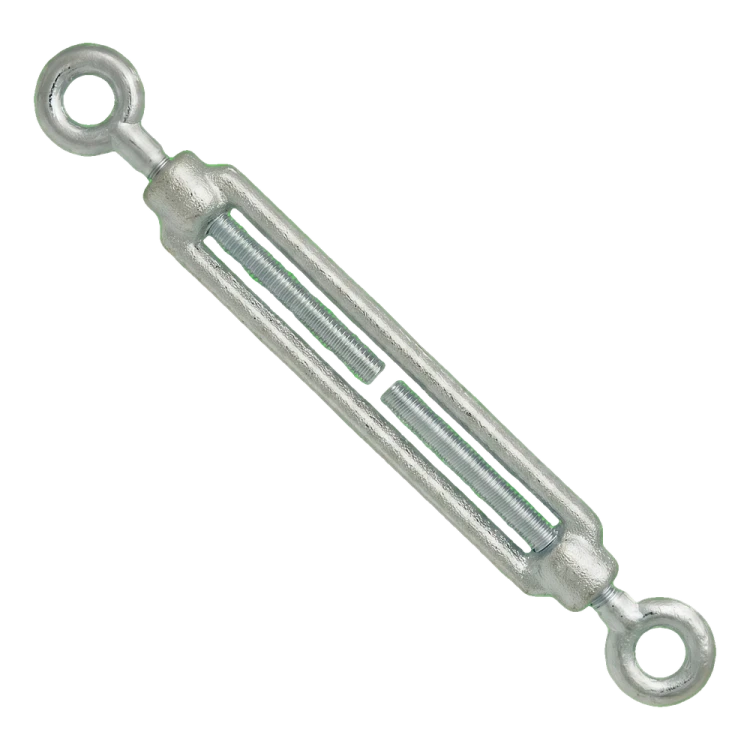

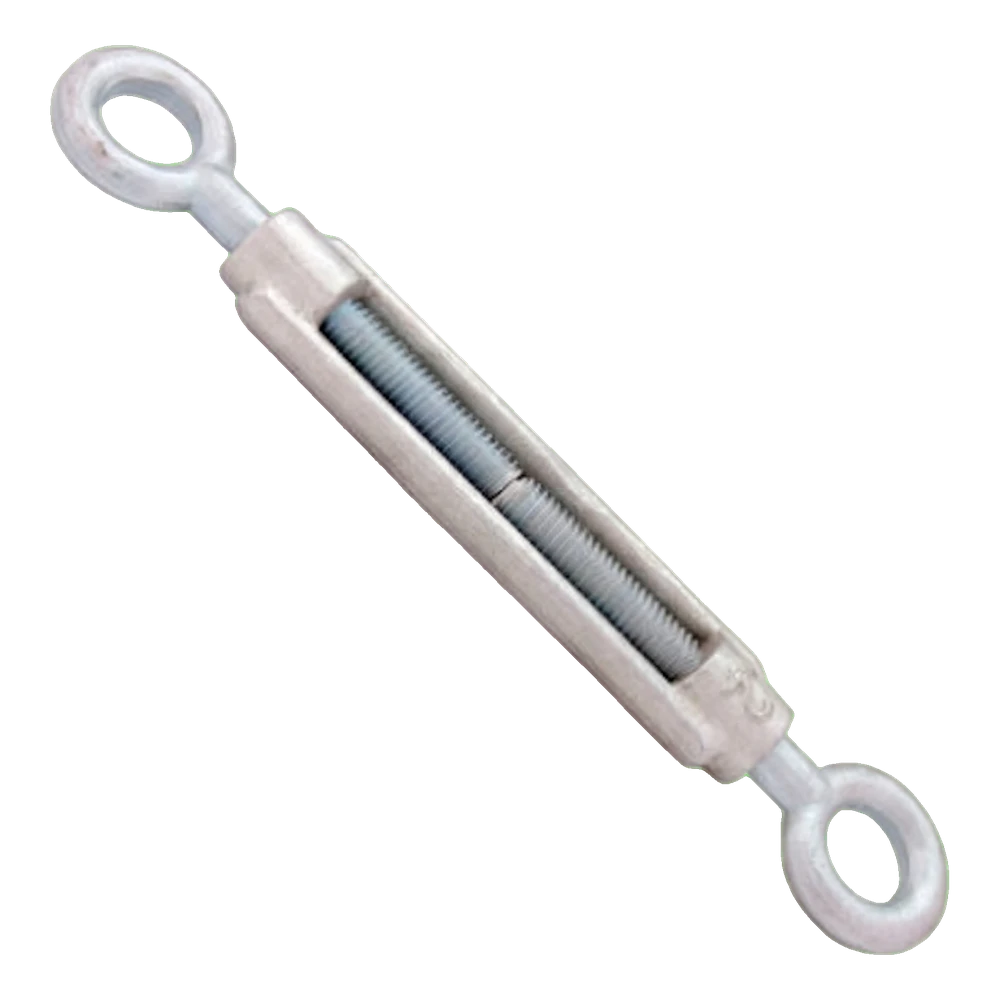

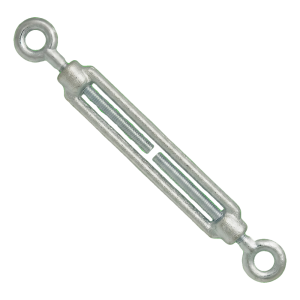

Turnbuckle, forged, eye–eye, M12, DIN 1480, galvanised. Low-alloy structural steel. Overall length 124 mm, thread length 65 mm, eye diameter 16 mm. Weight 0.41 kg. Minimum breaking force 30.9 kN. For tensioning ropes and chains.
Product code: 002-519
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M12
Description
Forged eye-eye turnbuckle 12x125 DIN1480
Eye-eye M12 DIN 1480 turnbuckle from the manufacturer is a forged tensioning device designed for tightening steel wire ropes, chains and guy lines. The eye-eye end fittings make it easy to connect to shackles, wire rope thimbles and other rigging hardware, so complete guying and fastening assemblies can be built quickly. The forged construction complies with the DIN 1480 standard, guaranteeing repeatable quality and high strength parameters confirmed by the manufacturer's technical data sheet. Tension is adjusted by turning the body, with no special tools required.
Key advantages
- Forged construction compliant with DIN 1480 – repeatable quality confirmed by the manufacturer's test
- Eye-eye end fittings allow quick connection to shackles, wire rope thimbles and other rigging components
- Zinc coating protects against corrosion in outdoor applications
- Rope or guy line tension is adjusted by turning the body – simple operation on site
- A wide size range from M5 to M36 lets you choose the right turnbuckle for any task

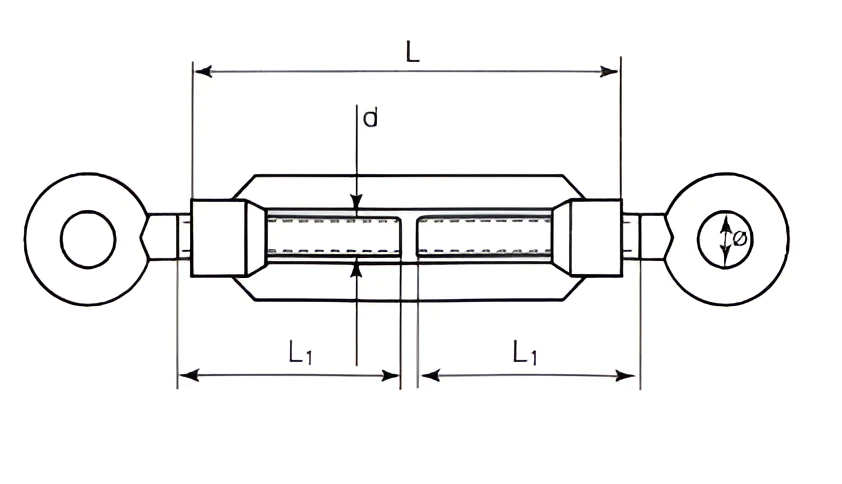

The technical drawing shows the side and front views with all key dimensions marked: overall body length (L), eye arm length (L1), thread (d) and eye diameter (Ø). Detailed values for size M12 can be found in the specification tables below.

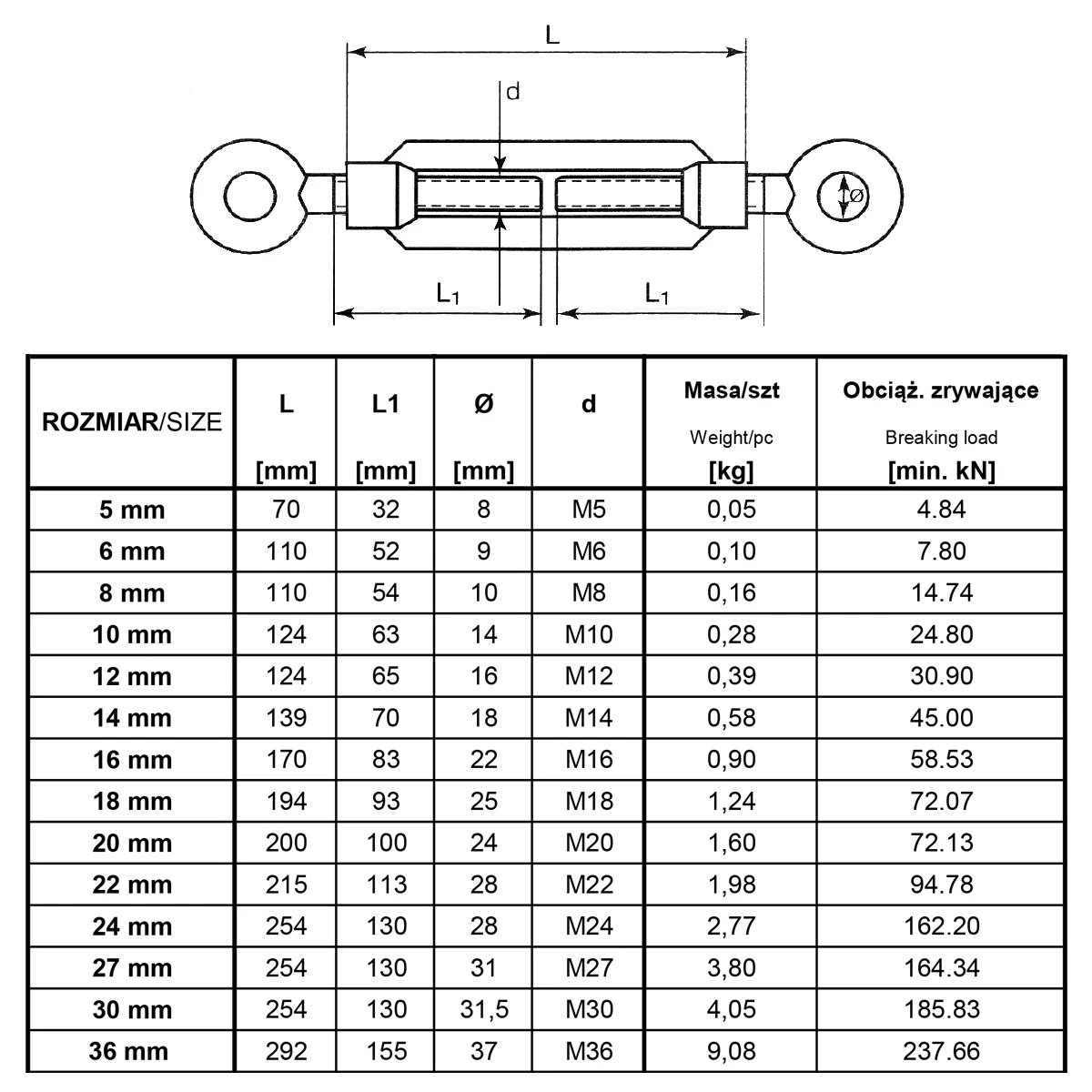

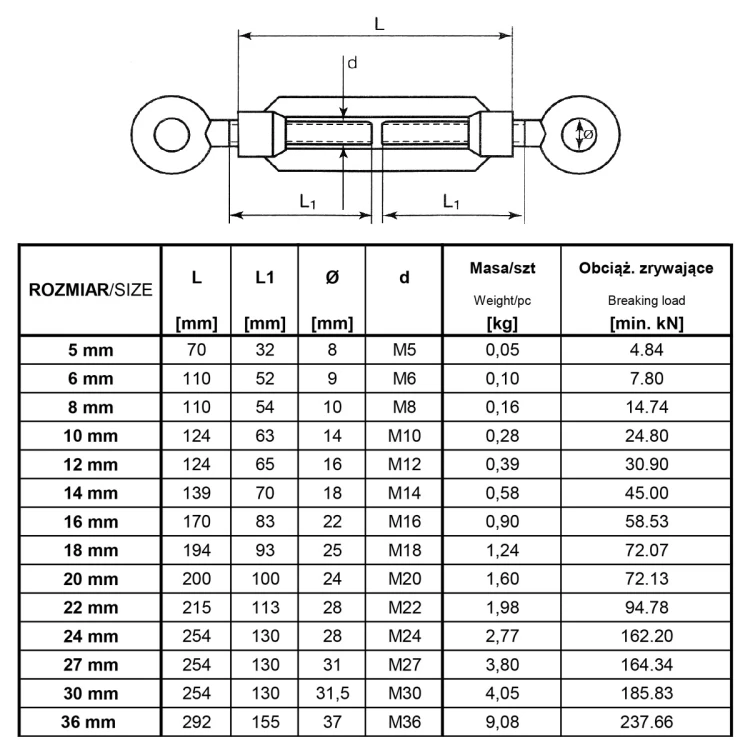

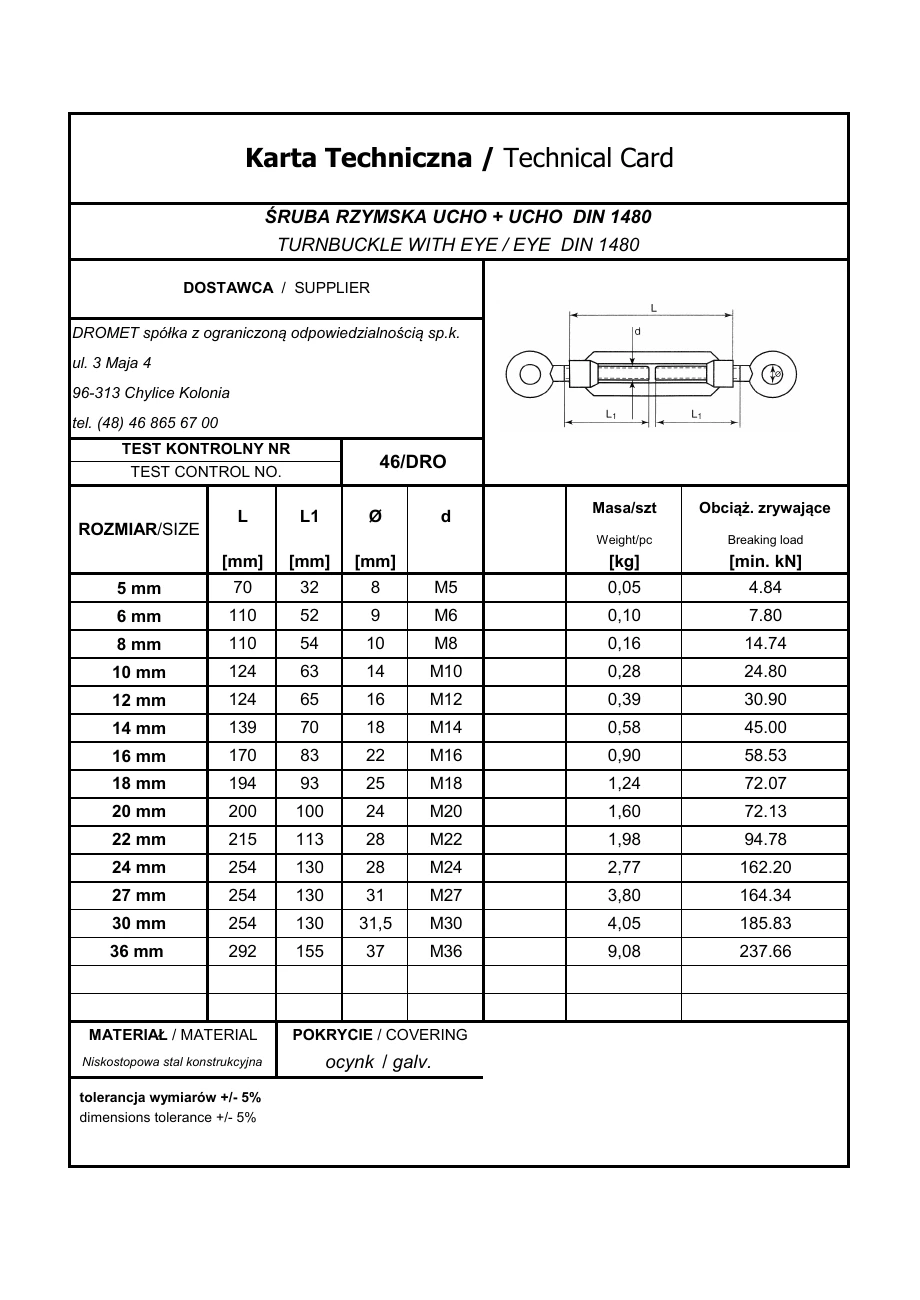

The manufacturer's technical data sheet (inspection test no. 46/DRO) documents the parameters of the entire range of eye-eye DIN 1480 turnbuckles, from size 5 mm to 36 mm. The document confirms the dimensions, weights and minimum breaking forces for each variant, making it easier to select the right turnbuckle size for a specific application.
