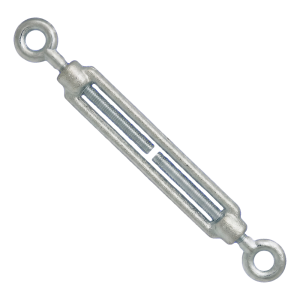

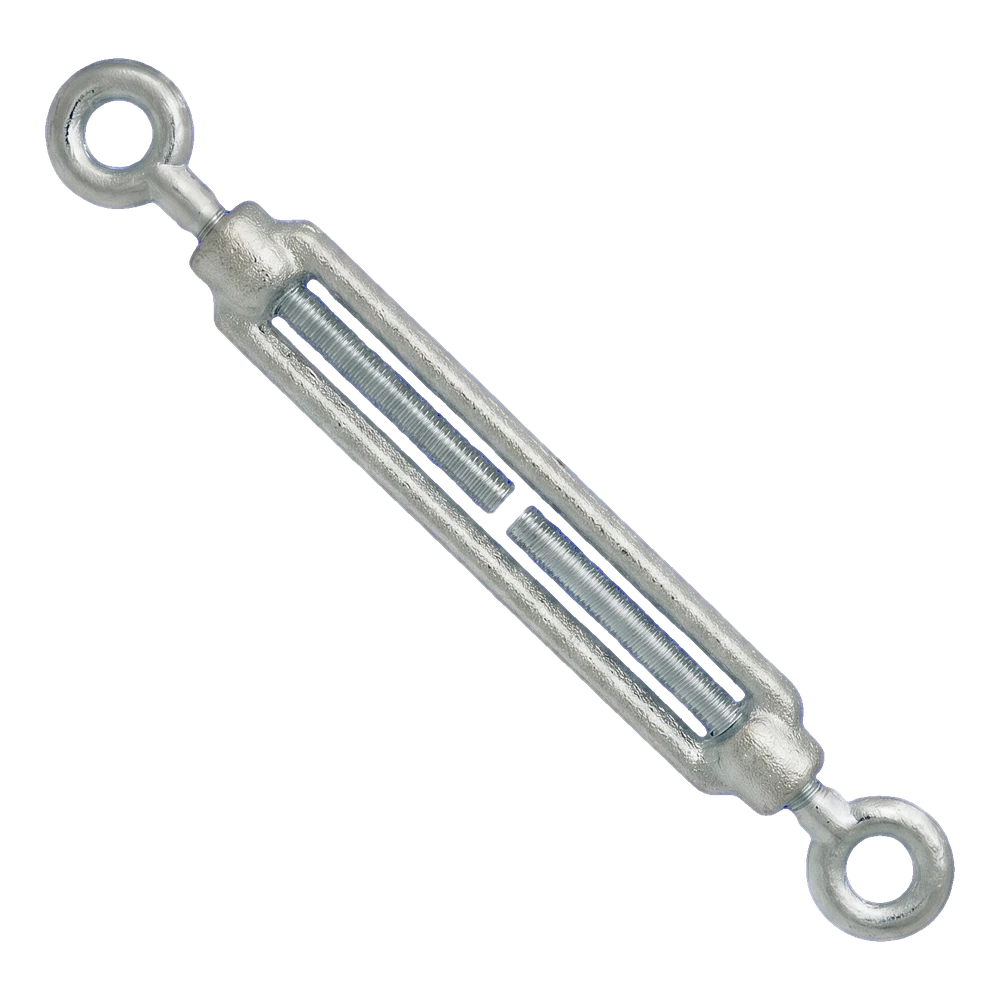

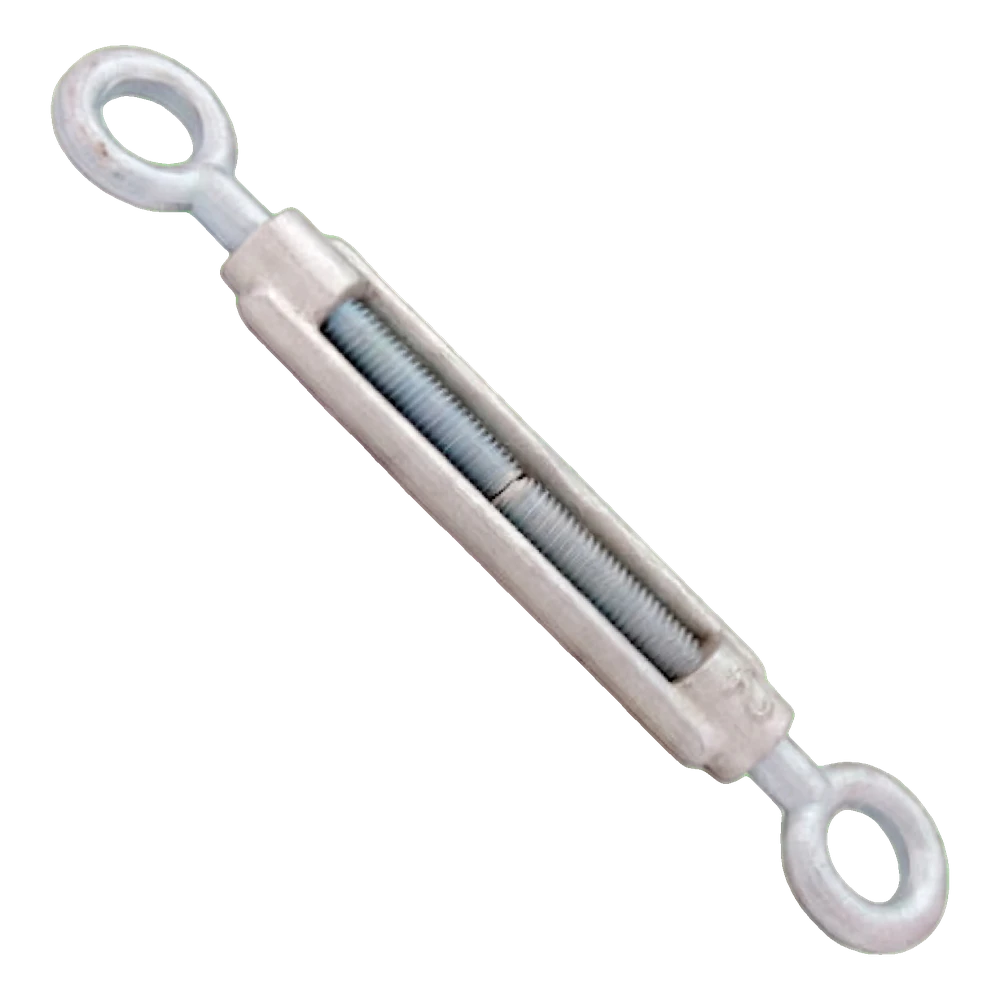

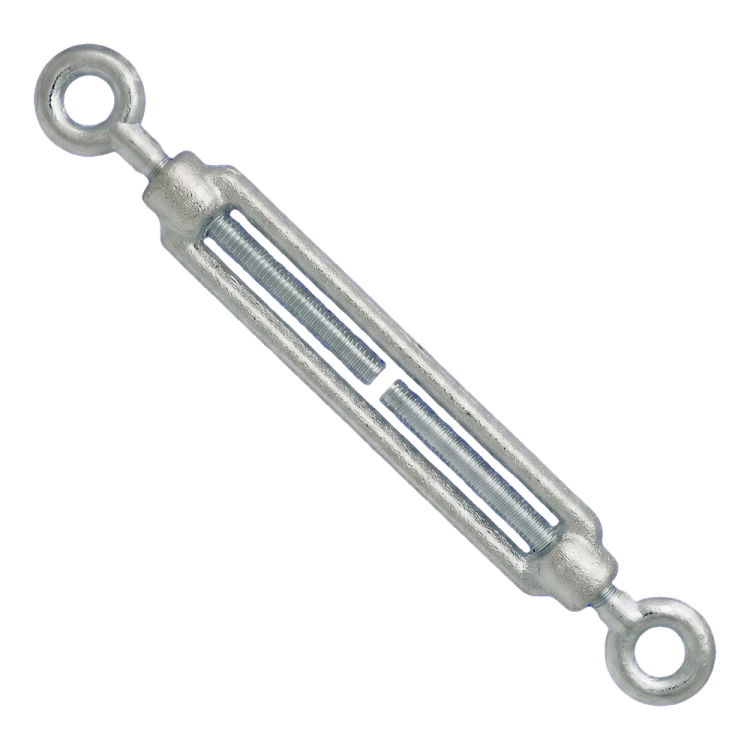

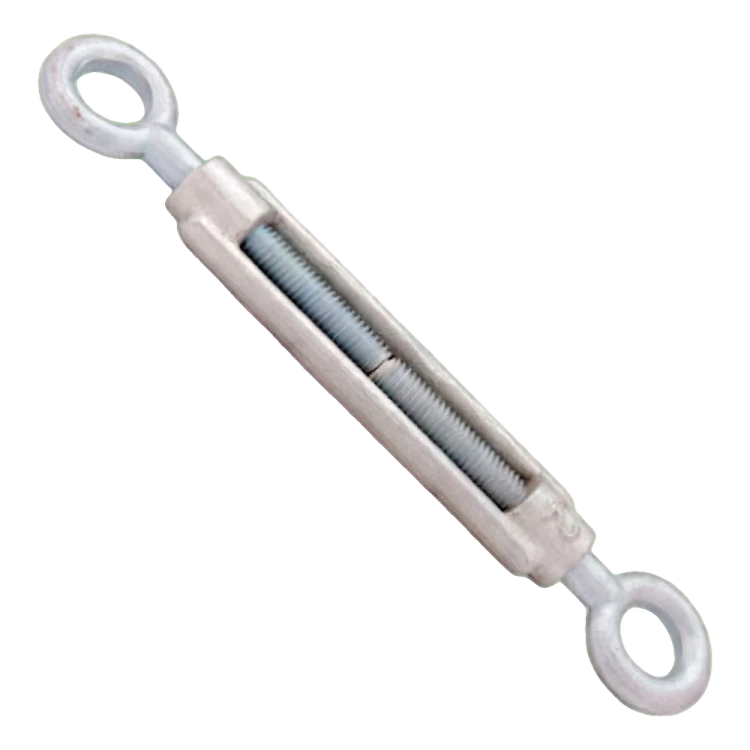

Forged eye-eye turnbuckle 10x125 DIN1480
Leave feedback on the product

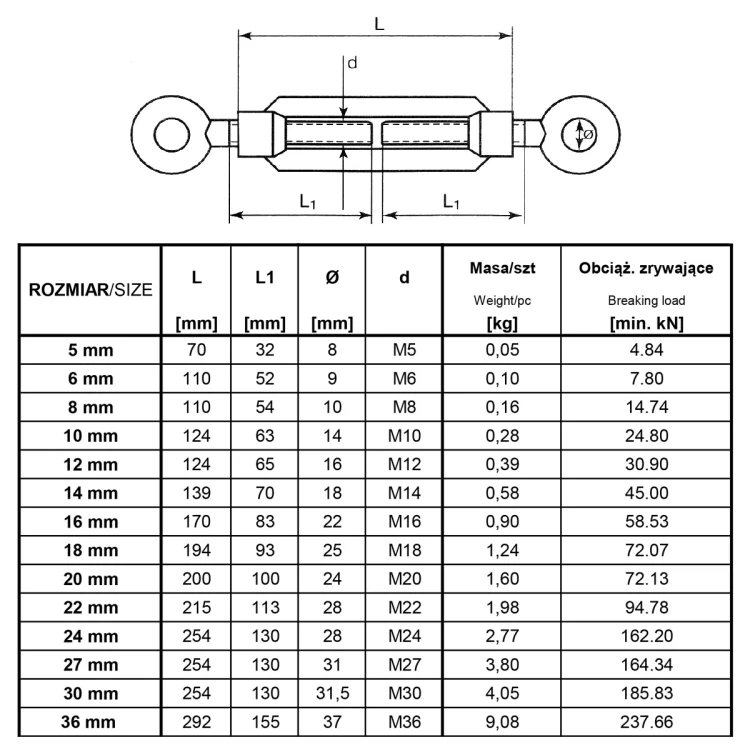

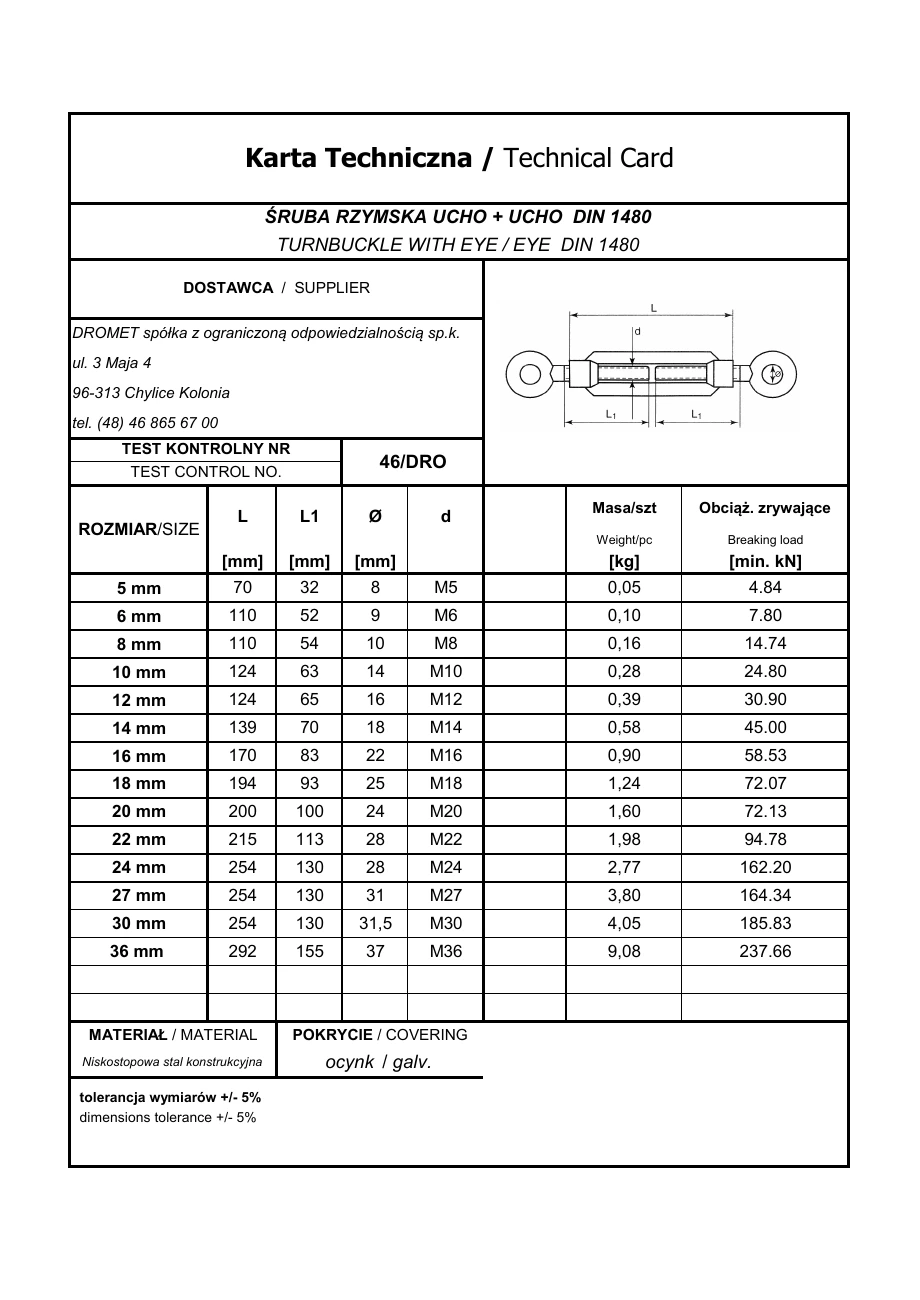

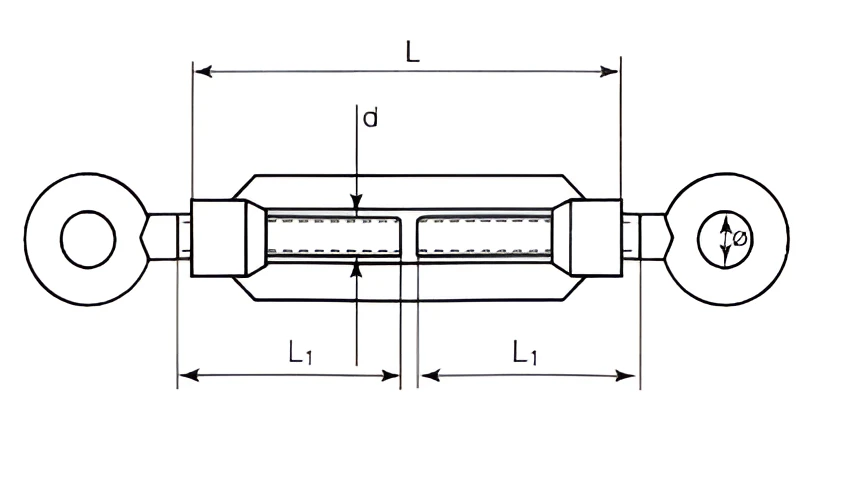

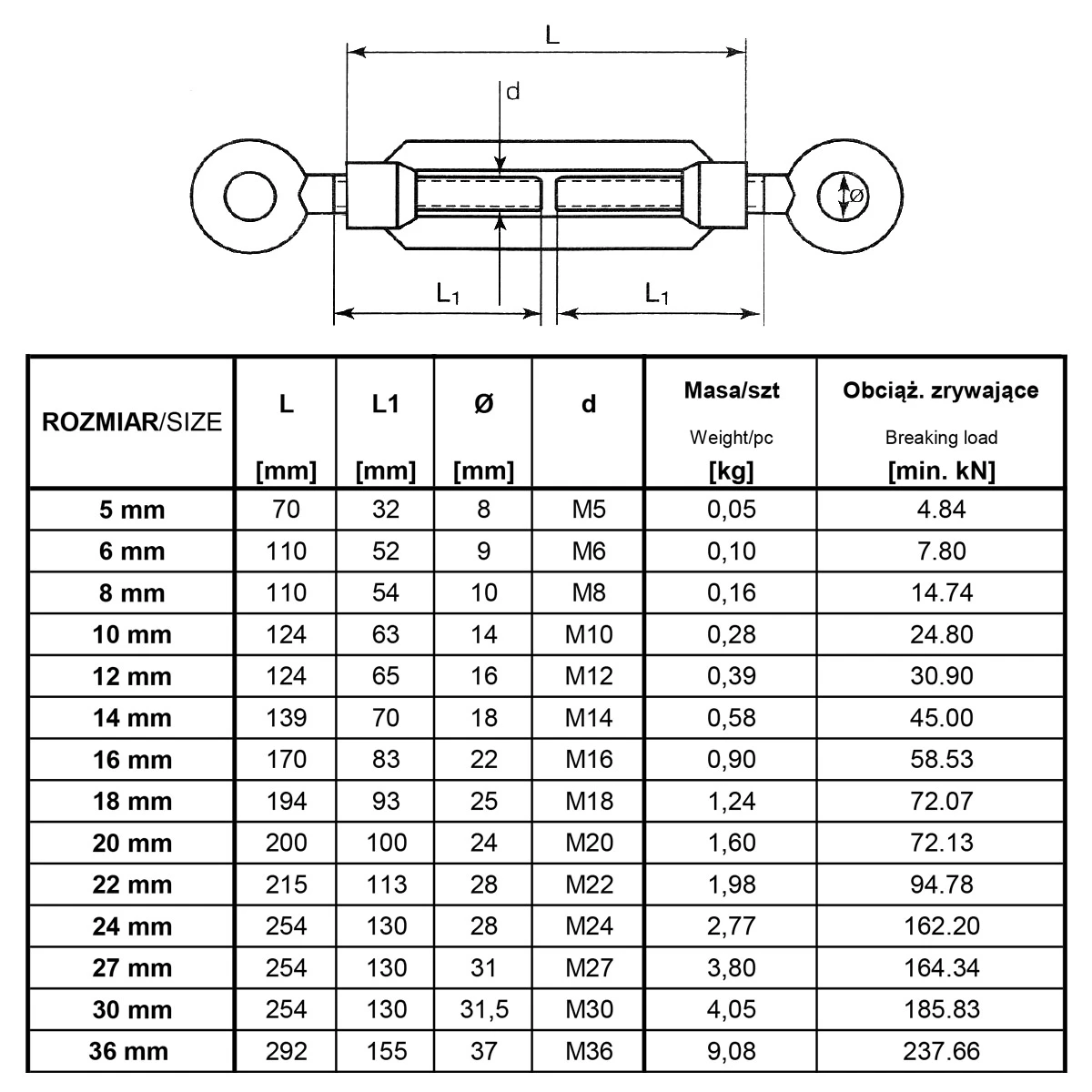

Forged eye-eye turnbuckle M10 DIN 1480 made of C15 steel, electro-galvanised. Length L = 124 mm, L1 = 63 mm, Ø 14 mm, weight 0.28 kg. Breaking load 24.80 kN. For tensioning steel wire ropes.
Product code: 002-537
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M10
Description
Forged eye-eye turnbuckle 10x125 DIN1480
The forged eye-eye turnbuckle M10 compliant with DIN 1480 is a reliable piece of hardware used for safely tensioning and adjusting the tension of steel wire ropes. The body with two screwed-in eye ends allows the tension force to be set precisely without having to dismantle the entire fixing. Made of low-alloy structural steel C15 and protected with electro-galvanised zinc, it provides lasting corrosion protection in demanding industrial and construction conditions. A minimum breaking load of 24.80 kN guarantees a high safety margin when tensioning ropes, guy lines and fixings. The dimensional tolerance is ±5%.
Applications and advantages
- Tensioning and adjusting steel wire ropes in industrial and construction structures
- The eye-eye end design allows quick connection to shackles, wire rope thimbles and other hardware
- The forged body construction provides high mechanical strength
- The galvanised coating protects against corrosion in outdoor conditions
- Suitable for use in industry, construction and agriculture
