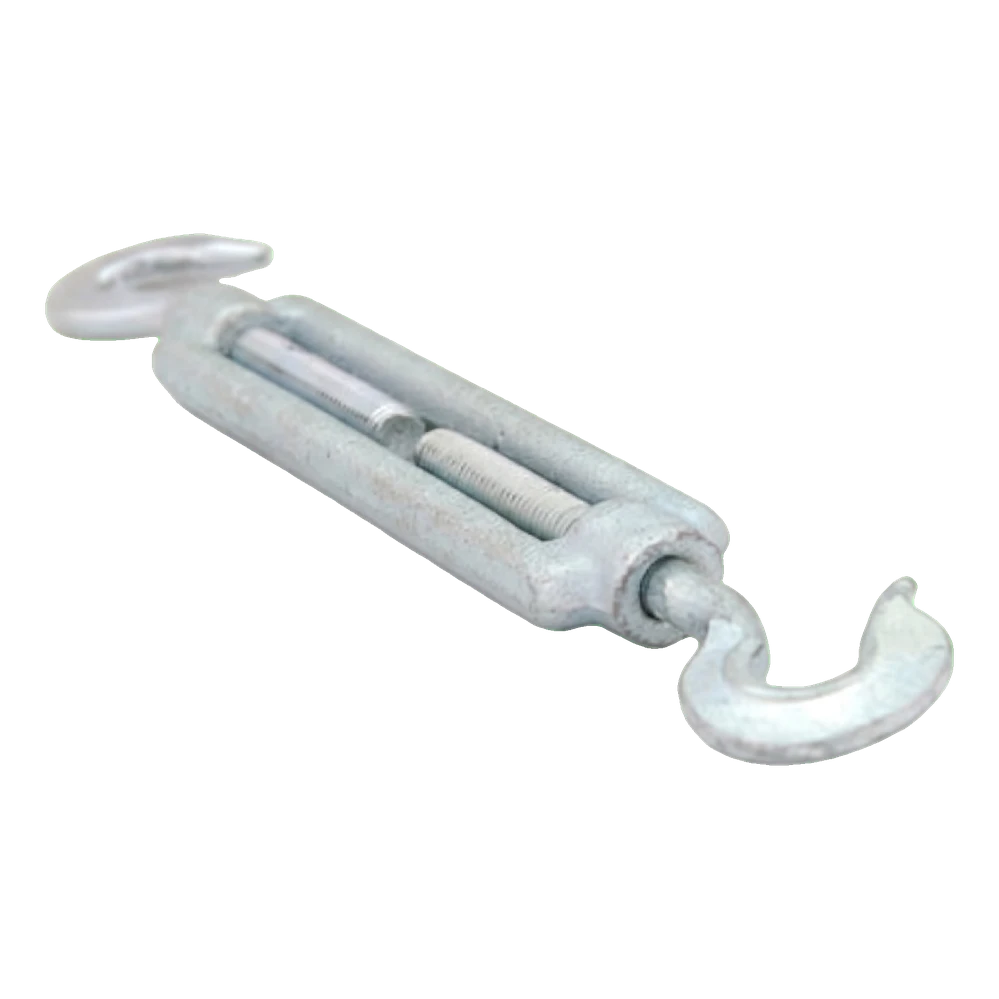

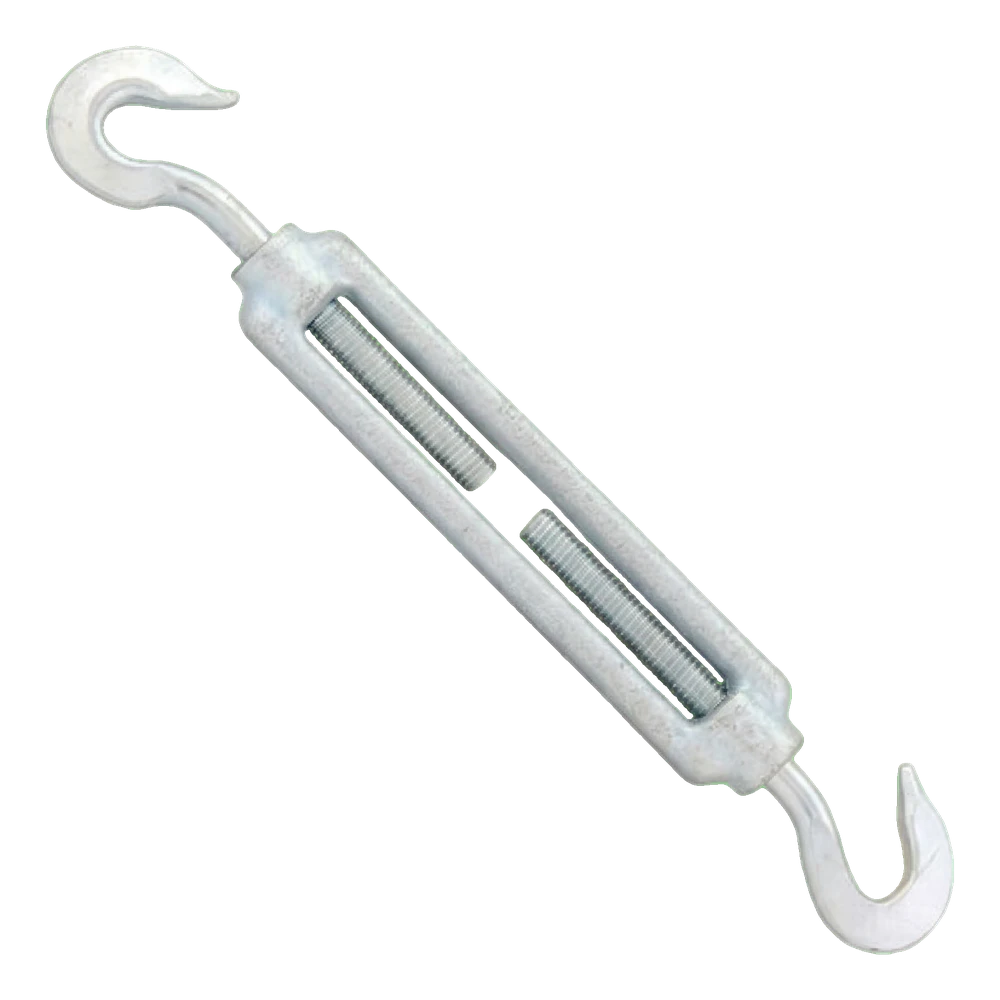

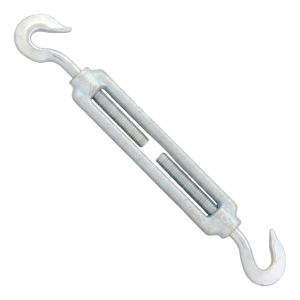

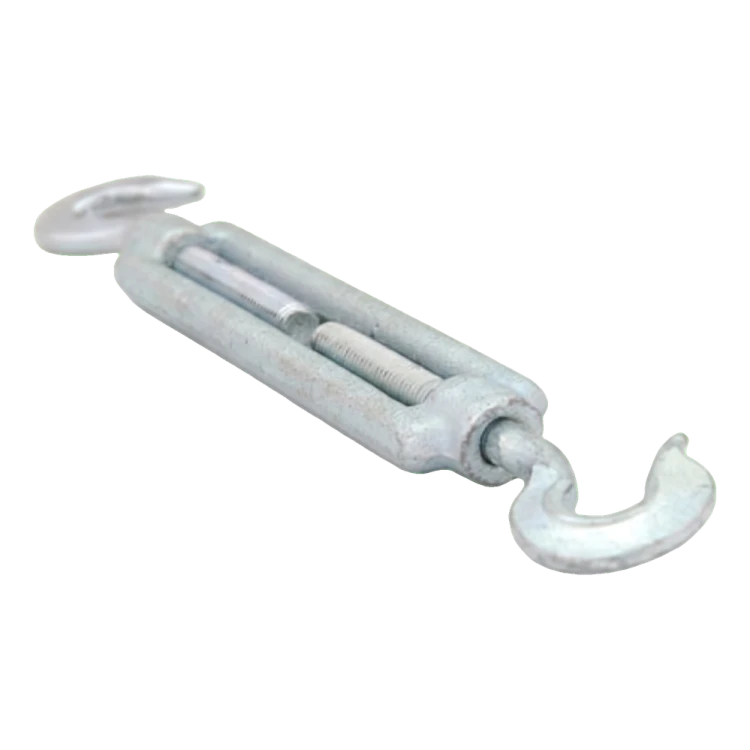

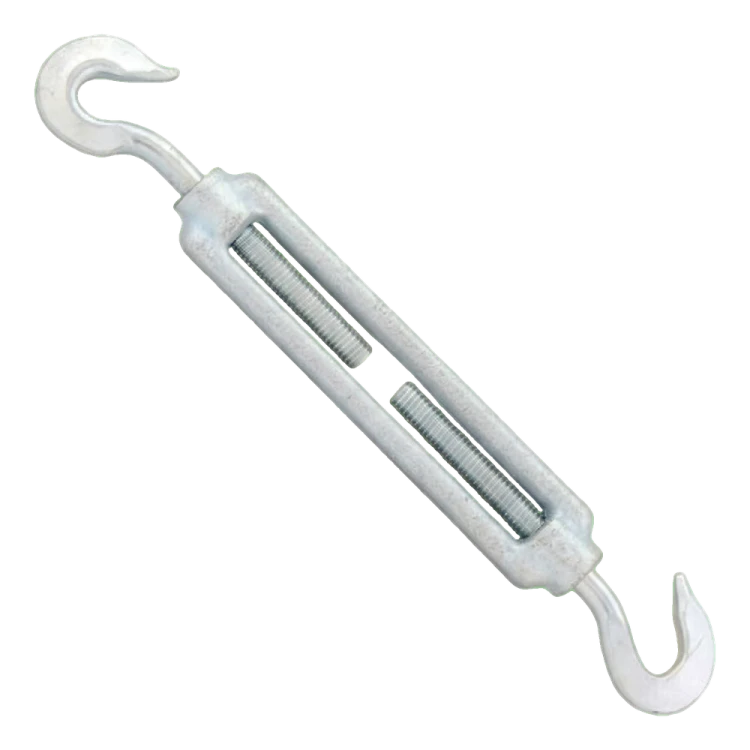

Forged Turnbuckle Hook-Hook 20x200 DIN1480
Leave feedback on the product

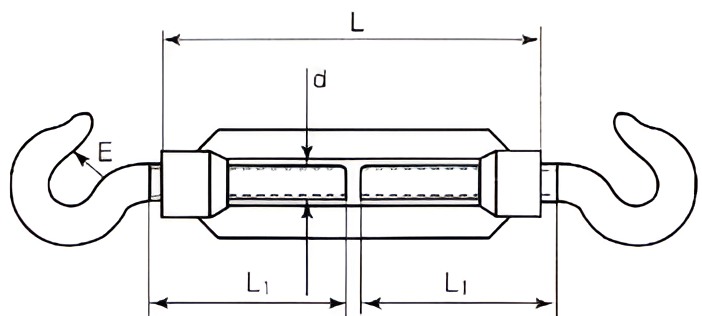

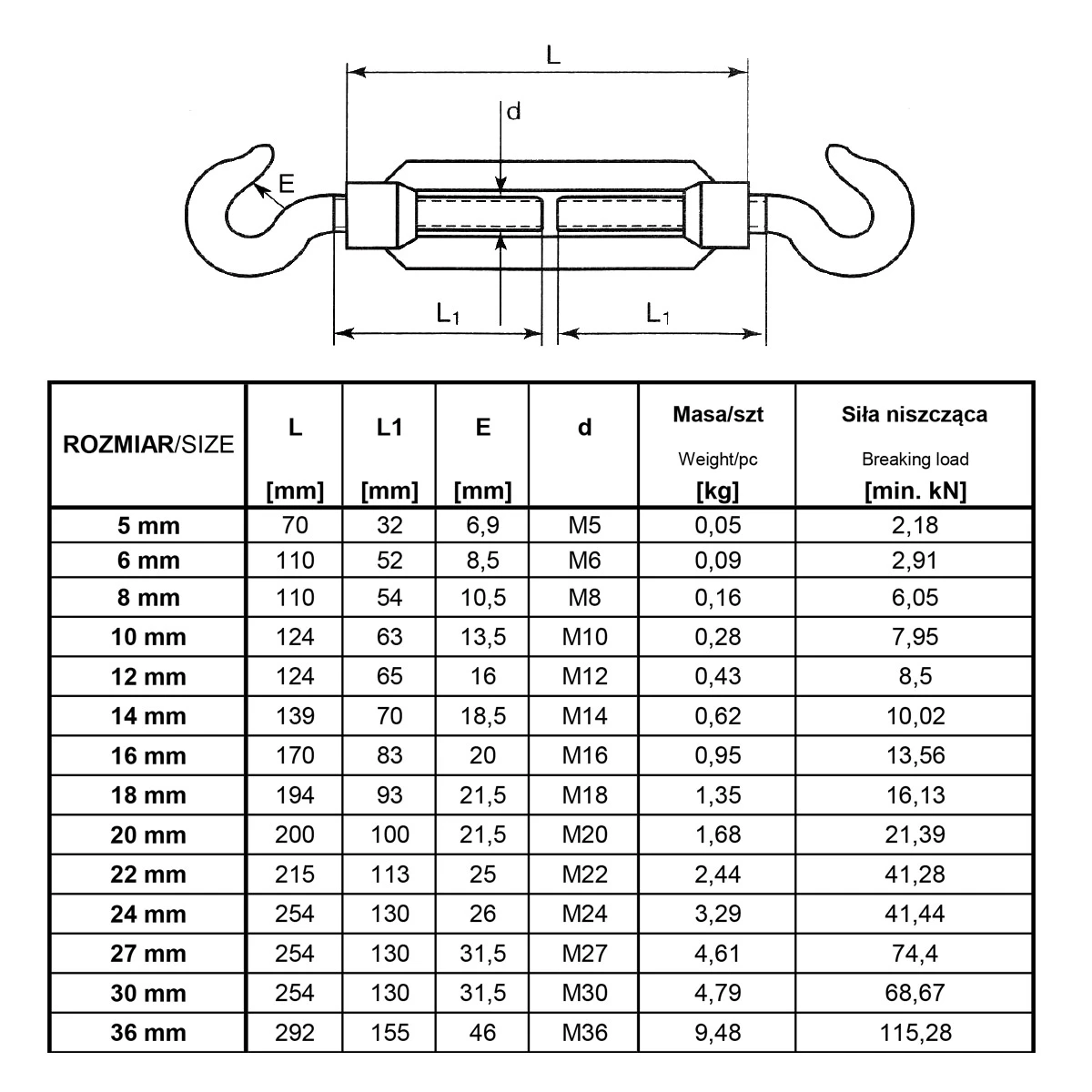

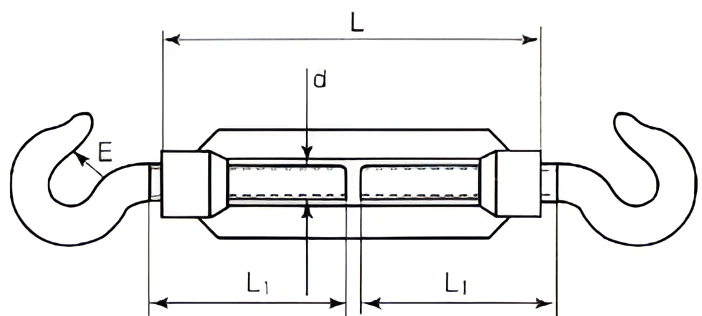

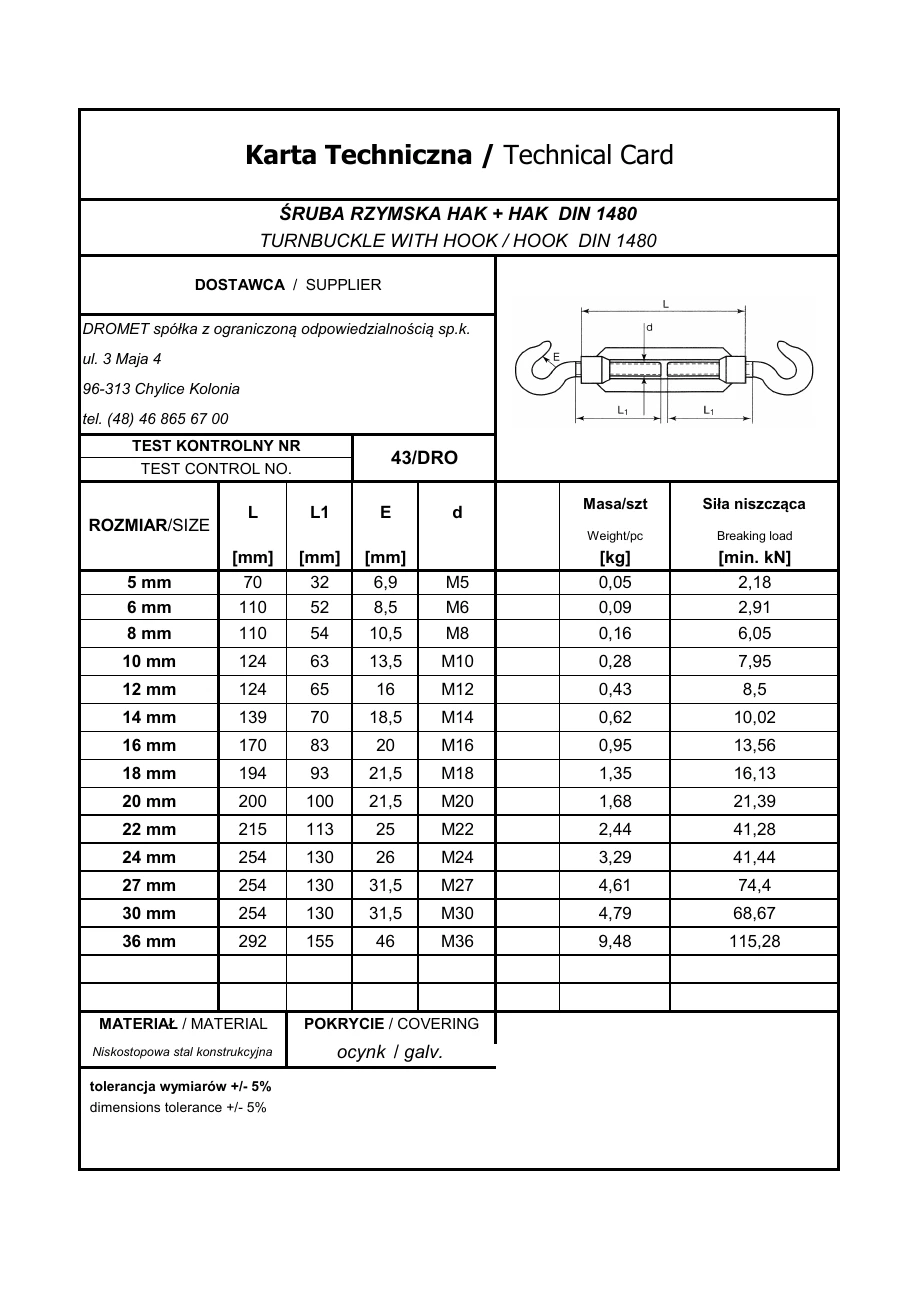

Forged turnbuckle hook-hook DIN 1480, M20x200, made of C15 low-alloy steel, electro-galvanised. Length 200 mm, hook length 100 mm, hook opening 21.5 mm. Weight 1.68 kg. Minimum breaking force 21.39 kN.
Product code: 002-515
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M20
Description
Forged Turnbuckle Hook-Hook 20x200 DIN1480
Forged turnbuckle hook-hook M20x200 is a durable piece of rigging hardware made in accordance with DIN 1480. It is used for tensioning and adjusting the tension of steel wire ropes, chains and tie rods. The body of the turnbuckle is forged, which ensures high mechanical strength. The hook-hook end type allows quick connection to links, brackets and other hardware without the need for additional connectors. The electro-galvanised coating protects against corrosion, making the turnbuckle suitable for use both in halls and outdoors.
Applications and advantages
- Tensioning and adjusting the tension of steel wire ropes, chains and tie rods
- The hook-hook ends allow quick attachment to links and brackets — installation without additional connecting hardware
- Forged construction compliant with DIN 1480
- Electro-galvanised coating provides corrosion protection
- Sold individually — order exactly as many pieces as you need
