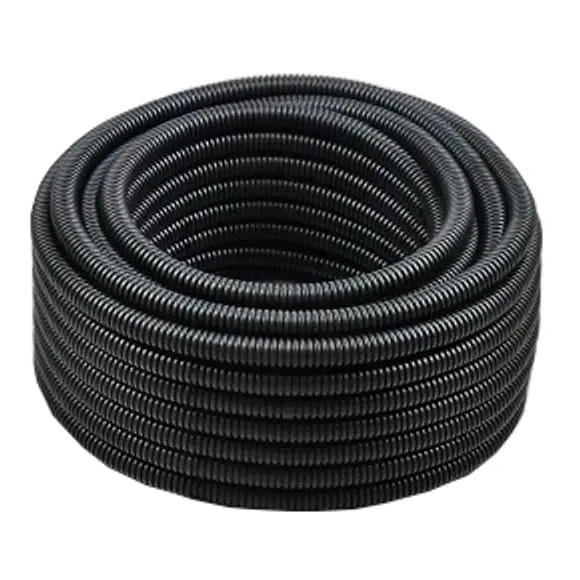

Flexible PVC UV Corrugated Conduit 25/19mm - 50m
Availability:
Temporarily unavailable
Weight:
3 kg
Description
Flexible PVC UV conduit 25/19 corrugated pipe 50m 05.104 ELEKTROPLAST STRÓŻA
Flexible PVC UV conduit 25/19 corrugated pipe 50m 05.104 is designed for protection and organisation of insulated wires or cables within electrical systems.
They are particularly useful in areas with increased fire risk, such as attics or lofts, and in external installations, provided they are laid in chases and covered with plaster. Made from modified PVC, these pipes do not possess UV radiation resistance and feature non-flame-propagating properties. Their primary application is in electrical installations within dry structures, such as walls or suspended ceilings made of plasterboard, as well as in loft spaces.
SPECIFICATION
| Parameter | Value |
|---|---|
| Nominal diameter | 25 mm |
| Nominal size in inches | Other |
| External diameter | 25 mm |
| Internal diameter | 19 mm |
| Material | Polyvinyl chloride (PVC) |
| Compression strength | 320 N |
| Operating temperature range | -25 - 60 °C |
| Protection rating (IP) | Other |
| Fire resistance according to UL94 | HB |
| UV radiation resistance | Yes |
| Oil resistance | Yes |
| Colour | Black |
| Sheath material | Without sheath |
| Flame propagating | Yes |
| Flexibility | Flexible/bendable |
| Manufacturer series | RKLGV |
