Fence post base plate 60x40 drive-in, silver galvanised
Leave feedback on the product

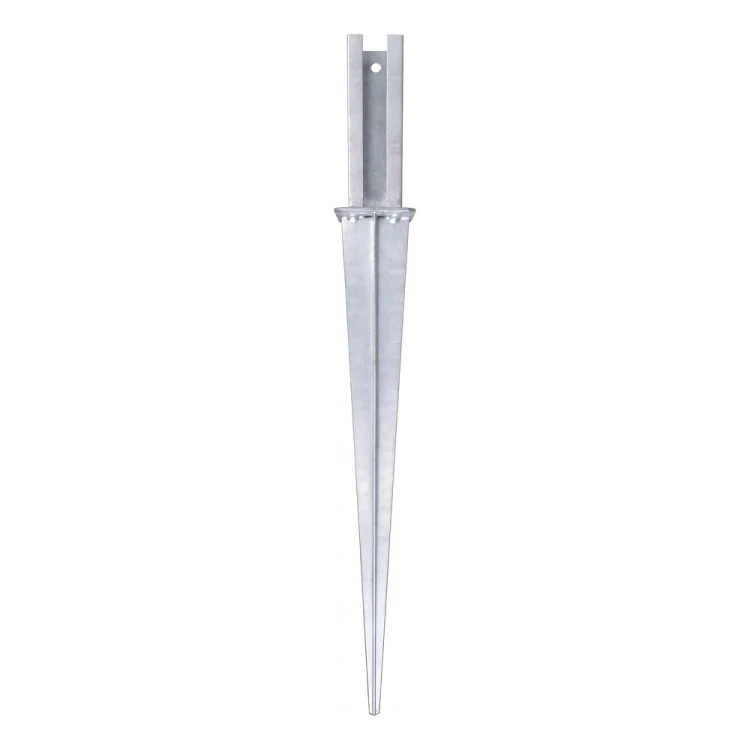

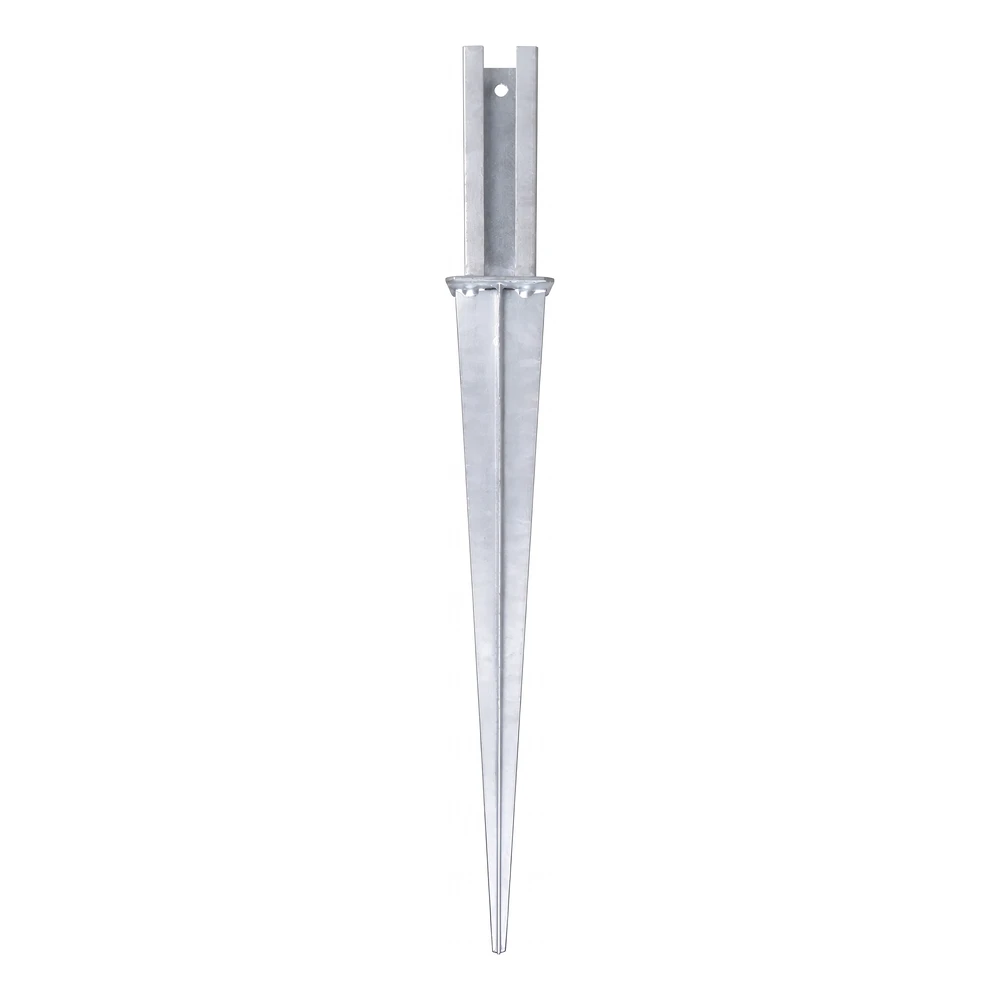

Fence post base plate 60x40, drive-in, silver galvanised. Overall length 790 mm, anchor 600 mm, receiving profile 56 x 36 mm, profile length 190 mm, wall thickness 1.5 mm. Stabilising plate 80 x 80 x 4 mm. For 60x40 mm posts.
Product code: 002-508
Description
Fence post base plate 60x40 drive-in, silver galvanised
The Fence post base plate 60×40 in the drive-in version is a durable and practical anchoring element designed for quickly setting fence posts directly in the ground — with no need for concreting. The silver galvanised finish provides effective corrosion protection throughout its service life.
The design consists of an anchor driven into the ground and a receiving profile into which the 60×40 fence post slides. The assembly is completed by a stabilising plate, which increases the load capacity of the connection and limits post rotation in the socket. This solution ensures adequate embedment depth even in soils of varying cohesion.
The wall of the receiving profile provides structural rigidity while keeping the overall weight of the component low. The profile has a mounting hole that allows the post to be additionally secured with a bolt, which increases the stability of the entire fencing structure. The base plate is sold individually, so you can select the exact number of pieces for your project without having to order multipacks. The component is supplied as a complete, ready-to-use unit — simply drive the anchor into the ground and insert the post.
Advantages of drive-in installation
- No concreting — saves time and materials on site
- Immediate readiness — the post can be installed straight after the anchor is driven in
- Easy position adjustment — can be pulled out and driven in again in a different place
- Minimal tools — a hammer or hand post driver is all you need
- Compact shipment size — convenient logistics and transport to site
- Universal application — suits fence posts with a 60×40 mm profile
- Silver galvanised — durable corrosion protection in outdoor conditions
Applications
- Panel fencing — quick installation of posts for fence panels on plots and industrial sites
- Temporary fencing — ideal for temporary construction site fences that can be easily dismantled
- Private property fencing — durable setting of posts in native soil without pouring pad foundations
- Gates and wicket gates — anchoring load-bearing posts in the ground for lighter entrance structures
- Green area fencing — installation without disturbing the existing grass or gravel surface
The drive-in base is an economical alternative to traditional concrete foundations — especially on sites with good ground conditions. It works equally well for permanent and temporary fences, where the ability to dismantle quickly without leaving marks in the ground is important.
