Fence post 80x80x2 mm, length 2 m, galvanised
Leave feedback on the product

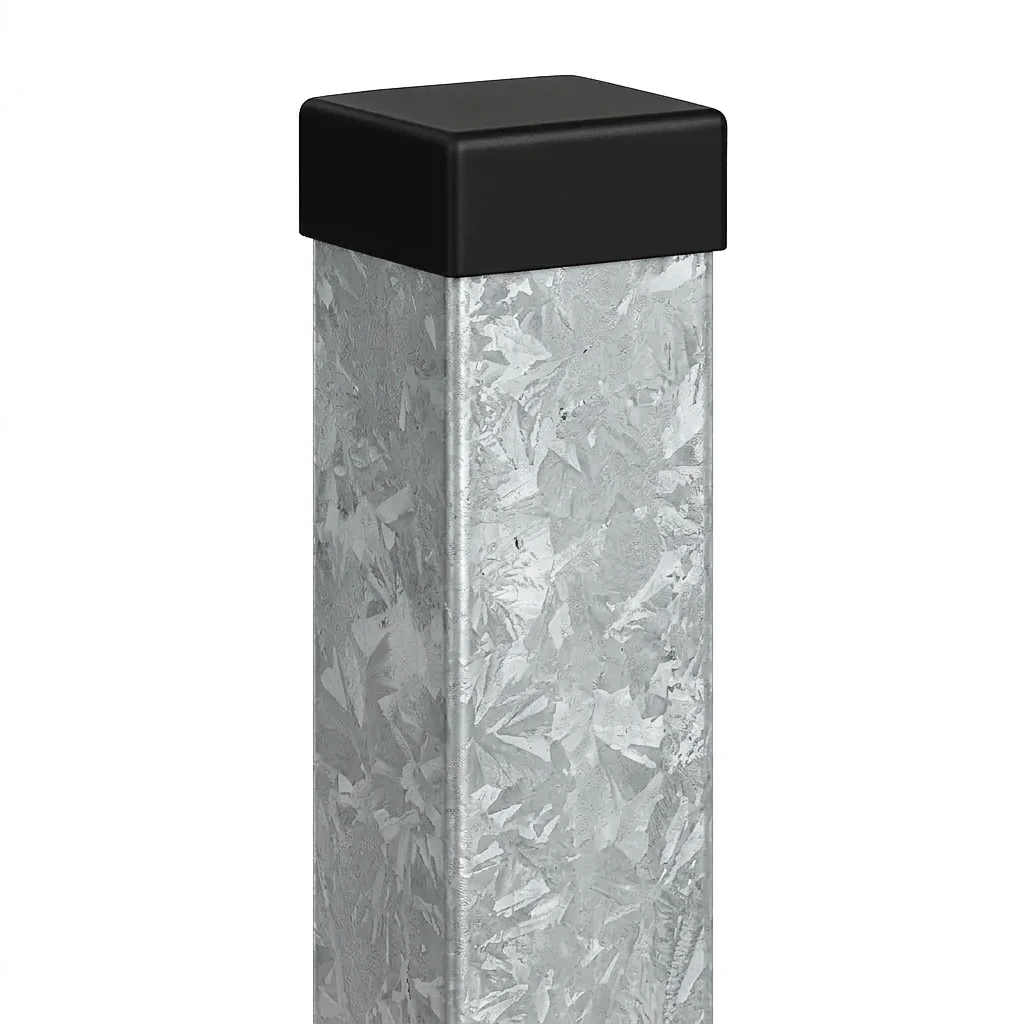

Fence post, galvanised, 80x80 mm, made of structural steel with a Z140 zinc coating. Length 200 cm, wall thickness 2 mm, weight approx. 11 kg. Supplied with a black end cap. For panel fencing, fence sections, pedestrian gates and light gates.
Product code: 000-489
Product features
[PIM] slupki #109
- Profile [mm] 80x80
- Wall Thickness [mm] 2
- Length [mm] 2400
- Colour Galvanised
Description
Steel tube 80 × 80 mm with a wall thickness of 2 mm, length 2000 mm – post for panel fencing
About the product
The post is a load-bearing component of panel fencing. It is made from steel tube with a cross-section of 80 × 80 mm, and the panels are secured to it with fence post clamps sized to suit this cross-section.

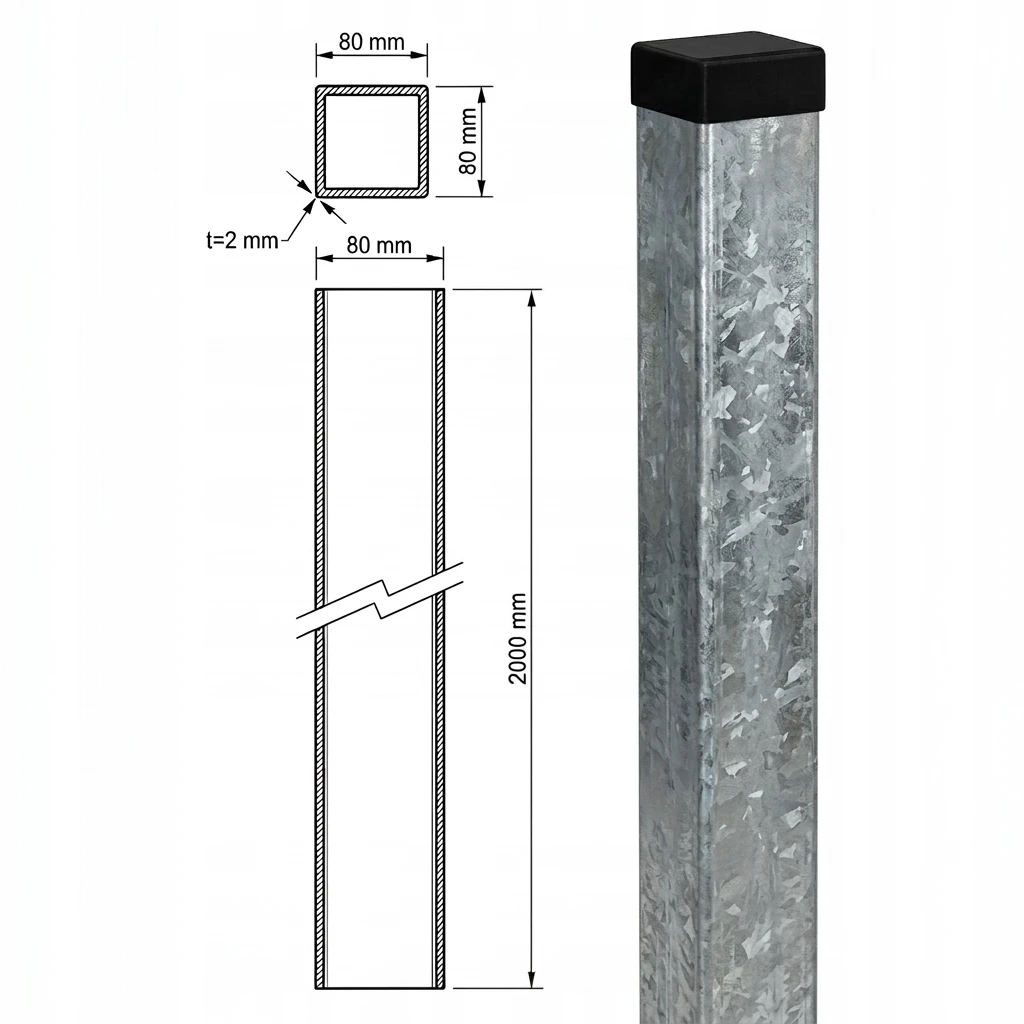

In the drawing, a × b denotes the external cross-sectional dimensions: 80 × 80 mm. The tube wall thickness s is 2 mm, and the post length L is 2000 mm. The dimensions are taken from the manufacturer's drawing and comparison table; the cross-section is not shown to scale relative to the length.
The coating (zinc-coated) protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions. The post embedment depth is specified by the fence design.
Selection and installation
- ✓Choose the post length to suit the panel height and embedment depth – the post length is 2000 mm.
- ✓Set the post into a foundation or secure it to a fence post base plate designed for the 80 × 80 mm cross-section.
- ✓Before the concrete sets, check that the posts are plumb and spaced to suit the panel width.
Important
The manufacturer's data does not specify the post's weight or load-bearing capacity. Choose the embedment depth and foundation to suit the fence height and ground conditions.
