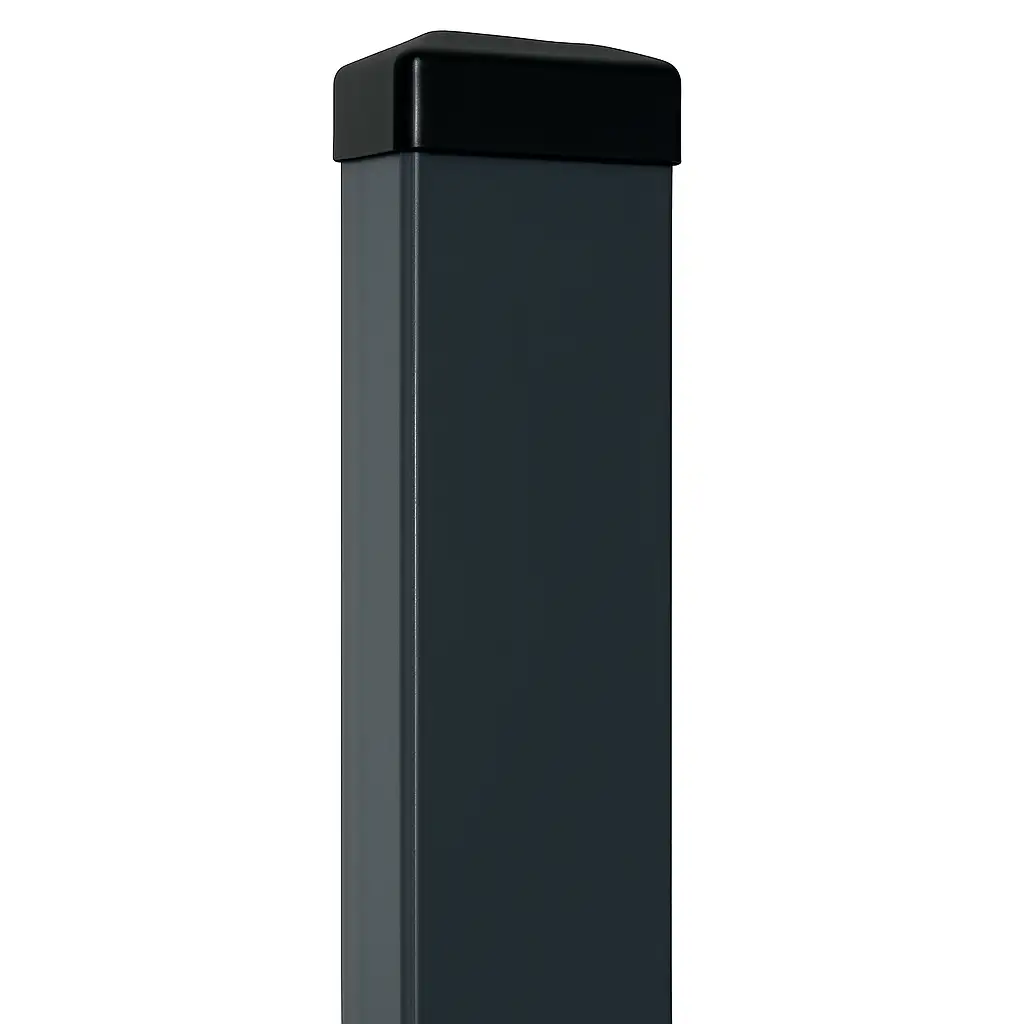

Fence post 60x40x1.2 mm, length 2.0 m, graphite RAL 7016

The 60×40 mm cross-section with a wall thickness of 1.2 mm delivers optimal strength whilst keeping weight to a minimum – the post works seamlessly with 3D fence panels of standard heights. The powder coating in graphite RAL 7016 gives the fence an elegant, understated character and effectively protects the steel against corrosion and the effects of weathering. The graphite shade is one of the most popular colour choices – it harmonises beautifully with both light-coloured facades and natural green surroundings.

Installation and Application

The post is designed for in-ground installation in point concrete foundations. Upon special order, it can be fitted with a steel base plate with mounting holes, allowing it to be bolted to a hard surface, plinth, or foundation wall. Fence panels are secured to the posts using dedicated mounting clamps. The recommended centre-to-centre post spacing for panels of standard width is 250 cm.

Technical Specifications

• Cross-section: 60×40 mm (rectangular hollow section)
• Wall thickness: 1.2 mm
• Length: 2.0 m (2000 mm)
• Material: structural steel (closed hollow section)
• Finish: powder coating, graphite RAL 7016
• Installation: in-ground (point foundation) or optionally on a steel base plate

Corrosion Protection – the powder coating in RAL 7016 forms a durable barrier protecting the steel against rust and weathering. Powder coating provides high resistance to scratches, UV radiation, and chemical agents, ensuring the post retains its attractive appearance for many years to come.

Benefits for the Installer

• Optimal load-bearing capacity – the 60×40 mm cross-section ensures stability whilst keeping the structure lightweight, making transport and installation straightforward
• Ready to install – factory powder-coated, requiring no additional painting on site
• Durable finish – RAL 7016 powder coat resistant to scratches, UV radiation, and corrosion
• Versatile installation – can be set in a point foundation or mounted on a steel base plate
• Compatibility – works with 3D fence panels and dedicated mounting clamps

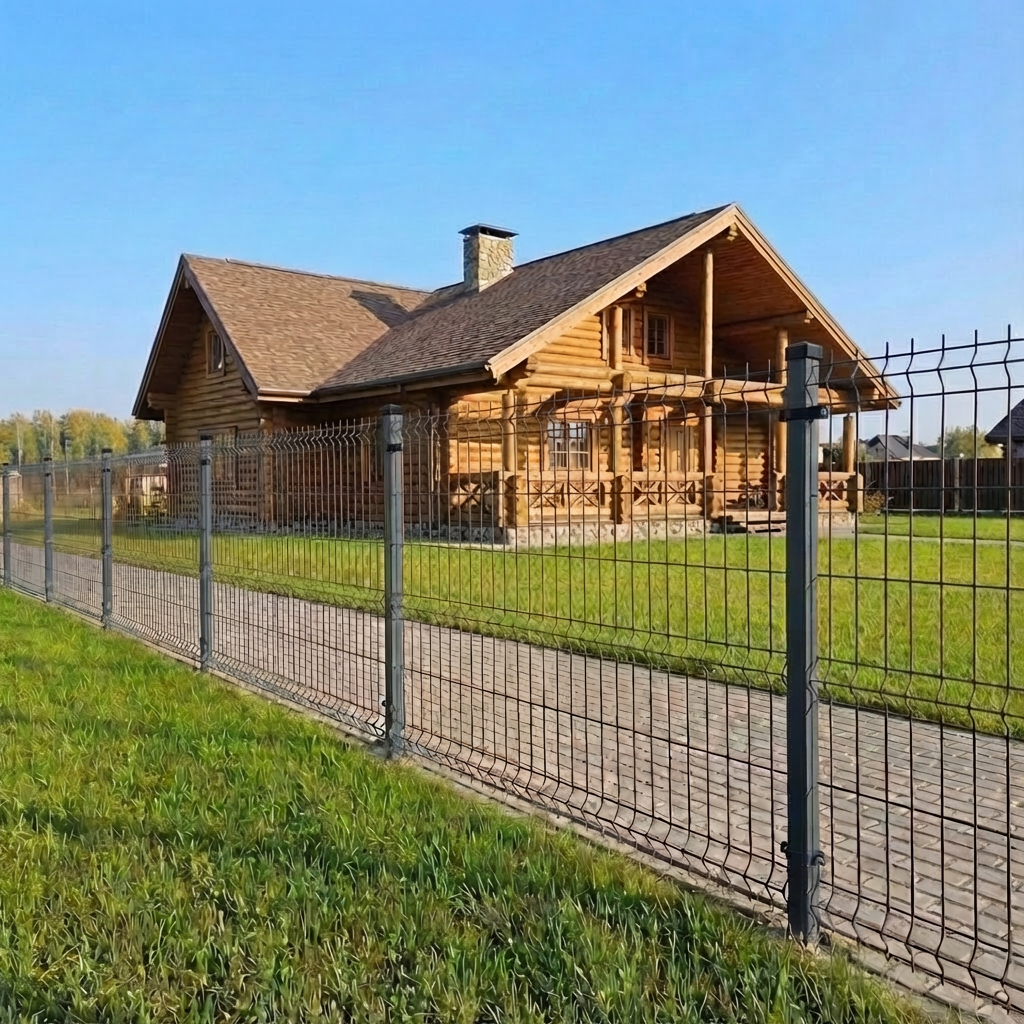

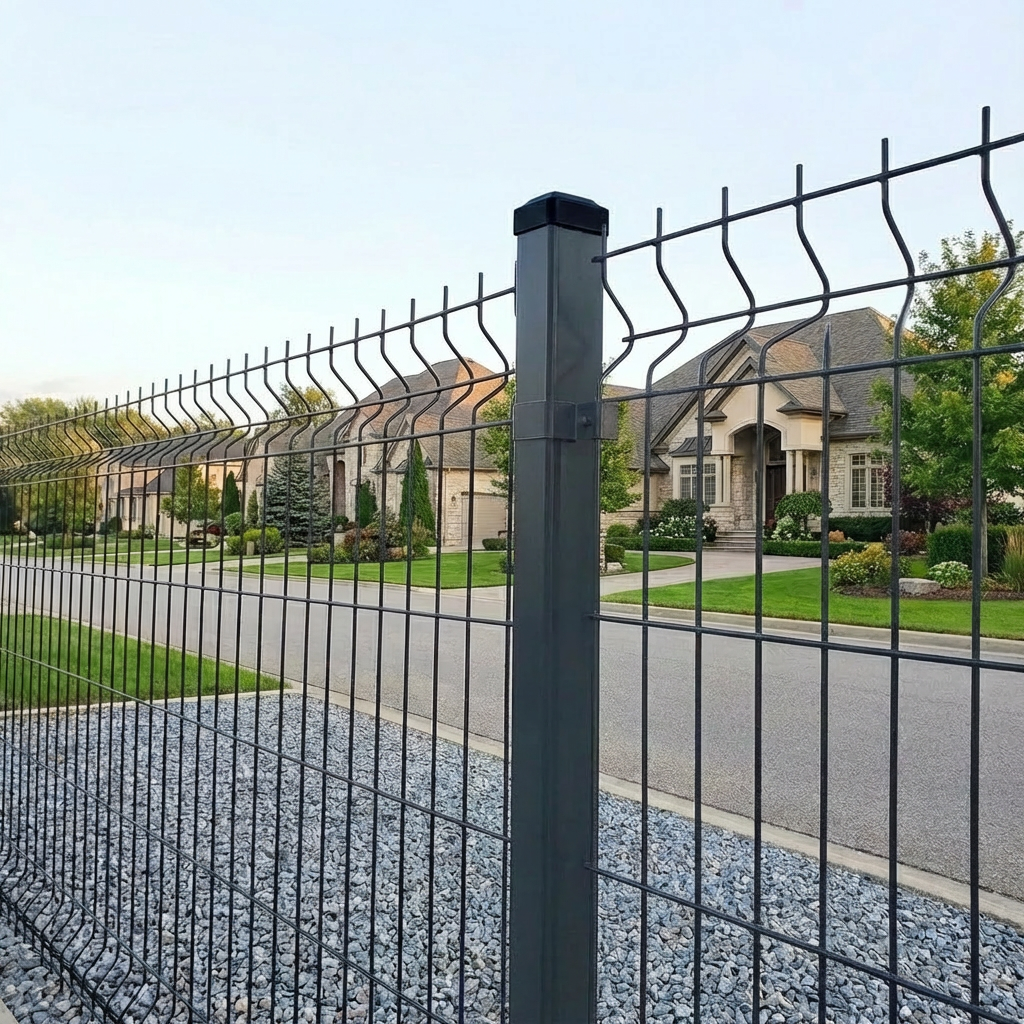

The 60×40×1.2 mm post in graphite RAL 7016 is a proven choice wherever aesthetics, ease of installation, and long-term corrosion resistance matter. It is ideally suited as a component of 3D panel fencing systems around private properties, multi-family residential buildings, and commercial premises.
