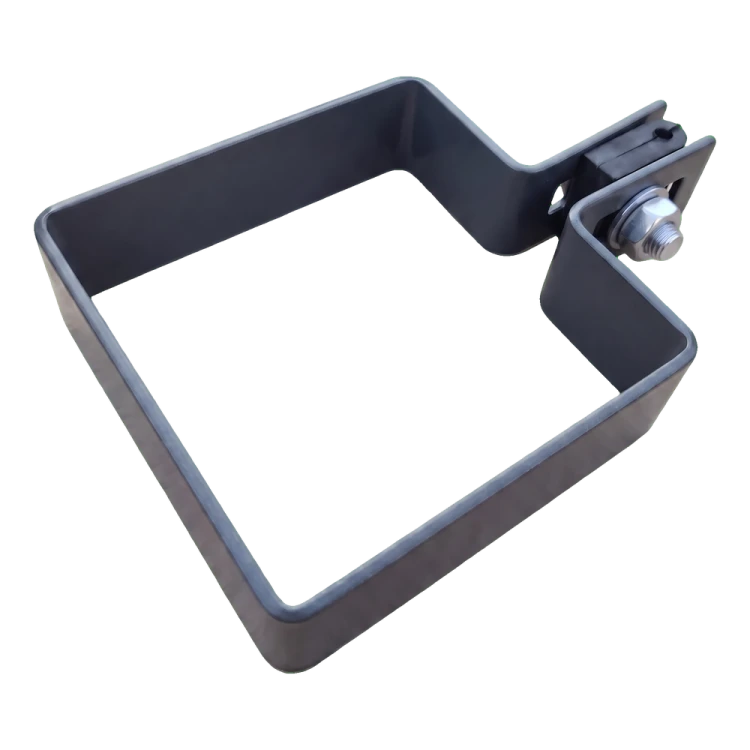

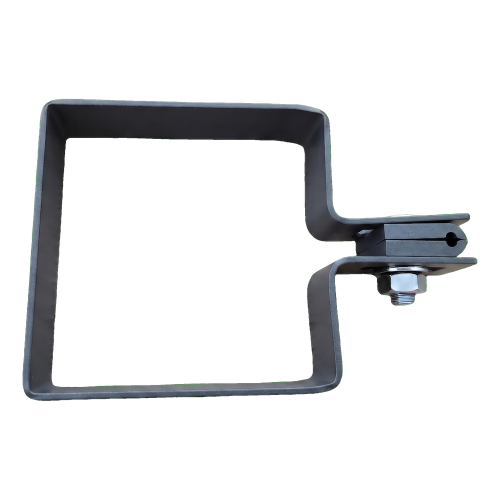

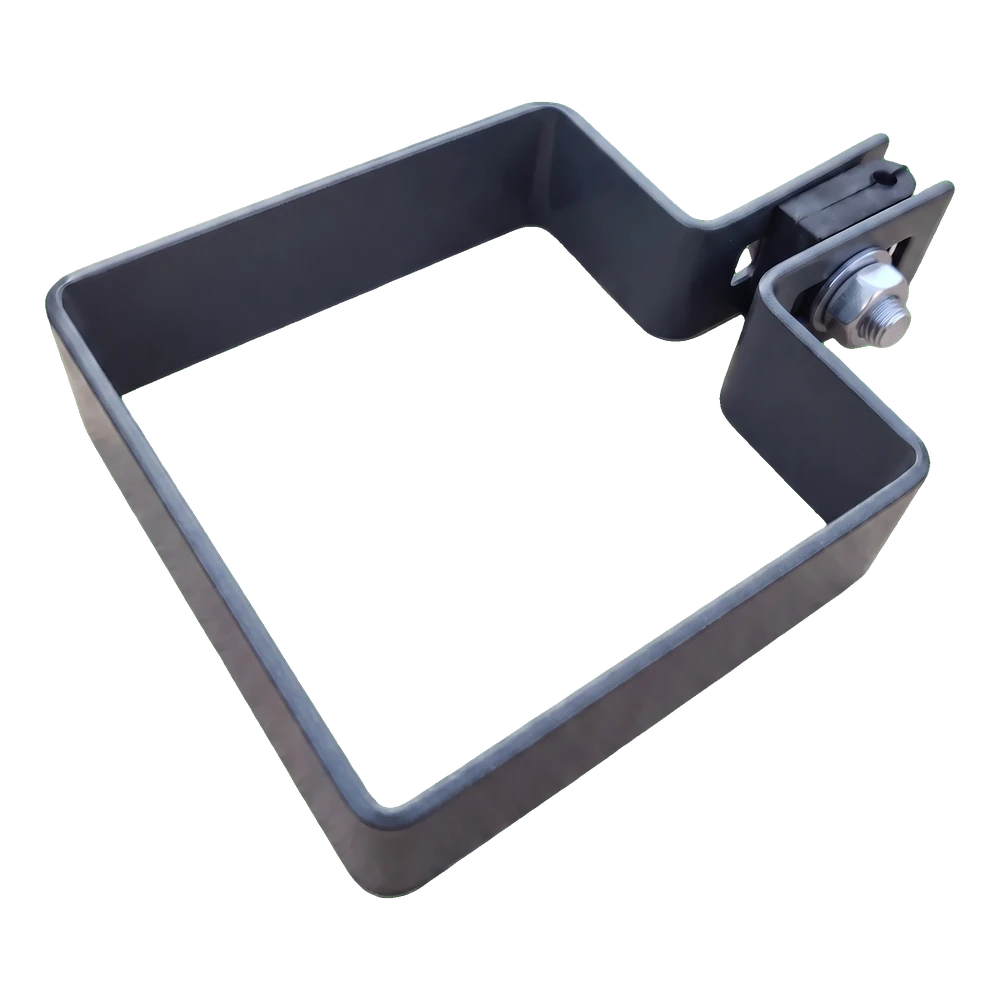

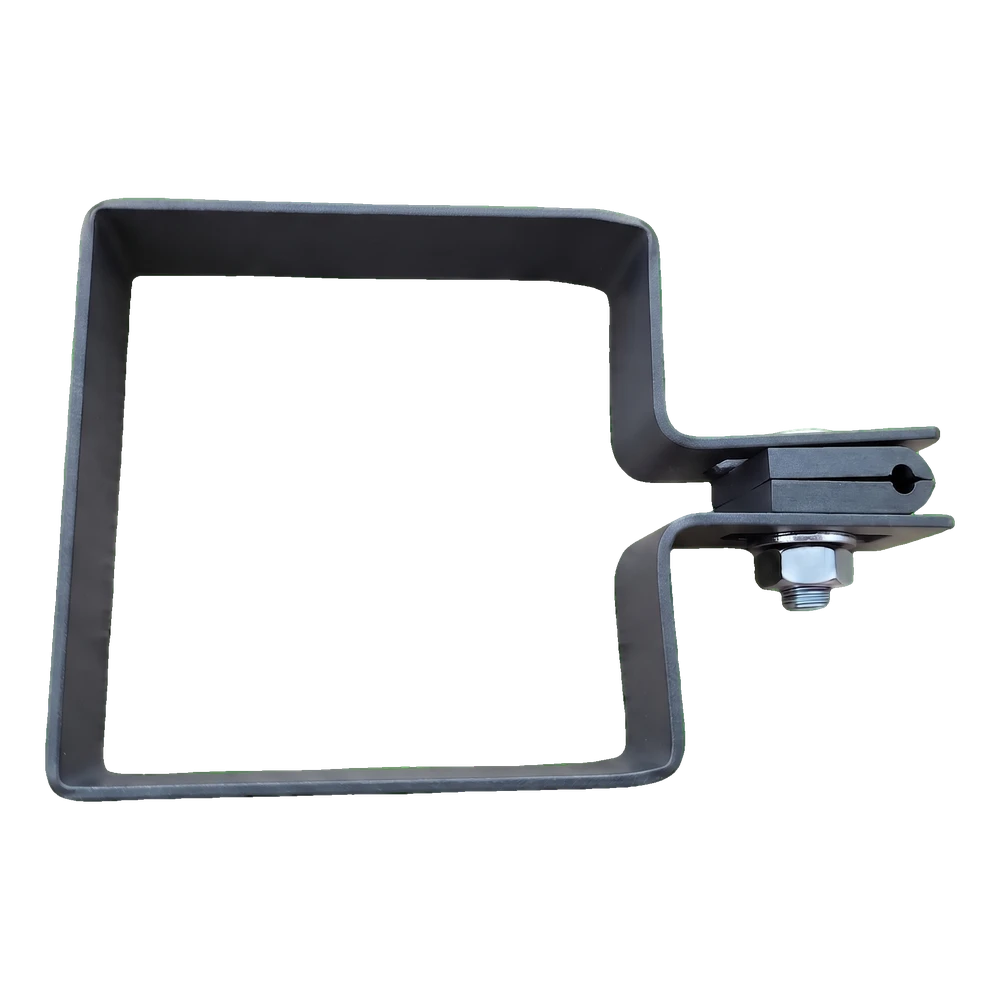

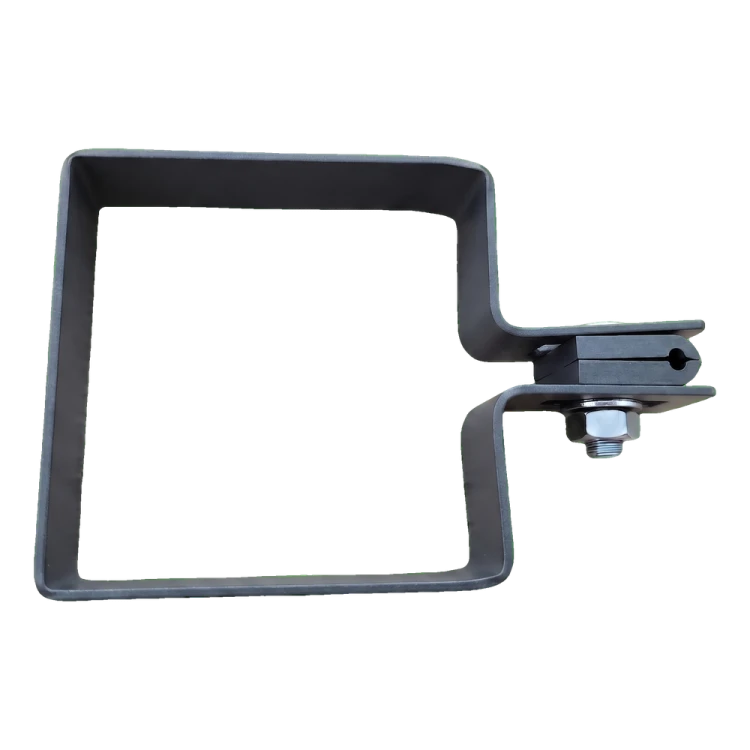

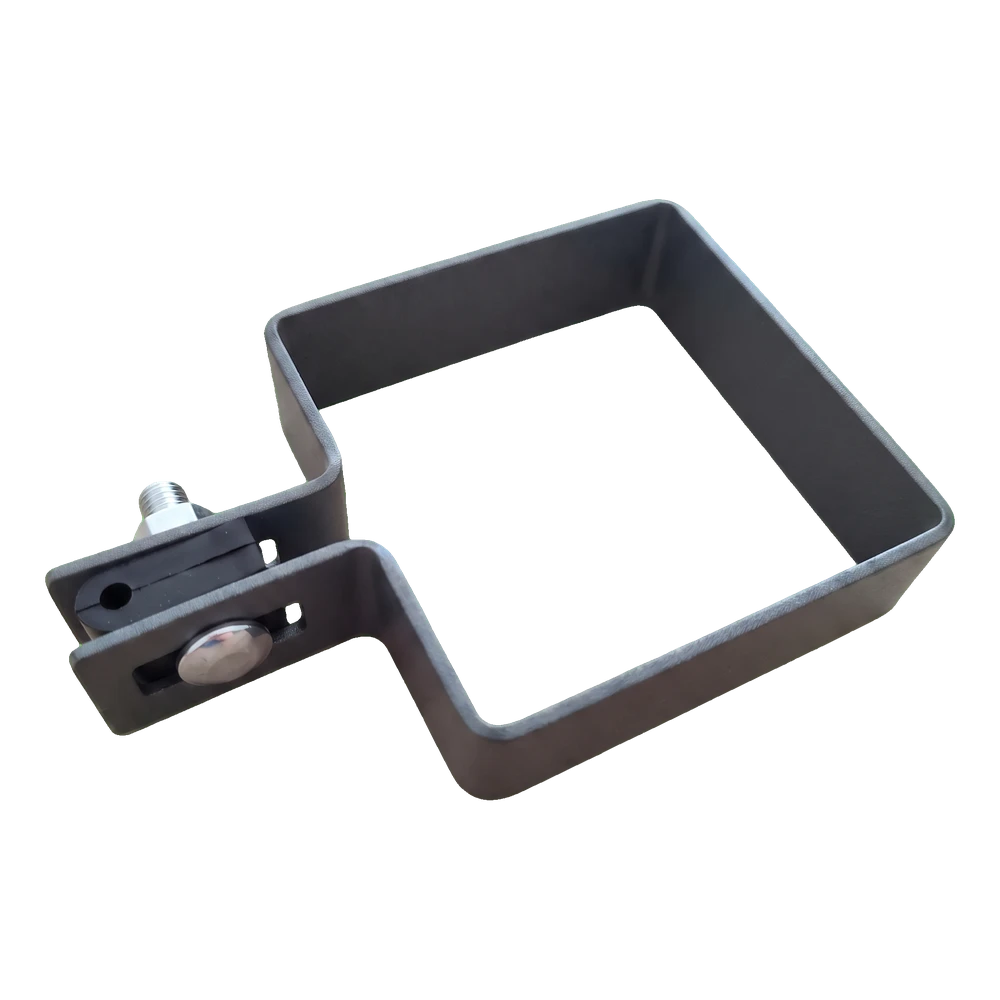

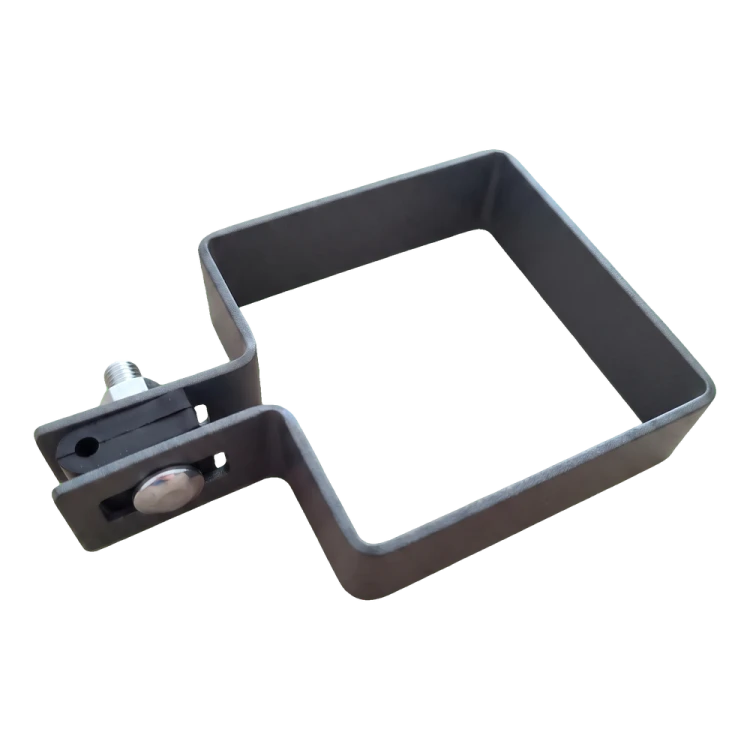

Fence End Clamp 80×80 mm Graphite RAL 7016 – Mounting Set
Leave feedback on the product

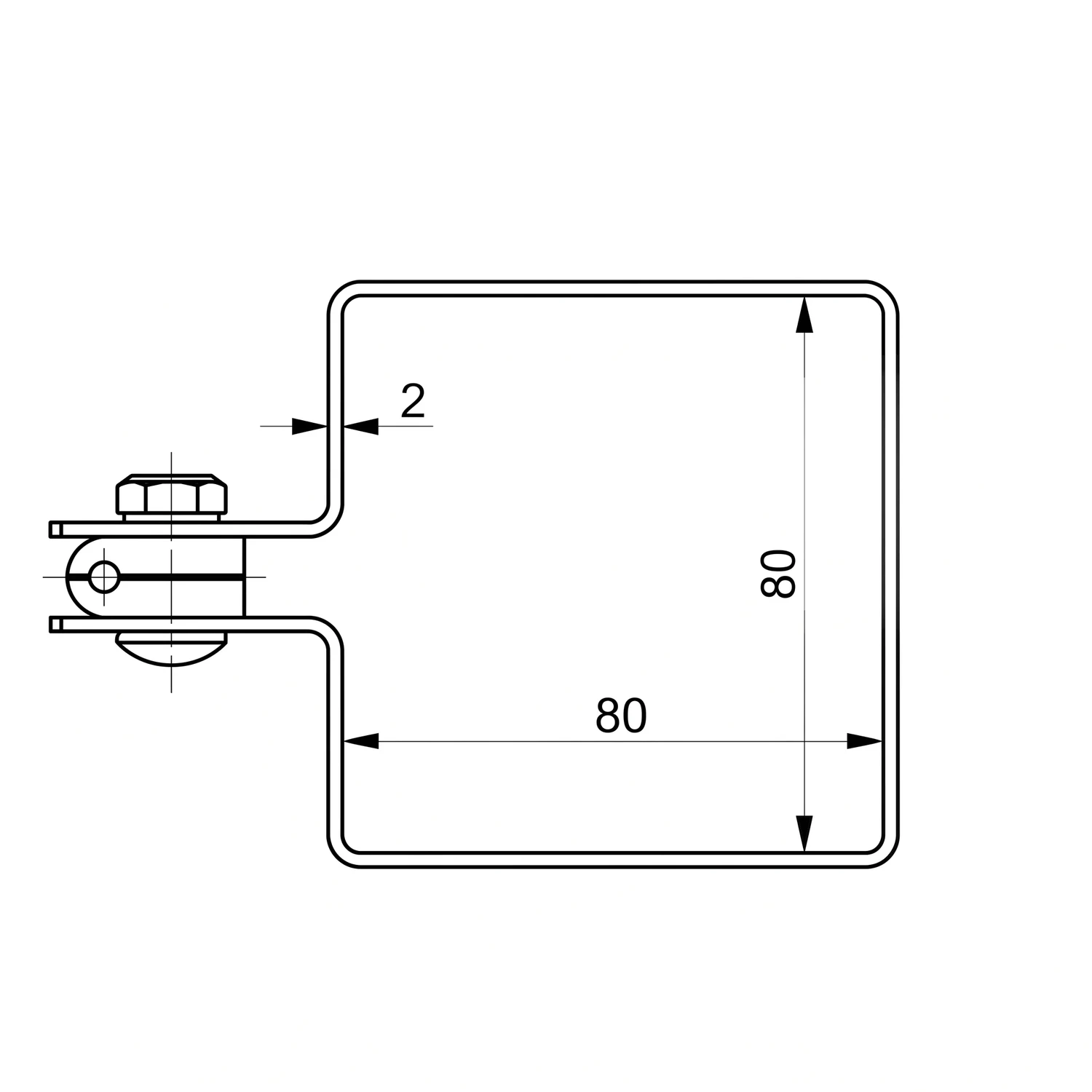

End fence clamp 80×80 mm, graphite RAL 7016 colour. 2 mm thick steel sheet, powder coating. For posts with an 80×80 mm cross-section, fitted on the outer posts of the fence. Spacer suited to Ø4 mm wire.
Product code: 001-619
Product features
[PIM] obejmy #164
- Accessory Type End clamp
- Colour Graphite RAL 7016
- Post Profile Dimension [mm] 80x80
Description
End Fence Clamp 80×80 mm Graphite RAL 7016 – Mounting Kit
End clamp for 80×80 mm fence panels in graphite RAL 7016 colour — a complete mounting set for fixing mesh and fence panels to posts with an 80×80 mm cross-section. The end (starting) type clamp is fitted on the outer posts of the fence line, where the panel meets the post from only one side. Thanks to the included plastic spacer, it ensures proper distance between the panel and the post and dampens vibrations.
The clamp is made of 2 mm thick steel sheet coated with a powder coating in graphite RAL 7016 colour. The powder coating provides high corrosion resistance and an attractive appearance in changing weather conditions. The robust construction guarantees stable retention of the fence panel on the post, eliminating the risk of the fixing loosening due to wind or vibration.
Application
The clamp is designed for panel fencing in both private and commercial installations. It is fitted on the outer posts of the fence line — wherever the panel meets the post from only one side. The complete mounting set eliminates the need to source bolts and spacers separately, speeding up project completion.
The set comes standard with a spacer suited to wire with a diameter of Ø4 mm. If mesh made from wire of a different thickness (Ø3 mm or Ø5 mm) is used, matching inserts can be ordered — simply mention this in the order comments.
