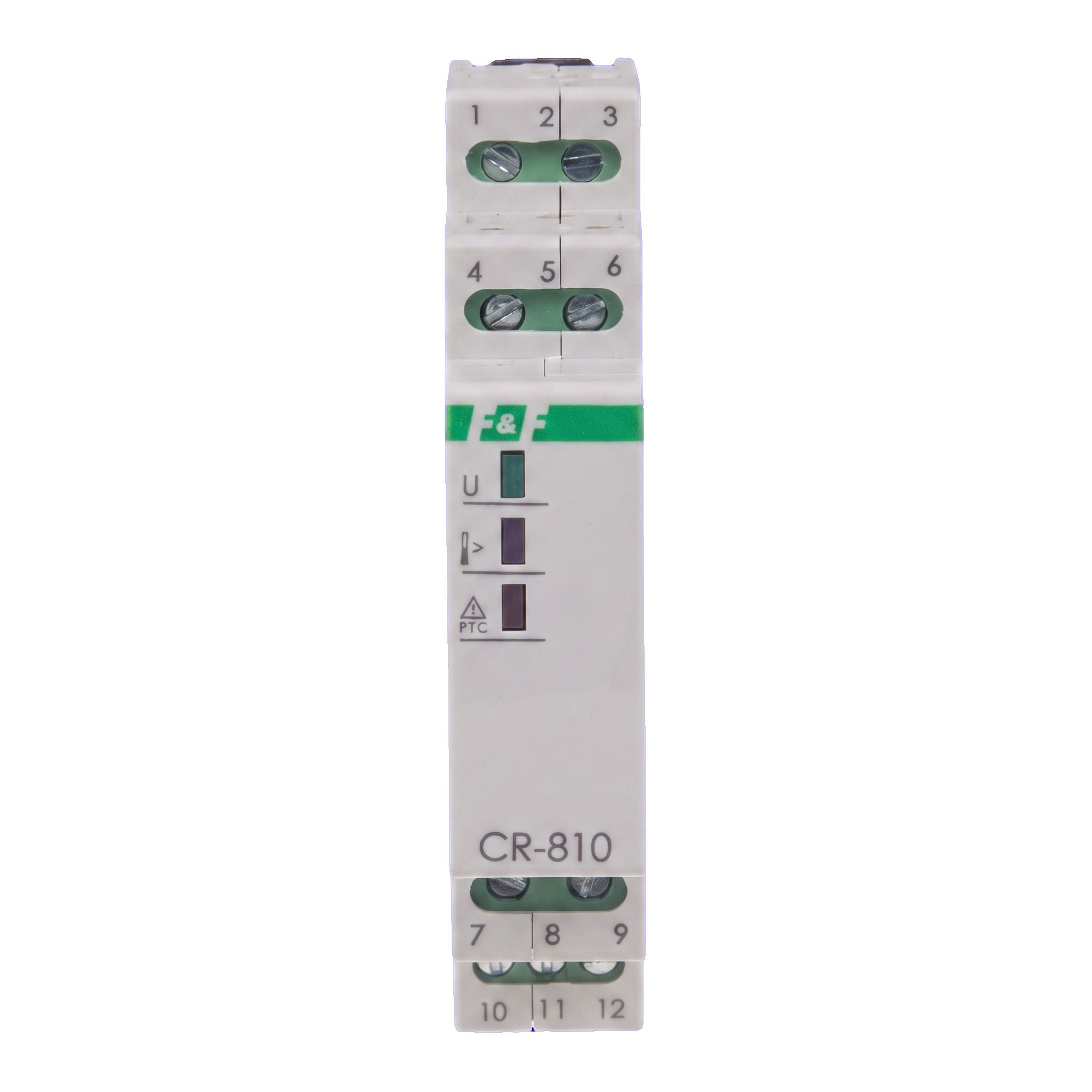

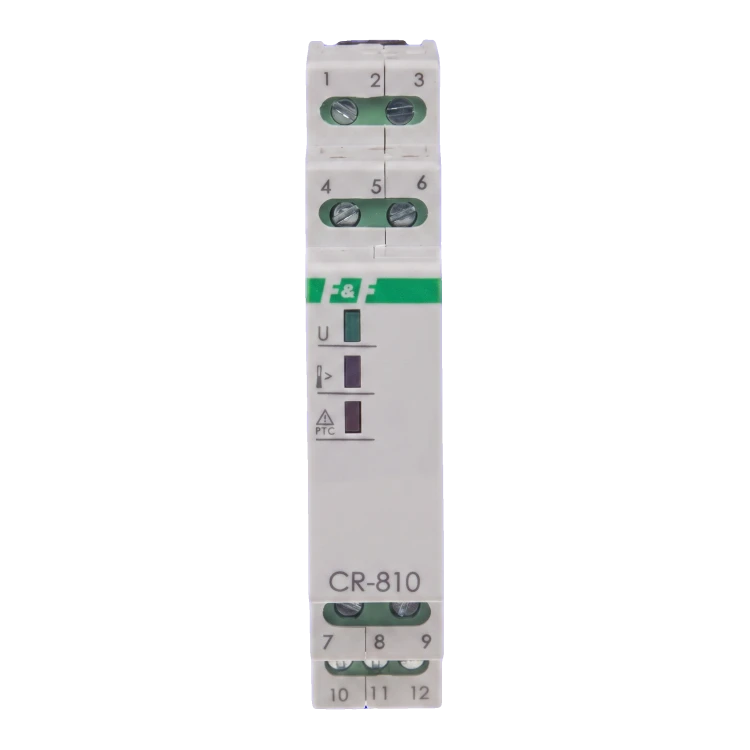

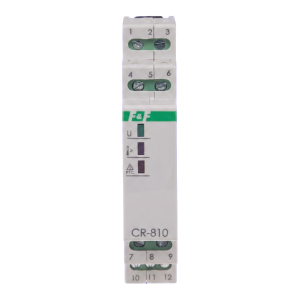

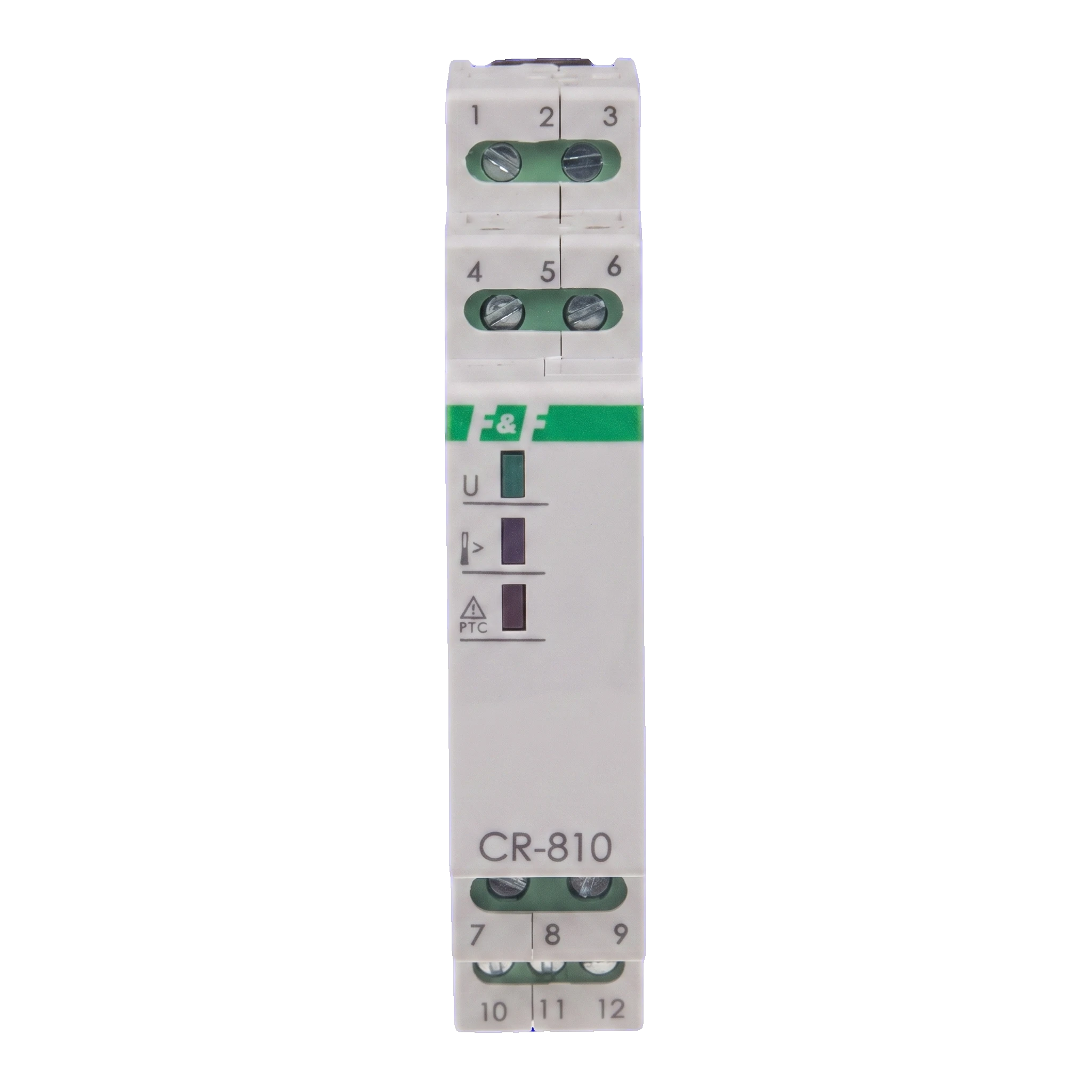

F&F CR-810DUO – PTC resistive relay for thermal protection of motors and transformers
Leave feedback on the product
F&F CR-810DUO resistive relay for thermal protection of motors and transformers, works with PTC sensors (max 6 pcs). Power supply 24 V DC/230 V AC, contact 1NO/NC, In 16 A. DIN rail mounting, 1 module, IP20, weight 0.074 kg.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] styczniki-i-przekazniki #98
- Device Type resistance relay
- Rated current [A] 16A
- Contact configuration 1NO/NC
- Coil voltage [V] 230V AC
- Brand F&F FILIPOWSKI
Description
F&F CR-810DUO – PTC resistive relay for thermal protection of motors and transformers
F&F CR-810DUO is a resistive relay designed for the thermal protection of electric motors, transformers and other equipment exposed to overheating. It works with PTC sensors – up to 6 sensors can be connected simultaneously, enabling multi-point temperature monitoring within a single circuit.
The device responds to a rapid increase in the resistance of the PTC sensor, which occurs when the permissible temperature of the protected components is exceeded. Relay activation is signalled by a red LED, and the 1NO/NC output contact allows the load to be switched off directly or an alarm signal to be sent to the controller.
The relay has a universal power supply – 24 V DC or 230 V AC – allowing it to be used both in low-voltage control circuits and in standard industrial switchboards. Its 1-module housing designed for DIN rail mounting ensures compact installation in control cabinets and electrical switchboards.
Applications
- Thermal protection of electric motors and pumps
- Protection of transformers against winding overheating
- Temperature monitoring in control cabinets and switchboards
- Thermal protection of industrial equipment with PTC sensors
Technical specification
| Parameter | Value |
|---|---|
| Manufacturer | F&F |
| Model | CR-810DUO |
| Function | resistive relay (thermal PTC) |
| AC supply voltage | 230 V |
| DC supply voltage | 24 V |
| Rated current (In) | 16 A |
| Contact type | 1NO/NC |
| Number of contacts | 1 |
| Contact separation | yes |
| Maximum number of PTC sensors | 6 |
| Signalling | red LED |
| Mounting | DIN rail |
| Width (modules) | 1 module |
| Protection rating | IP20 |
| Weight | 0.074 kg |
| EAN | 5908312595519 |
